Бесплатное программное обеспечение Канал Письмо Авто делая машину вода жидкость акриловый знак 3D печатная

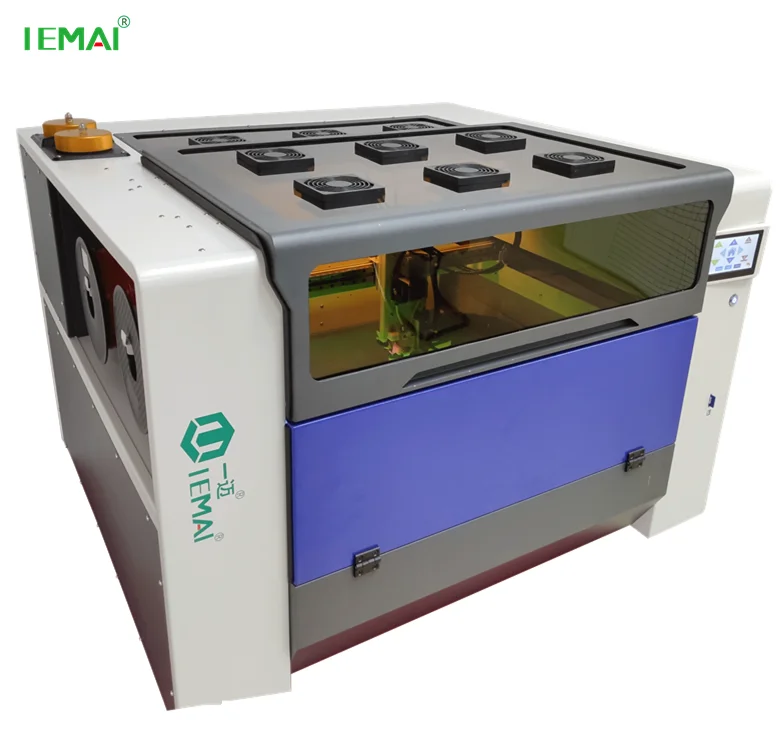

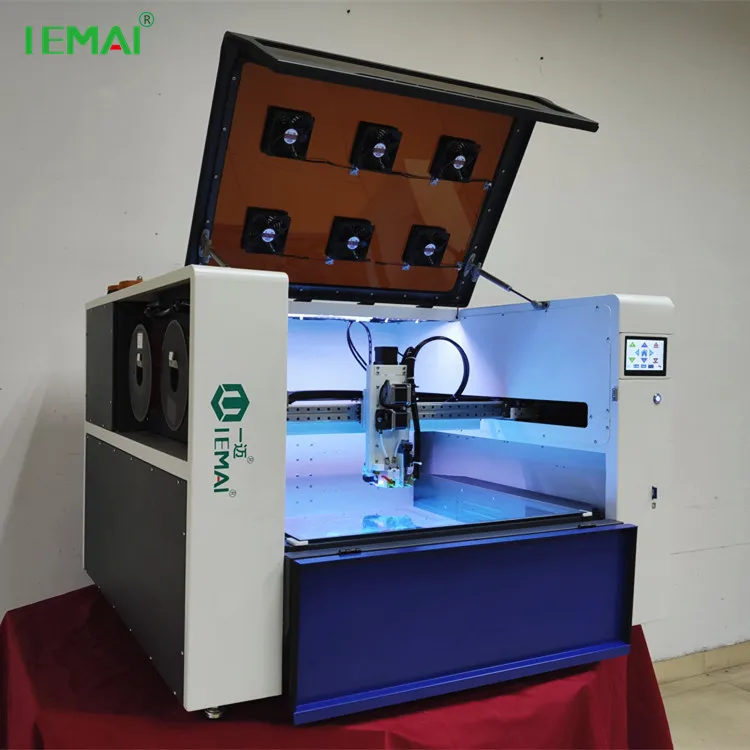

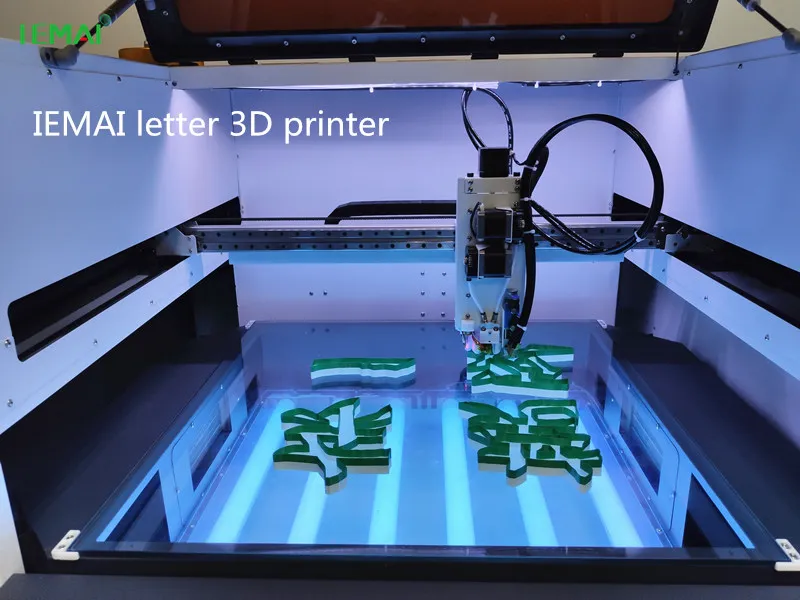

IMAI intelligent advertising letter 3D printer YM-AUTO-600 is an 3D printer based on the principle of fuse deposition (FFF) technology, and supports 3D printing + automatic filling + intelligent UV curing + printing substrate, etc. Function, all steps are completed automatically, truly realize one-stop intelligent letter making, only need to manually install the LED light strip to complete the production of luminous letters, with a closed constant temperature environment, support indoor and outdoor 3D printing materials .

IEMAI self-produced indoor, outdoor, blackout, light and other advertising materials, with smart advertising letter 3D printer YM-AUTO-600, announced the true entry into the intelligent era of luminous characters.The 3D luminous character overcome the constraints of the above conditions and greatly improve the market status.

Main parameter

Print temperature:265℃\t

Hotbed temperature: 80℃

Build size:600*600*100 mm

 Machine dimension:965*1100*800 mm

materials:PLA,PETG,PLA+,shading PETG, TPU, PVA, CARBON, etc..

Feature:

1.2 color printing, Quick release switch 2 in 1 out print head;

2.Automatic acrylic liquid filling;

3.Automatic UV curing;

4.Power Failure Recovery,filament sensor, automatic shutdown.

5.Colorful 5.0 inch multi-language touch screen.

6.Wi-Fi control;

7. Auto bed leveling .

Software:

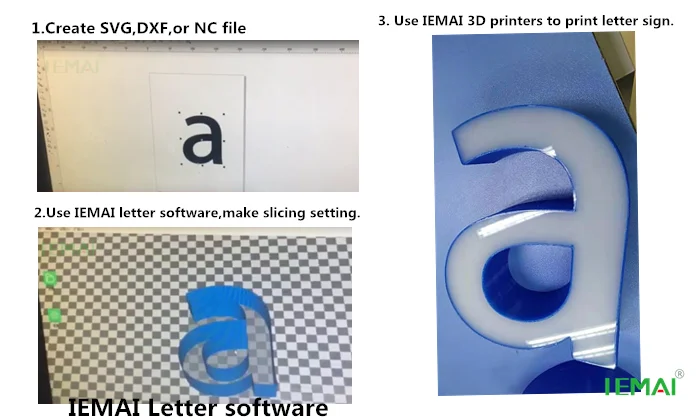

We provide free slicing software for letter 3D printing, only need SVG or DXF file.

Detail Parameters

Printing Technology: FFF\t

Build Volume:600*600*100mm

printer Dimensions:965*1100*800 mm

 Packing Dimensions:1015*1150*965+780*300*650mm

Max Printing Temperature: 265℃\t

Heating bed temperature:80℃

Y-axis drive: Timing belt + linear guide

 Z-axis drive: T type screw + linear guide

Net Weight:165 kg

 Packing Weight:195 kg

Build Platform:Glass\t

Layer Thickness:0.2-0.4 mm

Nozzles:2 in 1 out,Double/Single color printing\t

Nozzle Diameter: Standard 0.8 mm  (optional 0.4, 0.6 ,1.0mm)

Print Speed:0-150 mm/s\t

Supported File Types:.NC,.stl, .obj, .gcode

Support materials:PLA,WOOD,TPU,PETG,etc.\t

Filament Diameter:1.75 mm

Input:100~250V,50~60Hz 3200W+750W\t

Warranty:12 Month

Platform curing temperature:0-50℃\t

Slicing software: IEMAI online conversion platform, Cura, Simplify3D.

Software operating system: Windows\t

Connection method: SD card, Wi-Fi,USB.

Support functions:

fully automatic (3D printing + glue + curing),

automatic color change,

automati c leveling,

automatic shutdown after printing,

power failure continued,

bottom plate printing,

card slot printing,

export engraving path,

Forced exhaust system,

top heat dissipation ..

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

Each machine will have 1kg light pass letter 3D materials, 1kg non-light pass letter 3D material, 1 tool box as shown below, and free professional letter software.
