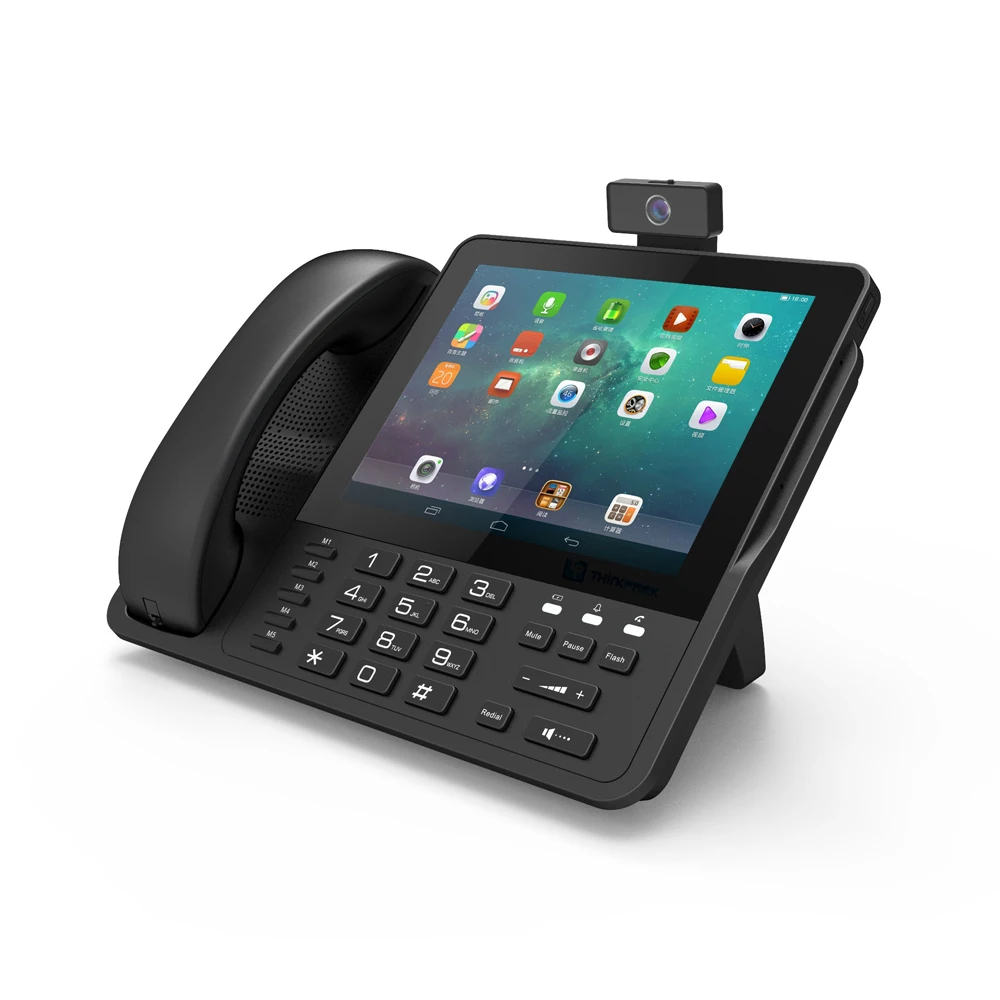

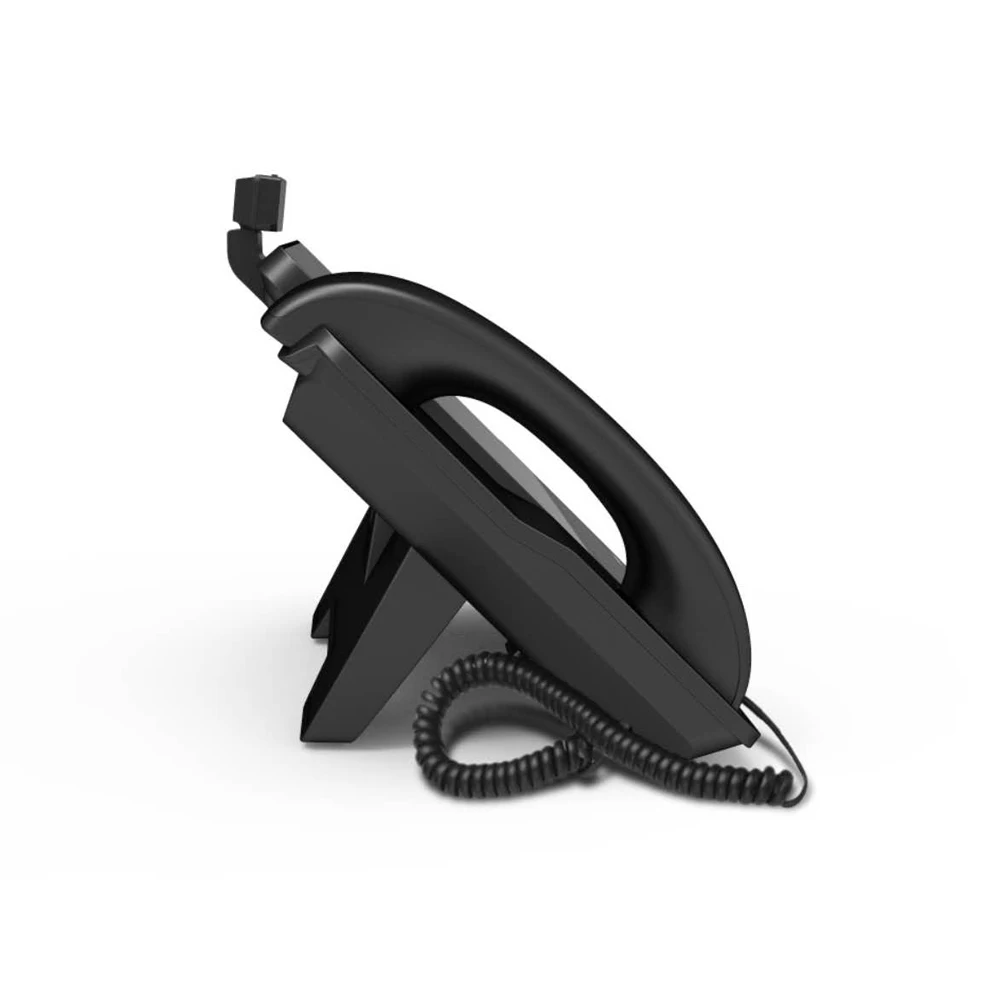

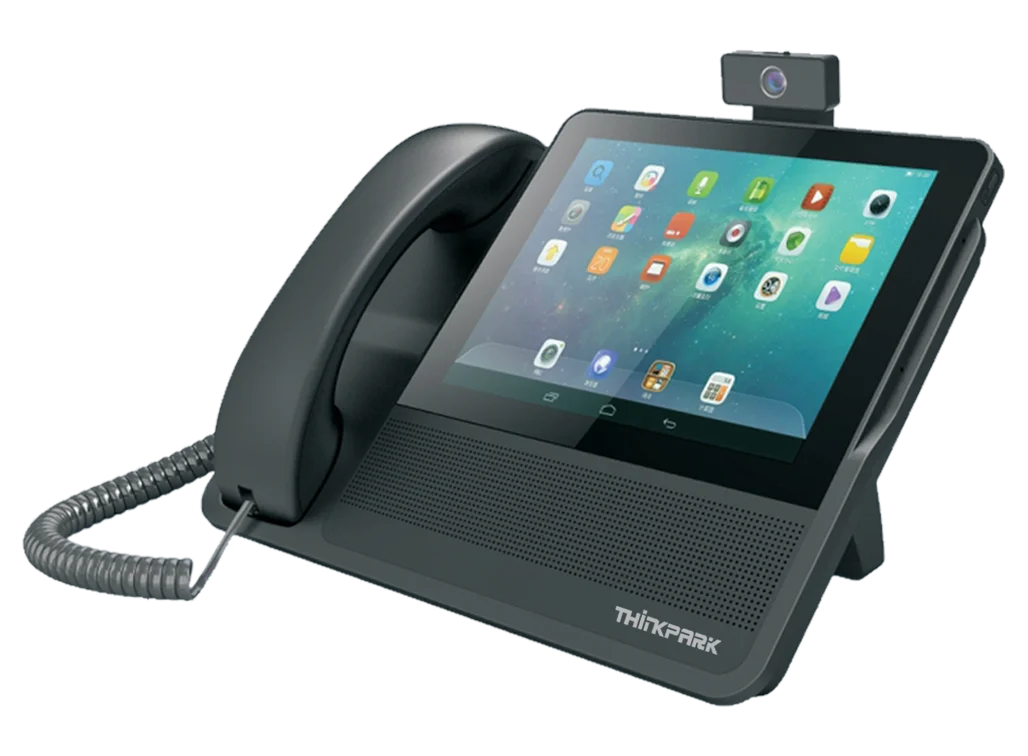

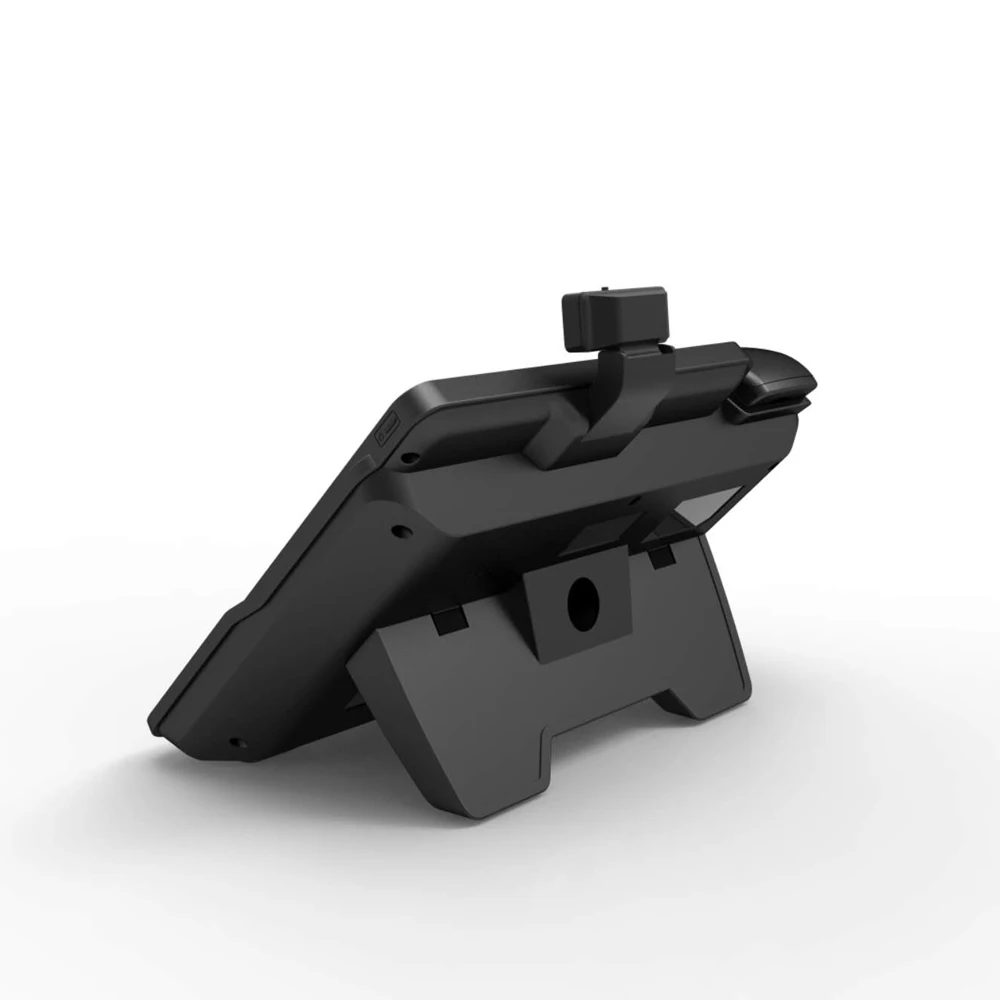

Desktop wireless smart HD video android sip phone



TP09 Multimedia telephone, using 4G LTE six-mode communication module, support HD voice calls; With android 5.1 system design, support application extension based on Open Android platform; 8 inch 1024 x 768 IPS HD resolution and multi-touch capacitive screen, support dual band WIFI connection (2.4 G / 5 G); Meantime, support RJ45 port; Support HDMI HD output, can connect TV, projection and other devices; The device is equipped with BT and wired earphones, which are suitable for different office occasions.



	TP09-M	TP09-S	TP09-A	TP09-R
Function description	4G Multimedia smart phone, support 4G voice and data	4G+VOIP	4G+PSTN	Only support VOIP
OS	Android5.1	Android5.1	Android5.1	Android7.1
LCD display	8”1024*768 IPS Capacitive touch screen	8”1024*768 IPS Capacitive touch screen	8”1024*768 IPS Capacitive touch screen	8”1024*768 IPS Capacitive touch screen
Camera	X	2.0 million pixels Can be covered and installed or plugged	X	2.0 million pixels Can be covered and installed or plugged
Video call	X	HD 1080P	X	HD 1080P
Built-in WIFI	802.11 b/g/n 2.4G/5G dual band	802.11 b/g/n 2.4G/5G dual band	802.11 b/g/n 2.4G/5G dual band	802.11 b/g/n 2.4G/5G dual band
Built-in BT	BLE 4.0	BLE 4.0	BLE 4.0	BLE 4.0
USB 2.0	*1	*1	*1	*1
RJ45 port	10/100M *1	10/100M *1	10/100M *1	10/100M *2
POE	X	X	X	802.3 af
SIP account	X	4	X	4
Handset	√	√	√	√
Power	12V input	12V input	12V input	12V input
Type of SIM	Nano SIM	Nano SIM	Nano SIM	X
Record	√	√	√	√



Introduction to characteristics and functions

• Based on the android native system design, support the seamless adaptation of third-party information software, greatly improve the desktop phone information means.
• Leading hardware echo cancellation and noise reduction processing, support HD audio calls.
• Support maximum 1080 p HD video communication, with leading dynamic video adjustment scheme; Real-time adjustment of HD phone state according to the network situation, especially in WIFI connection, there is unique wireless network HD video call processing mechanism.
• 5 G WIFI network support, relative to interfere with the complex of 2.4 G network, can support 2.4 G and 5 G dual-band WIFI network support, provide a better experience of wireless access.
• 4G network(FDD/TDD LTE)





Technical parameter

• 8 inch LCD capacitive touch screen, 1024×768 IPS HD solution
• Camera: 2.0 million pixels
• Built-in 2.4G/5G dual band WIFI, and built-in 4.0 BT
• Ethernet interface, USB2.0 port
• Android 5.1 system(can update to 7.1)
• 4 SIP circuits
• Support 4G network
• Support PSTN
• Voice coding support: PCMU,PCMA,G729,G723,GSM,SILK,G7221, ISAC, speex, ILBC,AMR, opus...
• Video coding support:H.264, H.263,VP8
• Video call resolution support: HD 1080P,HD 720P,720x480,352x288
• Echo cancellation: the leading dual-channel hardware echo cancellation and noise reduction design
• Support hands-free full-duplex communications
• Support SIP domain
• DTMF support: SIP info, INBAND, RTP
