Профессиональный производитель оборудование для прессования фильтров сырой

Профессиональный производитель оборудование для прессования фильтров сырой

Категория: Filter Press Equipment >>>
Поставщик: Henan,Double,Elephants,Machinery,I/E,Co.,Ltd.

Цена:1 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1785.52 $*	1874.83 $*
Aug-15-2025	1770.73 $*	1859.20 $*
Jul-15-2025	1485.98 $*	1559.2 $*
Jun-15-2025	1740.48 $*	1827.36 $*
May-15-2025	1515.21 $*	1591.97 $*
Apr-15-2025	1710.90 $*	1796.25 $*
Mar-15-2025	1695.15 $*	1780.33 $*
Feb-15-2025	1680.86 $*	1764.7 $*
Jan-15-2025	1665.89 $*	1748.72 $*

Характеристики

Professional manufacturer crude oil filter press for oil

Product Description

Filter press is Solid-Liquid separation machine, Widely used in coal washing, tailing disposal, ceramics, pharmaceutical, metallurgy, mining, chemical industrial, alcohol, petroleum, fuel, edible, medicine, sewage treatment, de-waxing, oil filtration, waste water treatment, environmental protection, textile, printing,dyeing, paper making,sewage treatment, cyanide leaching process and other fields.

Our company produces various models of Chamber filter press, plate-frame filter press, mechanical filter press, hydraulic filter press,membrane filter press, full-automatic filter press and all kinds of filter press spare parts; Model include 320, 450, 630, 800, 1000, 1250, 2000; Filter area from 1 up to 1000 square meter. The filter plate material can be pp, SS, cast iron, etc.

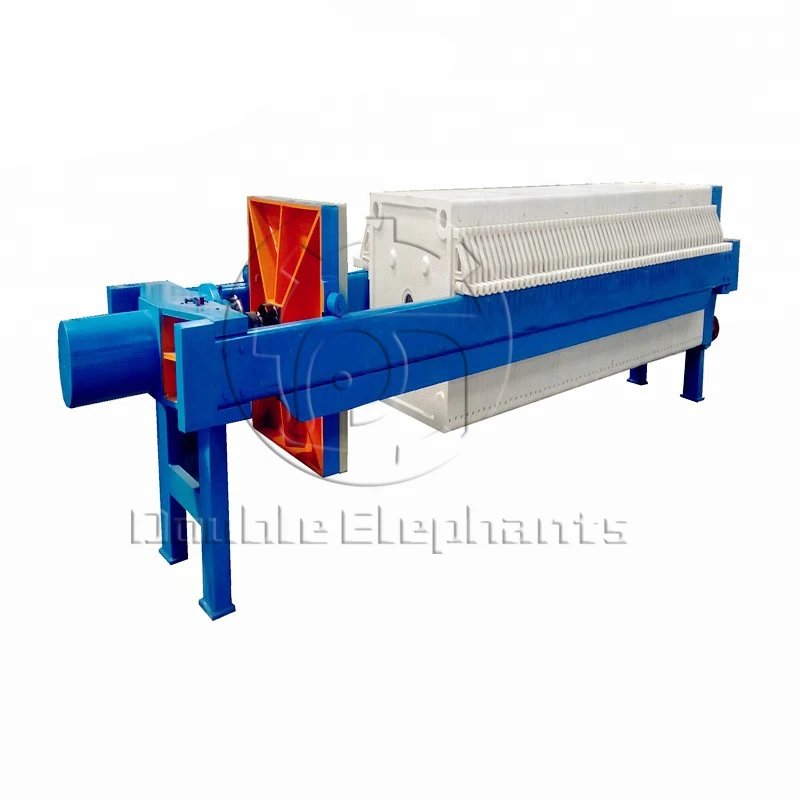

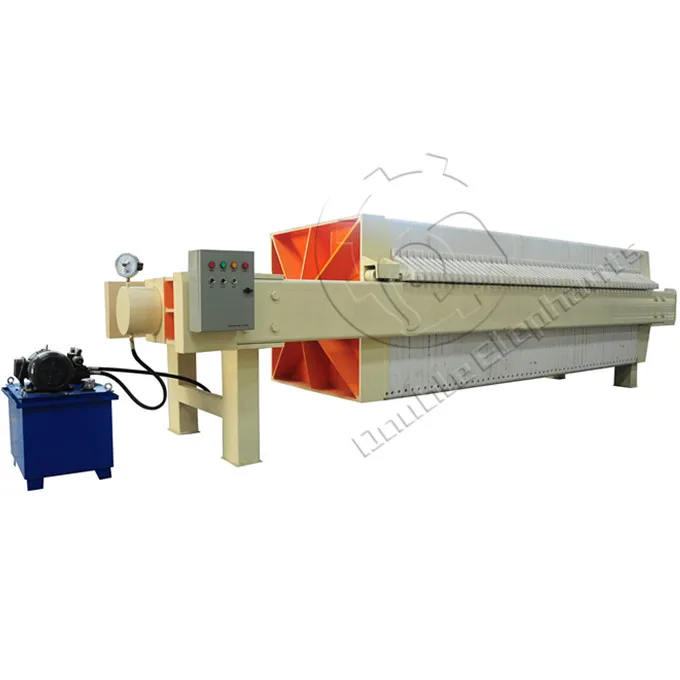

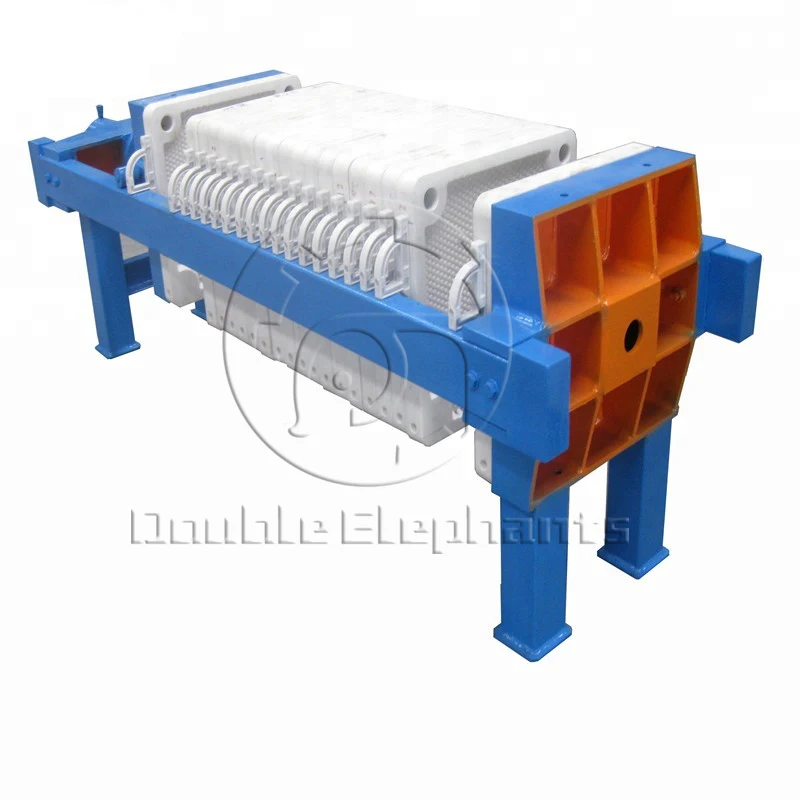

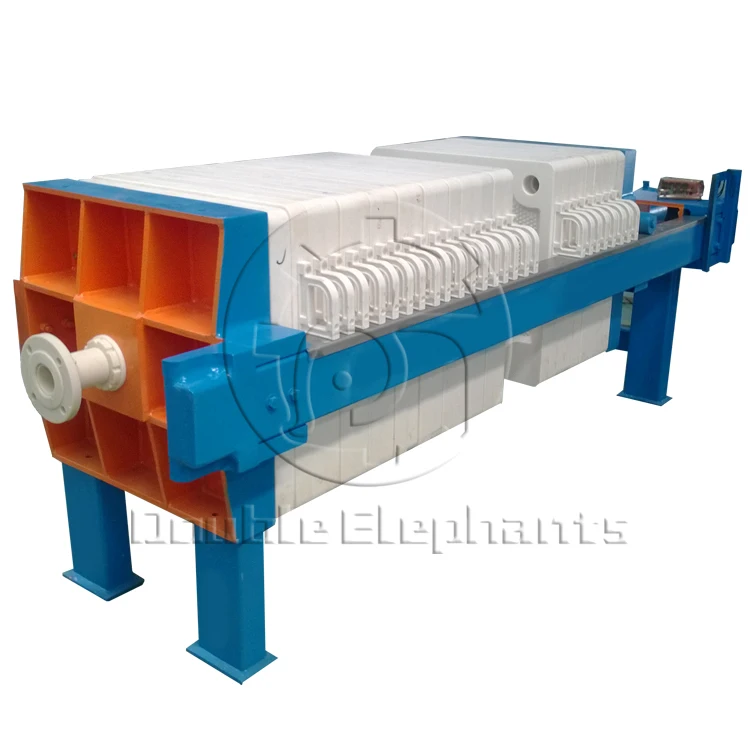

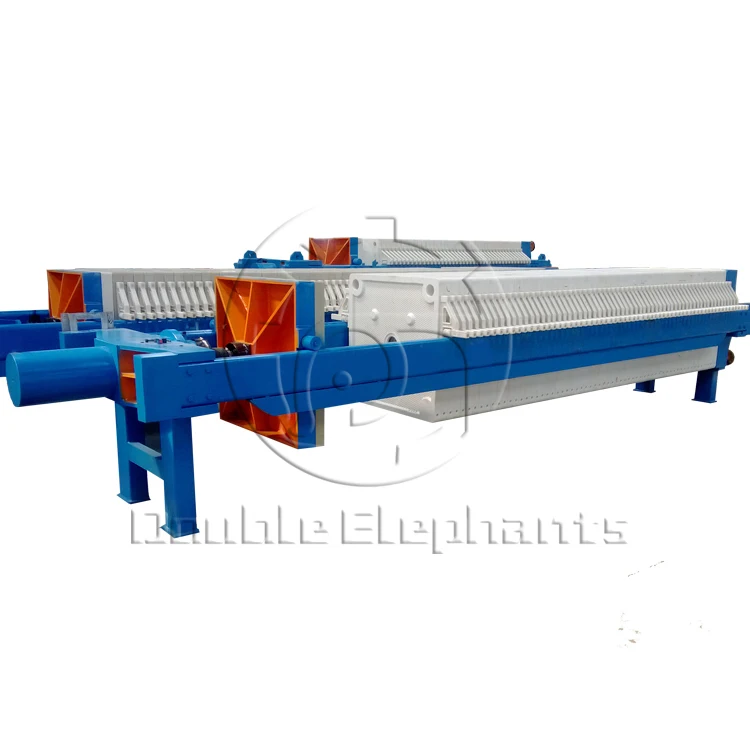

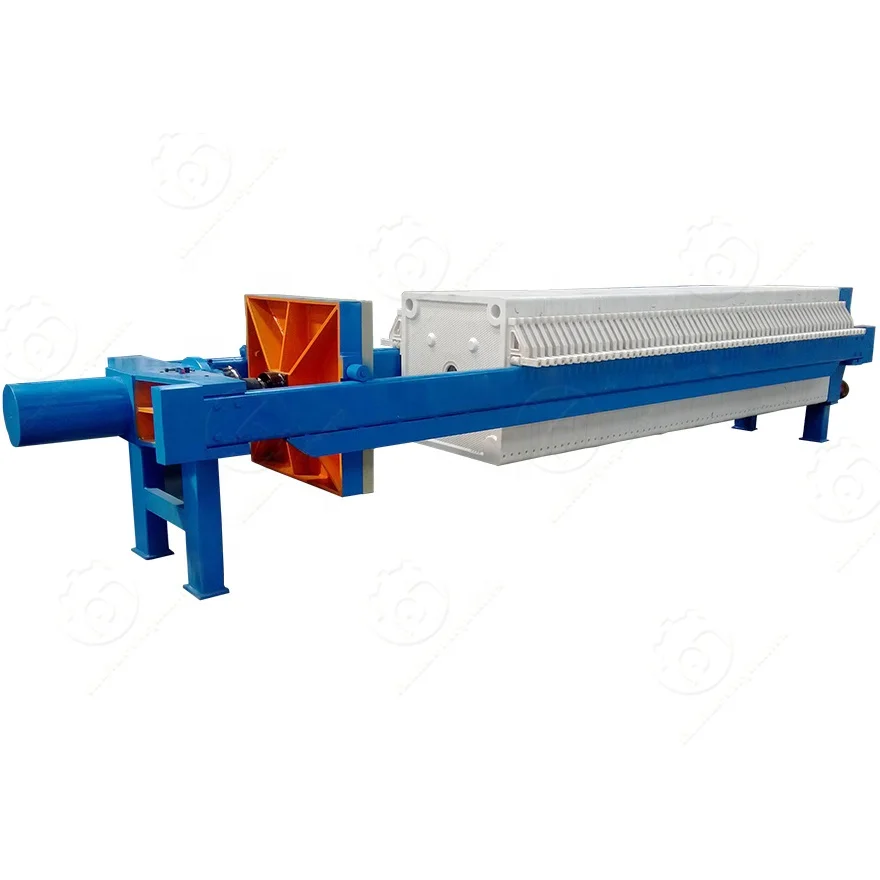

The filter press precisely made by high quality carbon steel, consists of frame, jack, press plate, thrust plate, filter,plate and filter cloth.

Edible oil leaf filter plate and frame silo oil filter press machine is widely used in coal washing,tailing disposal, ceramics, pharmaceutical, metallurgy, mining, chemical industrial, alcohol,petroleum, fuel, edible, medicine, sewage treatment, dewax, oil filtration, waste water treatment, environmental protection, textile, printing,dyeing, paper making,sewage treatment, cyanide leaching process and other fields.

Model	Filter area(m2)	Plate/frame(pc)	Plate Size (mm)	Max pressure(MPa)	Outsize (mm)	Power (kw)	Weight (kg)
HPLB-450 HPLB-500	5	11/12	450x450	0.8	1680x860x860	3	700
HPLB-450 HPLB-500	10	21/22	450x450	0.8	2400x860x860	3	1000
HPLX-650	15	18	650x650	0.6	3090x1160x1160	3-5.5	1500
	20	24			3200x1160x1160		1900
	30	37			3700x1160x1160		2100
	40	49			4470x1160x1160		2400
HPLX-800	50	38	800x800	0.5	4200x1400x1400	> 4	3000
	60	46			4600x1400x1400		3300
	70	54			5100x1400x1400		3600
	80	62			4200x1400x1400		3900
HPLX-1000	90	51	1000x1000	0.6	5370x1500x1360	3	4300
	100	57			5700x1500x1360		4600
	120	68			6400x1500x1360		5000

Features and Characteristics

1. The oil filter press Equip high-pressure and low-noise oil pump.

2. High oil filtering rate.

3. Low maintenance cost and energy consumption.

Usage:

Suitable for clearing and filtering the different plant rude-oil, also it could clear the waste water,waste cooking oil . Use the smaller mesh filtering cloth ,which could be used for clearing the bio diesel oil .
