GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Профессиональный для вертолетной базы или солнечного ветра код/ICAO площадки носок взлетно-посадочной полосы анемометр с сигнальный
- Категория: LED-огнеупоры предупреждения о препятствии для ЛА >>>
- Поставщик: Shenzhen,Anhang,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.22 $* | 0.20 $* |
| Aug-16-2025 | 0.90 $* | 0.17 $* |
| Jul-16-2025 | 0.75 $* | 0.2 $* |
| Jun-16-2025 | 0.47 $* | 0.50 $* |
| May-16-2025 | 0.88 $* | 0.81 $* |
| Apr-16-2025 | 0.93 $* | 0.41 $* |
| Mar-16-2025 | 0.38 $* | 0.73 $* |
| Feb-16-2025 | 0.86 $* | 0.55 $* |
| Jan-16-2025 | 0.82 $* | 0.2 $* |
Характеристики

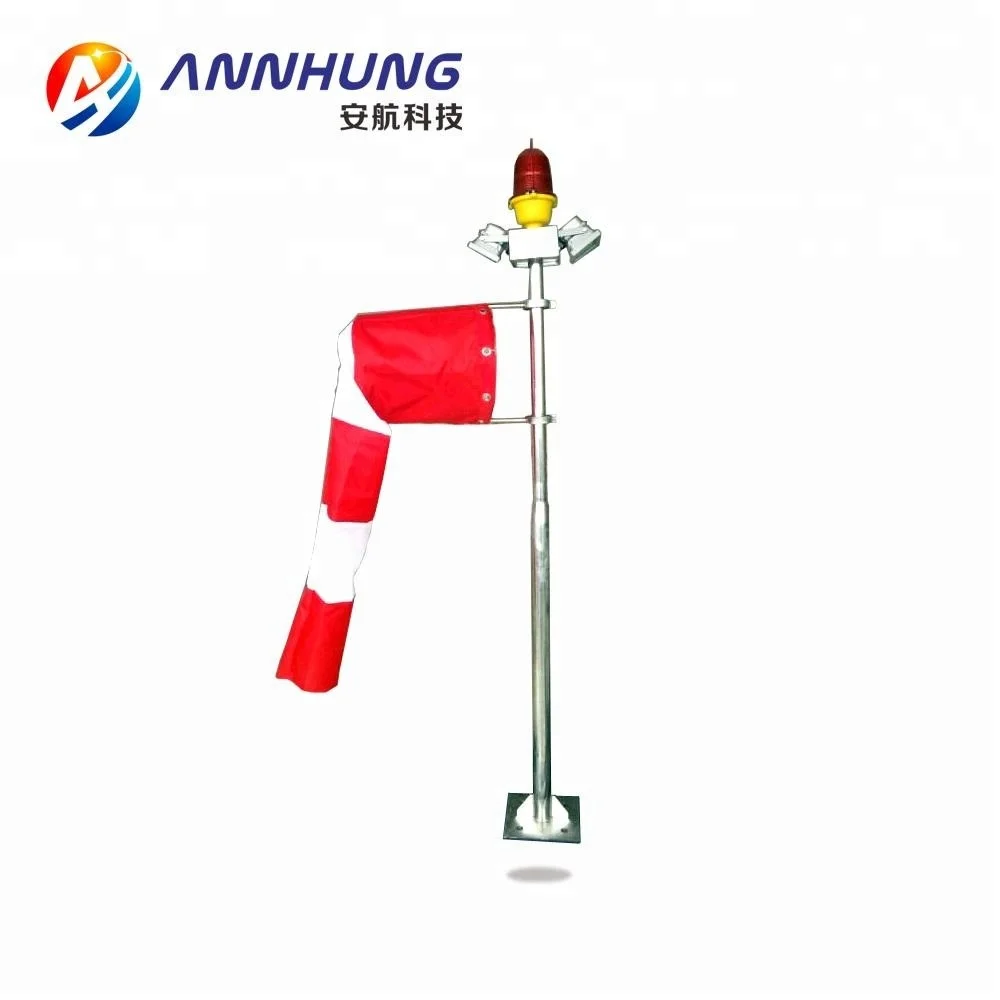

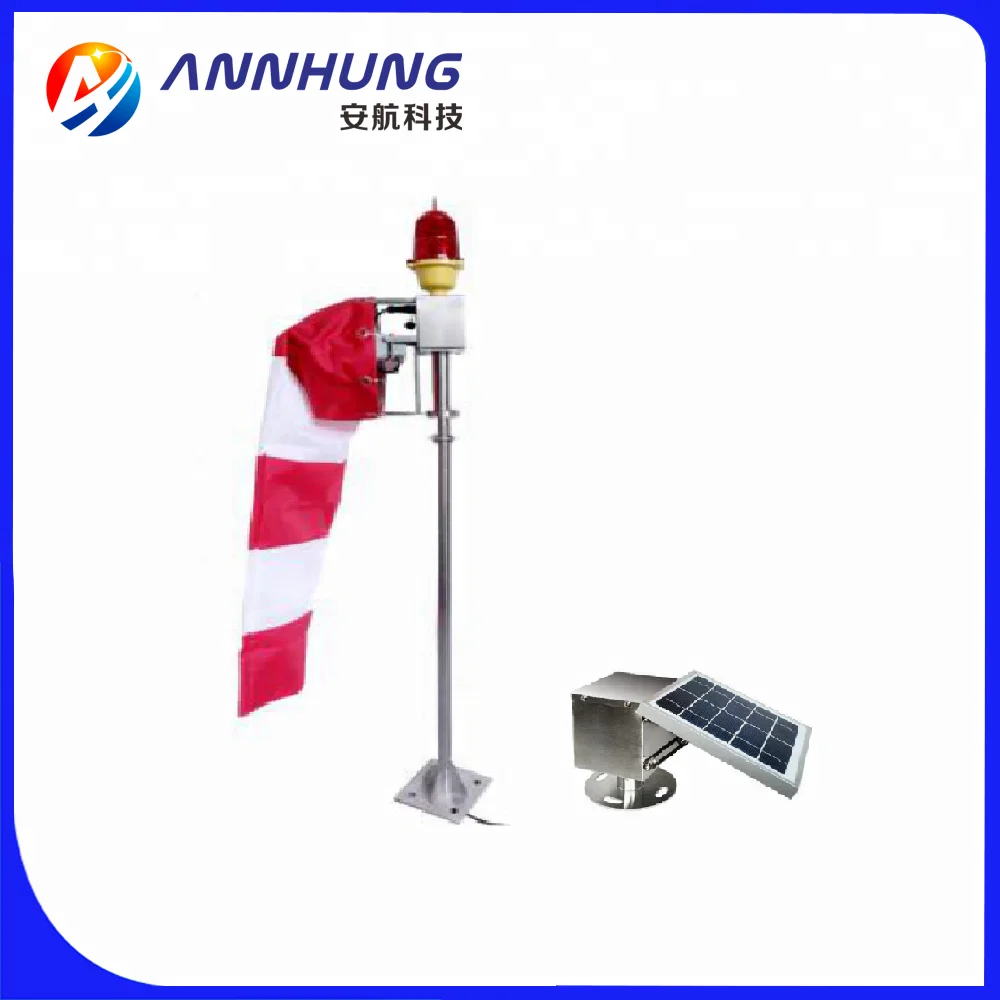

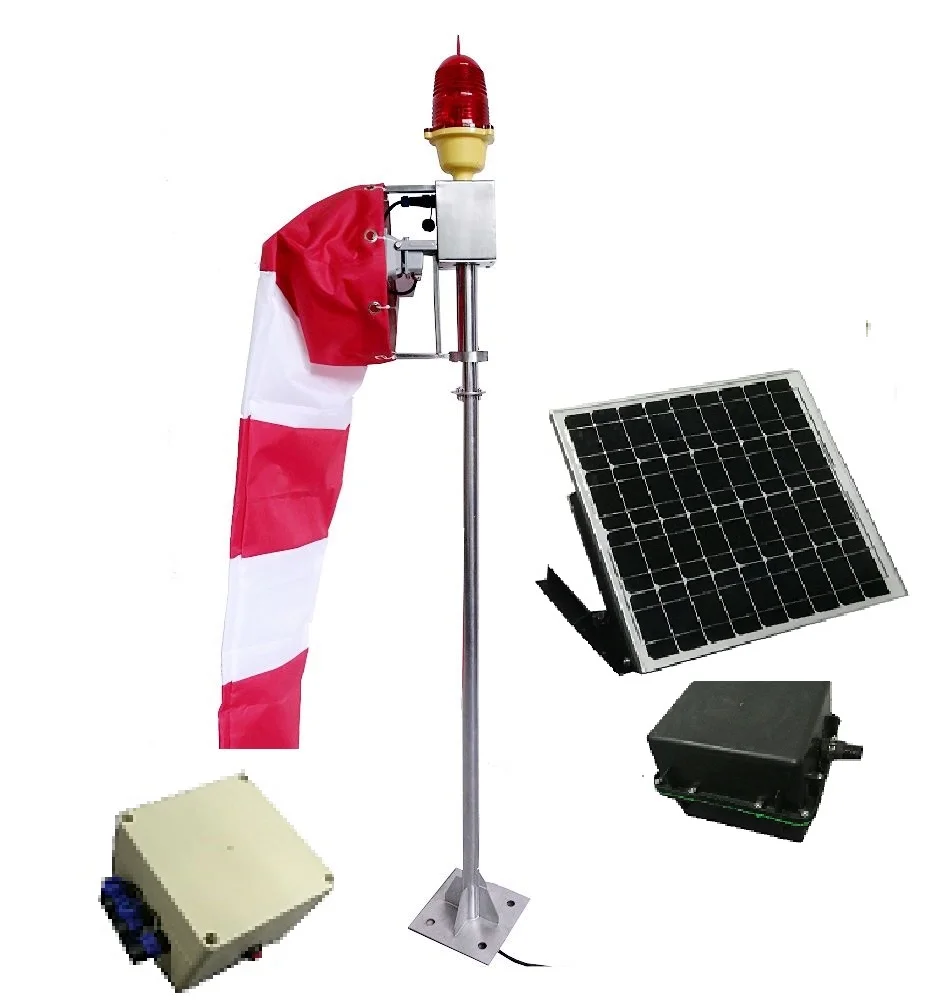

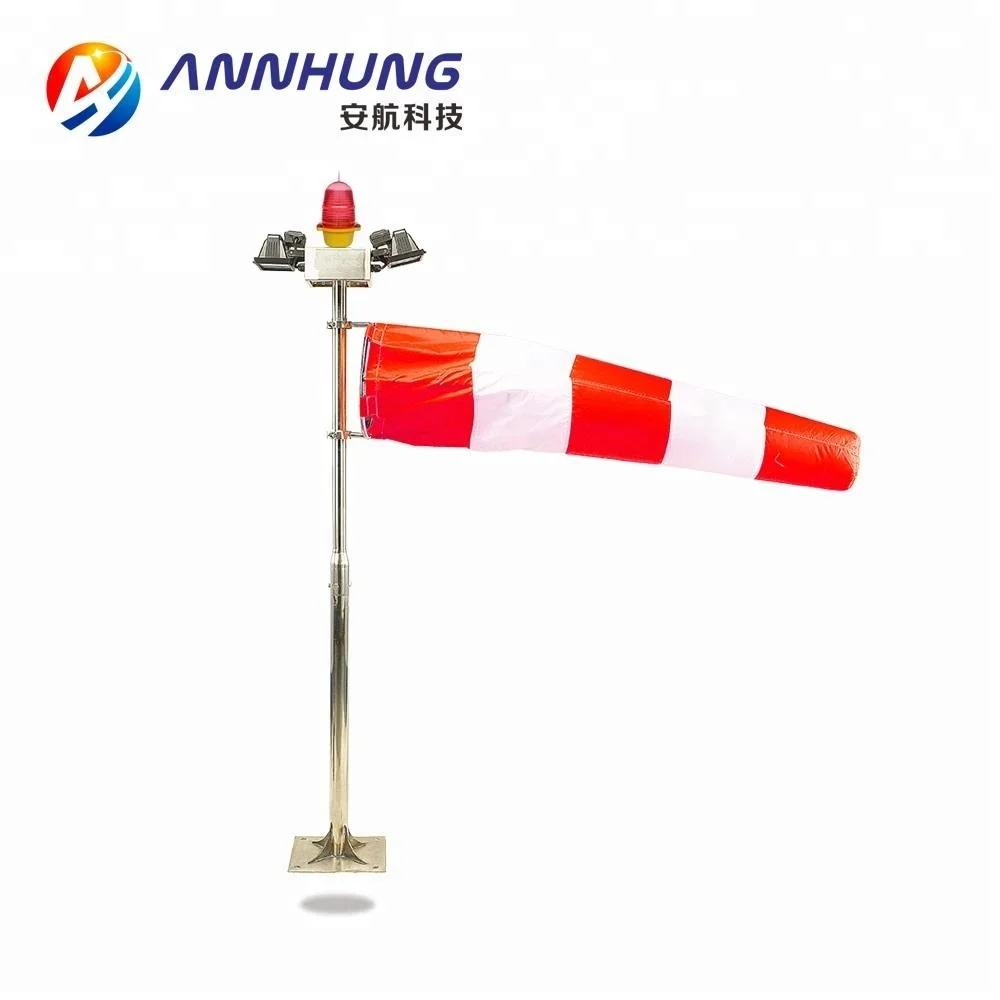

High Heliport Solar Wind Code/ ICAO Helipad Wind Sock Airfield Wind Indicator with Obstruction Light
Product Description
An aerodrome shall be equipped with at least one wind cone as wind direction indicator.
The flood light for illumination is inside wind sock, it will rotate together with windsock too.
One obstruction light on top for aircraft warning.
Application:
Wind cone is used in airport and helipad fields for indicating final approach and taking off wind direction.
Compliance
ICAO Annex 14 Volume Heliports 5.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features:
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Pole is made of corrosion resistance and wind resistance stainless
steel 304(SS316 is optional)
One obstruction light on top, one flood light for illumination
Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m...)
Windsock color is: orange(Nylon), red/white(PVC)
Windsock dimension:
Pole height:<4m, Length: 1.2m, big diameter: 300mm, small
diameter: 150mm
Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm,
small diameter: 300mm
Pole height: >6m, Length: 3.6m, big diameter: 900mm,
small diameter: 450mm
Other size is customized.
Frangible coupling is optional
Optional: 3 Metllaic cord for ground fixation at 120°space
Optional: Extra movable part of the base to be rotated to 90°to
lower the windsock for maintenance

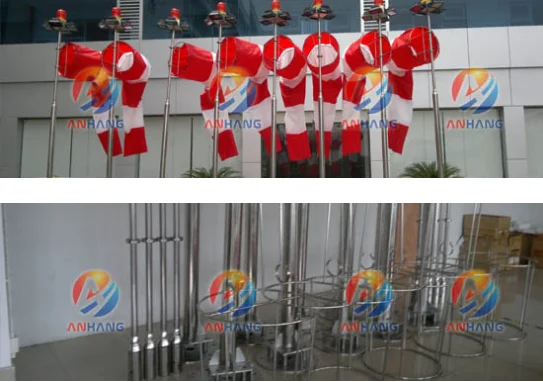

Product Photos
Company Information
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com www.ahicao.com
FAQ
1. Can I have a sample order for obstruction light?
Yes, we welcome sample order to test and check quality.
2. What about the lead time?
Sample needs 1-3 days, mass production needs 1-2 weeks for order quantity more than 100 units.
3.Do you have any MOQ limit for aviation obstruction light order?
Low MOQ, 1pc for sample checking is available.
4.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It normally takes 3-5 days to arrive. Airline and sea shipping also optional.
5.How to proceed an order for obstruction light?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
6.Is it OK to print my logo on led obstruction light product?
Yes. Please inform us formally before our production and confirm the design firstly based on samples.
7.Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
Packaging & Shipping
Our Services
After-sales service
1.2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
