Ic60n/ic65n merlin gerin автоматический выключатель 4 полюса mcb 63

Ic60n/ic65n merlin gerin автоматический выключатель 4 полюса mcb 63

Категория: Circuit Breakers >>>
Поставщик: Yueqing,Yougu,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.42 $*	0.10 $*
Aug-16-2025	0.54 $*	0.65 $*
Jul-16-2025	0.96 $*	0.26 $*
Jun-16-2025	0.14 $*	0.56 $*
May-16-2025	0.17 $*	0.88 $*
Apr-16-2025	0.76 $*	0.68 $*
Mar-16-2025	0.89 $*	0.11 $*
Feb-16-2025	0.98 $*	0.8 $*
Jan-16-2025	0.28 $*	0.95 $*

Характеристики

Product Parameters

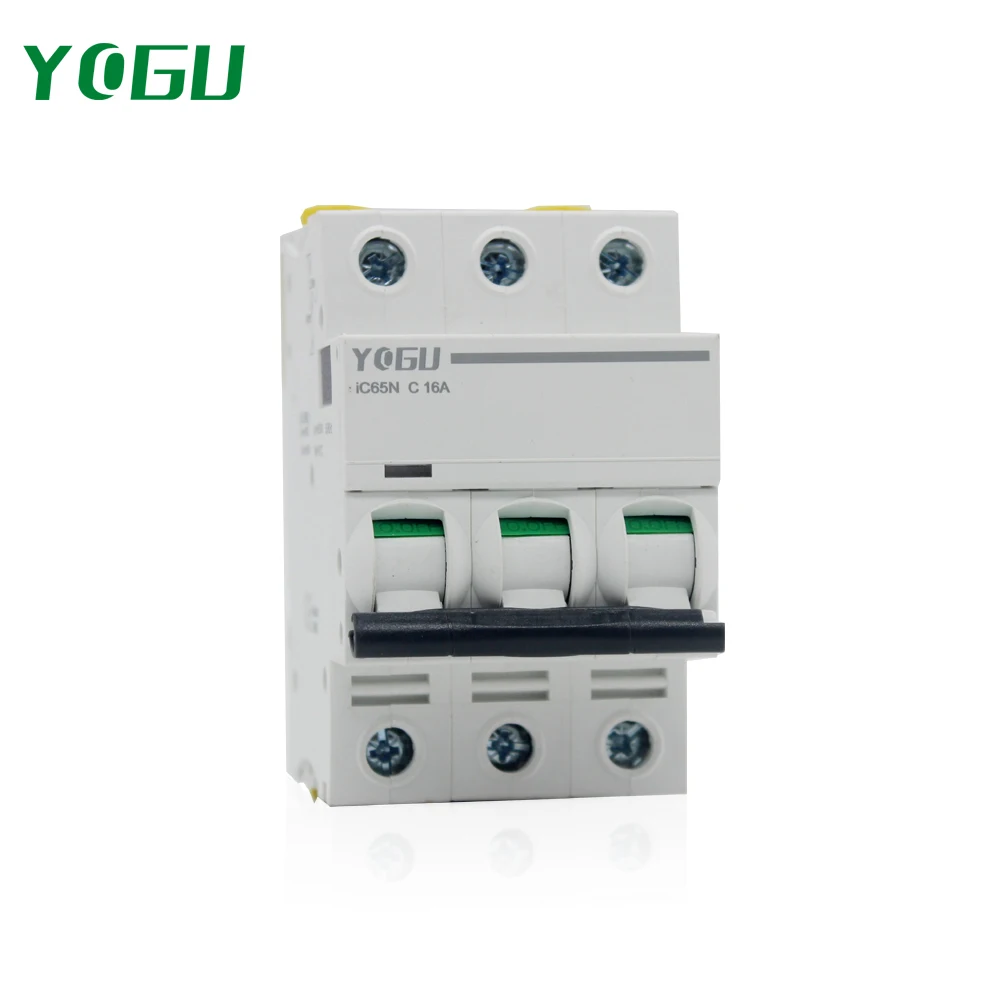

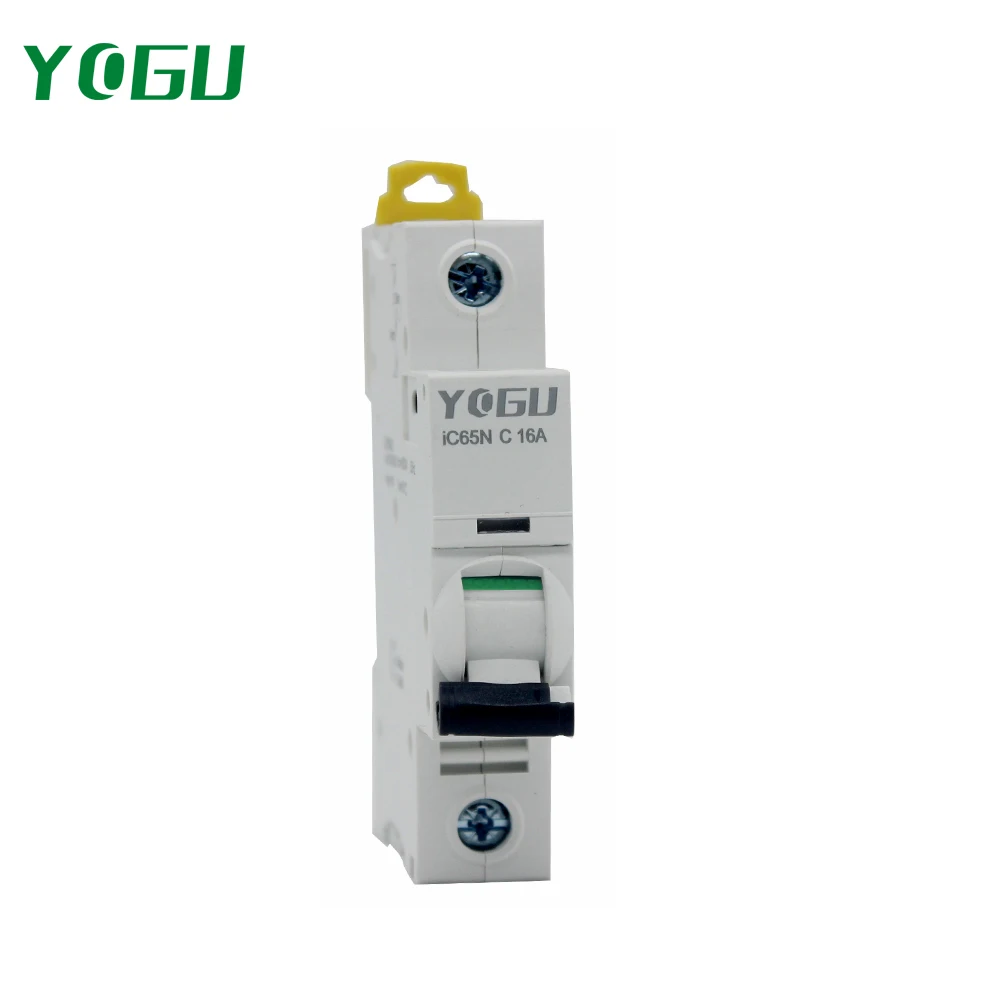

IC65N series miniature circuit breaker

is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.

Function and Feature

1.Protection against both overload and short circuit, the function of isolation
2.High short circuit capacity
3.Pin/fork type busbar terminal connecting
4.18mm DIN rail mounting and screw mounting
5. Full range accessories are available.

\t Rated Current In	\t 1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A
\t Poles	\t 1P 2P 3P 4P 1P+N 3P+N
\t Rated Voltage Ue	\t 1P: 230/400V 2P/3P/4P: 400V
\t Rated Breaking Capacity	\t 6000A/10000A
\t Thermo-magnetic release characteristic	\t B C D
\t Rated impulse withstand voltage(1.2/50) Uimp	\t 6KV
\t Dielectric test voltage at and ind. freq.for 1 min	\t 2KV
\t Pollution Degree	\t 2
\t Protection Degree	\t IP20
\t Electrical Life	\t 8000
\t Mechanical Life	\t 10000
\t Combination with Accessories	\t Auxiliary, Alarm, Shunt Release, Under Voltage Release
\t Circumstance Temperature	\t -5°C~+40°C
\t Certificate	\t CE CB SEMKO SAA CCC TUV
\t Guarantee	\t 2YEARS

Product Details

Product Inspection

Yueqing Yougu Electric Co., Ltd

is a professional manufacturer of kinds of circuit breakers, ac contactors, SPD, motor protectors, and distribution boxes, etc. We specialized in the field of low-voltage electric appliances for more than 15 years. Providing customers with quality products and professional services is our goal.
