6000m 3/h электростатический осадитель esp для обжарки

6000m 3/h электростатический осадитель esp для обжарки

Категория: Gas Disposal Machinery >>>
Поставщик: Nanning,Juwei,Machinery,And,Electricity,Technology,Co.,Ltd.

Цена:582,09 $ - 623,88 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	693.34 $*	728.78 $*
Aug-16-2025	687.84 $*	721.29 $*
Jul-16-2025	576.97 $*	605.93 $*
Jun-16-2025	675.43 $*	709.18 $*
May-16-2025	588.22 $*	617.96 $*
Apr-16-2025	663.21 $*	696.25 $*
Mar-16-2025	658.11 $*	691.90 $*
Feb-16-2025	652.52 $*	685.92 $*
Jan-16-2025	646.92 $*	678.99 $*

Характеристики

Product description

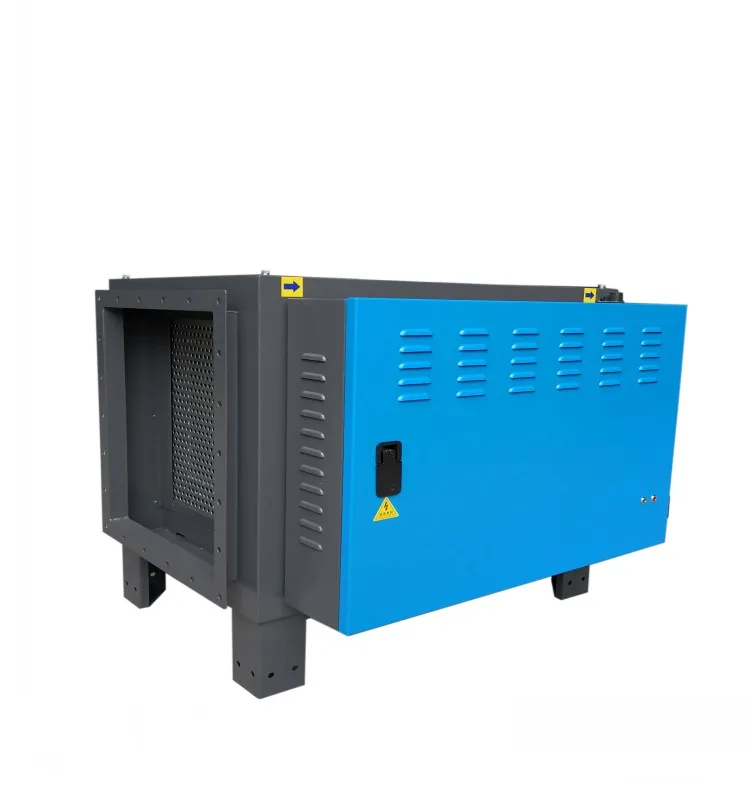

Electrostatic precipitator

China juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke,which caused by cooking&grilling&lasering&hot-heating...ect. Using the force of high voltage electric field, charged the particles to positive and negative potemtial, then they will be collected by the negative/positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.

Air volume(m3/h)	4000
Size(LWH)mm	543862702
Flange size(mm)	584*463
Rated power(w)	48
Input power	220v/50hz
Electric quantity	1
Weight（kg）	52

UV Series

The dual-band UV photolysis matrix can effectively degrade the passing odor gas, remove the odor, and the structure of the patch type is convenient for maintenance and cleaning

Details Images

High-voltage

Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture
efficiency, both of our ioniser and collector cell use very high voltage.

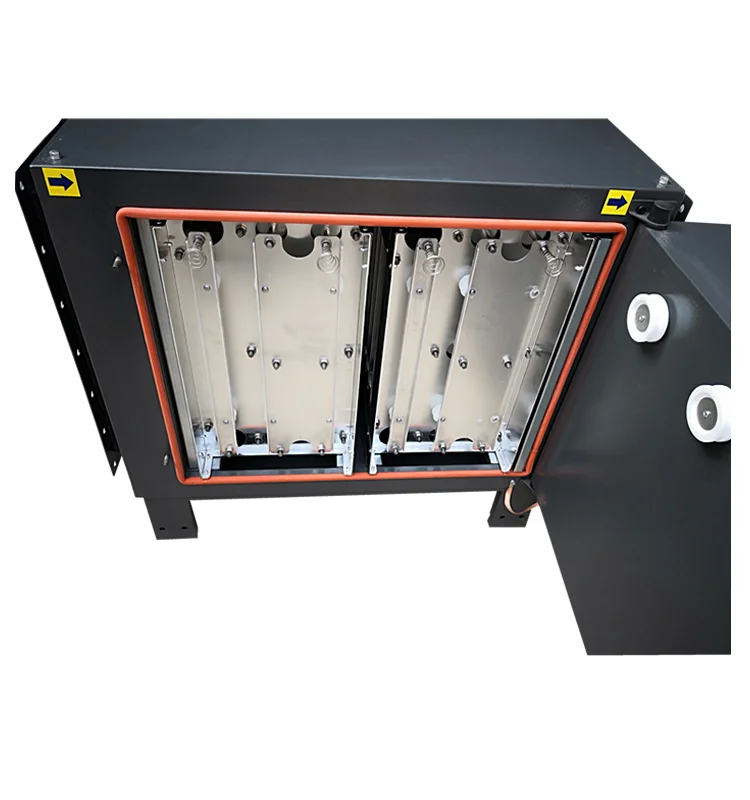

High-efficiency electric field

Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.

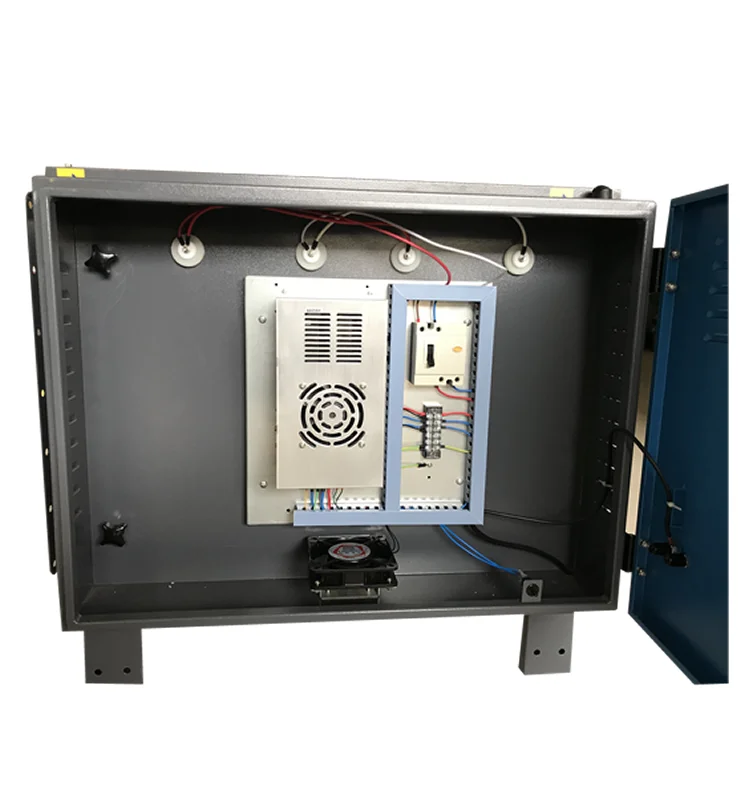

Inside cooling fan

There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.

Fine mesh

The inlet and outlet are covered with honeycomb mesh to prevent foreign bodies from entering, and the purification effect is more obvious

Compare

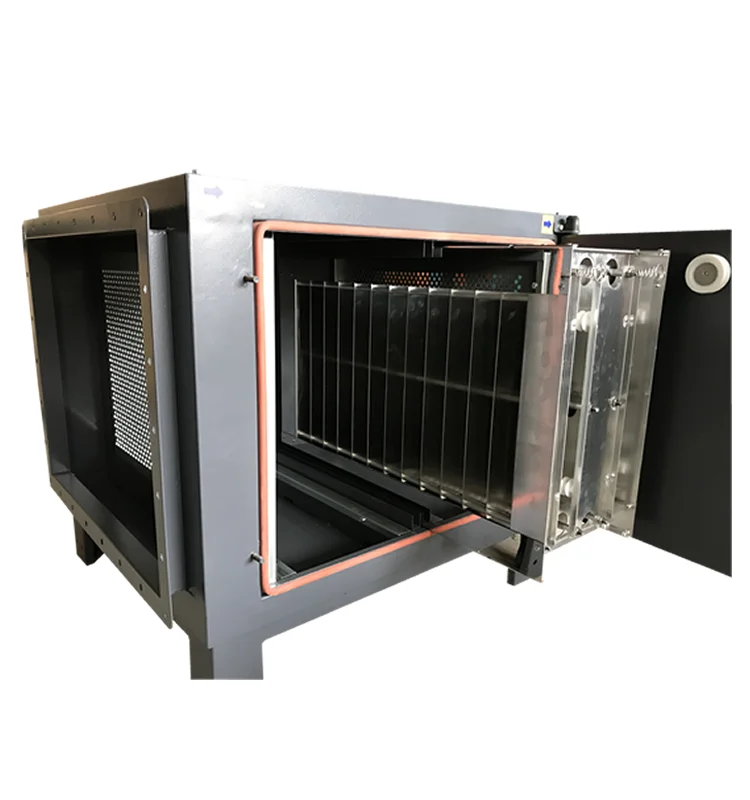

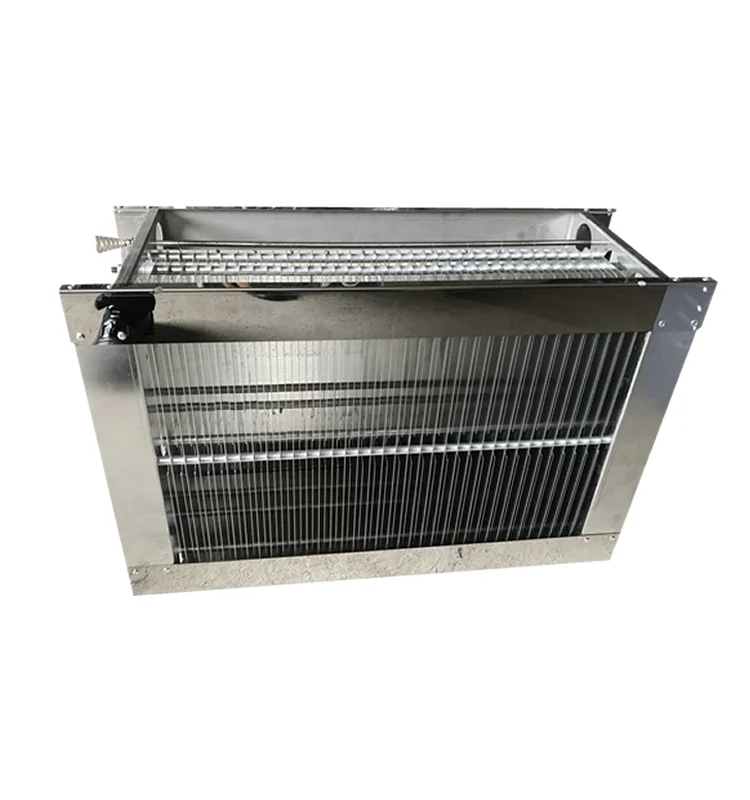

Plate structure purifier

1. The collection section consists of many parallel plates, resistant to dirt and easy to clean

2.small size,save cost
3.low power consumption,power saving

Honeycomb structure purifier

1. Easy to accumulate oil, high maintenance costs

2. large in size, Additional logistics costs, freight charges and so on
3. more power consumption

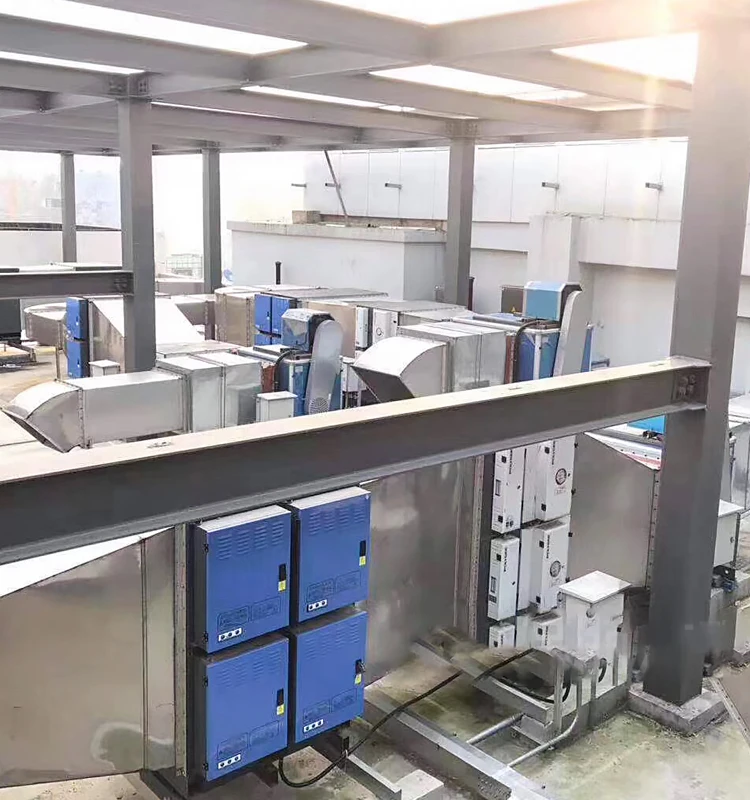

Application &Installation

The ESP cleaner should be installed before exhaust fan

Our machine is typical application include commercial kitchen exhausts, supermarkets, hotels, schools, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.
