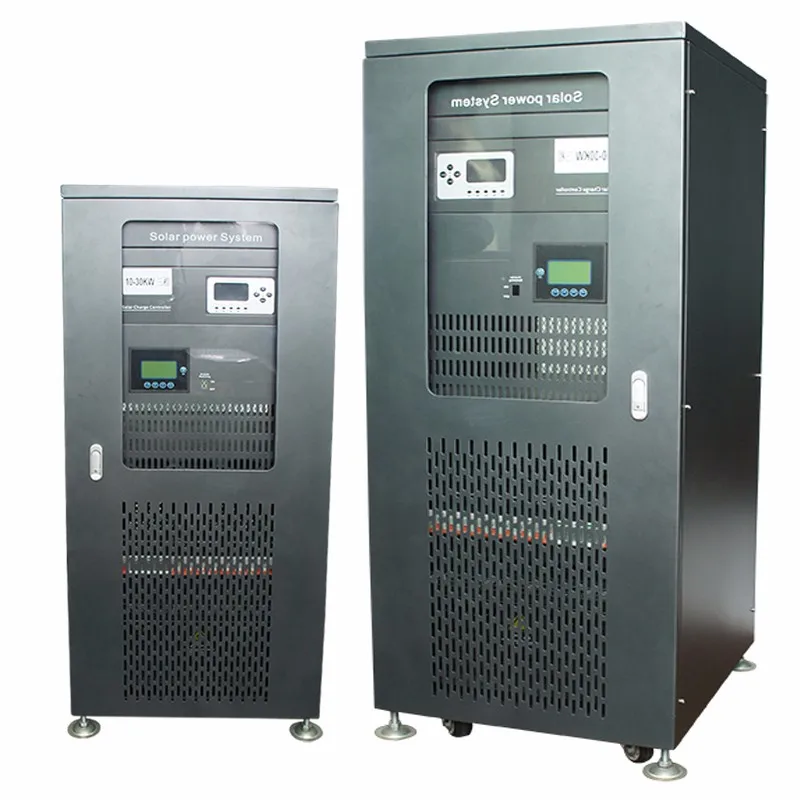

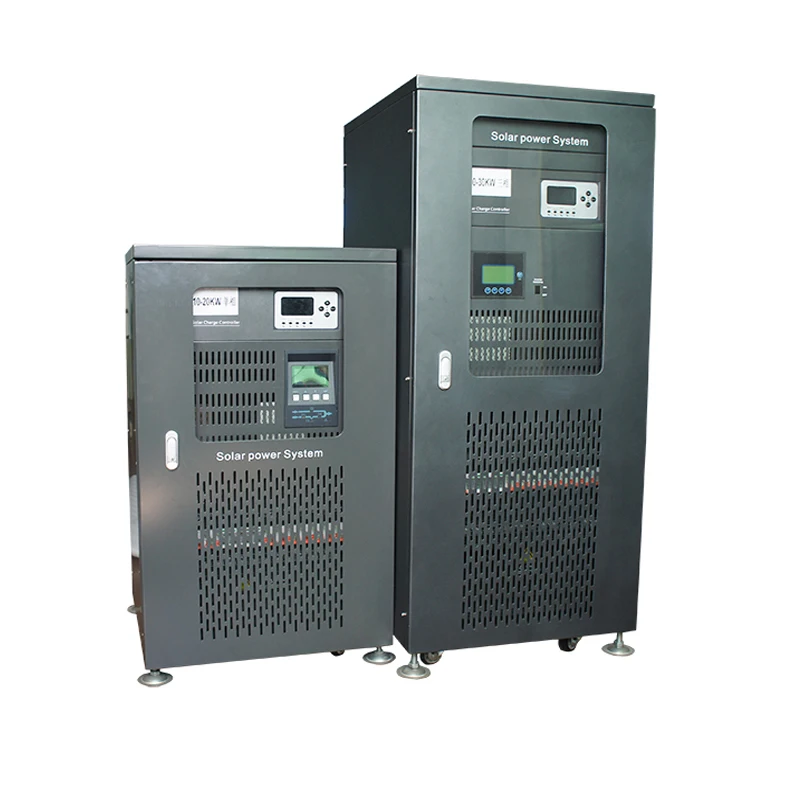

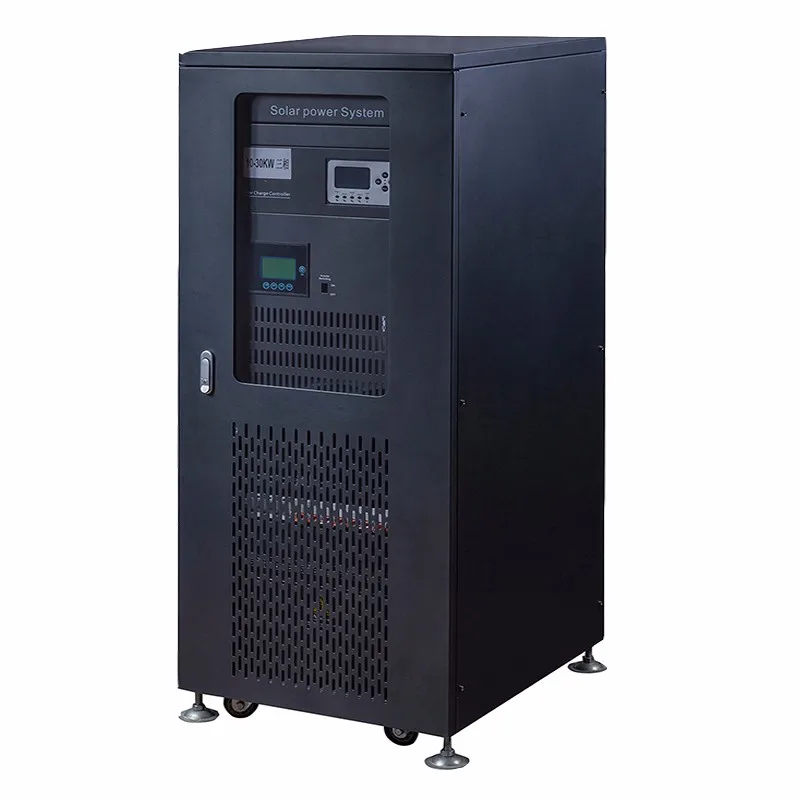

15kw 20kw и он имеет высокую эффективность солнечные фотоэлектрические сети Гибридный 3-фазовый инвертор со встроенным контроллером


Поделиться:


Цена:2 850,00 $ - 2 990,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 3392.56 $* 3562.3 $*
Aug-15-2025 3363.38 $* 3531.92 $*
Jul-15-2025 2822.85 $* 2963.78 $*
Jun-15-2025 3306.3 $* 3471.37 $*
May-15-2025 2879.61 $* 3023.40 $*
Apr-15-2025 3249.71 $* 3411.1 $*
Mar-15-2025 3221.86 $* 3382.82 $*
Feb-15-2025 3192.33 $* 3352.86 $*
Jan-15-2025 3164.62 $* 3322.6 $*

Характеристики


Product Introduction

NKD SINGLE-PHASE INVERTER WITH BUILT-IN CHARGE CONTROLLER

The product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic power.Its built-in controller can realize charge management for a battery pack by multiple solar arrays to improve charge efficiency and life of the battery pack.Thanks to the DSP control base on SPWM high-frequency carrier tecnology and IGBT power device,it can control the output opertion paremeters accurately to provide a high quality and reliable pure sine wave AC power supply for precision equipment.It is widely applied to large solar power generation occasions including families,schools,publish lighting,industrial and mining enterprises,frontier defense,sea islands,pasturing areas,etc.

MAIN FEATURES

1)Excellent performance because of the DSP intelligent control inversion technology;

2)A wide range of applicable loads because of pure sine wave AC output;

3)Visualization of operation status of the equipment through simple LEDs and a LCD;

4)Overall automatic protection and alarms such as output overload protection;

5)Solar array and battery common-anode system input;

6)Intelligent charge control based on programming of charge parameters,which is provided to meet the special needs of different occasion;

7)Settable battery protection parameters,and a function of password protection;

8)A function to accumulate the photovoltaic power generation capacity and the battery capacity;

9)Overall protection:protection and alarm for reverse connection of the battery poles,battery overcharge,and back charge of the battery at night;

10)Display of the current battery voltage,battery charge current,internal temperature of the case,total photovoltaic power generation capacity(AH),total power consumption by the load,total battery level(AH),photovoltaic current when each solar battery is separately conducted,etc.

Product Parameters
\t
Model
\t
NKG-10KW
\t
NKG-15KW
\t
NKG-20KW
\t
NKG-30KW
\t
NKG-40KW
\t
Rated power
\t
10KW
\t
15KW
\t
20KW
\t
30KW
\t
40KW
\t

Battery
\t
Rated voltage
\t
192VDC/220VDC/384VDC
\t
384VDC
\t
Overdischarge protection
 voltage
\t
172VDC/194VDC/345VDC
\t
345VDC
\t






Controller
\t
Rated current
\t
100A
\t
Rated voltage
\t
192VDC/220VDC/384VDC
\t
384VDC
\t
Number of charge accesses
\t
4
\t
Maximum current of each access
\t
25A
\t
Solar input voltage
\t
<330VDC/<378VDC/<660VDC
\t
<660VDC
\t
Voltage of overcharge protection
\t
222VDC/255VDC/445VDC(programmable)
\t
445VDC(programmable)
\t
Control accuracy
\t
±0.1
\t
Display accuracy
\t
±0.1
\t
Efficiency
\t
>95%
\t





Inverter
\t
Input voltage
\t
176-264VAC/304-456VAC
\t
Input frequency
\t
45-65Hz
\t
Output voltage
\t
220VAC/380VAC(three-phase four-wire)
\t
Output frequency
\t
50/60Hz
\t
Output waveform
\t
Pure sine wave,THD<4%(full load)
\t
Protection function
\t
Output short circuit protection,overvoltage protection,undervoltage protection,low battery protection,etc
\t
Manual power-on/off
\t
Manual poweron/off preferred
\t
Automatic power-on/off
\t
Light-operated power-on +fixed-time power-off(programmable)
\t





Other
\t
Ambient temperature for operation
\t
0-40℃
\t
Relative humidity for operation/storage
\t
20%-90%(no condensation,maximum)
\t
External dimensions D*W*H (mm)
\t
635*566*1295
\t
Packing dimensions D*W*H (mm)
\t
760*690*1540
Product Details Show
Why Choose Us

About us

1, The company professional to product  solar inverter and controllers.

Equipment & technology

2, The quality of inverter and  charge controller is a competitive supplier in Foshan,China

Service

3, Stable product quality , supply, the good faith management

Exhibition

Product Processing
Product Packing
Our Company

Foshan SNAT Energy Electrical Technology Co., Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients.

FAQ

1: Do we need to set the parameter before using ?

A: No need, our model is plug-and-play system design, only connect with solar panel and pump,then it could be started when the input voltage reach the min input voltage.

Q2: What should be noticed when installing inverter?

A: Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.

Q3: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q4: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q5: How is delivery time?

A: Generally it takes 5-10 days for regular type , for big quantity or OEM/ODM orders, pls negotiate with sales.

Q6: What's your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q7: What's your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q8: How does your factory do the quality control?

A: Quality is our culture. We have strict quality control department to supervise each link from assembling to shipping.

Q9: How can I trust you ?

A: SNAT has 10 years' experience in producing inverters, we have passed ISO9001 management system and got CE, CCC certificates. Assessment reports can be sent anytime if you require.
