Характеристики


Product Description



Production Application

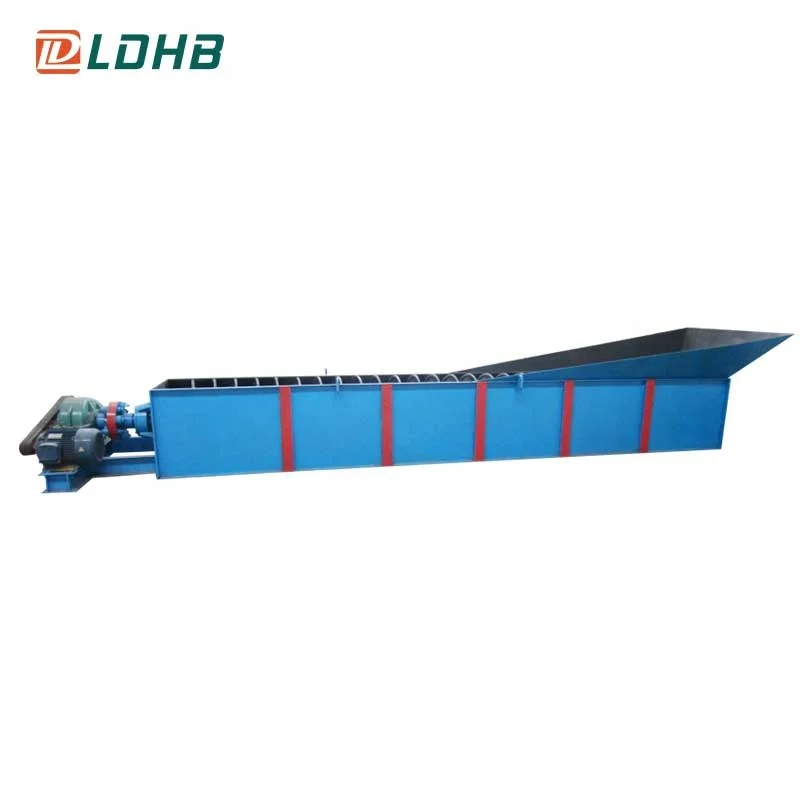

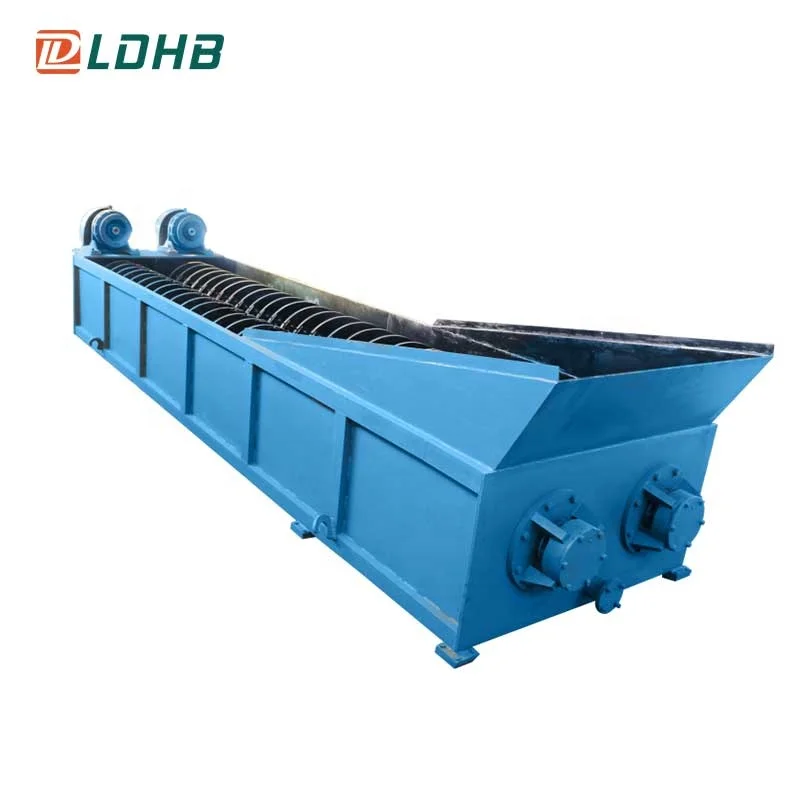

Sand washing and recycling machine is a kind of wheeled washing equipment by water to improve the sand quality by separate and move the dust and impurities mixed in sand. It is widely used sand washing plants for washing, classifying, dewatering and fines recycling natural sand from natural resources or mechnism sand from sand making machine.
It adopts new seal-structure and reliable driving device to make sure the high efficient sand washing, and developed depends on practical conditions of sand industries to meet out the ISO standard requirements of gradation in the final output sand. LDHB sand washers are mainly include three parts of washing impeller, dewatering screen and cyclone, and with the features of high degree cleaning-up, large capacity, reasonable structure, low power consumption, small loss of the sands during the washing process.



Structure

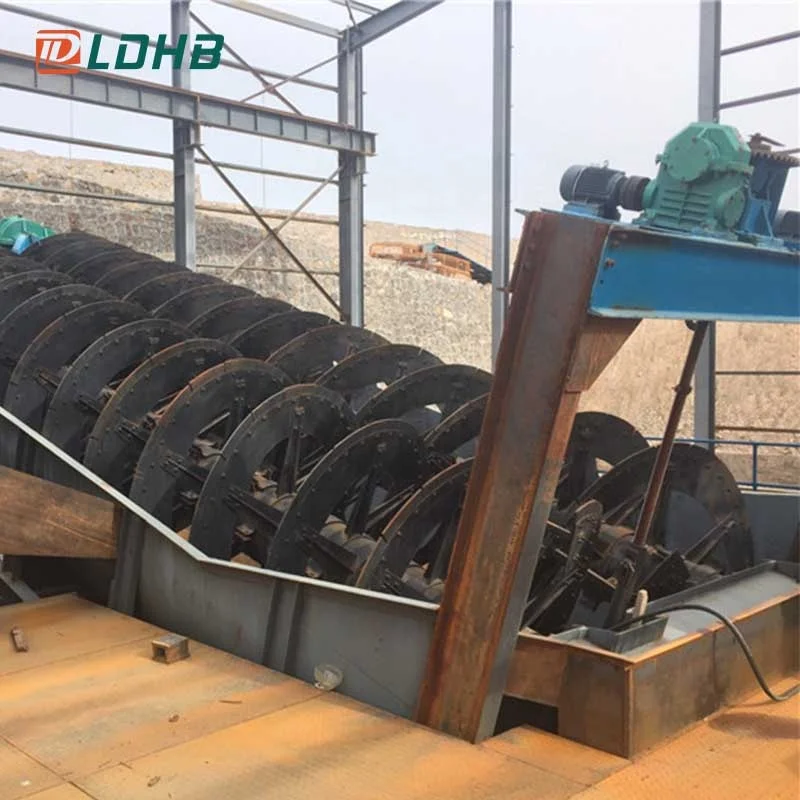

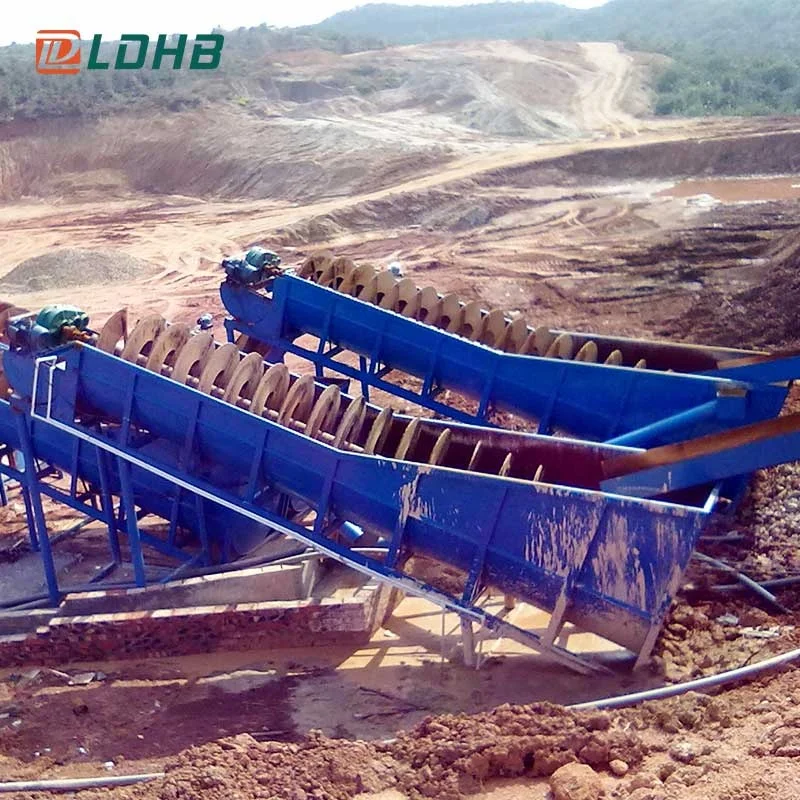

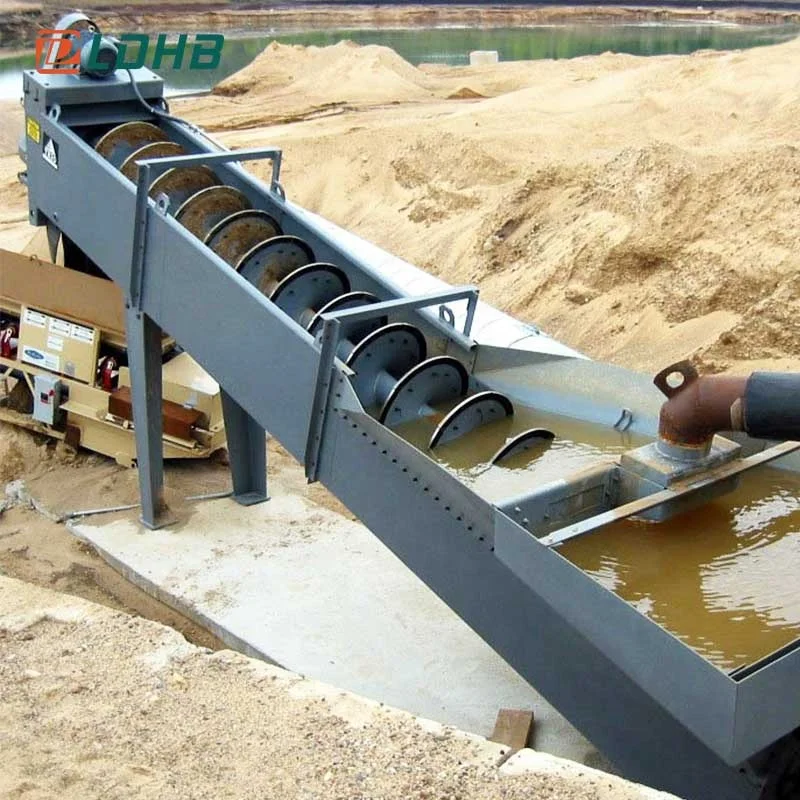

Detailed Images





           Machine Parts
           Name: Bearing and housing
           Brand: LYC
           Increased version of high strength bearing housing
           GZQ brand gear-box.





Machine Parts

Name: Screw Vane
Brand: LDHB
The material of the screw vane is polyurethane and steel.

Tech Specifications
\t

Model
\t
Capacity
(m³/h)
\t
Water Consumption (m³/h)
\t
Diameter of screw
(mm)
\t
Length
of tub (mm)
\t
Feed
size
(mm)
\t
Power
(kw)
\t
Weight
(kg)
\t
Dimension
(L*W*H)(mm)
\t
LXS920
\t
30-100
\t
10-80
\t
920
\t
8016
\t
≤10
\t
11.0
\t
4270
\t
8715*1632*2075
\t
2LXS920
\t
60-200
\t
20-160
\t
920
\t
8016
\t
≤10
\t
11*2
\t
7580
\t
8715*2602*2075
\t
LXS1120
\t
40-120
\t
20-150
\t
1120
\t
8532
\t
≤10
\t
18.5
\t
5560
\t
9231*1833*2126
\t
2LXS1120
\t
80-240
\t
40-300
\t
1120
\t
8532
\t
≤10
\t
18.5*2
\t
10000
\t
9231*2995*2126
Packing & Delivery

Packaging details

The normal package is plastic cloth for main machine and wooden box for the parts.The wooden box will be fumigated, And it can be also packed according to customers special request.

About Us

Manufacturing Area

Office Area

Working Time

Spare Time


        Consummate Technology



                                                                                Participation in Famous Exhibitions ↑


                Customer Cases

Australian customers came to inspect the equipments he ordered.

Indonesian customers was invited to visit our plant.

Sales manager signed purchase agreements with Sri Lankan customers.

Customer Jonathan visited our workshop.

Jonathan was satisfied with our equipments and signed long-term supply contracts .

Our technicians went to Uganda to provide after-sales service to customer Jonathan's plant.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
