Завод Zhongshan заправочная станция светодиодный светильник с навесом для влажных
- Категория: LED Canopy Light >>>
- Поставщик: Huizhou,Lanbot,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 3204.22 $* | 3268.92 $* |
| Jul-19-2025 | 2599.18 $* | 2651.8 $* |
| Jun-19-2025 | 3154.12 $* | 3217.78 $* |
| May-19-2025 | 3129.10 $* | 3192.55 $* |
| Apr-19-2025 | 2498.86 $* | 2548.69 $* |
| Mar-19-2025 | 3078.51 $* | 3140.79 $* |
| Feb-19-2025 | 3053.82 $* | 3114.70 $* |
| Jan-19-2025 | 3028.15 $* | 3089.49 $* |
Характеристики

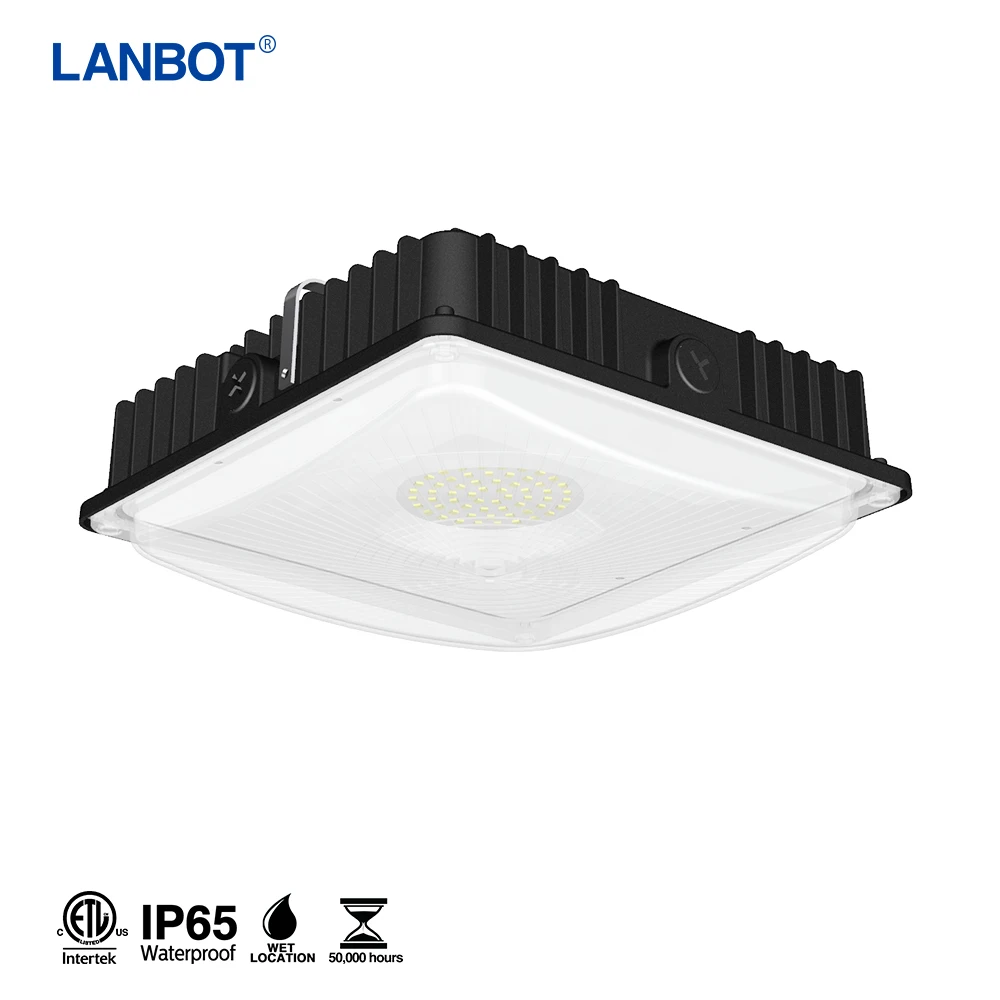

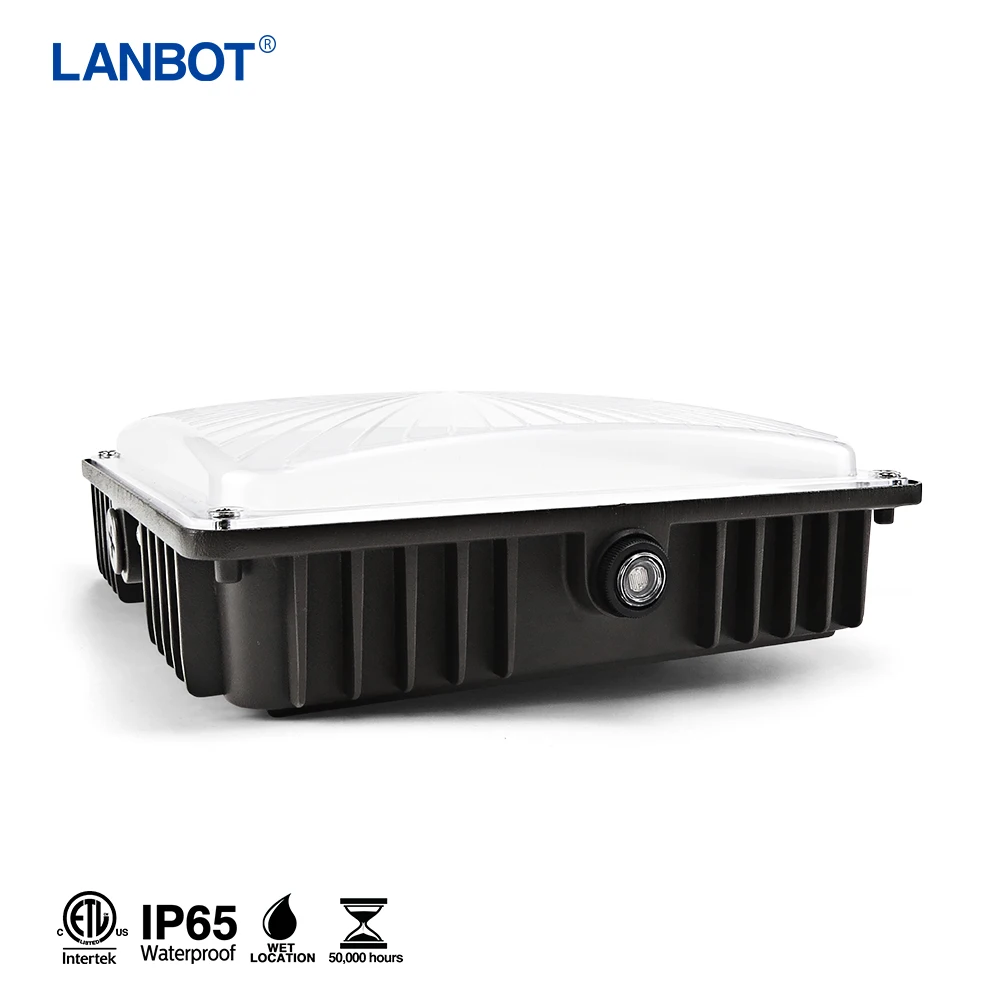

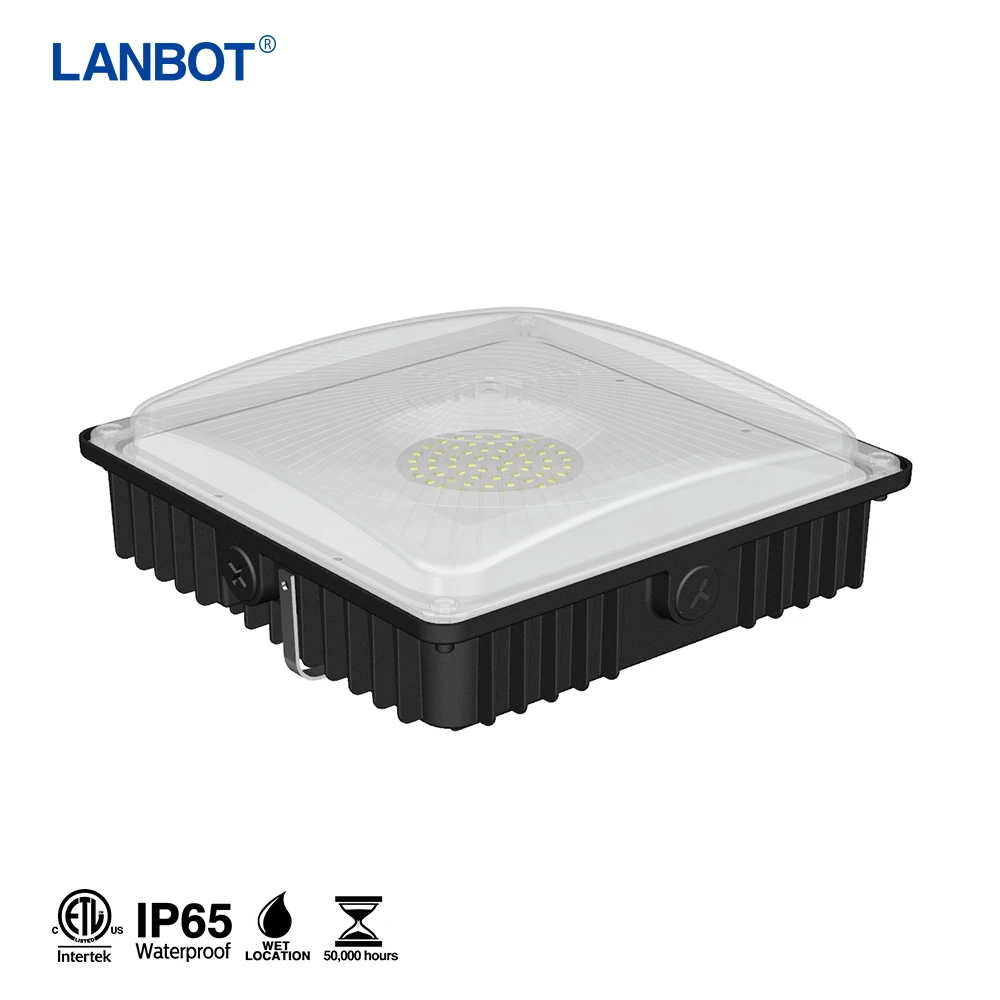

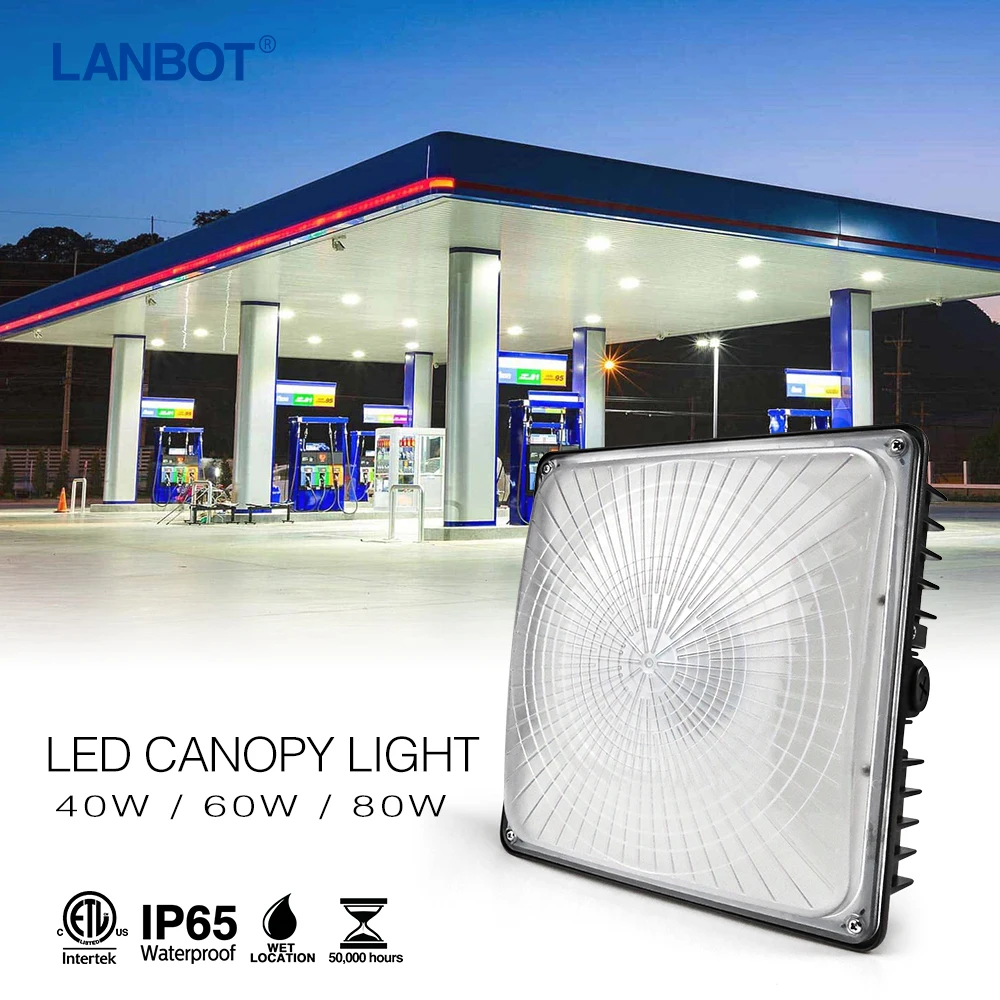

Zhongshan Factory Gas Station LED Canopy Light Luminaire For Wet Locations
| SPECIFICATIONS |
| Model | LBT-WPKX-B40 | LBT-WPKX-B60 | LBT-WPKX-B80 |
| Wattage | 40W | 60W | 60W |
| LED | 3030 | 3030 | 3030 |
| Voltage | AC100-277V(50Hz-60Hz) | AC100-277V(50Hz-60Hz) | AC100-277V(50Hz-60Hz) |
| Color Temp | 3000K-4000K-5000K | 3000K-4000K-5000K | 3000K-4000K-5000K |
| Lumens(Range) | 3200-3600LM | 4800-5400LM | 6400-7200LM |

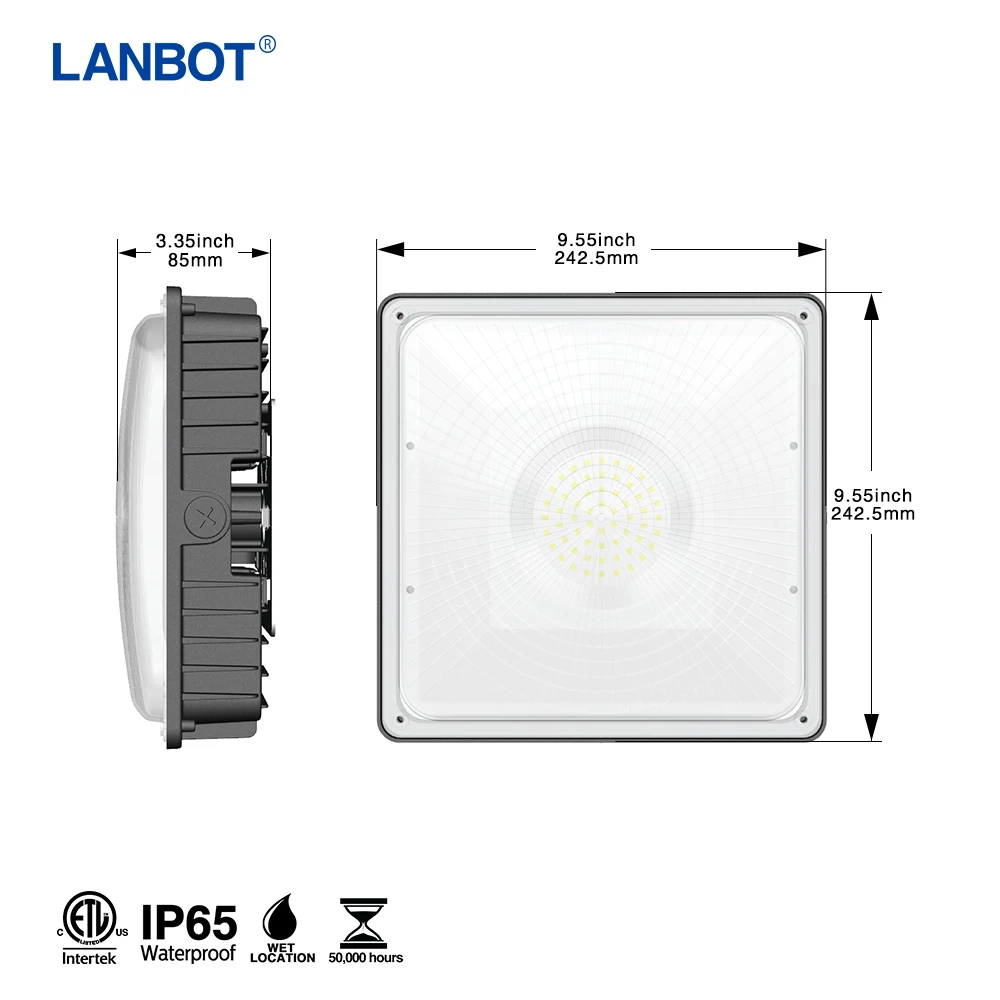

| Size | L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch | L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch | L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch |
| IP Rate | IP65 | IP65 | IP65 |
*With Microwave Motion Sensor
| Reference Guide | Advantage & Features |
BUY 40 WATT LED (REPLACES EXISTING 100 WATT MH) 3200 - 3600 Lumens Good for: Storage Areas, Small garages, Small Warehouses
BUY 60 WATT LED (REPLACES EXISTING 170 WATT MH) 4800 - 5400 Lumens Good For: Warehouses, Manufacturing Facilities, Large Garages or Hotels
BUY 80 WATT LED (REPLACES EXISTING 250 WATT MH) 6400 - 7200 Lumens Good For: Large Warehouses, Manufacturing Facilities | • Long lifespan - 50,000hrs, 5 years warranty • High efficiency - Super bright 110Lm/W • Save energy and money, reduce your electronic bill by up to 70% ~ 80%. • Easy and fast installation, contractor-friendly design. Wiring is standard 3 wires for fast change over. • IP65 waterproof - for indoor outdoor applications • High purity die casting aluminum body - largest heat sink area • Slim size superior die-cast aluminum shell ,wet location available • Our canpy light is special designed for North American Market, the best choose for you to replacing 250-300W HPS/HID bulb. |
APPLICATION SITUATIONS Warehouse, Security, Loading Docks, Gas Stations, Petrol Refineries, Industrial Complexes, Parking Garage, Car Wash, Automotive Mechanic Shops, and Much More! |
LED CANOPY LIGHTs INSTALLATION INSTRUCTION
SURACE MOUNT WITH J-BOX
1. Loosen the screw on side of the light, removing the bracket from canopy light by pulling it out slightly, just leaving the ring on bracket. | 2. Fix the bracket on J-box, and put the wire through the central hole for wiring.
| 3. Attach the canopy light with bracket by putting the ring on clips again. Connect the Black wire for line,White for neutral, yellow green for ground. | 4. Slide the canopy lights into bracket, and secure the screw on side of the light to prevent the light from sliding out from the bracket.Installstion done. |
PENDENT WITH 3/4 INCH CONDUIT
1. Loosen the screw on side of the light, removing the bracket from canopy light by pulling it out slightly, just leaving the ring on bracket.(See the Step 1 above) | 2. Connect the wires threaded from conduit and Canopy,Black wire for Line,White for Neutral,Yellow Green for Ground.
| 3. Screw the Conduit into hole on top of canopy light.Installation done
|
Company & Factory Information
LED Lighting Exhibition
Certification
Related Products Dedicate to superior products and service, your satisfaction is our motivation! |
Services & FAQ
OEM/ODM/OBM Servics
Customize services are available when needed
Professional team servics
More than 8 years experience R&D and sales engineers would offer best lighting solution for projects
What certification do you have?
Our products are certified with cETL,Energy Star,CE, ROHS etc.
Can I have a sample order before future bulk order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer guarantee for the products?
Yes, we offer 5 years warranty to our products.
