Блок питания RGeek для ПК с пиковым выходом 12 В постоянного тока 20 контактов
- Категория: Блоки питания ПК >>>
- Поставщик: Shenzhen,Kexi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 9.30 $* | 9.99 $* |
| Jul-18-2025 | 7.45 $* | 7.42 $* |
| Jun-18-2025 | 9.89 $* | 9.76 $* |
| May-18-2025 | 9.54 $* | 9.13 $* |
| Apr-18-2025 | 7.53 $* | 7.73 $* |
| Mar-18-2025 | 9.59 $* | 9.44 $* |
| Feb-18-2025 | 8.81 $* | 8.82 $* |
| Jan-18-2025 | 8.59 $* | 8.19 $* |
Характеристики
Item specifics
Brand Name:RGeek
Model Number:RGEEK-90P
Output:+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Approvals:CE, ROHS
Application:Server,Desktop
Certification:Other Certification
CPU Power Connector:4 pin
Interface Type:24Pin
Package:Yes
PFC Type:Active
Input Voltage:12V DC
Modular:Full Modular
Rating Power:< 150W
D-type Bus Number:1
Number of SATA Ports:1
Rating Power:90W
High light:
90 Watt Output 12 Volt DC Input
Fanless design, 100% silent

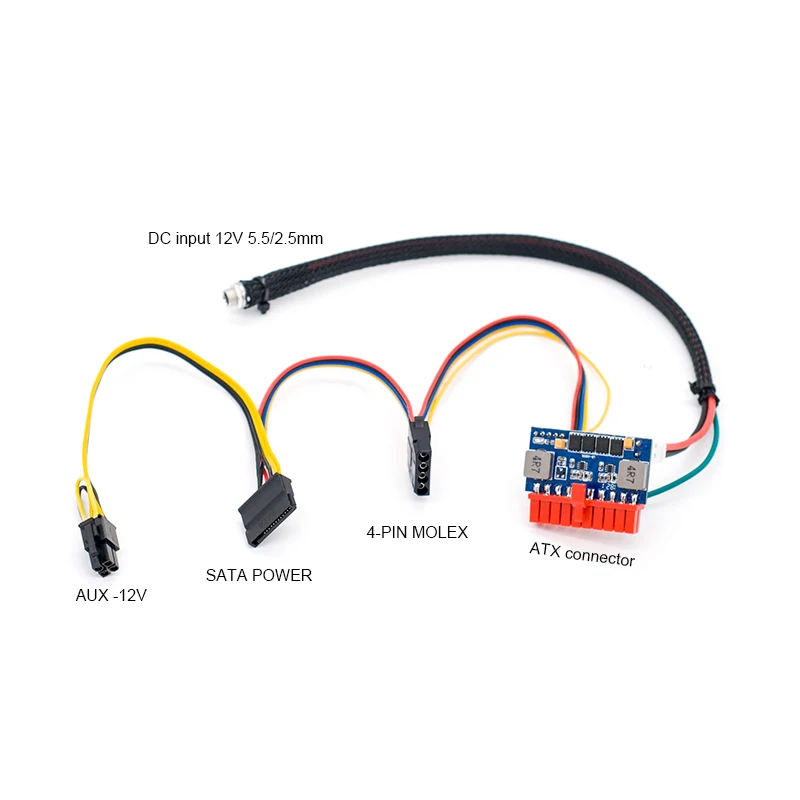

20 pin ATX connector, Plugs directly into the ATX connector

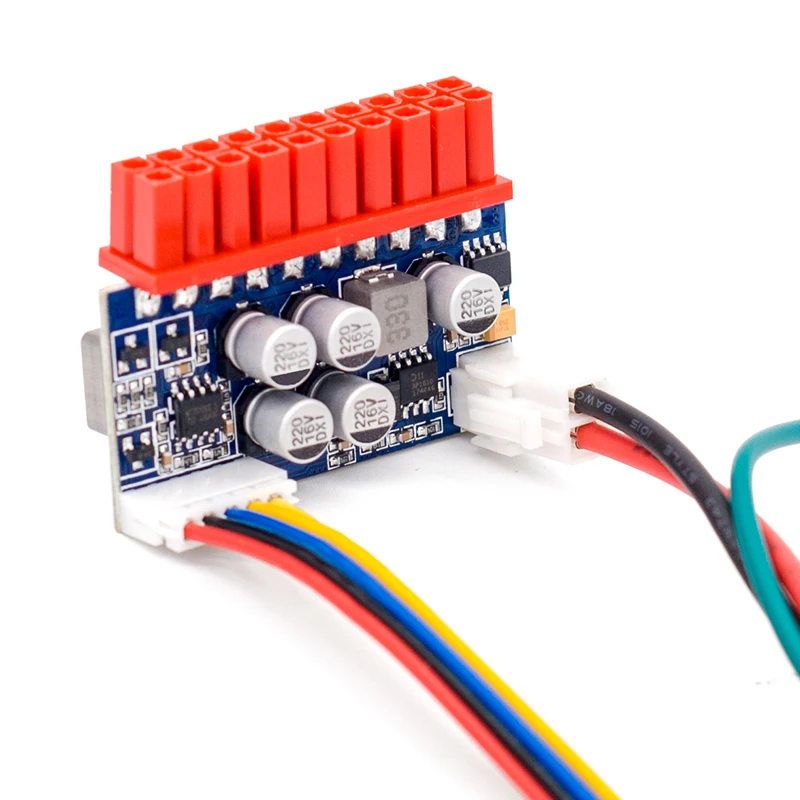

Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards
Description:
100% brand new and high quality

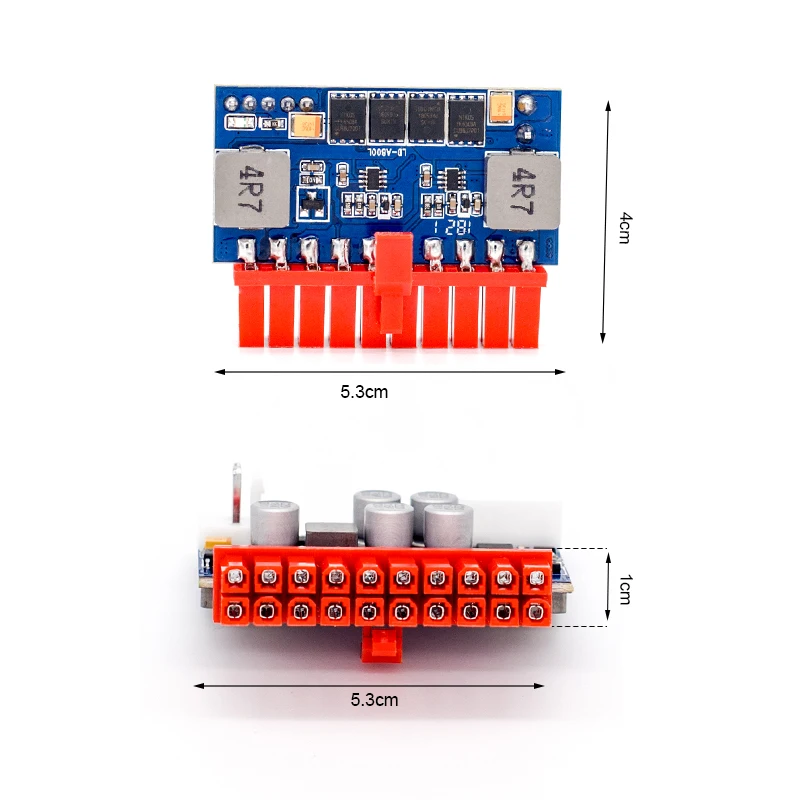

Size (L*W*H): 53mm*39mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 90W, and it must be accompanied by the power adapter
Size (L*W*H): 53mm*39mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 90W, and it must be accompanied by the power adapter
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
DC input: 2.5mm inner diameters, 5.5mm outer diameter
Input Current: Max. 7.5A
Output Power: 90W
Power Efficiency: > = 90%
Working temperature/humidity: 15℃ to 35℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
