BDM-200T модель гусеничная буровая установка для бурения скважин на

BDM-200T модель гусеничная буровая установка для бурения скважин на

Категория: Оборудование для добычи энергии и минералов >>>
Поставщик: Shandong,Better,Drilling,Machinery,Co.,Ltd.

Цена:1 598 021,80 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	2029487.85 $*	2070077.47 $*
Jul-19-2025	1645962.68 $*	1678881.34 $*
Jun-19-2025	1997526.11 $*	2037477.60 $*
May-19-2025	1981546.31 $*	2021177.93 $*
Apr-19-2025	1582041.15 $*	1613682.44 $*
Mar-19-2025	1949586.98 $*	1988578.44 $*
Feb-19-2025	1933605.88 $*	1972277.92 $*
Jan-19-2025	1917625.84 $*	1955978.7 $*

Характеристики

Product Description

Reasonable overall layout uses the Track-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

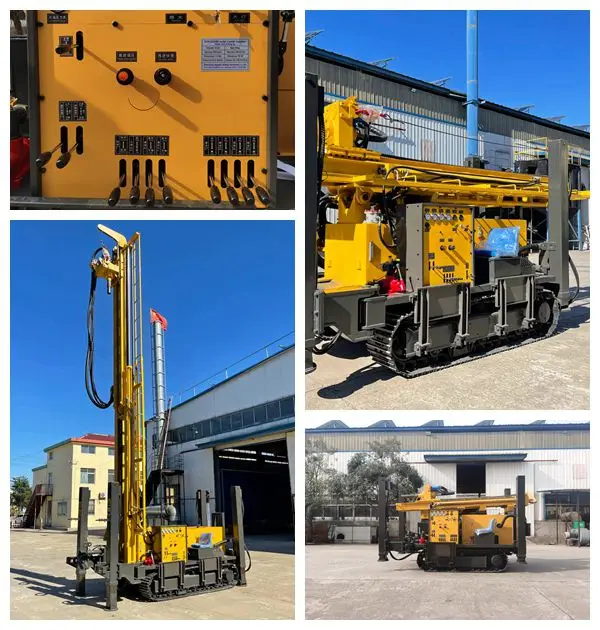

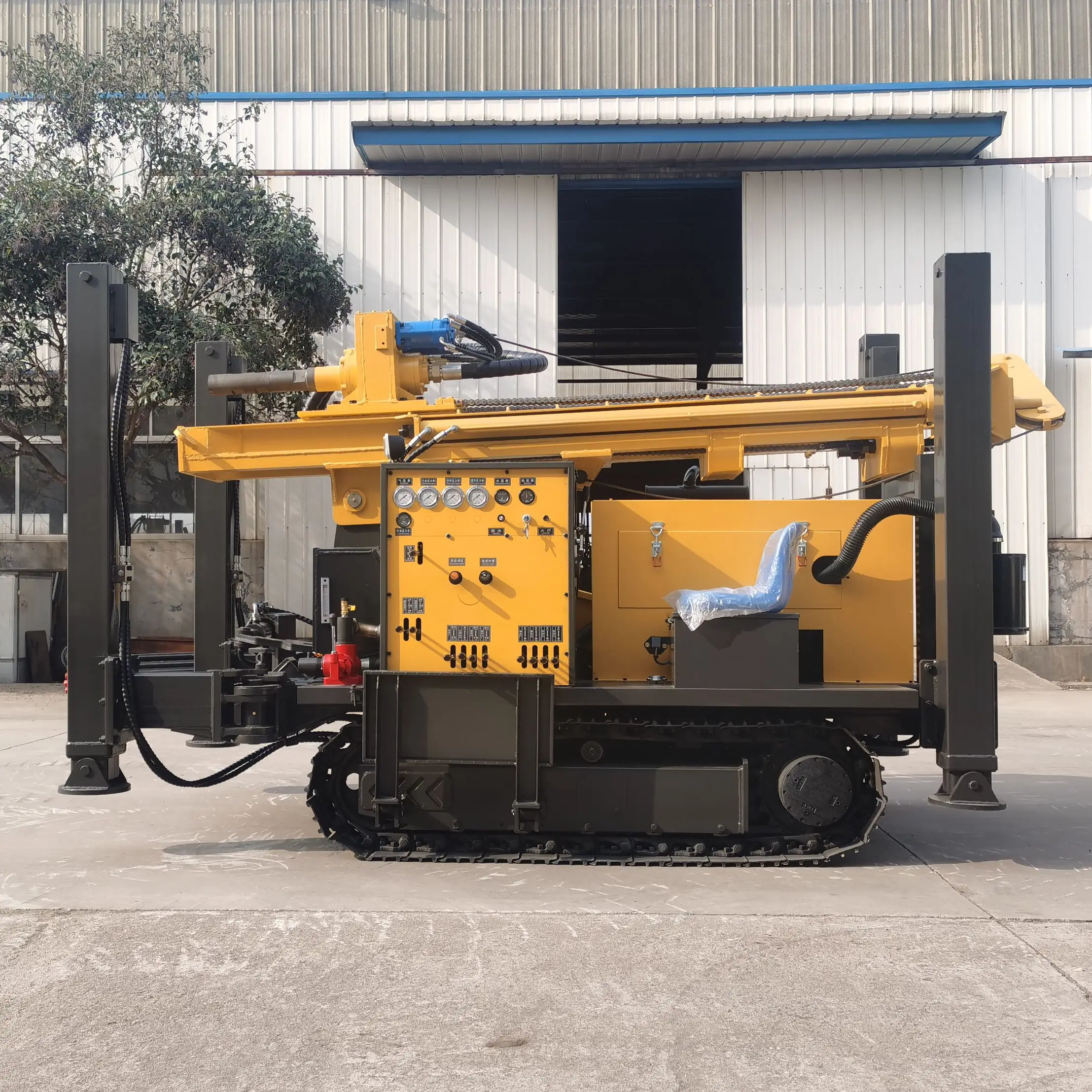

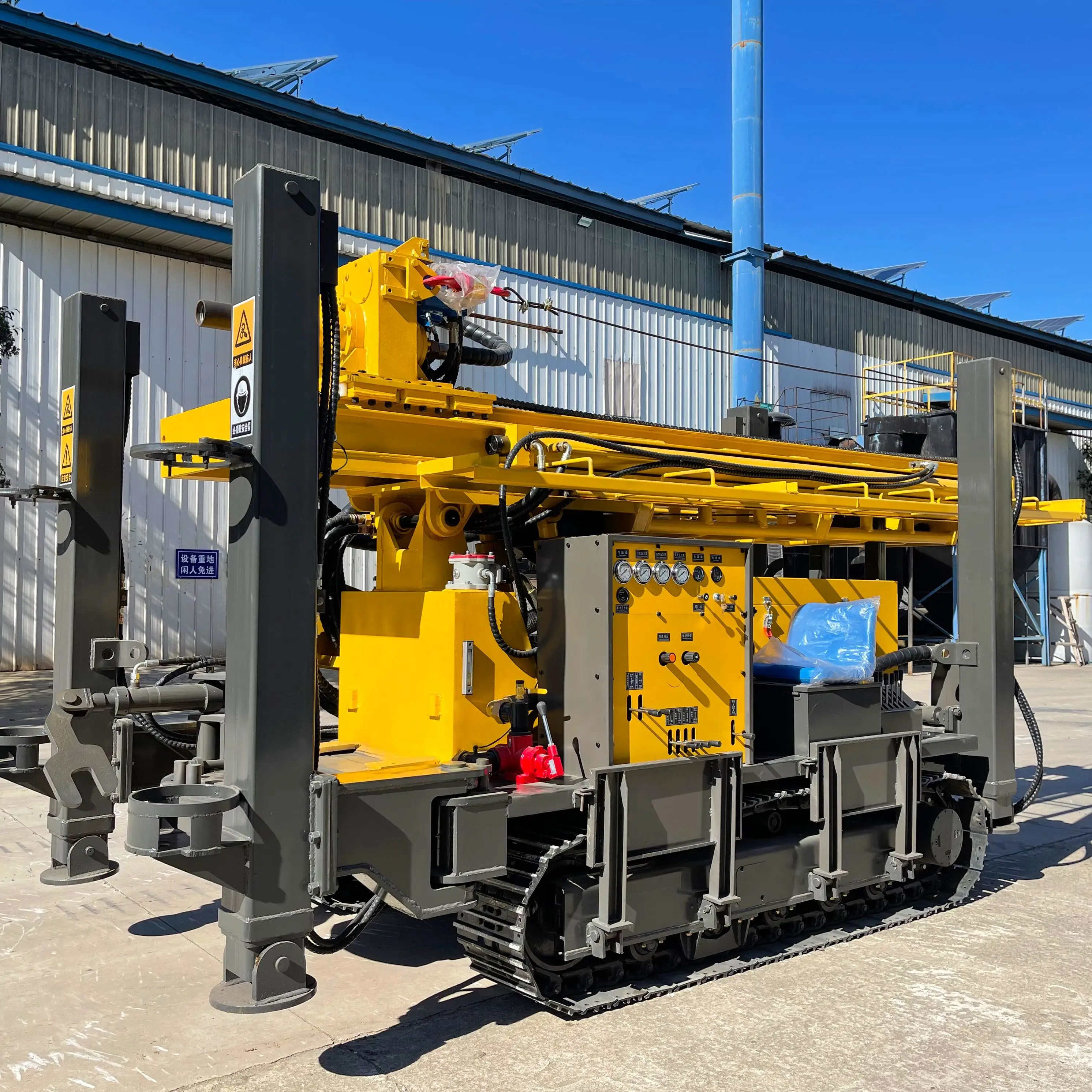

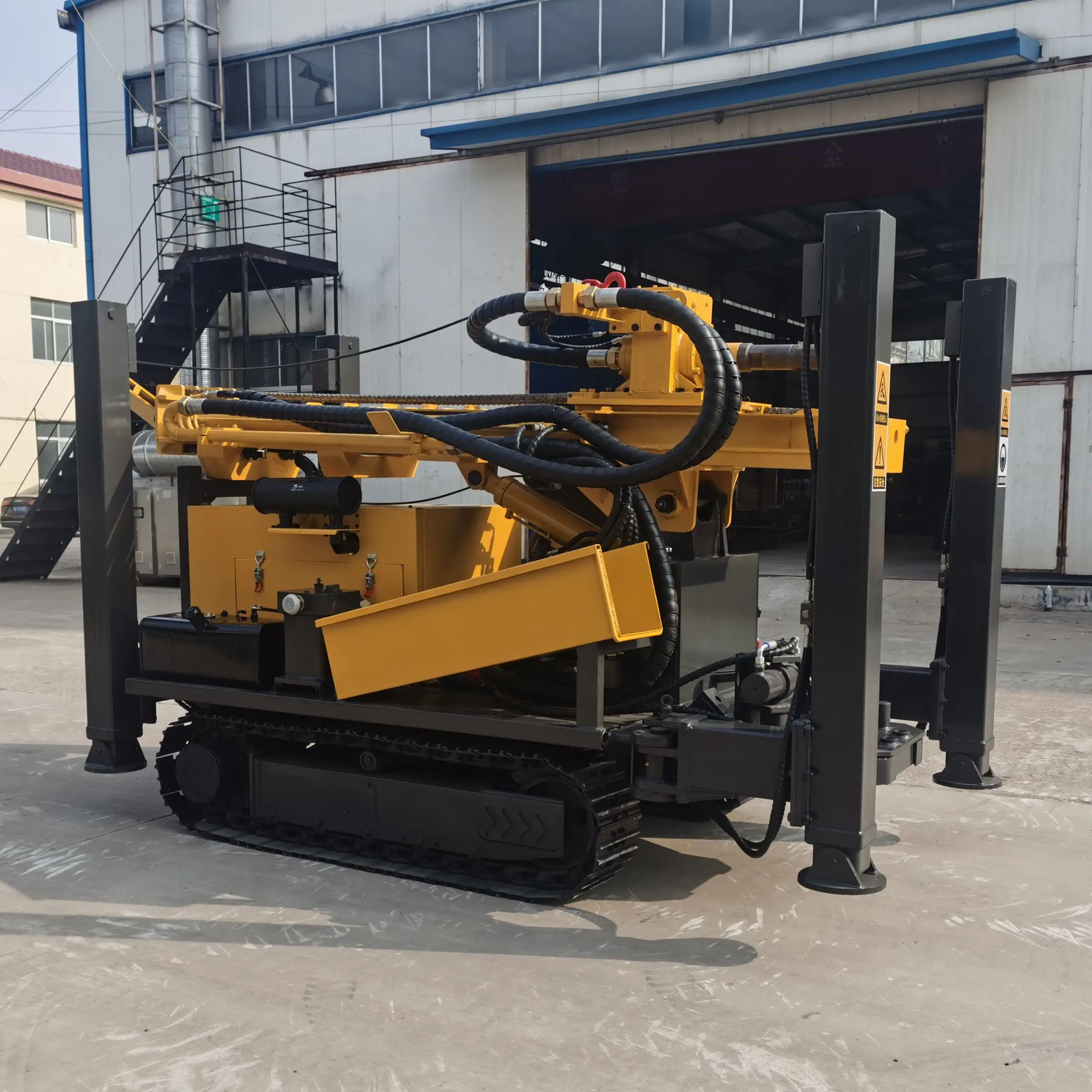

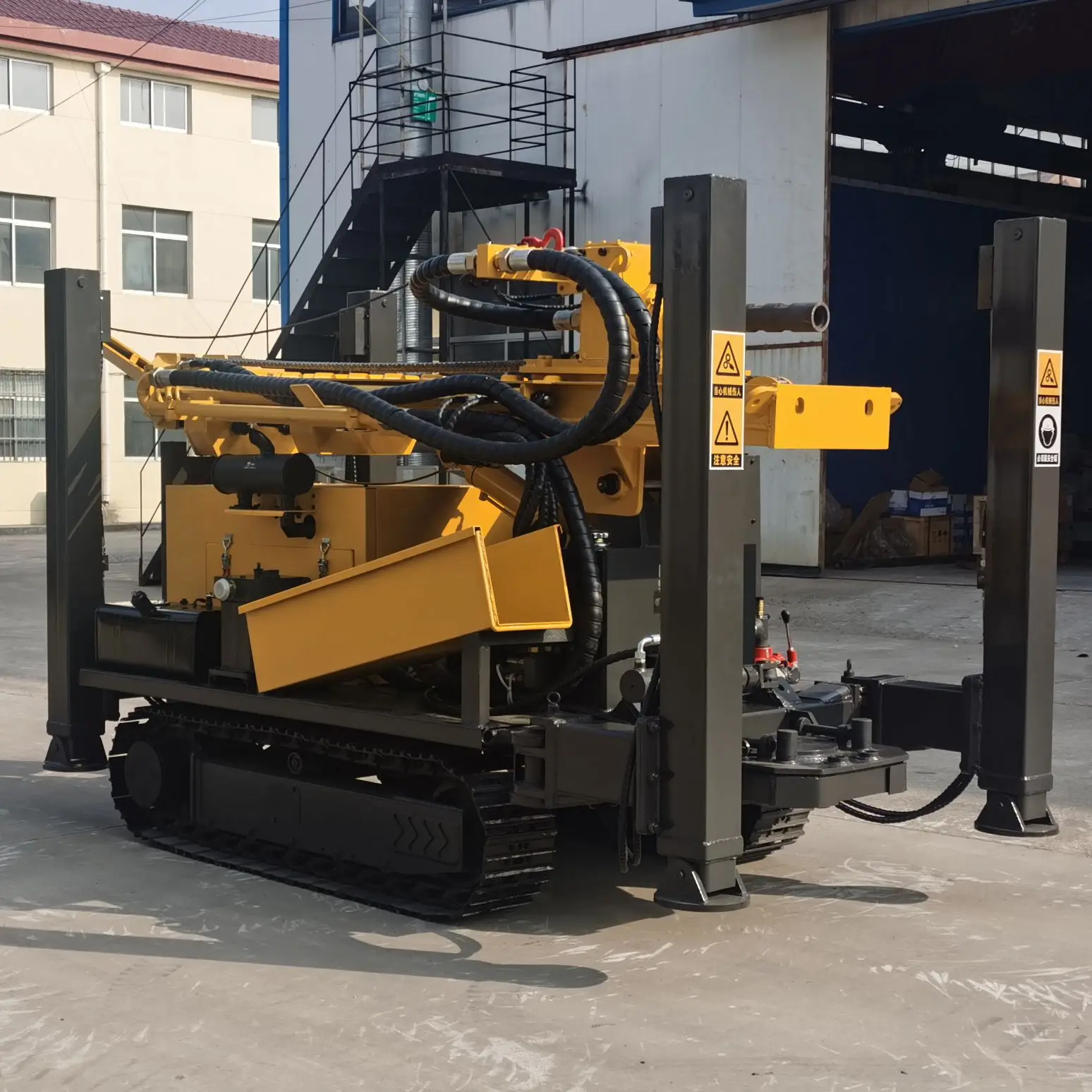

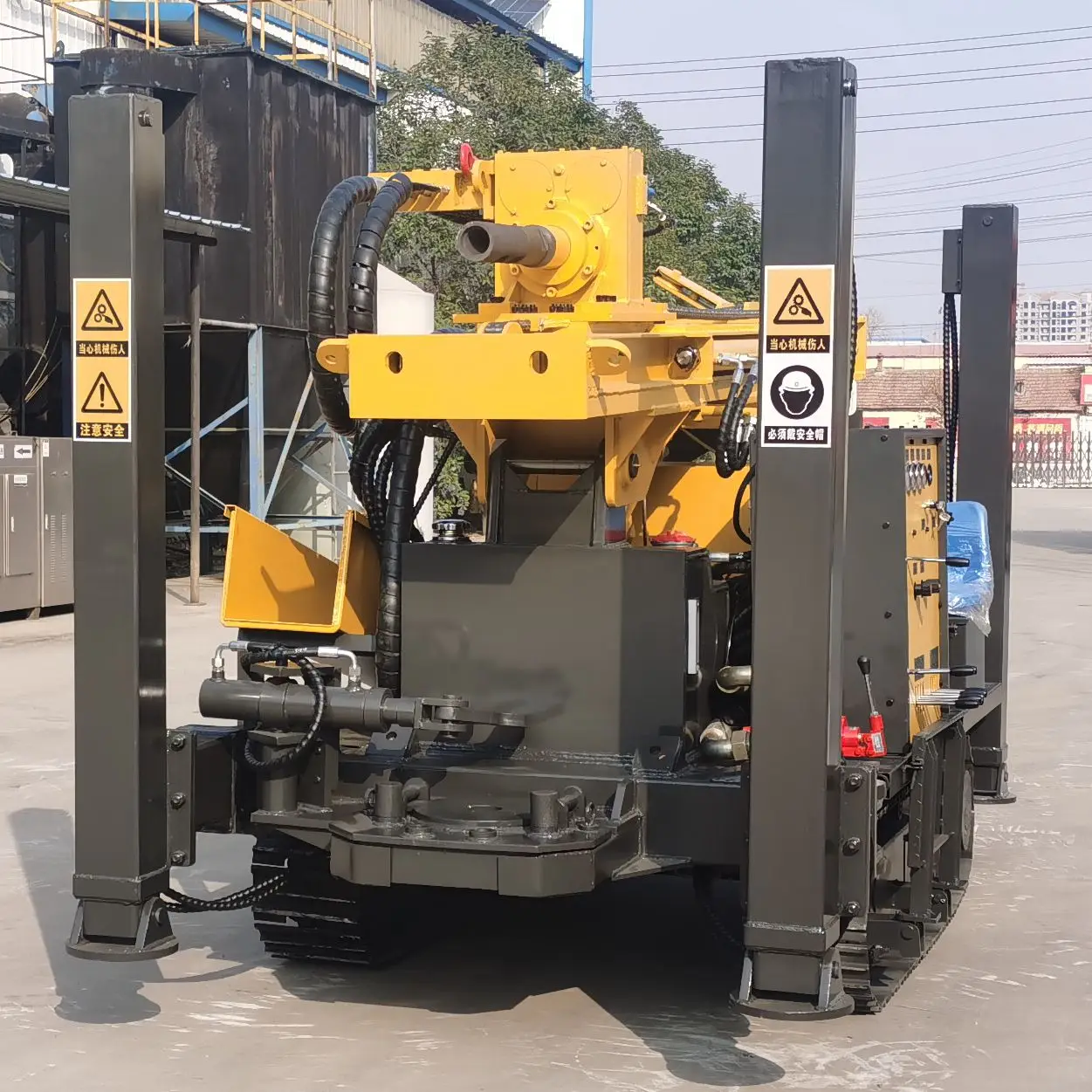

BDM-200T moded track mounted DTH Water well drilling rig
type	BDM-200T
The weight	5.8T
Dimension	4000175002450mm
The hole diameter	140-305mm
Drilling depth	200m
One-time advance length	3.4m
Walking speed	2.5KM/H
Climbing angles	30
Power	65-70KW
Using air pressure	1.7-3.0MPA
Air consumption	17-30
Drill pipe length	1.5m 2.0m 3.0m
Drill pipe diameter	76mm,89mm,
Rig lifting force	12T
Drilling head rotary speed	45-70rpm
Drilling head rotary torque	3500-4800N.m
