3 кВт-5 кВт индивидуальная солнечная система слежения с высокой эффективностью и низкой
- Категория: Улавливателя солнечной энергии >>>
- Поставщик: Shandong,Zhaori,New,Energy,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 678.75 $* | 712.58 $* |
| Aug-19-2025 | 673.74 $* | 707.32 $* |
| Jul-19-2025 | 564.91 $* | 592.38 $* |
| Jun-19-2025 | 661.37 $* | 694.84 $* |
| May-19-2025 | 576.60 $* | 605.20 $* |
| Apr-19-2025 | 650.81 $* | 683.23 $* |
| Mar-19-2025 | 644.87 $* | 676.56 $* |
| Feb-19-2025 | 638.66 $* | 670.81 $* |
| Jan-19-2025 | 633.74 $* | 665.26 $* |
Характеристики
\t\t\t\t\t\t\t\t\tSpecifications \t\t\t\t\t\t\t
Product name: | Dual axis solar tracking system |
Control mode: | Time + GPS Control |
Tracking accuracy: | 0.1° - 2° (Adjustable) |
Motor: | 24V gear motor |
Power consumption: | 3 kwh/set/year |
Output torque: | 5000NM |
Azimuth angle tracking range: | ±50° |
Elevation angle tracking range: | 50° |
Brackets material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 24m/s in running state, 40m/s in wind protect state |
System guarantee: | 3 years |
Working temperature: | -40℃ - +75℃ |
Certificates: | CE, TUV |
Weight: | 150kgs - 220kgs |
Mount solar panels: | 2-12 pieces |
Total power: | 1.5kW-4.0kW |
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

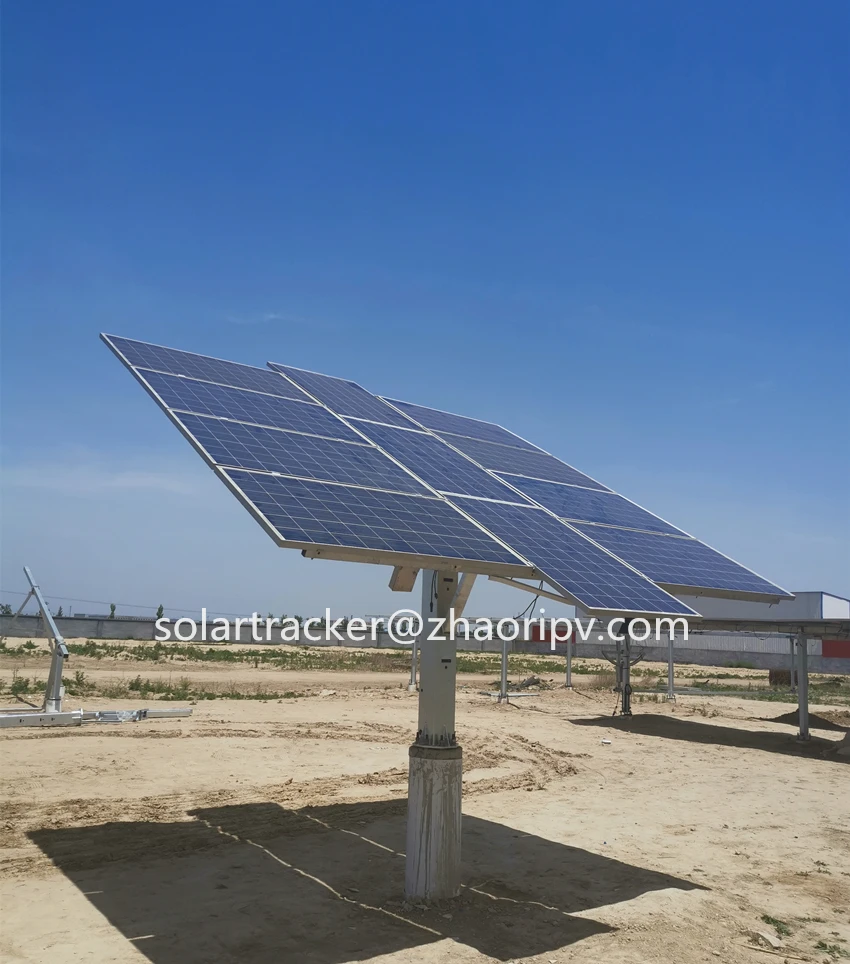

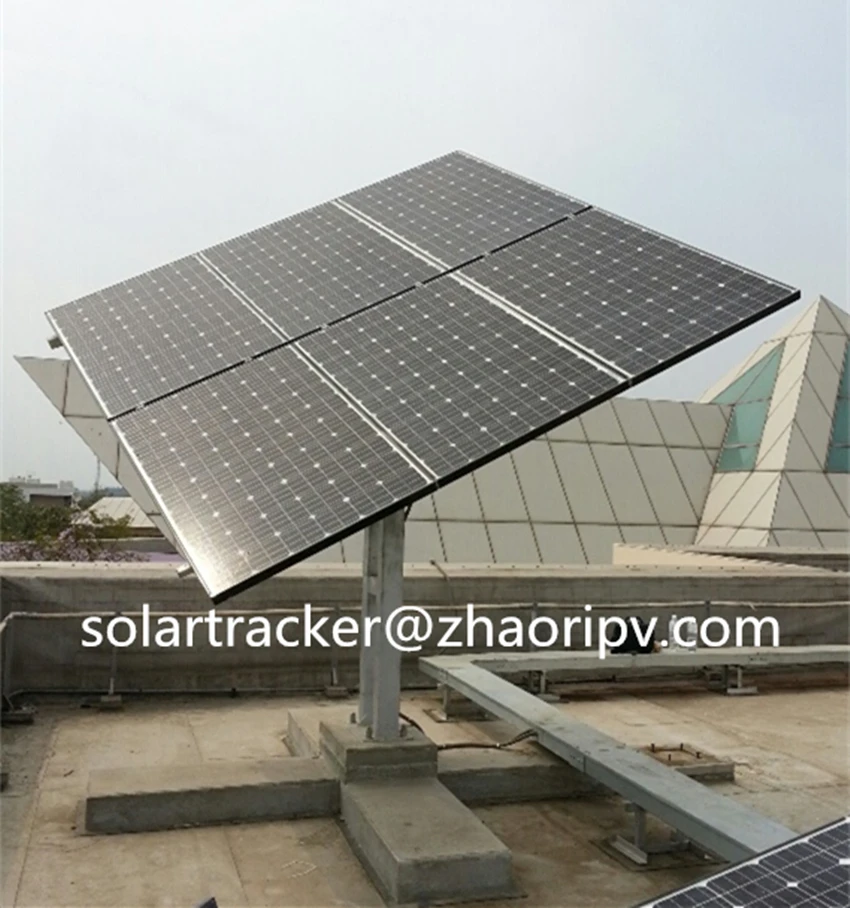

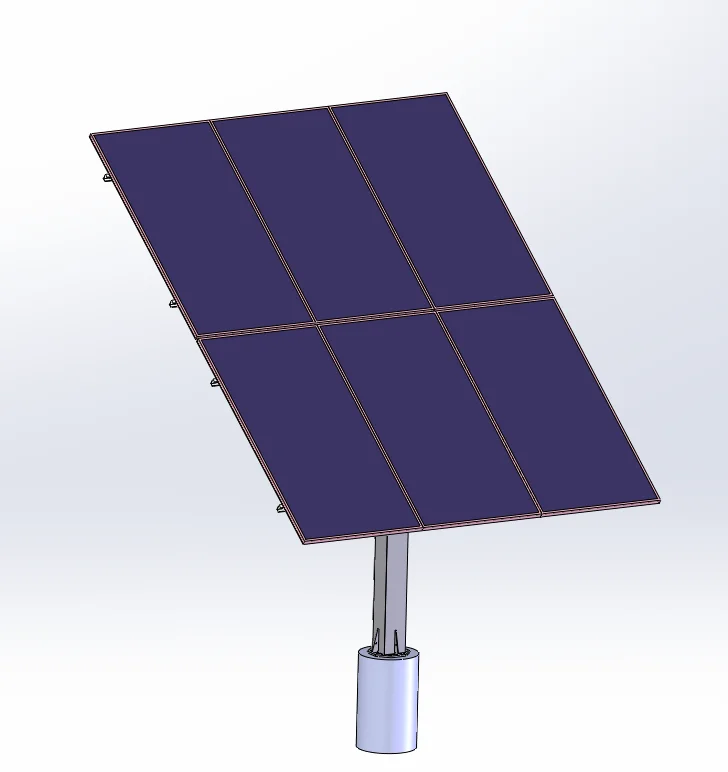

ZRS semi-auto dual axis solar tracking system is our patented product, it owns very simple structure, very easy for installation and maintenance. It has one auto axis to track the sun in east-west direction automatically every day, and one manual axis to track the sun in south-north direction, only need manual adjustment 4 times a year, and the adjustment is very easy, only need half a minute, so it realized very high efficiency in a very low cost.
\t\t\t\t\t\t\t\t\tOur Advantages \t\t\t\t\t\t\t
★ Patent technology, simplest structure, low cost.
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, only totally about 3kWh/set/year.
★ High strength brackets, good wind resistance performance, auto wind protection.
★ Solar panels can be adjusted to a tilt angle for snow proof purpose.
★ Independent support structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, +15% - 40% more energy!
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t
Shandong Zhaori New Energy Tech. Co., Ltd. locates in Weicheng Economic and Technological Development Zone of Weifang City, Shandong Province. The company registered capital comes to 20 million RMB, it is a high-tech & new energy company based on independent intellectual property rights, committed to researching and producing most simple and best cost performance smart solar tracking systems, promoting power generation capacity by 20%-40%, with TUV & CE certificates and patent of invention from many countries.
Our Goal: more simple, more reliable, more efficient
Our Aim: excellent products, excellent service
Our Wish: share the solar future with you
