RK400-04 сельского хозяйства/Погодная станция с экономичным планировочный ковш

Product Description

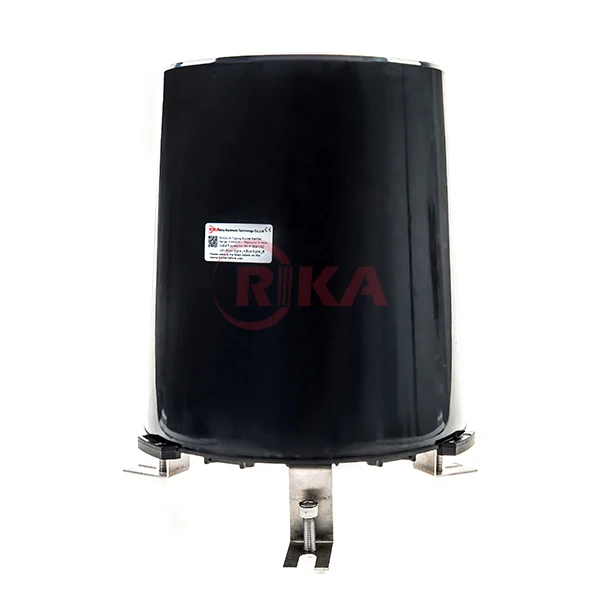

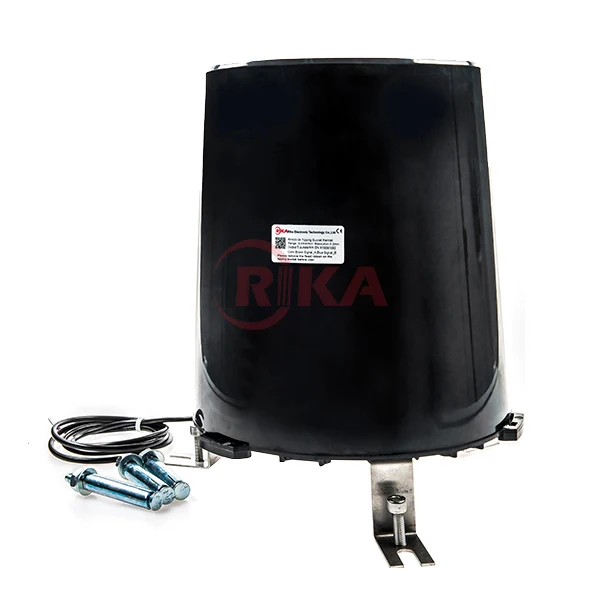

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries .Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.



Features

• Compact size for easy use
• High accuracy, good stability

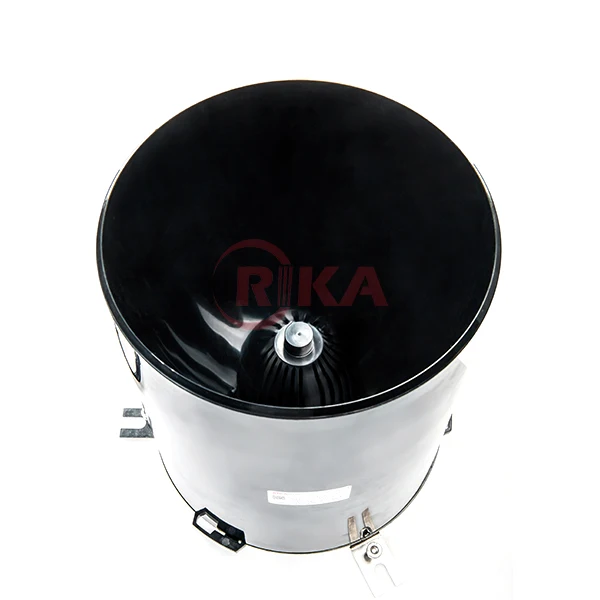

• Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain sensor

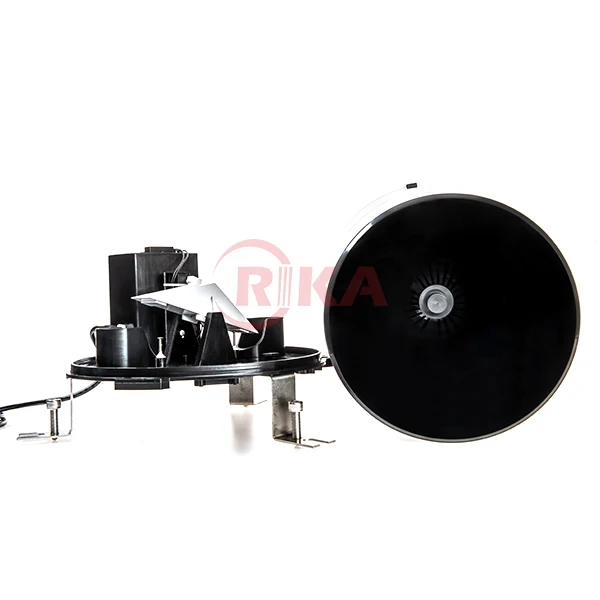

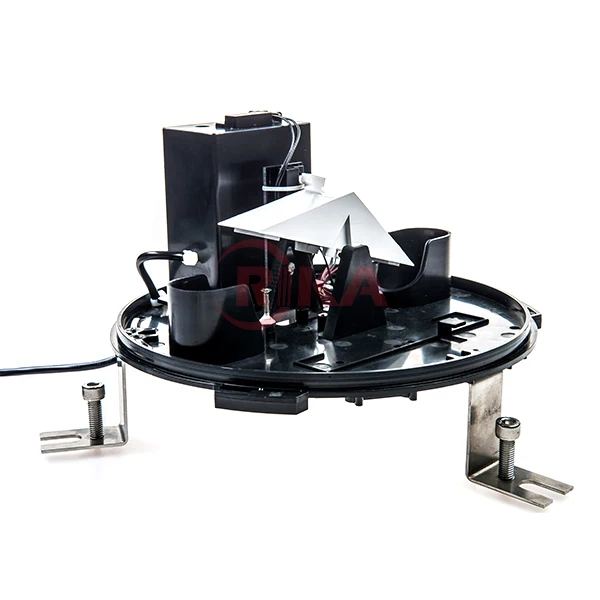

• Well made tipping bucket with low resistance
• The main body made of high strength ABS
• Horizontal Bubble in the bottom



Application

• Meteorology
• Agriculture and forestry
• Environmental protection
• Marine
• Airports, ports
• Scientific research



Specification

Item	Specification
Collector	Diameter :φ200mm, height: 271mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 8mm/min
Resolution	0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA
Output	5Pulses/mm(@10kΩ&0.01uF), RS485(12-24VDC supply)
Operating temperature	0-60℃@0%-100%RH
Main material	Rainfall collector & tipping bucket: ABS, Supporting leg:304SS
Weight(unpacked)	2.5kg









Application



Related Products

Metal Rain Gauge	Plastic Wind Speed Sensor	Air Temp RH & Pressure Sensor
Soil Temp, moisture & EC Sensor	Soil PH Sensor	Soil EC/Salinity Sensor

In order to send specific price to you, please tell me your information below:
1. What’s your required output signal ?   -- We have pulse & RS485 optional. Please specify.

2. What’s your required power supply ?  -- If pulse output, no power supply is required. If RS485 output, the supply is 12v or 24v optional, please specify.

3. What’s your required cable length ? - The standard is 1.5m. If you have special demands, please specify.

4. Quantity?

5. Price items: CIF or Exw or FOB ?  -- If CIF please tell us your detail shipping address & post code for freight calculation.

6. Your complete company name,address, post code,contact person, tel, fax etc.
