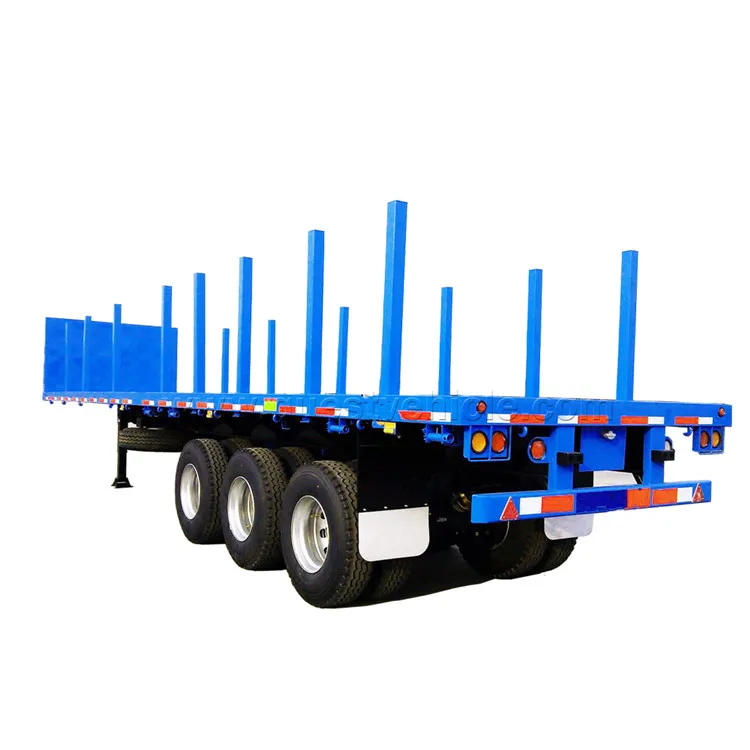

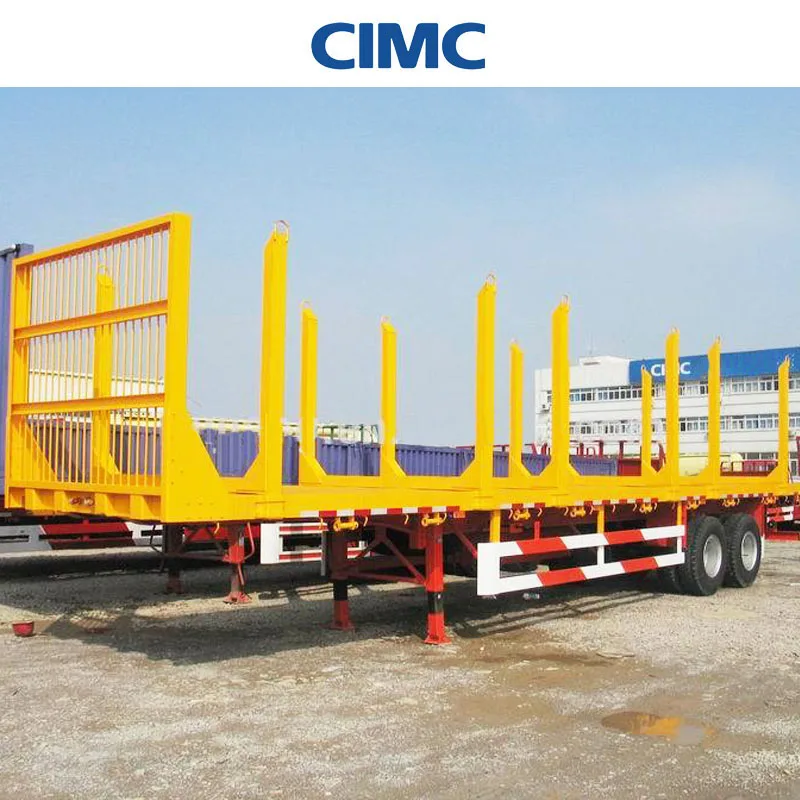

CIMC Dongyue timber semi trailer or

CIMC Dongyue semitrailer has various features Such as light tare weight, heavy loading weight and rational Dongyue light duty semitrailer adapts to foreign and domestic design concepts, uses W-shape through-going beam, reduces whole mass greatly by using FEA (finite element analysis) under the precondition of ensuring structural strength. shows unique operating advantage better and is unique in reducing tire wearing aspect while reducing oil consumption.

Product Details

Spec Details

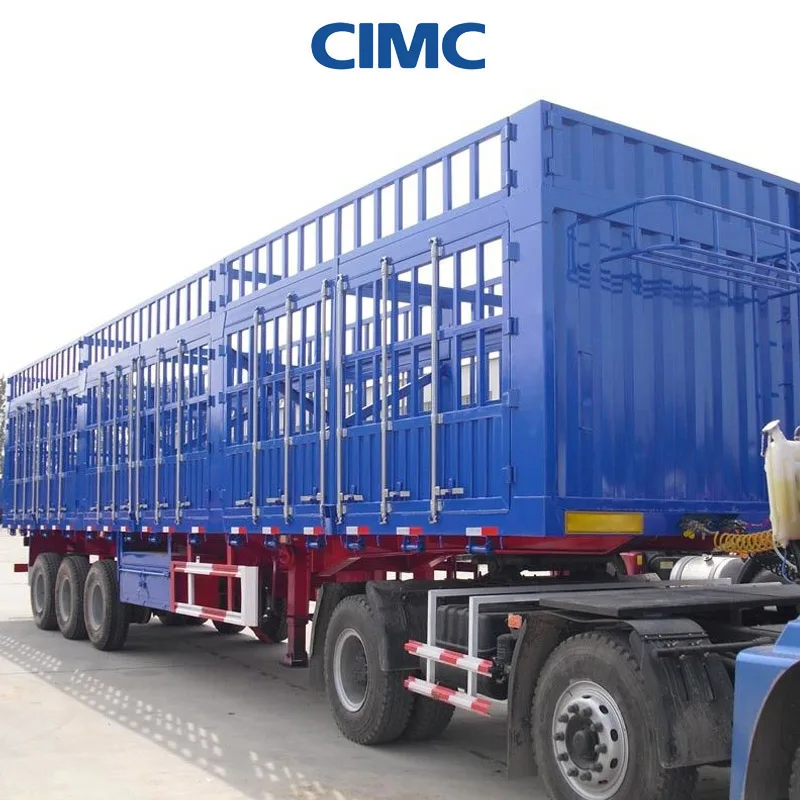

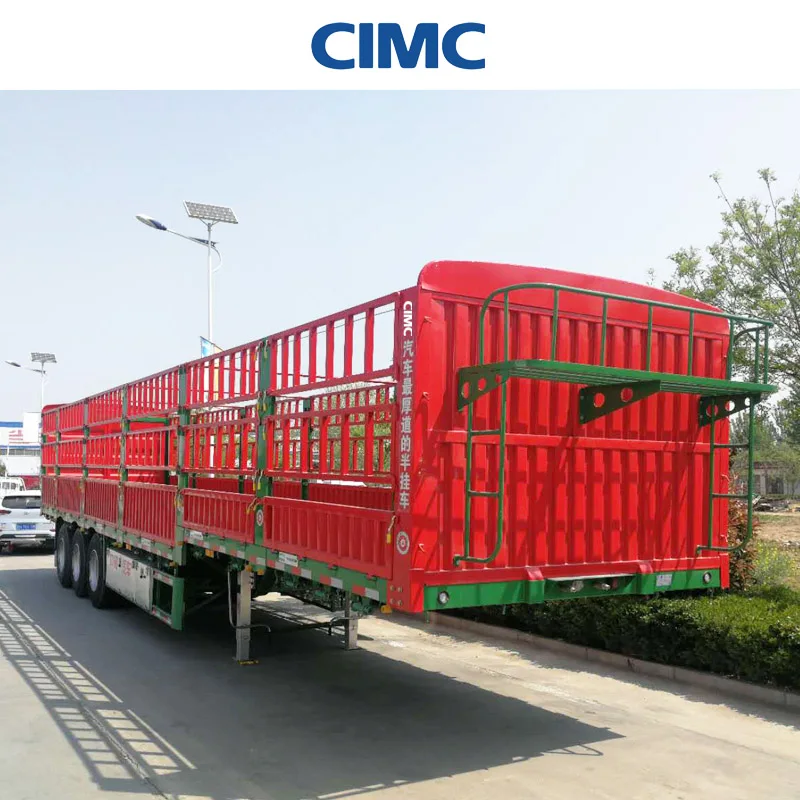

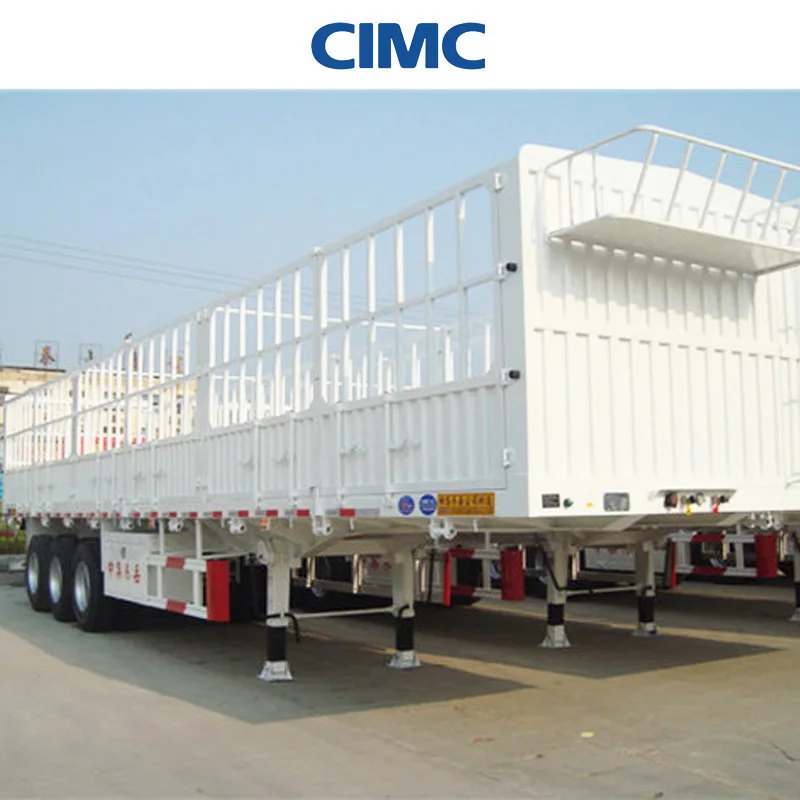

CIMC Dongyue Fence Semi Trailers Specifications.

Fence Semi Trailer-2 Axles	Fence Semi Trailer-3 Axles	Fence Semi Trailer-4 Axles
Brand:CIMC Dongyue
Application:Coal/ Livestock/Vegetable/Cargo Loading
Length*Width*Height:1300mm*2550mm*1800mm
Axles: 2*13T/16Ton FUWA/BPW/CIMC/OTHER	Axles: 3*13T/16Ton FUWA/BPW/CIMC/OTHER	Axles: 4*13T/16Ton FUWA/BPW/CIMC/OTHER
Loading Capacity:20-40t	Loading Capacity:30-60t	Loading Capacity:40-100t
OEM/ODM:Available
SKD/CKD Cooperation:Available
Goose Type:Available
Inquiry us	Inquiry us	Inquiry us

Fence Semi Trailer-2 Axles	Fence Semi Trailer-3 Axles	Fence Semi Trailer-4 Axles
Main Beam	Main Beam	Main Beam
Main Beam Material:Q345/T700	Main Beam Material:Q345/T700	Main Beam Material:Q345/T700
Upper Plate Thickness:12mm	Upper Plate Thickness:12mm	Upper Plate Thickness:18mm
Middle Plate Thickness:6mm	Middle Plate Thickness:6mm	Middle Plate Thickness:12mm
Lower Plate Thickness:14mm	Lower Plate Thickness:14mm	Lower Plate Thickness:20mm
Height:500mm	Height:500mm	Height:500mm
Fence Height:1800mm or customized	Fence Height:1800mm or customized	Fence Height:1800mm or customized
Product Size	Product Size	Product Size
L:13000mm*W:2550mm*H:1800mm	L:13000mm*W:2550mm*H:1800mm	L:13000mm*W:2550mm*H:1800mm
Axles	Axles	Axles
2 Axles *13/16 Ton FUWA/BPW/CIMC/Other	3 Axles *13/16 Ton FUWA/BPW/CIMC/Other	4 Axles *13/16 Ton FUWA/BPW/CIMC/Other
Tire	Tire	Tire
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other	12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other	12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim	Rim	Rim
9.00*22.5 (8 Pieces) Steel/Aluminum	9.0*22.5 (12 Pieces) Steel/Aluminum	9.00*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring	Leaf Spring	Leaf Spring
90mm*13mm*10/90mm*16mm*10	90mm*13mm*10/90mm*16mm*10	90mm*13mm*10/90mm*16mm*10
Kin Pin	Kin Pin	Kin Pin
50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand
Landing Gear	Landing Gear	Landing Gear
28 Tons Two Speed,JOST/Other Brand	28 Tons Two Speed,JOST/Other Brand	28 Tons Two Speed,JOST/Other Brand
Vehicle Painting	Vehicle Painting	Vehicle Painting
Electrophoresis paint	Electrophoresis paint	Electrophoresis paint
Inquiry Now	Inquiry Now	Inquiry Now
Above Information are CIMC Dongyue Standard Spec.If customer want to change Spec.Please Let us know.

Feature and Benefit

Electrophoresis painting

CIMC Dongyue Cost 16,000,000USD to build electrophoresis painting workshop to create killer product in vehicle industry. Vehicle painting results in more wear-resistant and corrosion-resistant than ordinary painting. Meanwhile Appearance performance much better than ordinary painting.

Light-Weight But Strong		Big loading Capacity
High precision assembly		Famous Standard Spare Parts
Over 100 experienced technical staff		Standard Drawing for CBU SKD CKD
High-Strength Ability		Material Sourcing,ADR&DOT Standard for procurement

FEA-Finite element analysis

FEA-Finite element analysis Used in calculation of Aircraft culture strength.Now we used in vehicle to promote product performance.

How About Payment?	How About Warranty?	How About Delivery Time?	How About After-Sale?
We Accept T/T And L/C payment.or other payment way available.	According to different Semi-trailer model Oversea warranty time 5-8 Years.	According to different Semi-trailer quantity Delivery time 15-25 Days.	Life-Time After Sale and Spare Parts supply.Guide Video for customer.

Packing & Delivery

Transaction History

Above is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.Know More...

About CIMC Dongyue

It happens More Than Twenty Thound Trailers each year – customer receives Trailer from CIMC DONGYUE – but each interaction is unique
and valuable.

Year 1987,Founder Mr Zengcai Yue with two staff who own dreams begin to their career.Start with a welding repair shop,one simple room,registered capacity 500 Yuan

(almost $75),Step the Road to entrepreneurship.

CIMC DongYue Become Subsidiary of CIMC Group officially Since 2007,Begin to Research & Development-Manufacture-Sale Orthodox CIMC Series vehicle Products.

CIMC DongYue More Than 30 Years Development.Undivided attention,focus on industry development,Step one printing,record the footprint of the brand,CIMC DongYue Growth,a full of glory and dream with time,and time with songs.

Know More...
