Характеристики
Multi-Protocol IPTV modulator with DVB-C/DVB-T /ISDB-T RF out
Outline

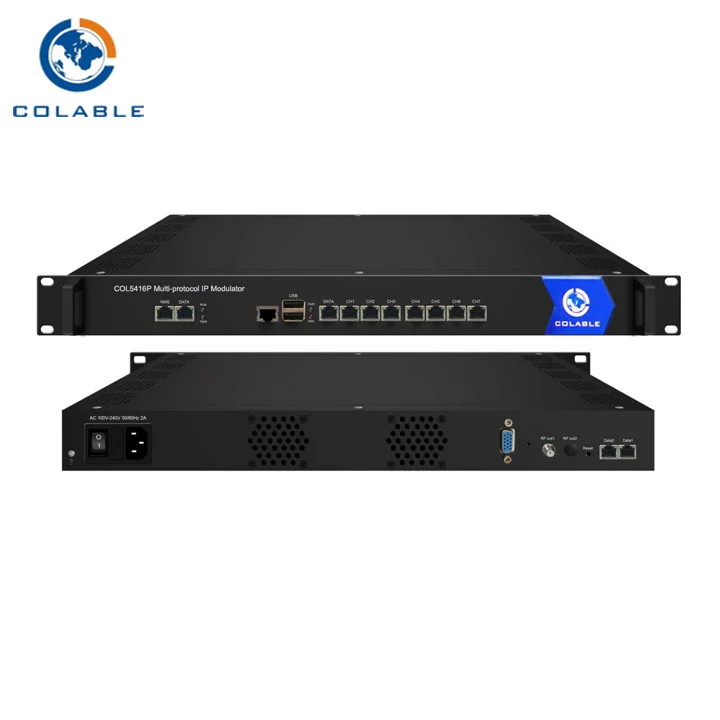

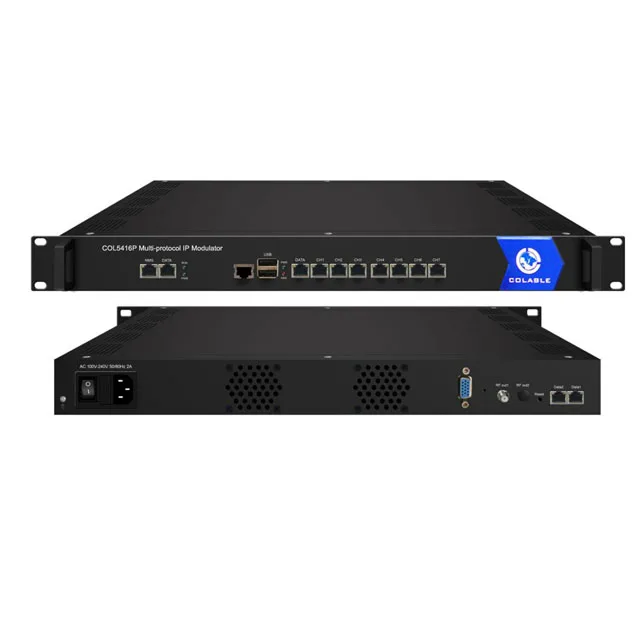

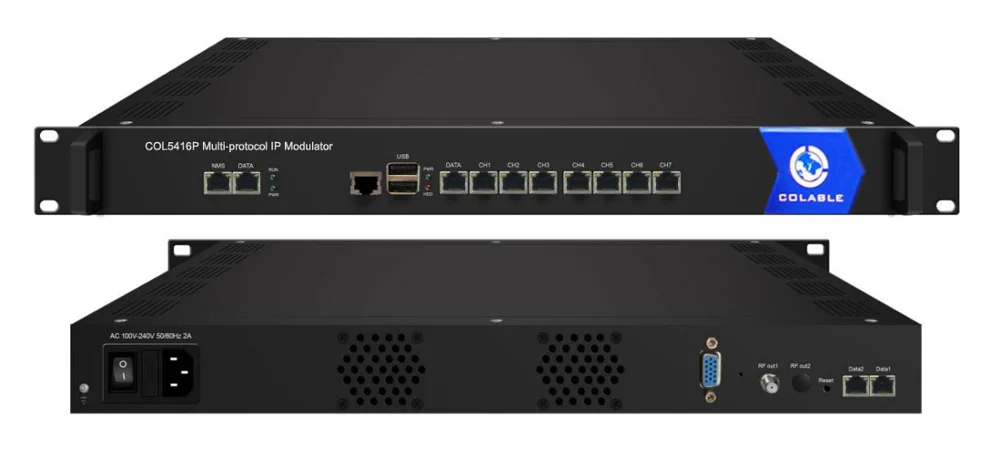

COL5416P IPTV modulator is a high integration device which is combined with two independent modules. One is IPTV gateway module which is used for the protocol conversion scenarios and streaming media distribution scenarios and it can convert the network IP stream over HTTP, UDP, RTP, RTSP, HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The other is modulator module which supports IP in and IP out and DVB-C /T /ISDBT RF out, and it can receive gateway source directly.
Features
ü 1 IPTV gateway module +1 IP modulator module, and they can work independently
ü IP in (HTTP, UDP, RTP, RTSP and HLS) to RF out in one box
ü Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP. Transmitting IP to modulator module
ü Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
ü Modulator Module: support IP in and IP &RF out with 16 DVB-C/8 DVB-T/6 ISDBT modulation.

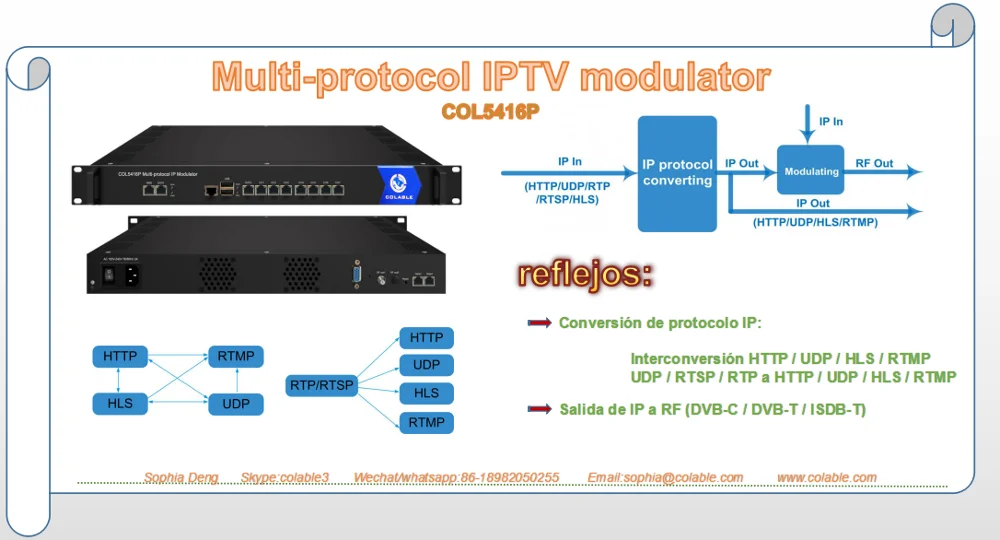

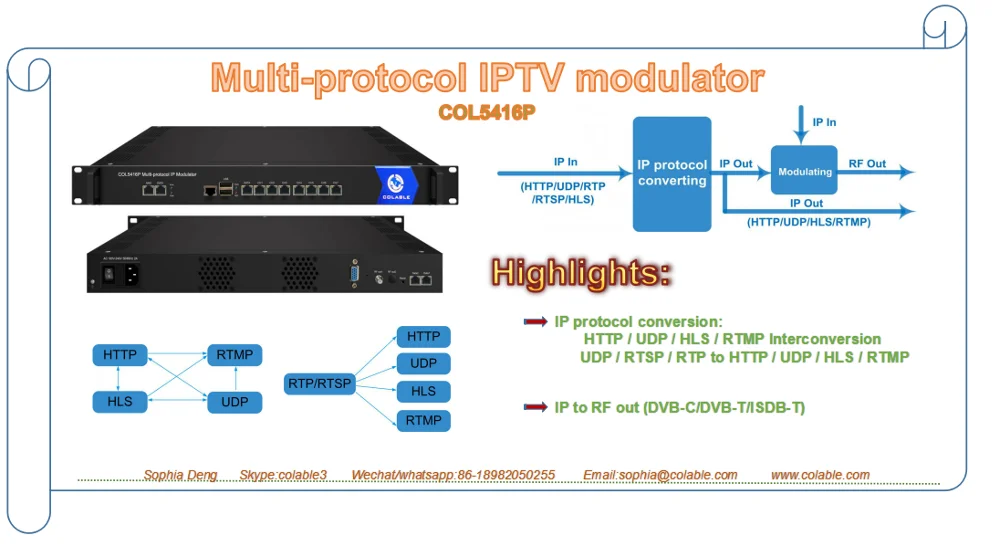

IP Protocol Conversion

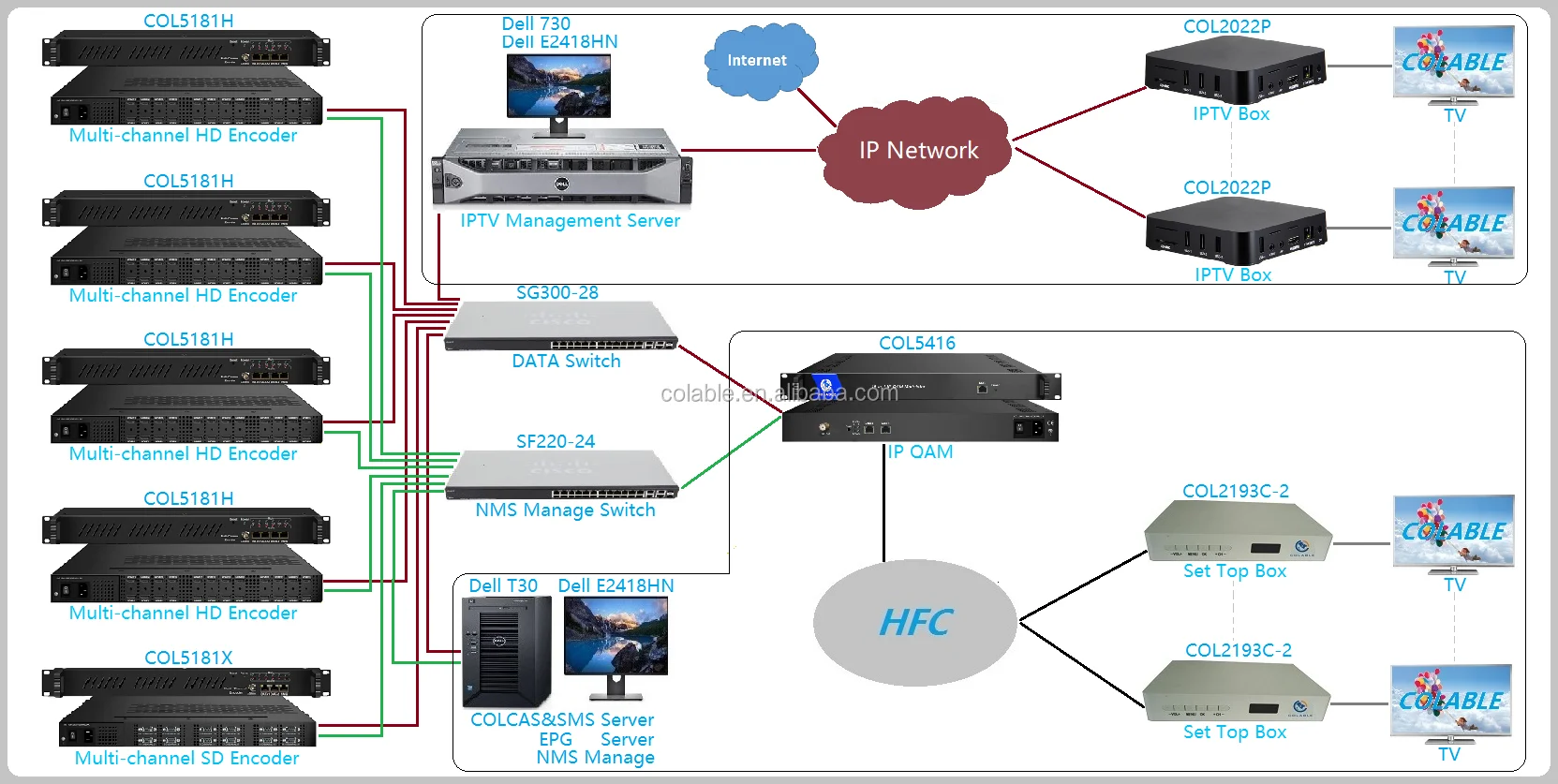

Principle Chart
Specifications
Input | IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
TS files uploading through Web management | |
IP output | IP out over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast) |
System | Memory: 4G |
Solid-State Disk(SSD): 16G | |
Channel switching time with Colable’ STB: HTTP (1-3s), HLS (0.4-0.7s) | |
Support adding scrolling caption, welcome words, boot picture and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Colable IPTV APK) | |
Play programs with APK downloaded android STB and TV, maximum 150 terminals | |
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization |
Input | DVB-C module | 512 IP (MPTS/SPTS) input over UDP/RTP, 2 100/1000M Ethernet Port | ||||
DVB-T module | 256 IP (MPTS/SPTS) input over UDP/RTP | |||||
ISDBT module | 192 IP (MPTS/SPTS) input over UDP/RTP | |||||
Multiplexing |
| DVB-C | DVB-T | ISDBT | ||
Input Channel | 512 | 256 | 192 | |||
Output Channel | 16 | 8 | 6 | |||
Max PIDs | 180 per channel | |||||
Functions | PID remapping(auto/manually optional),PCR accurat adjusting,PSI/SI table automatically generateing | |||||
Scrambling Parameters (for DVB-C/DTMB) | Max simulscrypt CA | 4 | ||||
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | |||||
Connection | Local/remote connection | |||||
Modulation Parameters | DVB-C |
| J.83A | J.83B | ||
Constellation | 16/32/64/128/256QAM | 64QAM/ 256QAM | ||||
Bandwidth | 8M | 6M | ||||
Standard | EN300 429/ITU-T J.83A/B(DVB-C) | |||||
Symbol rate | 5.0~7.0Msps, 1ksps stepping | |||||
QAM channel | 16 non-adjacent carrier outputs within 192M bandwidth | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
DVB-T | Standard | ETSI EN300 744 | ||||
Constellation | QPSK/16QAM/64QAM | |||||
Bandwidth | 6/7/8 MHz | |||||
Trans mode | 2K/4K/8K | |||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
MER | ≥ 40dB | |||||
RF frequency | 50~960MHz, 1kHz stepping | |||||
RF output Level | -20~+10dBm, 0.5dB stepping | |||||
RF out channel | 8 non-adjacent carrier outputs within 192M bandwidth | |||||
ISDBT | Standard | ARIB STD-B31 | ||||
Bandwidth | 6M | |||||
Constellation | QPSK, 16QAM, 64QAM | |||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||
Transmission Mode | 2K, 4K, 8K | |||||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
MER | ≥ 40dB | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
RF output level | -20dBm~+10dBm, 0.1dB stepping | |||||
RF out | 6 non-adjacent carrier outputs within 192M bandwidth | |||||
TS output | 16 (DVB-C)/ 8(DVB-T/ 6(ISDBT) IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (Data 1/2) | |||||
System | web-based NMS management through module’s NMS port | |||||
