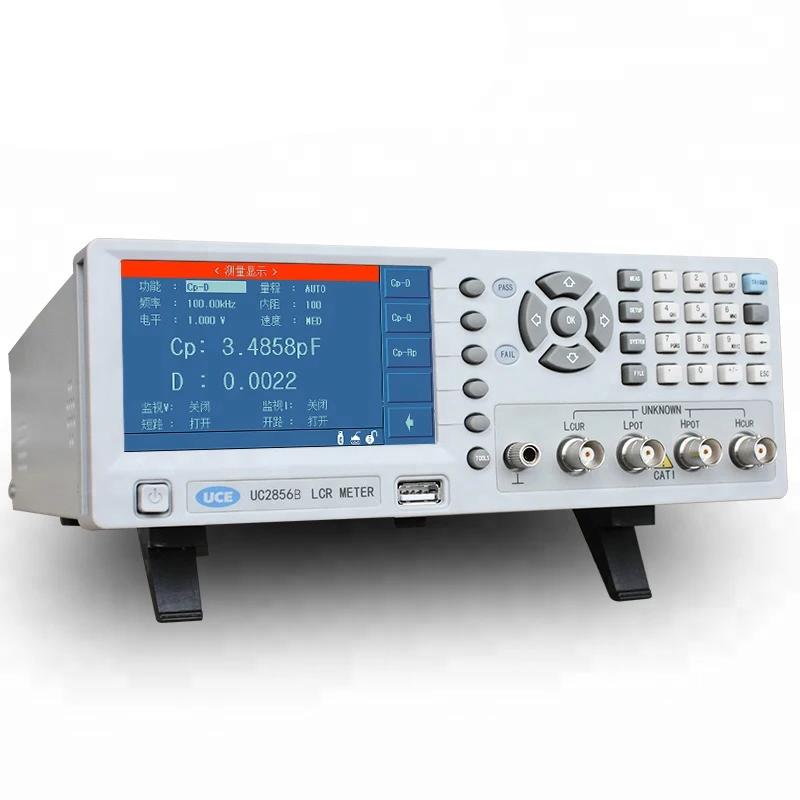

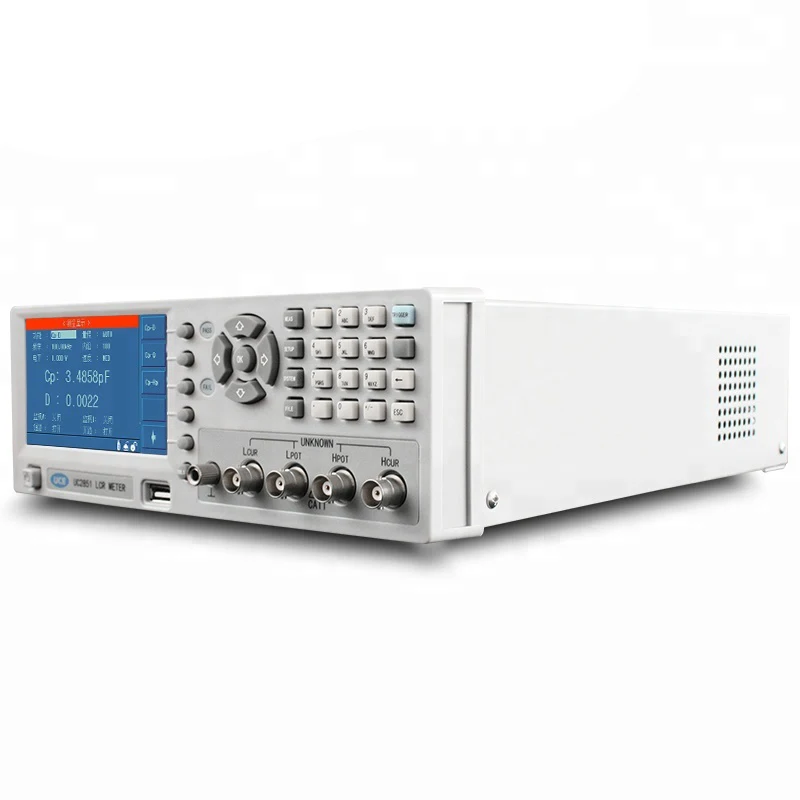

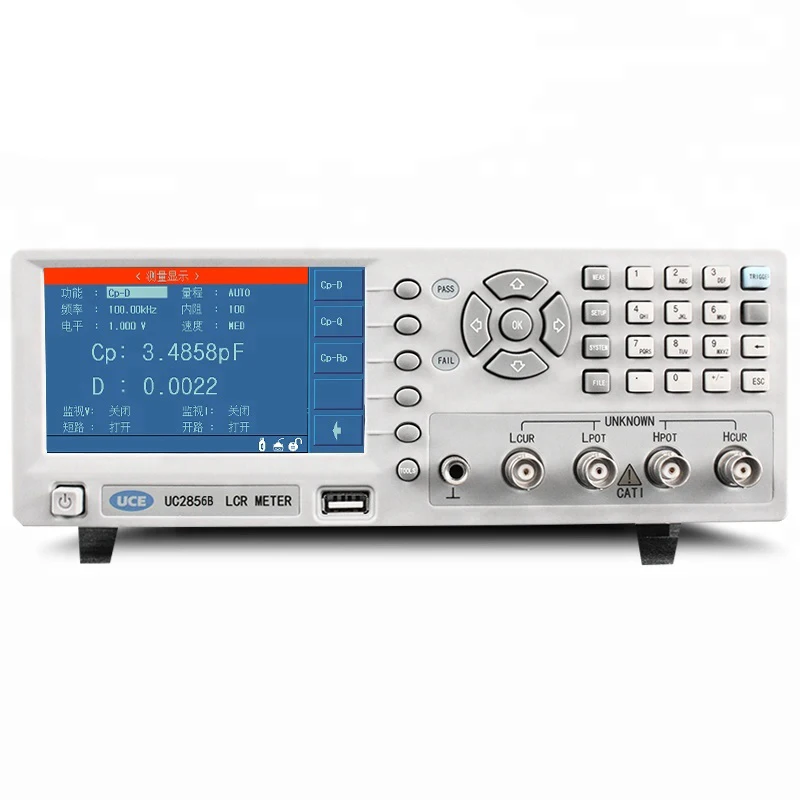

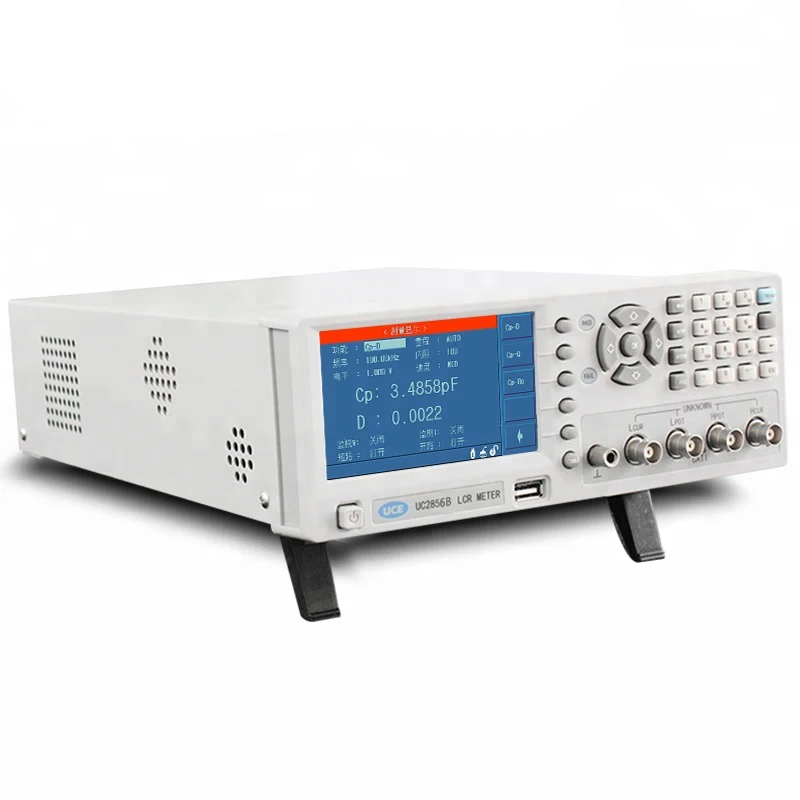

UC2856B New high-performance precision LCR digital bridge meter 100kHZ

Features

- 4.3 inch LCD display, more intuitive and clear

Hz100 - 50 kHz, 10 typical frequency

- 30 ohm, 100 ohm to two different signal source output impedance

- built in 4 comparator, file sorting and counting function.

In the 100 set of internal documents, U disk expansion multiple test file or call

- built in 2V DC bias voltage.

- by USB HOST to realize the instrument software version upgrade and update

- U disk copy screen to save data more convenient, can support the format of FAT16 file system, FAT32

In standard RS232C, HANDLER, USB HOST, optional GPIB



Brief introduction

- UC2856/B is a multifunctional component tester is used to test the various electronic components. The 4.3 inch LCD display the current most popular, users can read the test results more intuitive, more comfortable. It is a kind of high speed impedance measurement, wide measurement range and 5 bit resolution test, which can meet the quality control on production line, incoming inspection and lab measurement.



Technical

measurement
LCR test		Z| |Y|, >|, C, L, X, B, R, G, D, Q, .
test frequency		50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz, a total of 10
Basic measurement accuracy		0.05%  (UC2856)  0.1%      (UC2856B)
equivalent circuit		in series and parallel
mathematical functions		absolute deviation, percentage deviation of
range		automatically, manually select the
trigger mode		internal, external, manual, bus
measuring speed (more than 1kHz)		fast: the fastest 40 times per second, the speed: 11 times / sec, slow speed: 3 times / sec
the average number of		1 255
delay time		0 60s to 1ms, step
"calibration function		open / short / load
test terminal configuration		five
display		reading, Delta, delta%, V/I (the measured voltage / current monitor)
display		5 resolution, 4.3 inch LCD display
test signal
test signal frequency		kHz >50 Hz100
output impedance		30 ohm, 100 ohm can choose
test signal		normal: 0.1V, 0.3V, 1V, accuracy: 10%
bias source		+ 2V bias source, accuracy: 1%
	external	scalable 5VDC bias voltage source .
display range
|Z|, R, X		0.01m 99.999 M
|Y|, G, B		0.0001 S - 99.999 S
C		0.0001 pF 9.9999 F
L		0.0001 H - 999.99 H
D		0.0001 9.9999
Q		0.0001 99999
theta (DEG)		-179.99 - 179.99 degrees degrees
theta (RAD)		-3.14159 3.14159
comparator function		4 file sorting function
memory		100 group internal instrument set for storage / call, external 500

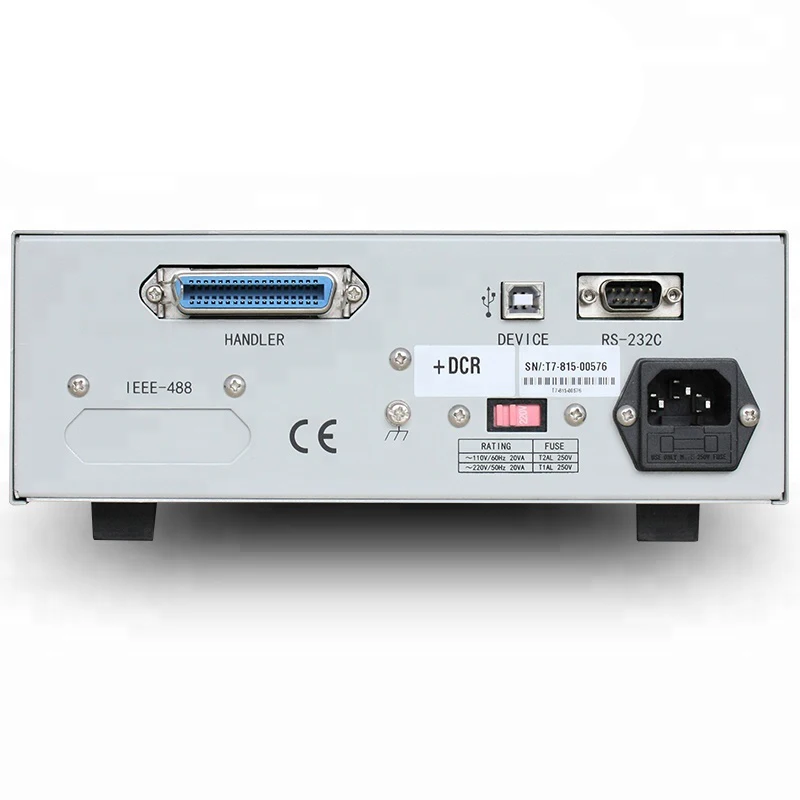

interface		standard RS232C, HANDLER, USB HOST, optional GPIB
