Радиочастотная дверь 1 2 м для клетки faraday высокое качество конкурентоспособная

Описание и отзывы

Трекер стоимости

Характеристики

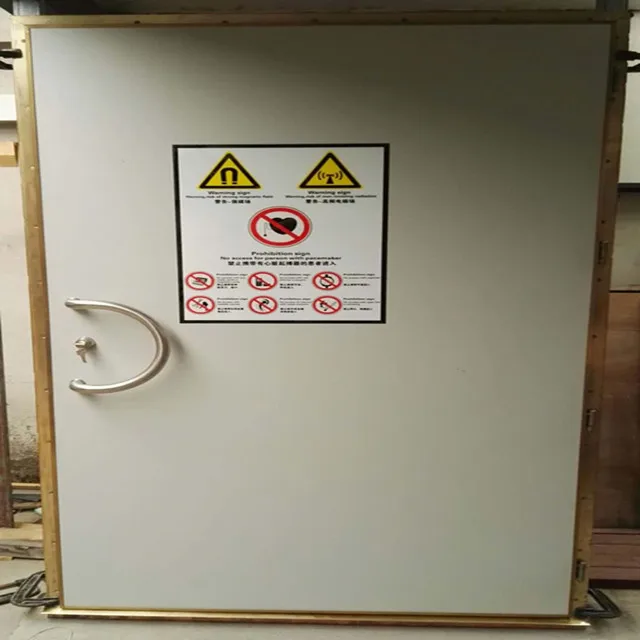

RF shielding door for EMC chamber

Product Description



Size	Customized
Material	Customized
Attenuation requirements	Customized
Packing	Wooden packing or customized
Flange	With a copper flange for shielding



Features for RF shielding door for EMC chamber



1. The most widely used electromagnetic shielding door nowadays.  Access control system can be added.

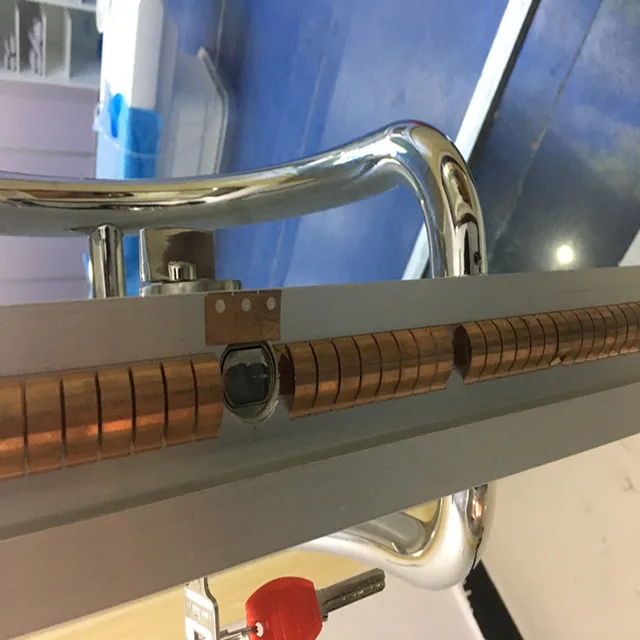

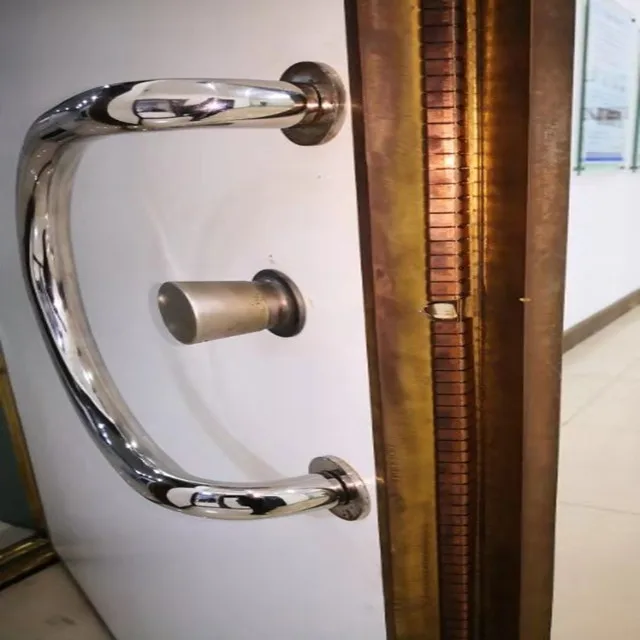

2. Using high performance Becu fingerstrips, long service life, easy and convenient to open and close.



3. Hinge rotation, single & double knife edge technology, double shielding effectiveness performance



4. Two-point latching mechanism for tight, locking seat frame with roller bearings structure, running smooth and light



5. PESD series RF shielding door compliance to GB/T-12190-2006, GJB5792-2006, LEEE Std 299-1997, MIL-STD-285:1956 Standards.



Application for RF shielding door for EMC chamber

- Nuclear magnetic resonance(NMR)

- Shielding room

- Communications room

- Security room and laboratory

- MRI room

- Military office



Options for RF shielding door for EMC chamber

Door type 1: Manual door, Electric door, Pneumatic door.

Door type 2: Single door or double door

Door type 3: Single knife or double knife

EMC shielding room Shielding Properties (dB)
Magnetic field	14kHz	85dB
	100KHz	100dB
	200KHz	110dB
Plane wave	50-103MHz	120dB
Microware	1-10GHz	110dB
	10-20GHz	100dB
	20-40GHz	80dB
