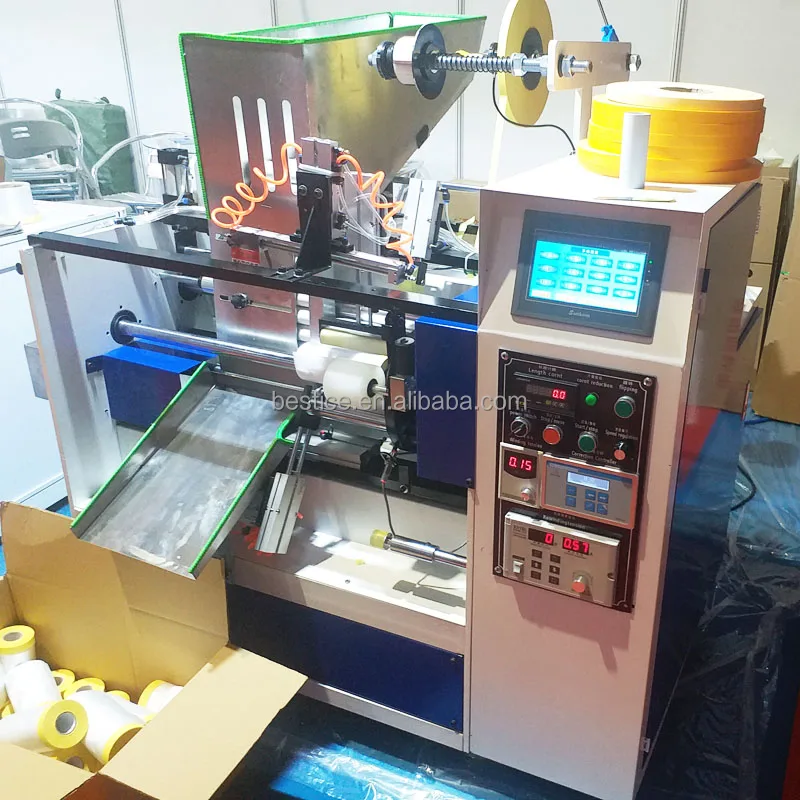

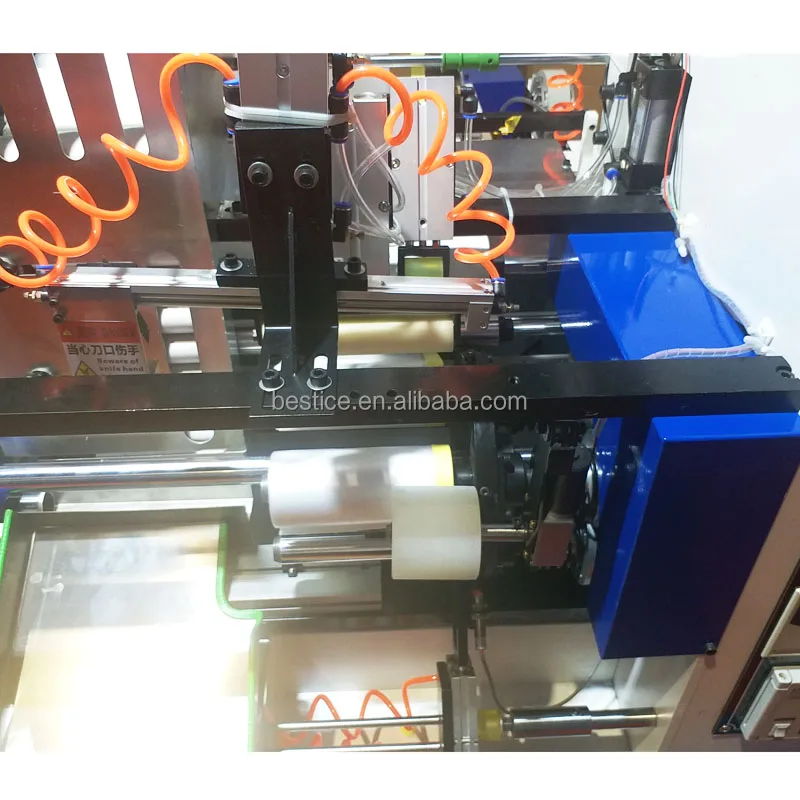

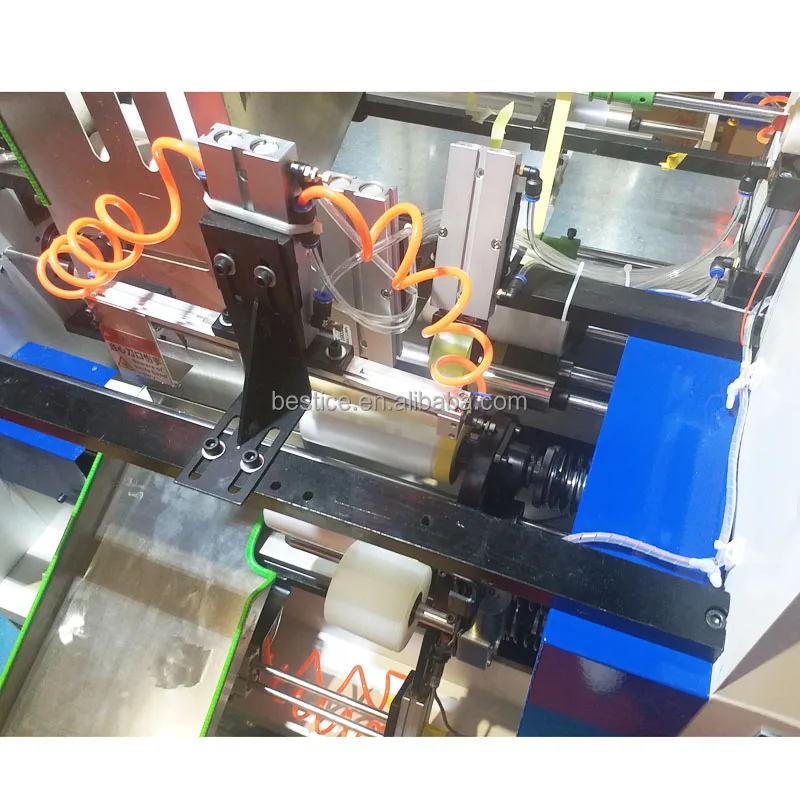

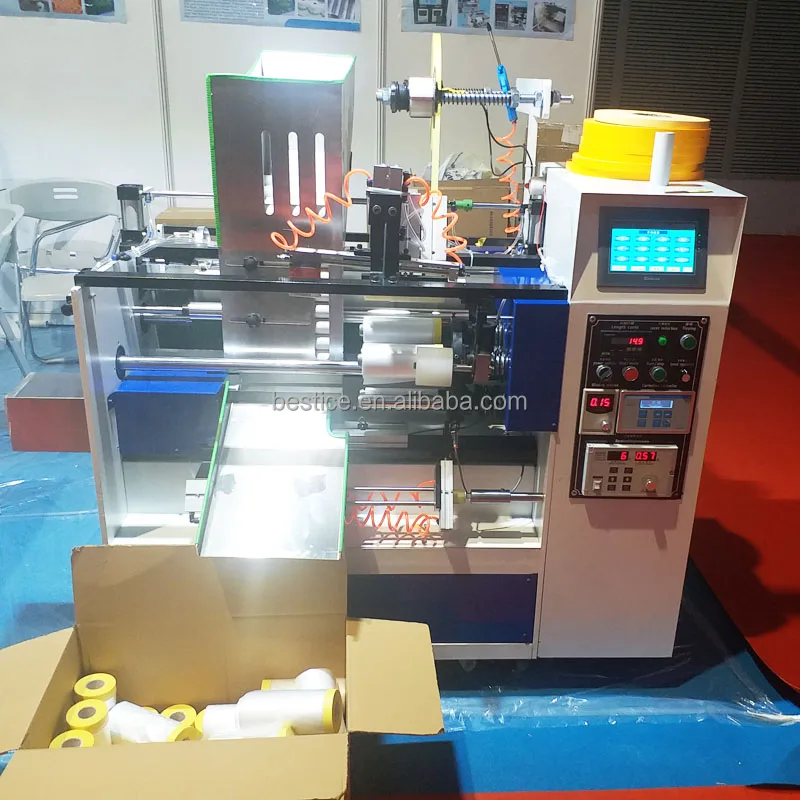

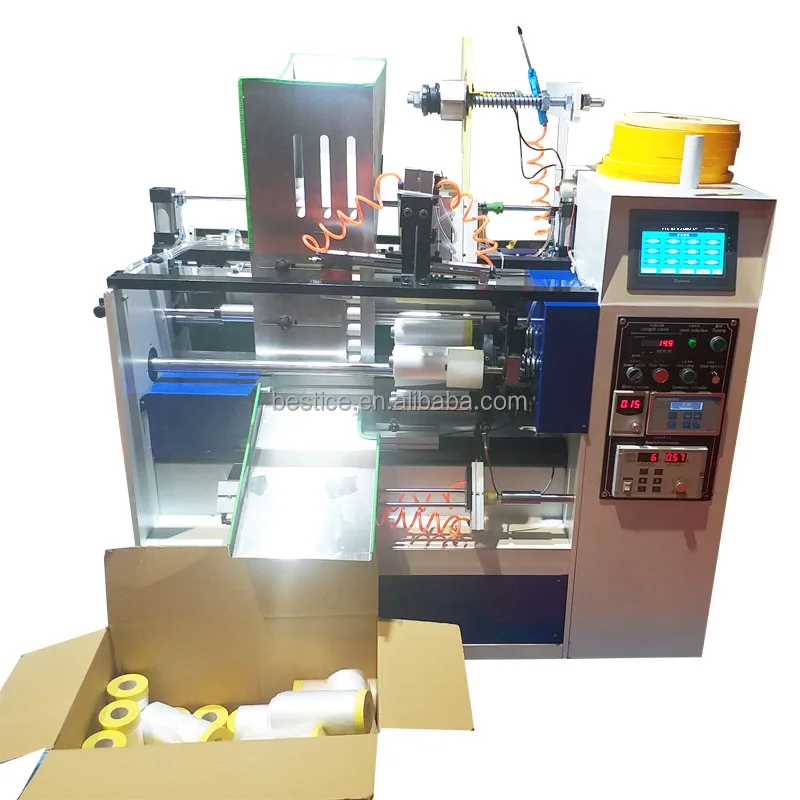

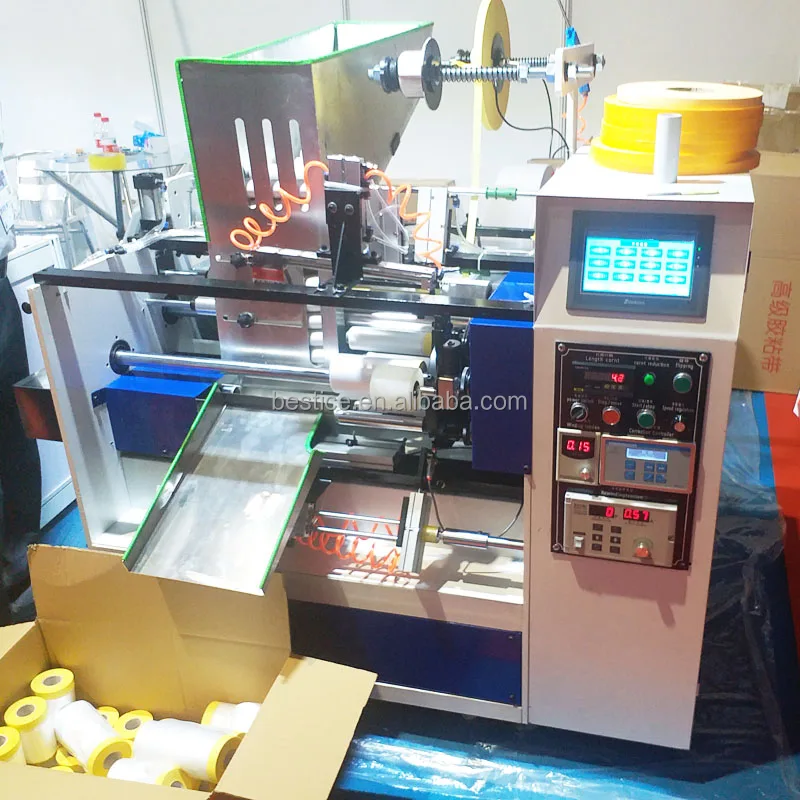

The automatic masking film pretape machine is folding the plastic film, cutting the edge, and stick the edge with the masking tape, washing tape or cloth tape, rewinding to the required meters, automatic cut off.
It mainly used to protect the area which is not expected to be painted. Such as painting the building interior, car, large scale machinery, ship, automobile carriages, containers, trademark and logo etc then use the pretape masking film to protect the parts not to be painted.
>>Pretaped masking film:
>>Features:
1. PLC and touch screen control, automatic frequency speed adjustment
2. Two section meter counter, making length accuracy.
3. Automatically tension control.
4. Magnetic power break and clutch for the unwinding and rewinding.
5. Easy operation that one worker is able to operate 3-5 sets of machine.
6. Fully automatic running. Machine automatically stops when masking tape is finished.
7. Automatic labeling function can be available.
>>Parameters:
Model
ZBM-500
Max unfolding film width
≤3000mm/ usually 300-3000mm
Unwinding diameter
≤600mm
Unwinding paper core
76.2mm /3 inch
Rewinding diameter
≤100mm or customized
Rewinding paper core
20mm/ 25mm/ 30mm
Machine speed
100m/min
Production speed
80-90m/min
Machine power
0.75KW
Machine weight
650KGS
Machine Size
1800*1500*1400mm
>>Application:
Related Products
Tape roll cutting machines
Application:
Suitable for cutting film, paper, and kinds of tapes such as BOPP tape, masking tape, kraft tape, double sided tape, foam tape, duct tape ,medical tape,fiber tape,etc.
