Wechat emy860416 1390/9060/1060/1590/1610/1612 лазерная машина для резки дерева акрила CO2 и гравировки


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.86 $* 0.37 $*
Aug-17-2025 0.13 $* 0.96 $*
Jul-17-2025 0.6 $* 0.32 $*
Jun-17-2025 0.23 $* 0.14 $*
May-17-2025 0.9 $* 0.6 $*
Apr-17-2025 0.45 $* 0.12 $*
Mar-17-2025 0.22 $* 0.60 $*
Feb-17-2025 0.86 $* 0.44 $*
Jan-17-2025 0.74 $* 0.47 $*

Характеристики

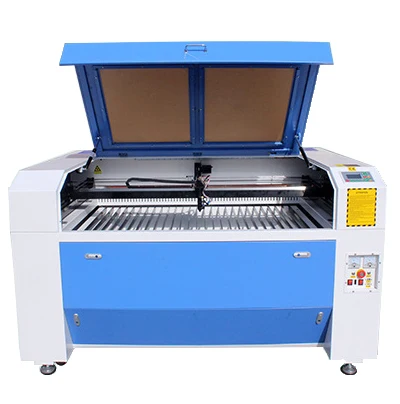

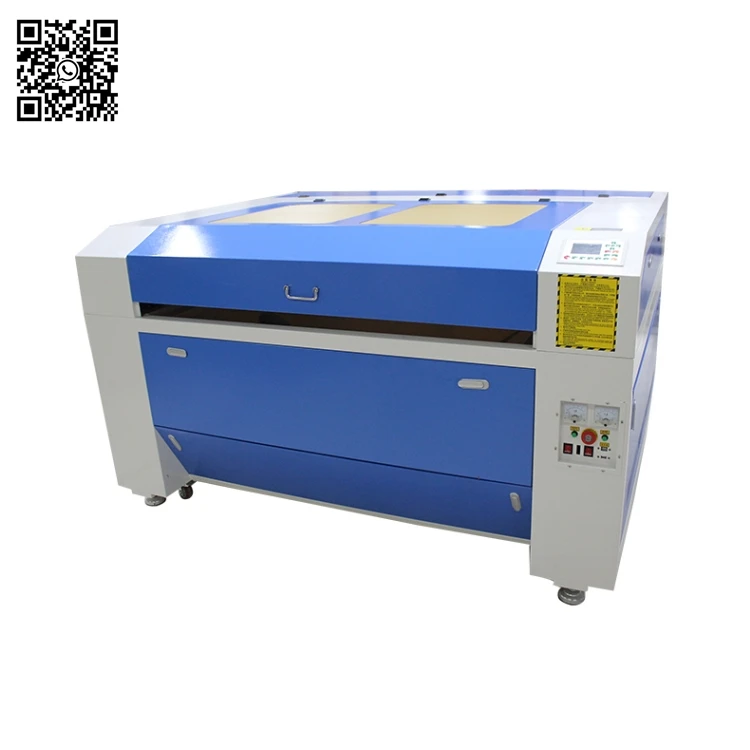

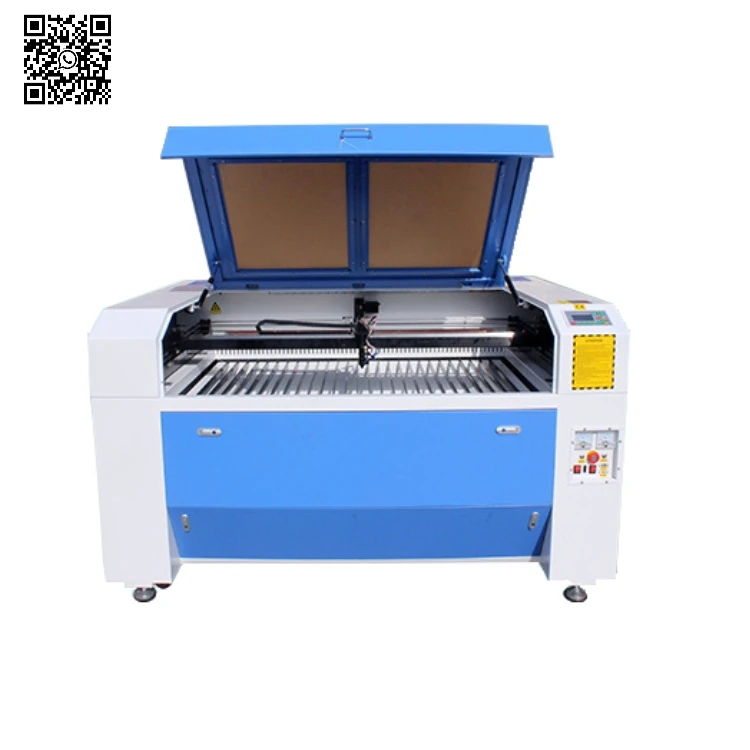

Wechat emy860416 1390/9060/1060/1590/1610/1612 wood acrylic cutting Laser machine CO2 Laser Cutting and engraving machine 1390




Applicable Fields
This machine is widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters,graphs, images, trademarks and so on.


Features:
1. The imported high-precision linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.belt transmission
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.
8.Special customization:We can make double or more laser heads to improve work efficiency.
9.Smart controller: Advanced DSP control system, high speed, easy operation, high engraving cutting speed.support offline work.
10.channel-type feeding, circulation water cooling, hydraulic protection,dust and smoke exhausting,huff protection, etc.
11.Optional function: motorized up-down table optional to allow customers to process thick materials. up&down worktable, honey-comb or aluminum strip worktable,
12.Rotary optional for engraving cylindrical objects, such as wine bottles and pen vases, etc.


Product Description


Name
CO2 Laser cutting and engraving machine
Model
9060,1390,1060,1610,1590,1612 etc
Working area
900*600mm 1300*900mm 1600*1200mm,etc
Laser power
40W 60W 75W 90W 100W 130W 150W
Laser type
sealed CO2 laser tube,Yongli/Reci brand
Working table
fixed blade platform/honeycomb table ; adjustable up-down table
Cooling method
Circulating-water-cooling and protection system,industrial chiller CW3000,CW5000,CW5200 optional
Engraving speed
0-64000mm/min
Cutting speed
0-36000mm/min
Control system
Ruida/AWC708C/ACW708C LITE
Min. shaping character
Character 2.0mm×2.0mm,English1.0mm×1.0mm
Software support
CorelDraw, PhotoShop,AutoCAD,TAJIMA
Position accurancy
±0.015mm
Drawing format
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.
Working power
AC110V/220V,50HZ/60HZ
Working environment
5-40℃,5%~95% no condensation
Optional Spare Parts
Rotary system, Industrial Chiller, Infrared Locating System,Laser Tube, Up-down table
Applicable material
Acrylic, crystal, MDF, ceramic, leather, cloth, fabric,glass,stone,wood etc.
Other machine size
600*400mm,1300*1000mm,1200*1200mm,
1300*1800mm,1600*1200mm,1600*2000mm,
1600*3000mm,1800*1000mm and other customized
Optional parts
# Laser tube power,
# Control system :M2,Ruida,AWC,
# Table sytle: fixed blade table, adjustable up-down balde table/honeycomb table,
# Cooling chiller, for laser tube more than 100W it is necessary , it can protect laser tube.
# CCD camera scanner






1. Our laser cutting machine is categorized by its working area, model numbers: DA6040, DA9060, DA1060, DA1390, DA1590, DA1410, DA1610, DA1612, etc. We also offer customer-designed service,you just need to tell us your requirements or the workpiece size,materials and we'll give our suggestion.


2. This series machine adopt DSP digital controlling technology, incorporate designed frame and structure to guarantee stable work.

3.It uses USB port data interface with large mass storage device to provide high working speed and efficiency.


4.The newest software is matched to AutoCAD,corelDRAW CAD and all other graphics processing softwares for outputing original graphics.

5. Support work time preview and interruptible engraving recovery after power-off.

6. Support dynamic display which will show process path and coordinate point, real-time work track display.

7. Support on the control panel directly modify the processing parameters of each layer (such as speed, power, etc.)






Professional laser head.
It can stable work continuously for a long time. It adapt to all kinds of environments, carving fast, high precision.

Reflect Mirror.
Stable optical properties, special process to ensure no pinholes, and solid film

Deceleration design.
It is double deceleration and making the cutting accuracy and smooth for the smaller circle.

Original Taiwan Rails.
It is High rigidity, four direction equal load design, and it make low noise and long-term maintenance.




Optional Parts




Samples


Applicable Material (Nonmetal)
Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma,Corfam, Textile, Chemical leather, etc.


Laser tube power
50w
60W
80W
100W
130W
150W
280W
Wood
3mm
5mm
6mm
8mm
12mm
15mm
24mm
MDF
1mm
2mm
2.5mm
4mm
5mm
7mm
17mm
Plywood
3mm
5mm
6mm
8mm
12mm
15mm
24mm
Plastic
2mm
4mm
5mm
8mm
10mm
15mm
24mm
Rubber
1mm
1.5mm
2mm
3mm
4mm
5mm
10mm
Acrylic
4mm
6mm
8mm
10mm
15mm
17mm
26mm












After sale Service


Guarantee:
1.12 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

Payment terms:
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine, after you are satisfied the machine you pay the left 70% payment. Then we will delivery the machine.

After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life




Packing & Delivery


Package and Detail:
Firstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container.
