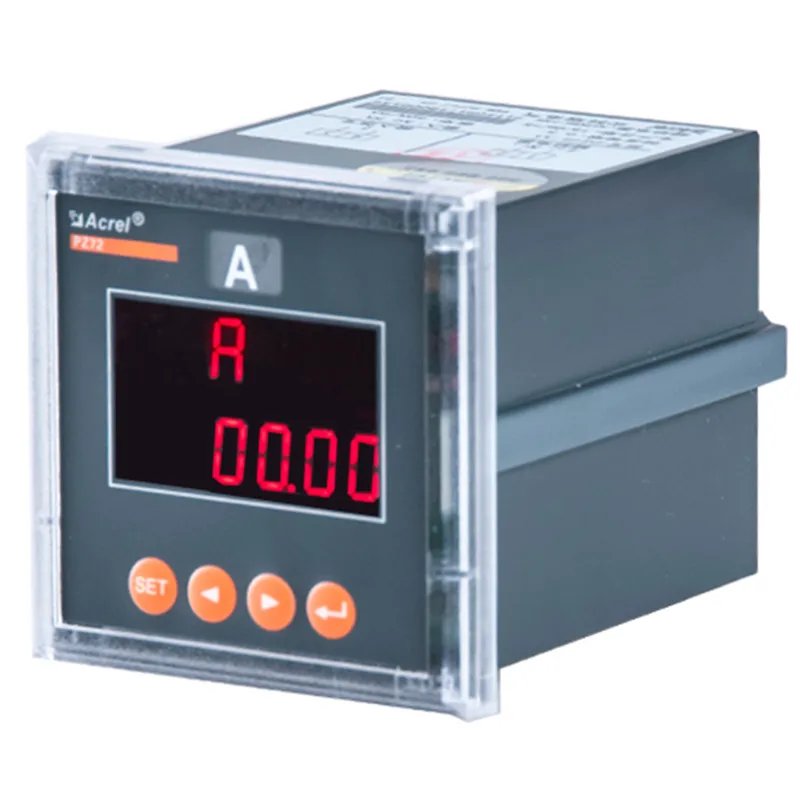

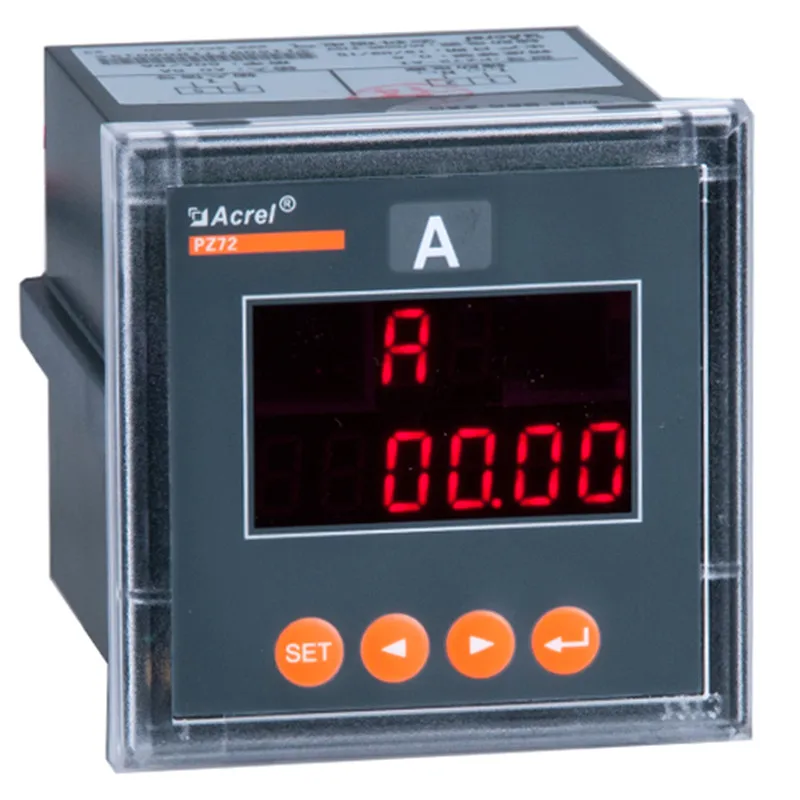

 Single phase current meter PZ72-AI





PZ Series electric energy meters, adopting AC sampling technology, can measure many single phase or three phase grid electrical parameters such as current, voltage, power, electric energy etc. directly or indirectly. It can be used for local display, and also can be connected with the control equipment to form measuring and controlling system.

Product Specification



Model	The Basic Function	Outline Dimension(mm)	Unit price /USD
PZ72-AI/C	Single phase current measurement, LED digital display /C:One channel RS485 communication(/C)	75*75	41.3

Technical Feature



Technical Parameters		Value
Input	Nominal value	AC current:1A,5A(Special specifications can be priorconsultation)
	Overload	Voltage:1.2 times(continuous),2 times/1s; Current:1.2 times(continuous),10 times/s
	Frequency	45Hz~65Hz
	Consumption	<0.5VA
Accuracy		0.5 class
Option Function	Dispaly	PZ48-AI: LED                                     range-9999~9999                                 set multiplying power at will
	communication	RS485 Modbus-RTU Protocol
	Analog	DC4-20mA,DC0-20mA or DC0-5V output
	Switching	input:2 channel dry contacts;power inside,Optocoupler isolation
		output:2 switch outputs,the normally open contact of the relay
		Contact capacity:3A/30VDC,3A/250VAC
Power Supply	Voltage range	AC85~265V or DC100-350V
	Power consumption	<5VA
Insulation resistance		≥100MΩ
Power frequency withstand voltage		2kV/1min(RMS)
Mean time between failures		≥5000h
Environment	Temperature	Operation:   -10~+55℃(LED display)                     -10~+45℃(LCD display)  Storage:     -20~+70℃
	Humidity	≤93%RH,no condensation,without corrosive
	Altitude	≤2500m



Outline and Size of Cut Out:

Outline	Panel size		Housing size			Cutout size
Unit:mm	Height	Width	Height	Width	Depth	Width	Height
PZ72-AI/C	75	75	66	66	98	67	67



Installation:
