Станок для полировки гранитных кромок мрамора и гранита с
- Категория: Оборудование для камней >>>
- Поставщик: Jinan,Luojia,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.41 $* | 0.3 $* |
| Aug-18-2025 | 0.36 $* | 0.91 $* |
| Jul-18-2025 | 0.12 $* | 0.22 $* |
| Jun-18-2025 | 0.54 $* | 0.38 $* |
| May-18-2025 | 0.60 $* | 0.91 $* |
| Apr-18-2025 | 0.90 $* | 0.71 $* |
| Mar-18-2025 | 0.67 $* | 0.79 $* |
| Feb-18-2025 | 0.66 $* | 0.13 $* |
| Jan-18-2025 | 0.29 $* | 0.27 $* |
Характеристики
Product Description

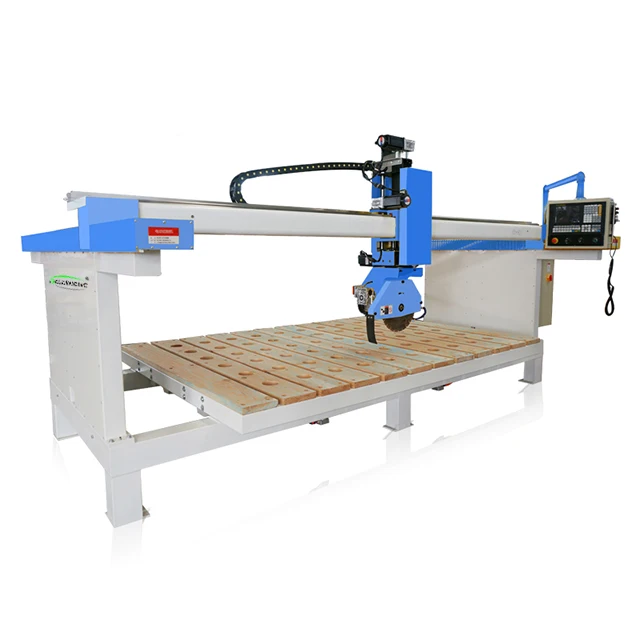

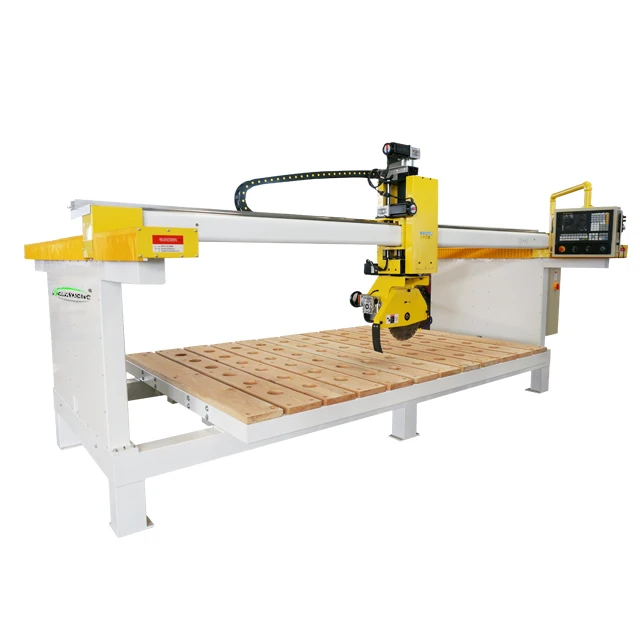

Cnc Stone Center Machine Granite Edge Polishing Machine for Marble and Granite
iGoldencnc- 3500 is our newly designed 5-axis bridge saw with compact size. It is with automatic tilting machine head and hydraulic tilting work table.
By using advanced computer control system to achieve multi programming methods, including manual programming or PC programming ,
this machine can achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing, slotting,
kitchen countertop processing, special shape processing and other operations.
Best quality machine parts:
- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.
Technical parameters:
380v-3phase,50hz | |
Motor power | 4 kw |
Stroke of X axis | 3000mm |
Stroke of Y axis | 2000mm |
Stroke of Z axis | 260mm |
Stroke of A axis | 360 degree rotation |
Cutting speed of X axis | 1-2000mm/min |
Cutting speed of Y axis | 1-2000mm/min |
1-1000mm/min | |
Rotating speed of A axis | 0-7R/min |
Cutting thickness | 100mm |
Cutting precision | 0.2mm |
Programing way | Manual or Import graphics |
Weight | 2000kg |
Warranty | 1 year for the machine frame, 6 months for electric parts |

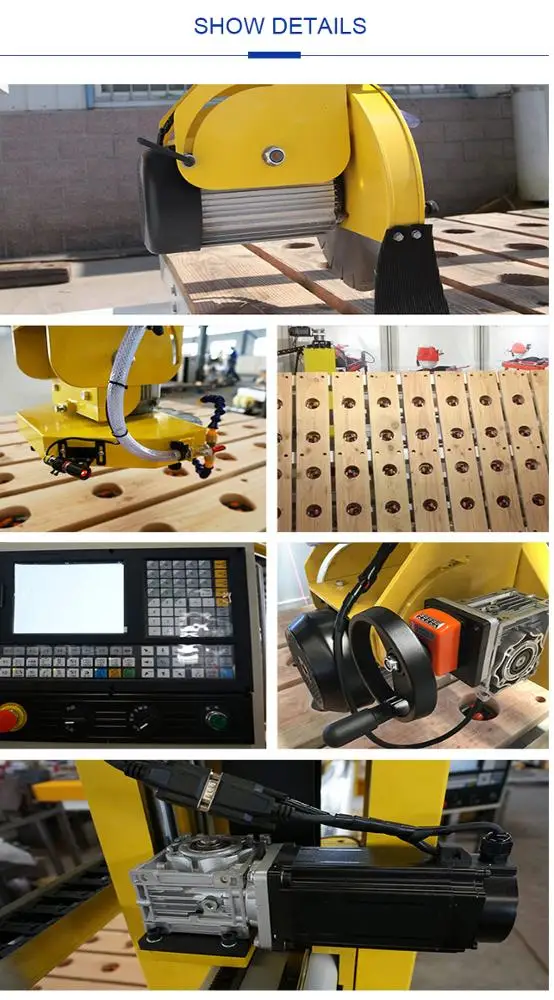

Machines in workshop:

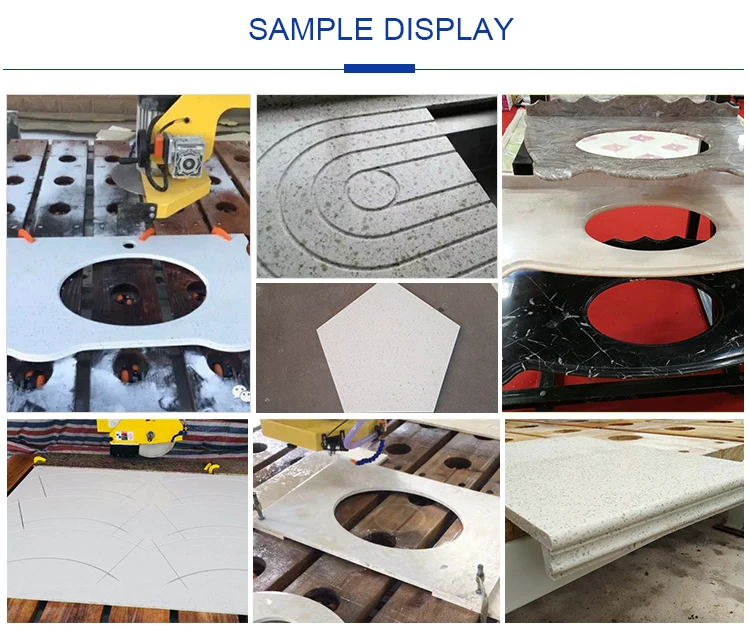

Granite cutting machine Application & Samples:
Related Products
 |  |  |

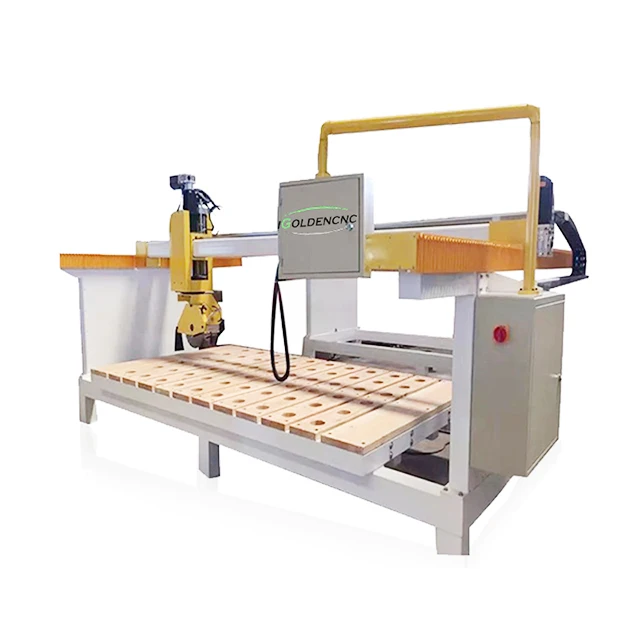

| ATC Stone CNC Router Center | 3axis stone carving cnc router | 4 axis stone carving cnc router |
Certifications
Packaging & Shipping
Inner packing: Plastic film
Outer packing: Strengthen standard export wooden case
Assure transport machines to the destination safely!
Company Information
Jinan LuoJia Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that
specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany,
etc.
We adopt international advanced producing technologies to improve our products.Our products
are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model,
Clothing, Package Printing, Marking, Laser Sealing and so on.
