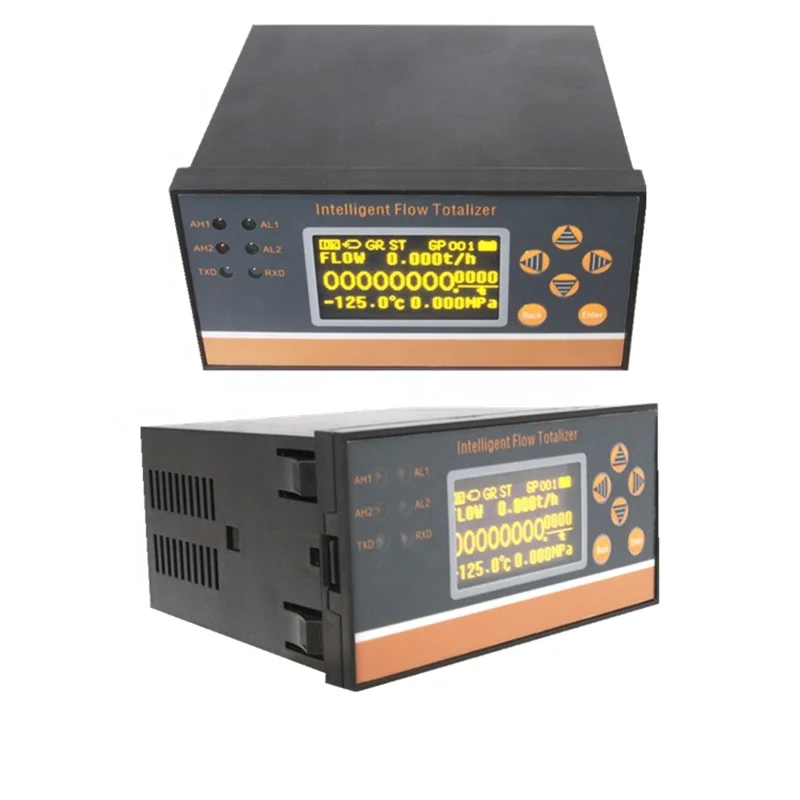

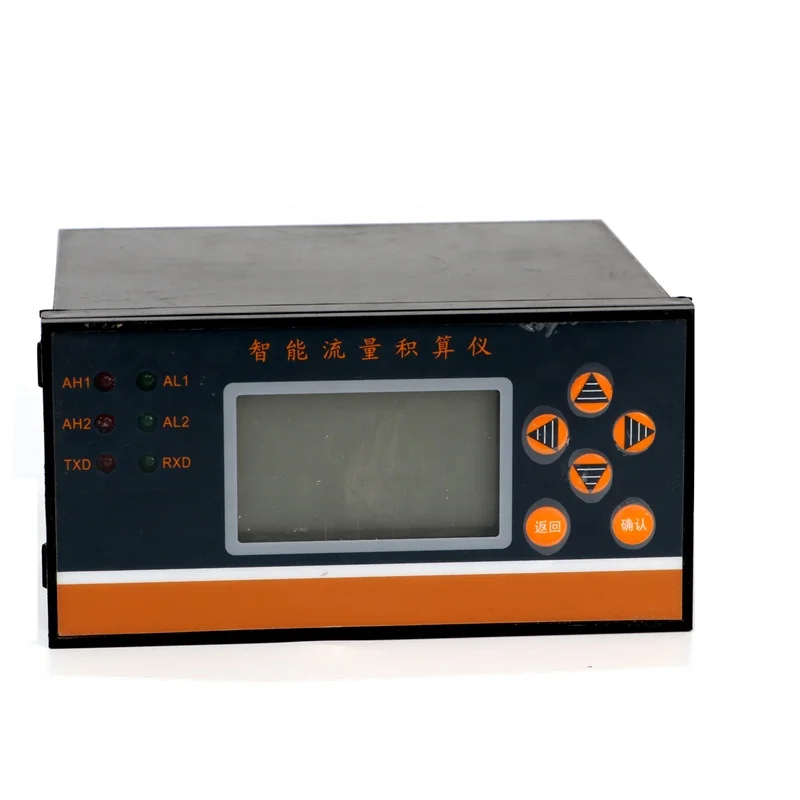

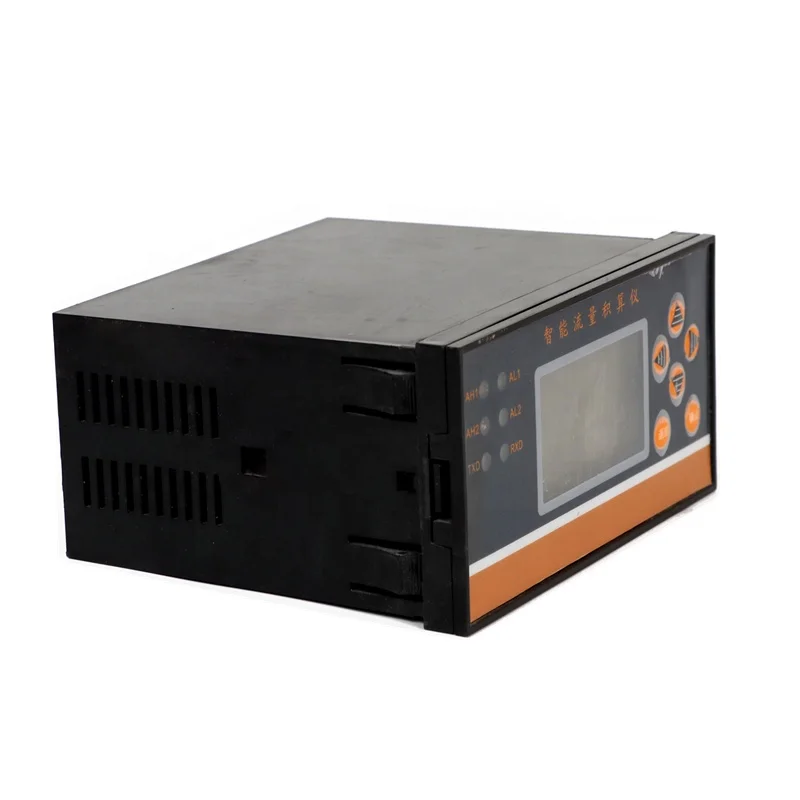

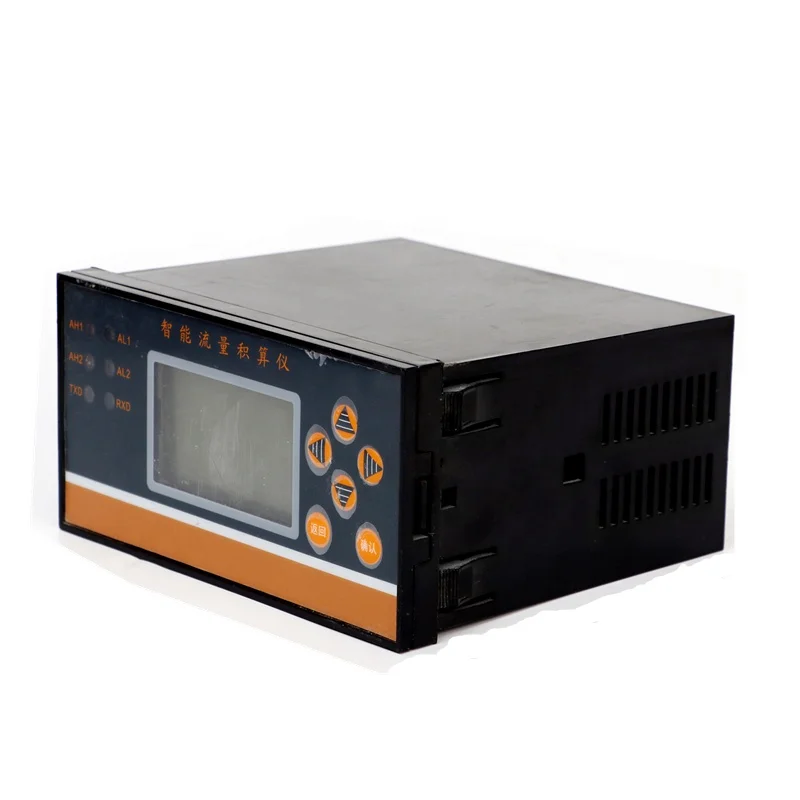

Digital flow Indicator flow totalizer meter



1.Production introduct



  Flow totalizer collects, displays, controls, transmits, communicates and prints all kinds of signals such as temperature, pressure and flow. It forms a digital acquisition system and control system. It is suitable for flow accrual measurement and control of various liquids, general gases, superheated steam and saturated steam.



2. Product Features

l Suitable for flow (Heat) displaying, calculating and controlling of all kinds of liquids, single or mixed gases and vapor.

l Input multiple flow sensor signals (Such as VSF, Turbine, Electromagnetic, Roots, Elliptical gear, Duplex rotor, Orifice plate, V-cone, Annubar, and Thermal flowmeter, etc.).

l Flow input channel: Receive frequency and multiple current signals.

l Pressure and temperature input channel: Receive multiple current signals.

l Provide 24VDC and 12VDC power supply with short circuit protection, simplify the system and save investment.

l Fault-tolerance: When the compensation measurement signals of temperature, pressure or density are abnormal, compensate with the manual setting of the corresponding operation.

l Circular display: Provide convenience to monitor multiple process variables.

l The update cycle of output current signal is 1 second, which can meet the requirements of the automatic control.

l Configure with Instrument clock, automatic meter reading and print function, provide convenience for metering management.

l Self-test and self diagnosis make the instrument more easy to use and maintain.

l 3 -level password to prevent unauthorized personnel to modify parameters.

l There are no potentiometer, code switch and other adjustable devices, that can improve the vibration resistance, stability and reliability of the instrument;

l Communication

  RS485

  RS232

  GPRS/CDMA

  Ethernet

l Configure with temperature, pressure, and density compensations, and it also has compressibility coefficient compensation for general gas and flow nonlinear compensation.

l Perfect function of vapor’s density compensation, automatic recognition of saturated vapor and superheated vapor and moisture content calculation of wet vapor.

l Special function for trade settlement.

  Power down record

  Timing meter reading

  Query function on some illegal operations.

  Printing

l Display unit can be modified according to different requirements.

l Large storage function.

  Day record can be stored in 5 years

  Month record can be stored in 5 years

  Year record can be stored in 16 years

3. Specifications

Description	Specifications
Input Signal	Analog Input		Pulse Input
	Thermocouple: K, E, B, J, N, T, S		Waveform: Rectangular, Sine and Triangle wave
	Pt100		Amplitude: more than 4V
	Current: 0-10mA, 4~20mA Input impedance≤250Ω		Frequency: 0~10KHz Special requirements please contact us
Output Signal	Analog Output	Communication Output	Switch Output	Feed Output
	DC 0~10mA(load resistance≤750Ω)	RS232, RS485, Ethernet	Relay with hysteresis	DC24V (load current≤100mA)
	DC 4~20mA (load resistance≤500Ω)	Baud rate: 600, 1200, 2400, 4800, 9600bps,8 data bits, 1 stop bit, and 1 start bit	AC220V/3A; DC24V/6A(Resistive load)	DC12V (load current≤200mA)
Accuracy	0.2%FS±1d or 0.5%FS±1d    Accuracy for frequency conversion: ±1 pulse (LMS), better than 0.2%
Measuring Range	-999999~999999 for flow rate and compensation value 0~99999999.9999 for totalizer

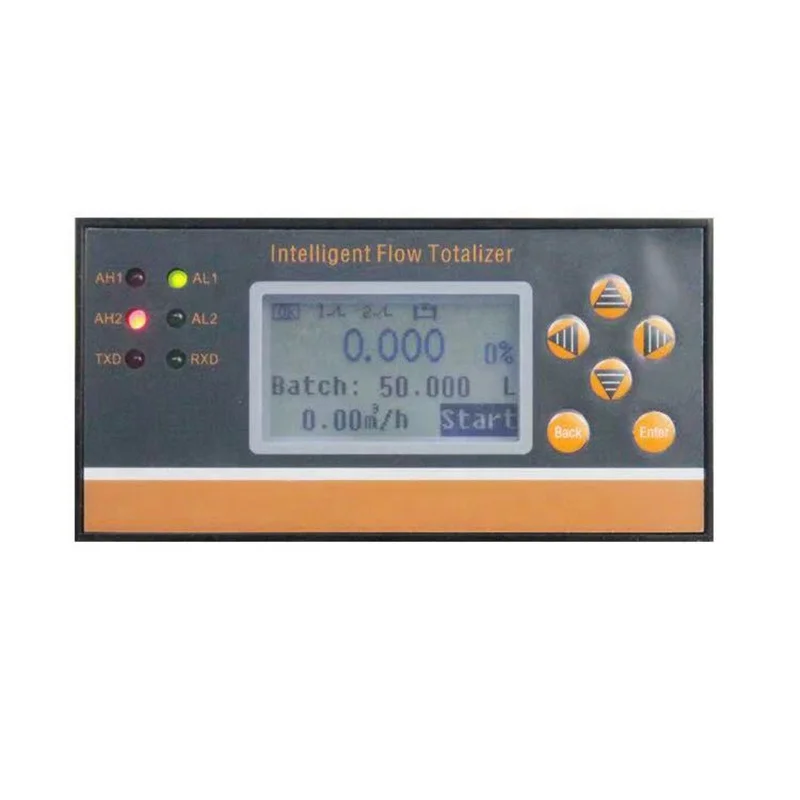

Display	Backlit 128*64 lattice LCD Display flow totalizer, flow rate, energy, power, medium temperature, medium pressure, medium density, medium heat enthalpy, differential pressure, current, frequency, date, time, Alarm status
Control/Alarm	Optional relay upper limit and lower limit control (Alarm) output, LCD and LED output indication; Control (Alarm) with hysteresis (The number of alarm relay is up to 2) Alarm type: flow upper and lower limit, temperature upper and lower limit, pressure upper and lower limit;
Print	Through RS232 interface to Serial thermal printer Real-time print or timing print, Up to 8 times timing print in one day.
Protection	Totalizer will be remained for more than 20 years after power off Reset automatically when Power supply is low Reset automatically when abnormal working (Watch Dog) Self-healing fuse Short circuit protection
	Password protection for important data
Operating environment	Ambient temperature : -20~60℃; Relative humidity: ≤85%RH, Far from strong corrosive gas
Power supply	Normal Type: AC 220V % (50Hz±2Hz) Special Type: AC 80~265V (Switch power) DC 24V±1V (Switch power) (AC 36V  50Hz±2Hz) Back-up power: +12V, 20AH, it will last 72 hours
Power consumption	≤10W





 Packing and shipping







Factory Introduction



Tianjin kailong Instrument Technology Co. Ltd. is a company that integrates processing, production, sales and technical services. Now it has the ability to design, develop, detect and manufacture products. It is a comprehensive and diversified enterprise. The main products are Electromagnetic Flowmeter, Vortex Flowmeter, Turbine flow meter and so on.  We will adhere to the spirit of development, strict and demanding, striving for the best, and set customer satisfaction as our eternal goal.  We will give you best and competive price for you.

Welcome to inquiry!!!







FAQ

Q:Is the quality of your products reliable?
A:As for the quality of the product, you can rest assured that our company has been producing this product for nearly ten years.
Q: Can I visit your factory?
A: You’d be warmly welcomed.
Q: Do you have any certificate? Can you provide certificate base on my request?
A: We have ISO and CE certificate. If you need other certificates, we can apply.
Q: What is the warranty for your product?
A:  Lifetime maintenance.
Q: How long it will take you to quote for my enquiries?
A: We’ll try to be as fast as we can, normally within 2 hours. Your specific requests about the products will speed us up.
