Заводская система видеонаблюдения ZOAN из нержавеющей стали IP68 с защитой от ультрафиолета и камерой
- Категория: Другие товары для дорожного движения >>>
- Поставщик: Shenzhen,Zhongangaoke,Electronic,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10710.5 $* | 11246.19 $* |
| Aug-18-2025 | 10620.68 $* | 11151.31 $* |
| Jul-18-2025 | 8910.9 $* | 9356.94 $* |
| Jun-18-2025 | 10440.9 $* | 10962.17 $* |
| May-18-2025 | 9090.21 $* | 9545.51 $* |
| Apr-18-2025 | 10260.31 $* | 10773.33 $* |
| Mar-18-2025 | 10170.67 $* | 10679.98 $* |
| Feb-18-2025 | 10080.85 $* | 10584.5 $* |
| Jan-18-2025 | 9990.94 $* | 10490.74 $* |
Характеристики
Product Description

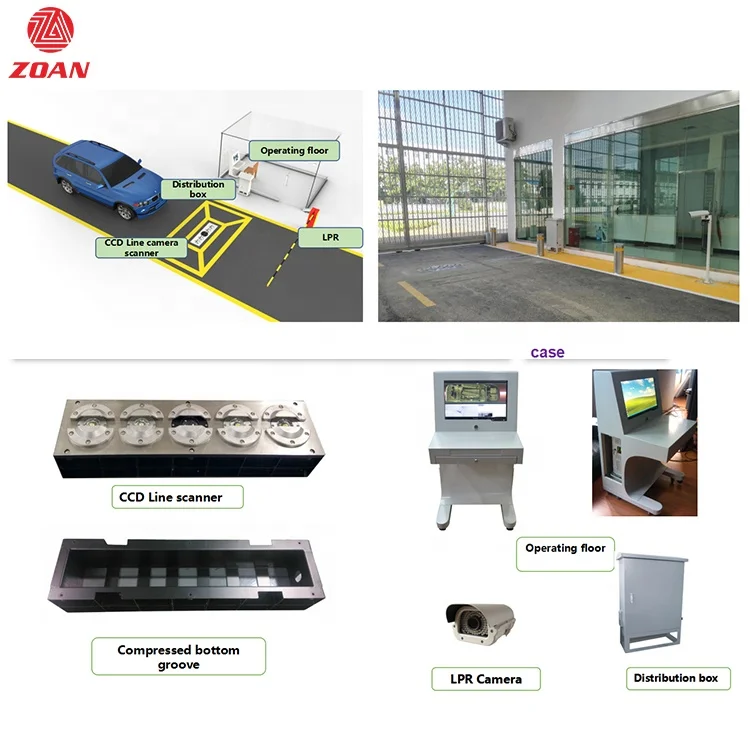

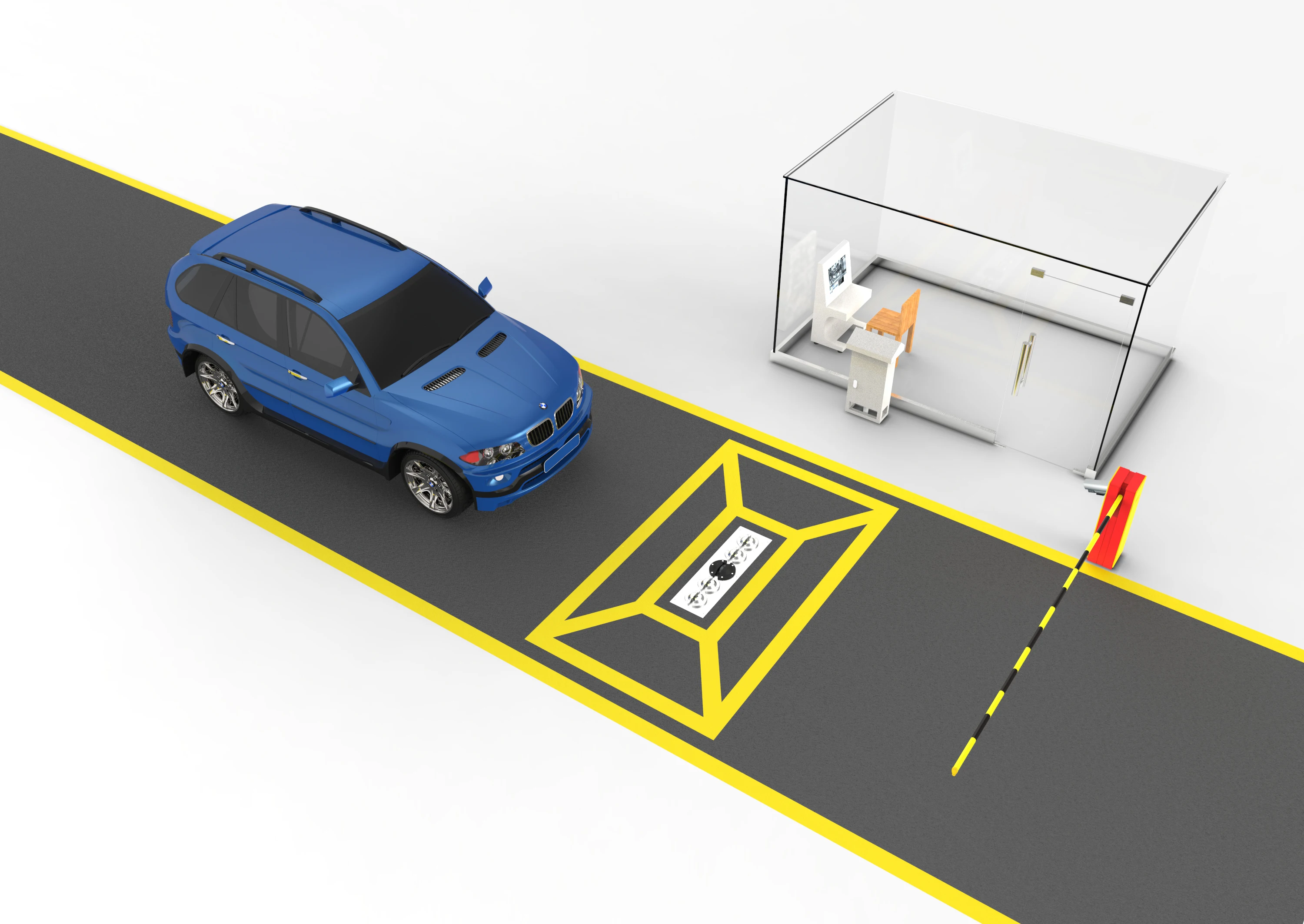

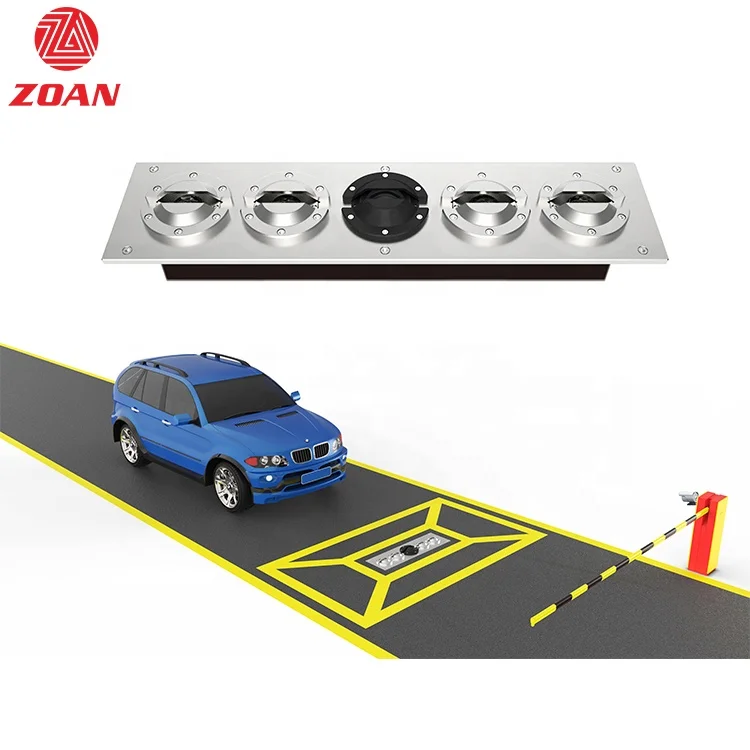

ZOAN Factory Stainless Steel IP68 Fixed Under Vehicle Surveillance System Uvss with ANPR Camera
Features
| Automatic digital line scan camera, with high-resolution and clarity of the image. | |
| The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter. | |
| Preparation of inspection processes to meet a variety of on-site needs. | |
| Multiple scene image monitoring, recording function. | |
| Multi-language user interface design. | |
| Strong scalability to easily achieve a variety of system linkage control. | |
| ALPR(Automatic Licence Plate Recognition) (Optional) | |
| Multiple devices networked control functions(Optional) | |
Technical parameters
| Vertical resolution of the image: | 5000*2048 pixels |
| Check the width viewing angle: | < 4 meters |
| Speed of vehicle: | < 30km/h with ALPR(Automatic Licence Plate Recognition) 70km/h without ALPR(Automatic Licence Plate Recognition) |
| Auxiliary light: | 100W |
| Effective Field of View(FOV): | less than 170° |
| Weight capacity: | <20T |
| Water-proof grade: | Ip68 |
| Scanning device weight: | 24KG |
| Scanning device volume: | 450mm×400mm×88mm |
| Communication interface: | RS232/RS422 |
| Operating Temperature: | -10℃ to 55℃ |
| Storage temperature: | -40℃ to +75℃ |

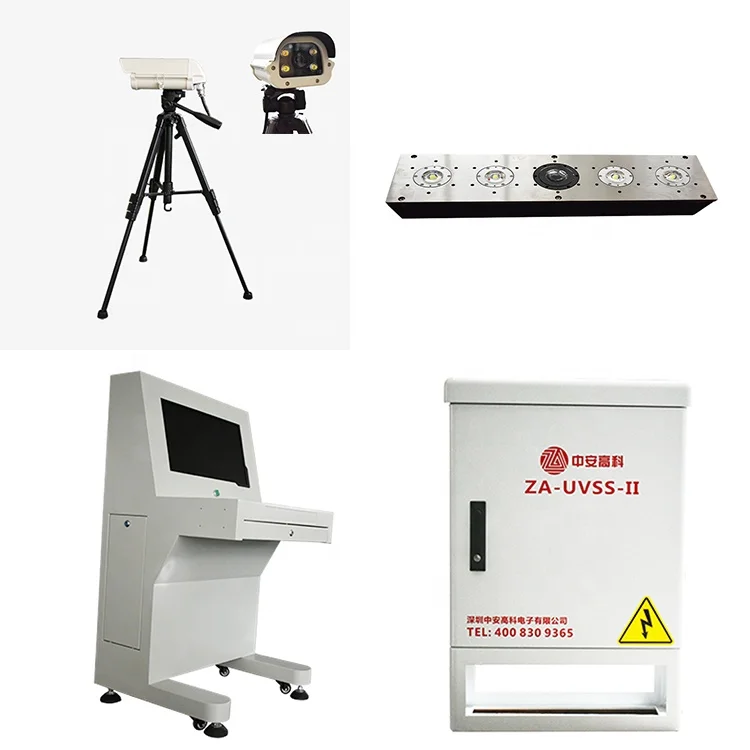

System host
| Brand: | Grantech (UFO6377H-SP1-953) |
| CPU: | Intel® Core(TM) 2 Duo CPU |
| P8600@ 2.4GHz or higher | |
| Memory: | 2G( optional 4G) |
| Graphics: | Inter(R) Gen 5.0 Integrated Graphics Engine |
| Hard Disk: | SATA2 Hard Disk 500G |
| Dual LAN (At least one Intel Gigabit) | |
| USB2.0 (Up to 4 pieces) | |
| Monitor: | 22inch LCD, resolution up to 1920*1080 |
| Operating voltage: | 110-240V AC, 50-60HZ |
Products Certificates :
Company information :
FAQ:
Q1: Are you a factory or trading company?
A: We are the biggest professional manufacturer of security equipment with almost 15 years experiences in Shenzhen china.
Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.
Q3: What is your leadtime?
A: 3-7 working days after received the payment.
Q4: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification .
Q5: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 2 years free guarantee.
