Сверхтихий генератор природного газа KONGKA 20 кВт 25 кВА 400
- Категория: Генераторы газовых турбин >>>
- Поставщик: Chongqing,Kongka,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 282404.69 $* | 296524.59 $* |
| Aug-15-2025 | 280031.52 $* | 294033.59 $* |
| Jul-15-2025 | 234941.51 $* | 246688.93 $* |
| Jun-15-2025 | 275284.18 $* | 289048.86 $* |
| May-15-2025 | 239687.41 $* | 251671.54 $* |
| Apr-15-2025 | 270538.11 $* | 284065.81 $* |
| Mar-15-2025 | 268165.20 $* | 281573.24 $* |
| Feb-15-2025 | 265792.70 $* | 279082.58 $* |
| Jan-15-2025 | 263419.88 $* | 276590.60 $* |
Характеристики

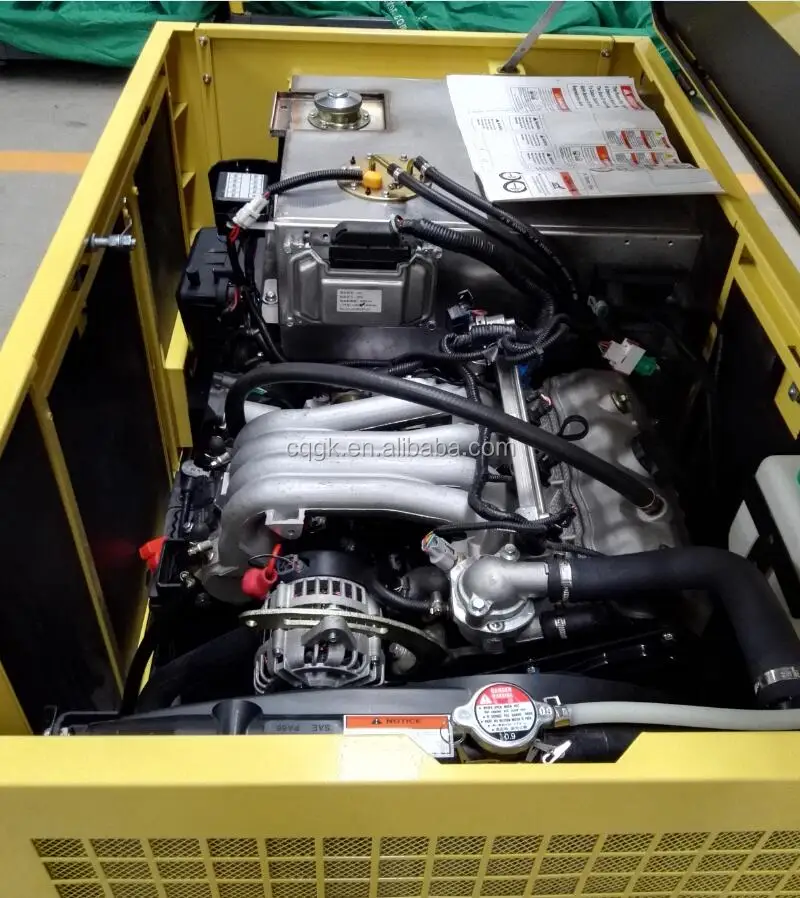

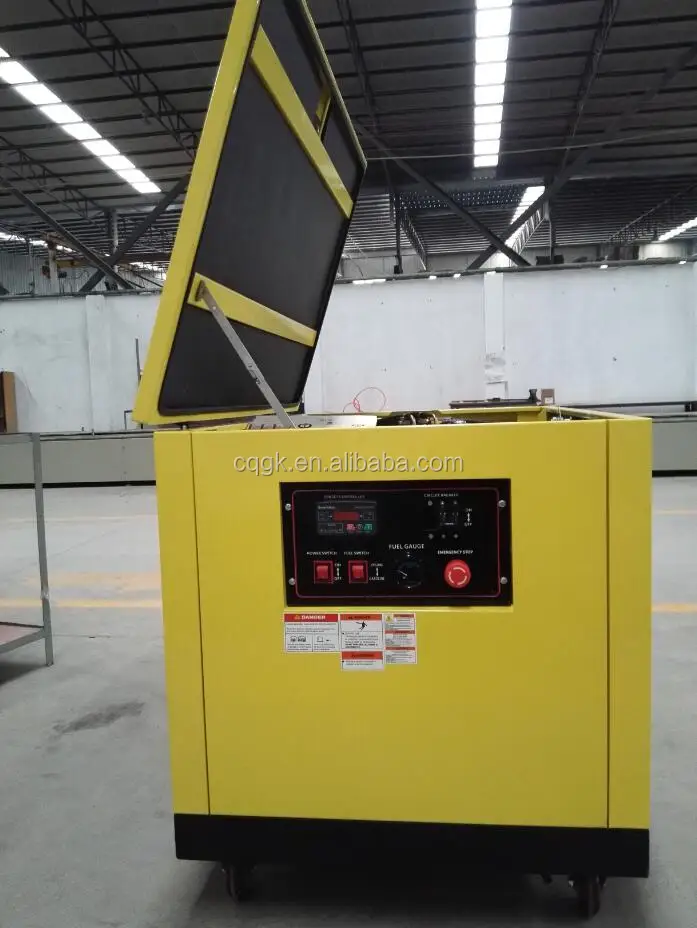

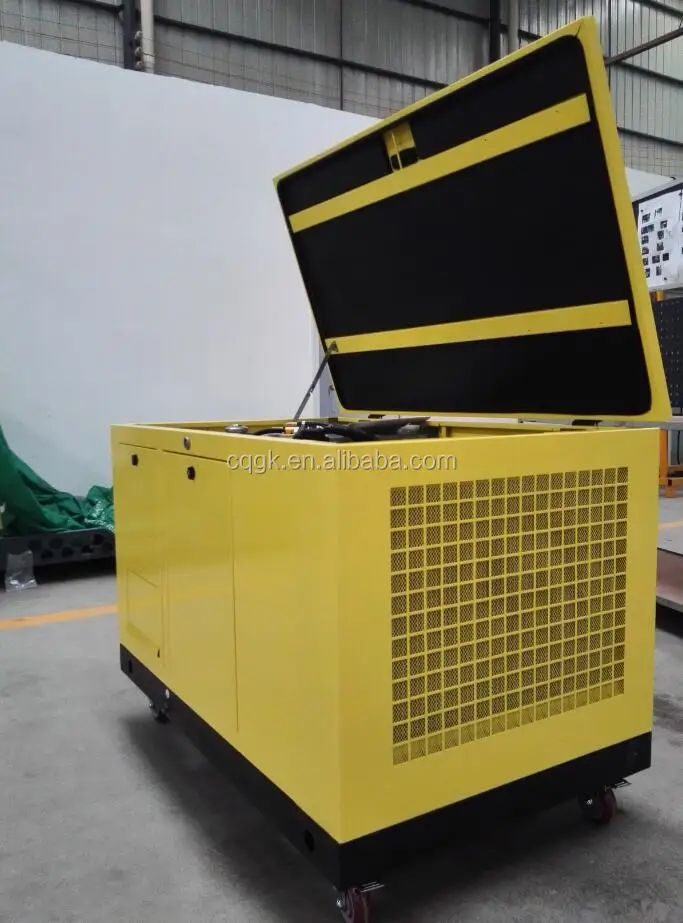

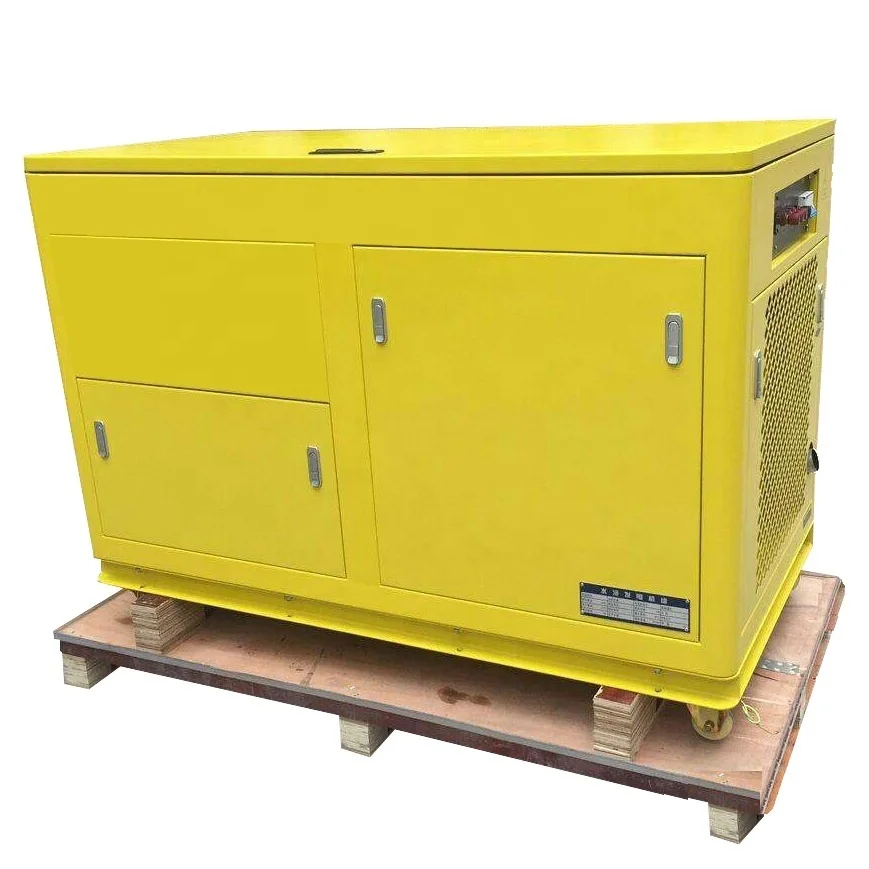

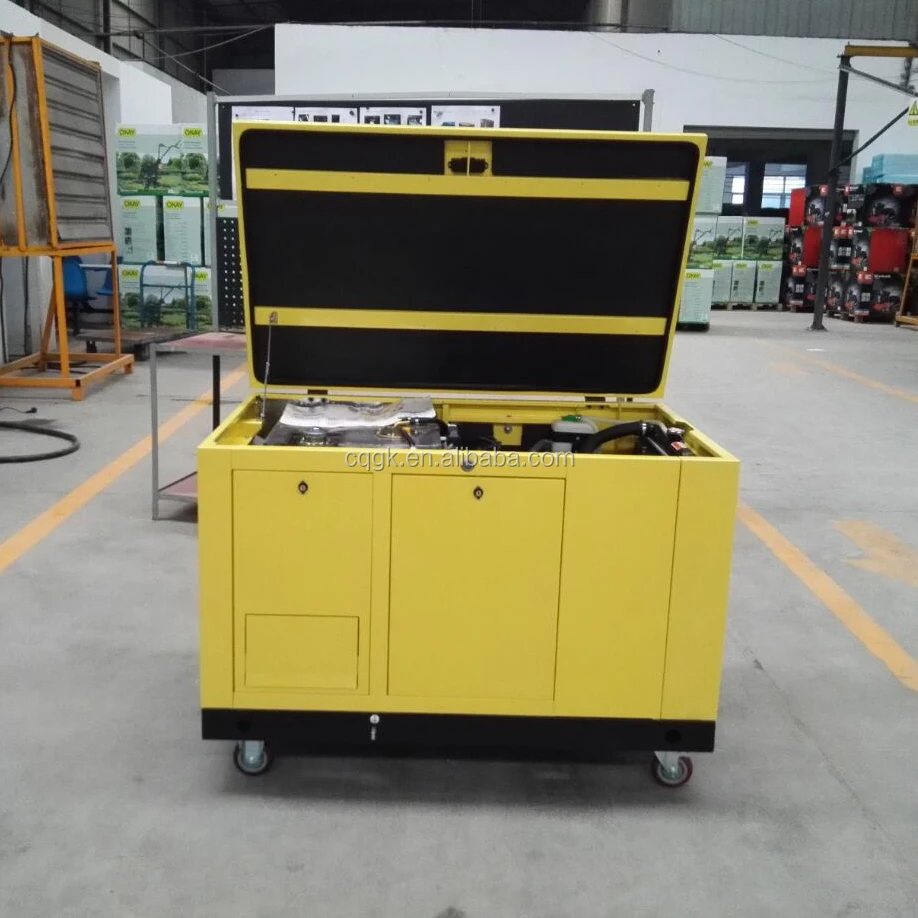

KONGKA 20kw 25kva 400v dual fuel super silent LPG natural gas generator
Related Products
Product Description![KONGKA 20kw 25kva 400v dual fuel super silent LPG natural gas generator.jpg]()
![KONGKA 20kw 25kva 400v dual fuel super silent LPG natural gas generator.jpg]()
Product parameters
| Genset Model | 19REG-EB |
| Outout Power | |
| Rated power (LPG) | 20KW/25KVA |
| Rated power (NG) | 19KW/23.8KVA |
| Rated voltage (V) | 110/220V 230/400V |
| Rated current (LPG) | 82A/28.9A(per phase) |
| Rated current (NG) | 78A/27.3A(per phase) |
| Phase number | 1/3 phase |
| Rated speed (RPM) | 3000/3600 |
| power factor | 1.0/0.8 |
| Frequency (Hz) | 50/60 |
| Engine | |
| Engine model | 465QR |
| Displacement (CC) | 998 |
| Compression ratio | 9.5:1 |
| Electrical startup | with |
| Fuel type | LPG/NG |
| Bore*stroke (mm*mm) | L4-65.5*74 |
| Oil capacity (L) | 4.0 |
| Charging mode | 14V/350W switching power supply |
| Recommended battery cold start current (CCA) | 525A |
| Cooling system | Liquid cooling |
| High temperature shutdown | with |
| Low oil pressure shutdown | with |
| AC Alternator | |
| Voltage regulation system | AVR automatic voltage regulation |
| Excitation type | Brush |
| The number of poles | 2 |
| Total harmonic distortion @ full load | ≤ 5% |
| Insulation level | F |
| Motor bearing | 6306RS |
| Control Pannel | |
| Controller mounting position | Inside the chassis, above the motor |
| Automatic / manual / closed | with |
| Generator voltage detection | with |
| Mains voltage detection | without |
| Low oil pressure shutdown | with |
| Low frequency protection | with |
| Over frequency protection | with |
| Genset | |
| Protection level | IP 23 |
| Emergency stop switch | with |
| Fuel solenoid valve | Double solenoid valve |
| Closed silencer | with |
| Grounding system | Frame ground |
| Soundproof device type | Metal plate + sound proof cotton |
| The generator set is at low speed, (dBA/7m) | 62 |
| The generator set is running at full speed, (dBA/7m) | 69 |
| NG consumption 50%, load ft3/hr (m3/hr) | 134.2(3.8) |
| NG consumption 100%, load ft3/hr (m3/hr) | 204.8(5.8) |
| LPG consumption 50%, load ft3/hr (kg/hr) | 66.13(3.5) |
| LPG consumption 100%, load ft3/hr (kg/hr) | 105.8(5.6) |
| NG inlet pressure range kPa (in.H2O) | 1.3-2.7 (5-11) |
| LPG inlet pressure range kPa (in.H2O) | 1.7-2.7 (7-11) |
| Unit size (L* w * h) (mm) | 1290*825*940 |
| Packing size (L* w * h) (mm) | 11350*880*110 |
| Net weight (kg) | 310 |
| Gross weight (kg) | 340 |
| Loading capacity of 20/40 foot cabinet | 20/42 |
Important notes on ordering products
1. All our products only support shipping to the port,or shipping to the door,or land transport,and do not support air transportation.
2. The price indicated by this product is FOB China Port Price. If there are specific Chinese port (such as Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao, etc.), please leave a message.
If you need to deliver to a designated port or warehouse or residence in your country, please leave a note so that our seller can quote you the shipping cost in time(please tell me your email).
3. Provide product details as much as possible, such as:
A, Voltage (110/220/230/380/400V)? frequency (50/60HZ)? Single phase or three phase?
B, Plug type (European, American...)?
C, Need wheels?
D. Use of the product?
4. Provide detailed consignee information: company name (required, except for customs clearance in the US), contact, phone, email, address
5. The product sample picture shows the goods, please refer to the actual receipt of the goods.
Packaging & Shipping
1 Wooden packing
2 Sea LCL or Sea FCL or Land Transport.The port of departure can choose ports such as
Chongqing, Shanghai, Guangzhou,Shenzhen or Qingdao...
Certifications
Company Information
Good quality and low price is the ultimate goal pursued by our company.
FAQ
1 Q: How long is the warranty?
A: 1000 hours or 12 months warranty, lifetime maintenance.
2 Q:How long is the delivery?
A: Our warehouse is in stock and can be delivered quickly to the customer's designated destination port.
3 Q: Which ports can be shipped?
A: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao, Tianjin, Chongqing, etc.
4 Q: What are the transportation methods?
A: Sea LCL, Sea FCL, Land transport, Does not support Air transport.
5 Q: Can you customize?
A: Yes
6 Q: New customer payment method?
A: 30% T/T in advance + 70% balance before shipment.
