Product Overview

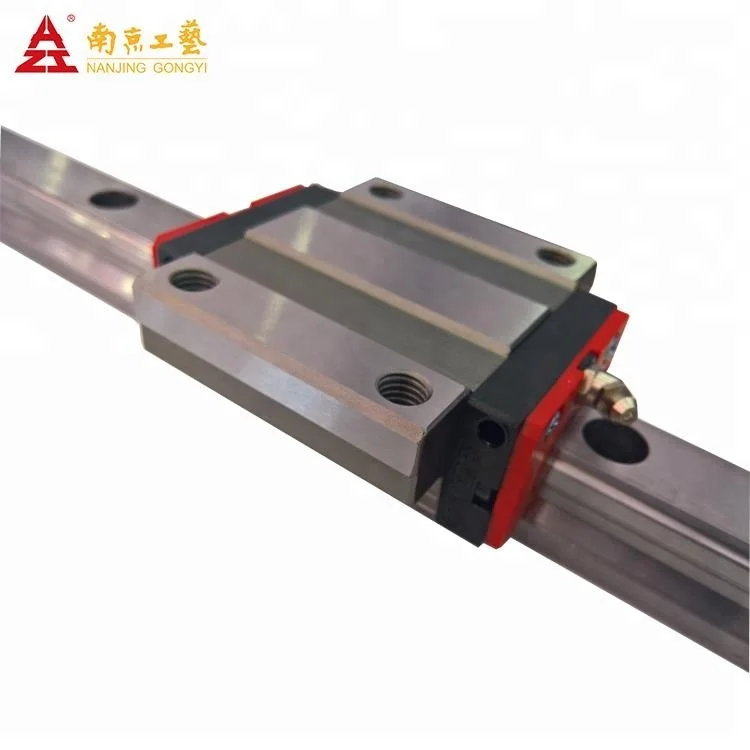

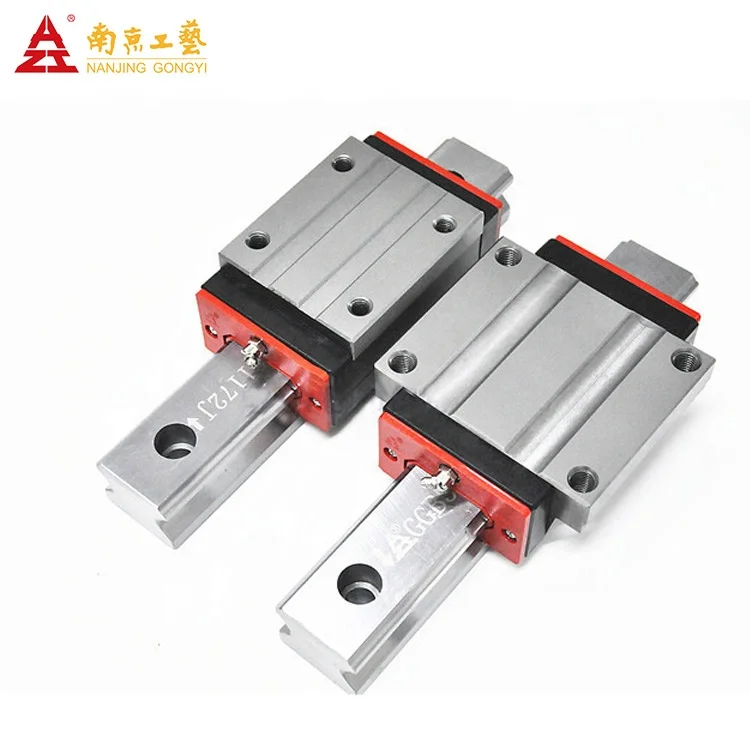

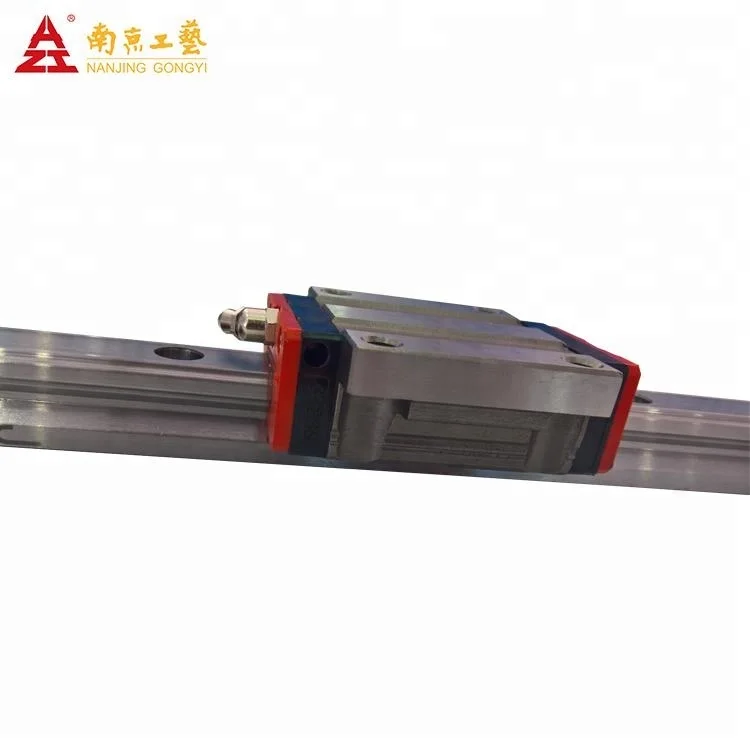

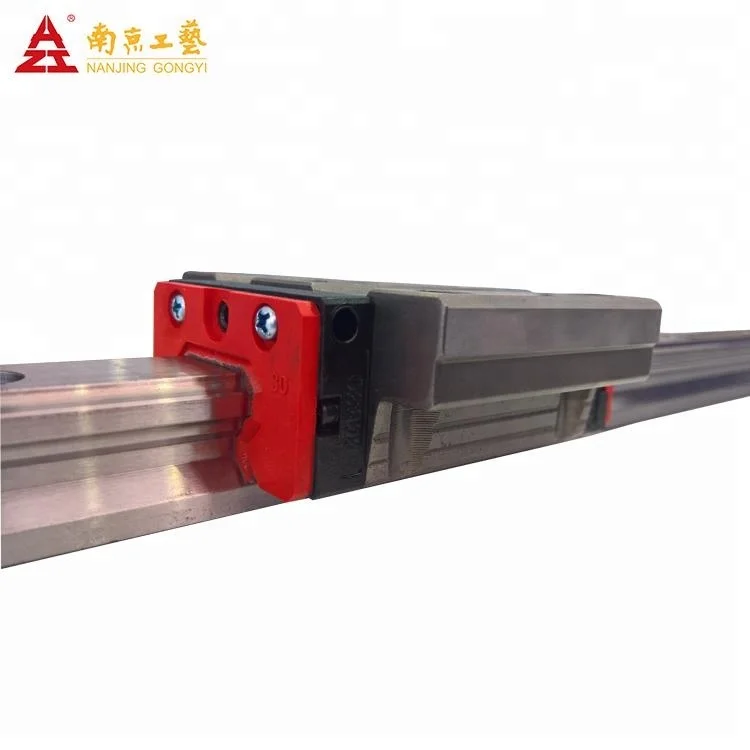

GGB Ball linear guide

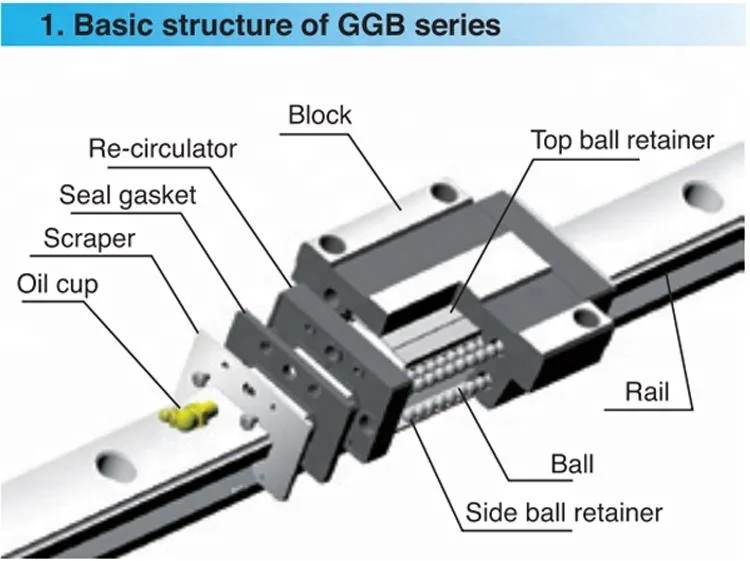

GGB is the earliest developed LM guide and is one of the widely used guides. Design with equal 45° contact angle, which makes equal load in vertical upside ,vertical downside, horizontal left and horizontal right four orientations, and it has heavy rated load, good rigidity, high sifness and strong torque resistance of three directions, so it also calls four direction equal load LM guide.
FEATURES AT A GLANCE
Ball type:GGB16 - GGB85
Normal accuracy is interchangeable
Maximum motion accuracy 0.004/1000
Can meet the fast delivery
Max. Single length 6m
High speed Low noise
It’s widely used in cnc machines,automation and other fields
Assembly drawing
Front elevation
Bottom elevation
PRODUCT SPECIFICATIONS
GGB type parameter | ||||||||||||||||||
Spec. | 16BA | 20BA 20BAL | 25BA 25BAL | 30BA 30BAL | 35BA 35BAL | 45BA 45BAL | 55BA 55BAL | 65BA 65BAL | 85BA 85BAL | |||||||||
H | 24 | 30 | 36 | 42 | 48 | 60 | 70 | 90 | 110 | |||||||||
W1 | 15.5 | 21.5 | 23.5 | 31 | 33 | 37.5 | 43.5 | 53.5 | 65 | |||||||||
K | 19.4 | 25.4 | 30.5 | 35 | 40 | 49 | 57 | 76 | 94 | |||||||||
W | 47 | 63 | 70 | 90 | 100 | 120 | 140 | 170 | 215 | |||||||||
L1 | 58.5 | 75.3 90 | 85 104.6 | 97 119 | 112.2 138.2 | 137 165 | 161 199 | 199 259 | 247 304 | |||||||||
CW | 38 | 53 | 57 | 72 | 82 | 100 | 116 | 142 | 185 | |||||||||
L | 30 | 40 | 45 | 52 | 62 | 80 | 95 | 110 | 140 | |||||||||
Mxh1 | M4x5 | M5x6 | M6x8 | M8x10 | M8x12 | M10x16 | M12x18 | M16x16 | M18x25 | |||||||||
T | 7 | 8 | 8 | 10 | 10 | 15 | 20 | 23 | 30 | |||||||||
T1 | 11 | 10 | 14 | 18 | 18 | 25 | 29 | 37 | 55 | |||||||||
B2 | 4.5 | 5 | 6.5 | 9 | 9 | 10 | 12 | 14 | 15 | |||||||||
L2 | 40.5 | 50.5 65.2 | 59 78.6 | 70.6 92 | 80.8 105.8 | 102.8 130 | 118 156 | 147 207 | 179 236 | |||||||||
H1 | 4.5 | 4.6 | 5.5 | 5.5 | 8 | 9 | 11 | 12 | 12 | |||||||||
B | 16 | 20 | 23 | 28 | 34 | 45 | 53 | 63 | 85 | |||||||||
H0 | 15 | 17.5 | 22 | 26 | 29 | 38 | 44 | 53 | 65 | |||||||||
dxD1xh | 4.5x7.5x5.3 | 6x9.5x8.5 | 7x11x9 | 9x14x12 | 9x14x12 | 14x20x17 | 16x23x20 | 18x26x22 | 24x35x28 | |||||||||
F | 60 | 60 | 60 | 80 | 80 | 105 | 120 | 150 | 180 | |||||||||
Max. single length Lmax | 1200 | 3000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | |||||||||
a | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 20 | 20 | |||||||||
L4 | 7 | 11 | 11 | 11 | 11 | 14 | 14 | 14 | 14 | |||||||||
G | M4 | M6 | M6 | M6 | M6 | M8x1 | M8x1 | M8x1 | M8x1 | |||||||||
N | 4 | 6 | 6 | 7 | 9 | 12 | 12 | 12 | 14 | |||||||||
Dynamic Load rating C(kN) | 8.5 | 17.7 21.2 | 26.5 32.7 | 34.9 42.7 | 49.5 60.2 | 74.8 91.4 | 115.3 143.1 | 191.8 249.1 | 247.9 351.5 | |||||||||
Static Load rating C0(kN) | 13.4 | 25.3 33.7 | 36.4 48.6 | 49.6 66.1 | 64.8 86.4 | 101.2 134.9 | 147.2 200.8 | 237.5 345.4 | 371.1 472.3 | |||||||||
Block Weight kg | 0.17 | 0.4 0.52 | 0.59 0.8 | 1 1.3 | 1.56 2.06 | 2.4 3.1 | 4.3 5.8 | 7.3 10.7 | 16.5 22.2 | |||||||||
Rail Weight kg/m | 1.62 | 2.21 | 3.21 | 4.7 | 6.3 | 11.2 | 15 | 22.2 | 35.5 | |||||||||
