6 Zone Body Scanner Economical Type walk through gate metal detector

560*360mm Security Checking X-ray Scanner System

Product Point :
1................................6 zones
2................................5 digital LED count
3................................Each zone has 100 sensitivity level
4................................Sound & LED alarm
5................................Easy Assembly
6................................Password Protection

Parameters :

Detecting zone:	6 zone
Display way:	5 digital LED count
Sensitivity:	0-100 adjustable
Power Supply:	AC85V-264V
Working temperature:	-20ºC--+50ºC
Working Frequency:	4KHZ-8KHZ
Gross weight:	70KG
Warranty:	2 years
Standard External size:	2200mm(H)X800mm(W)X480mm(D)
Standard Internal size:	2010mm(H)X700mm(W)X400mm(D)
Package size for door panels:	2260*650*260mm *1ctn
Package size for control unit:	780*390*250 mm*1ctn


Characteristic & Function :

• Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 100 sensitivity level
• Sound & LED alarm: Both Side LED indicator ,easily show where the metal is
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.

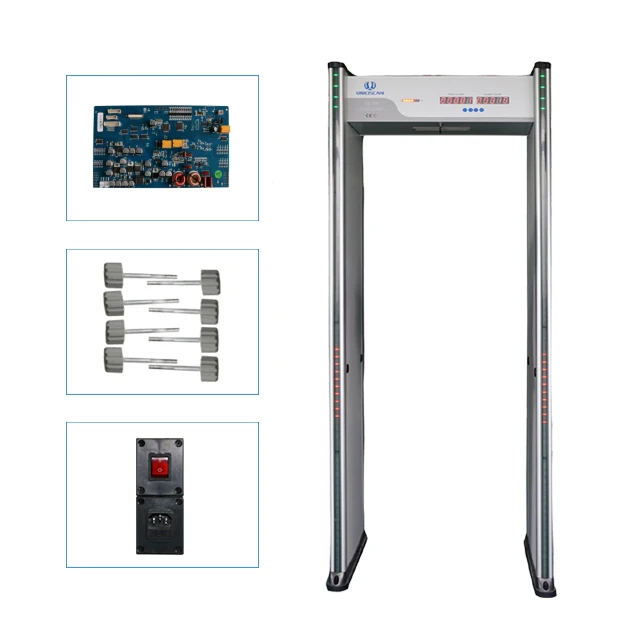

• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes,
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Applications:

• Airports
• Correctional Facilities
• Public Buildings
• Private Buildings
• Schools
• Special Events
• Loss Prevention
• Nuclear Facilities
• Transportation Terminals
• Courthouses
• Corporate Security
• Historical Landmarks

we has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:

• X-Ray Baggage Scanner
• Walk Through Metal Detector
• Hand Held Metal Detector
• Under Vehicle Inspection System

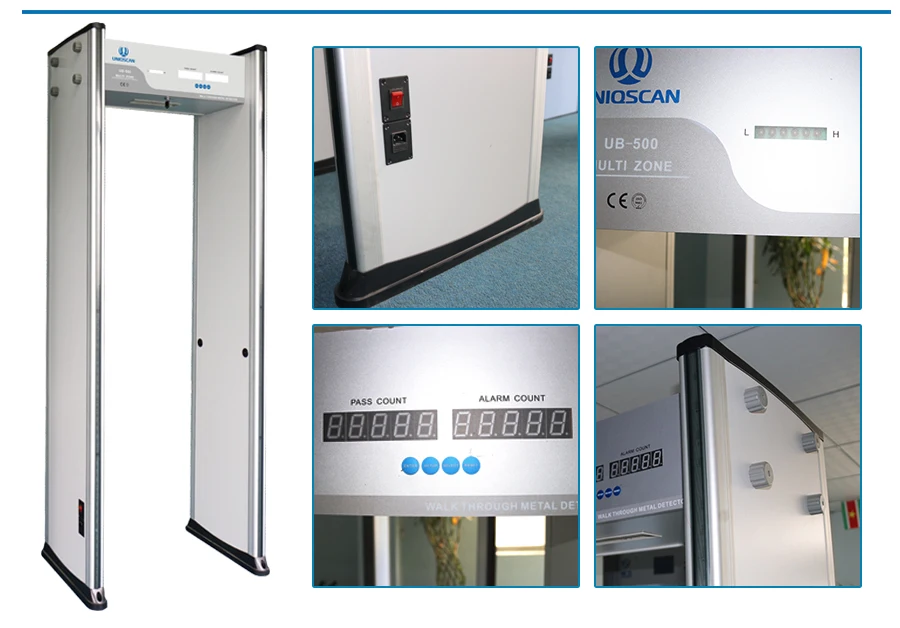

Detail Photo:
