Высококачественный гидравлический листогибочный станок с ЧПУ


Поделиться:


Цена:655 439,73 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 832408.83 $* 849056.57 $*
Jul-16-2025 675102.94 $* 688604.77 $*
Jun-16-2025 819299.53 $* 835685.51 $*
May-16-2025 812744.10 $* 828999.42 $*
Apr-16-2025 648885.48 $* 661863.8 $*
Mar-16-2025 799636.62 $* 815629.29 $*
Feb-16-2025 793081.7 $* 808943.19 $*
Jan-16-2025 786527.0 $* 802258.97 $*

Характеристики

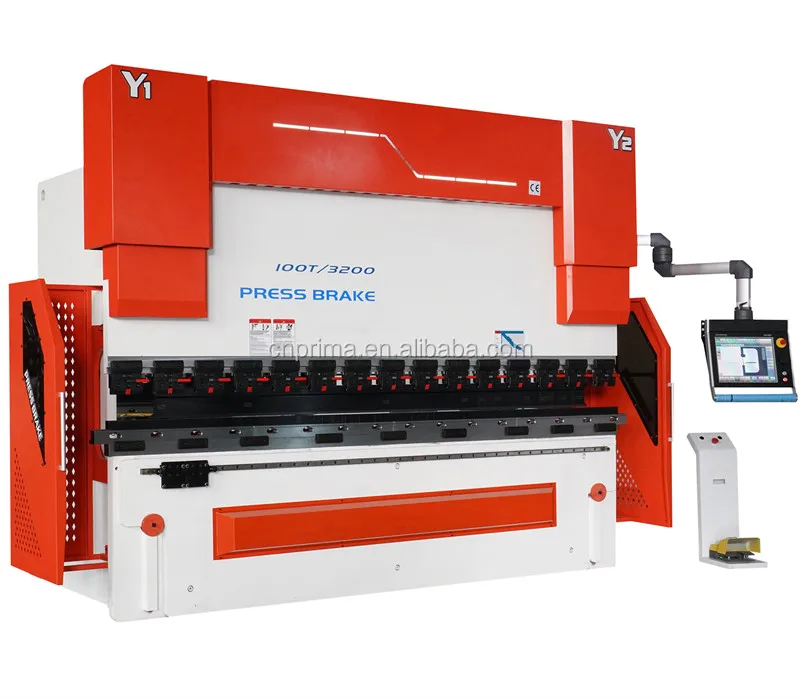

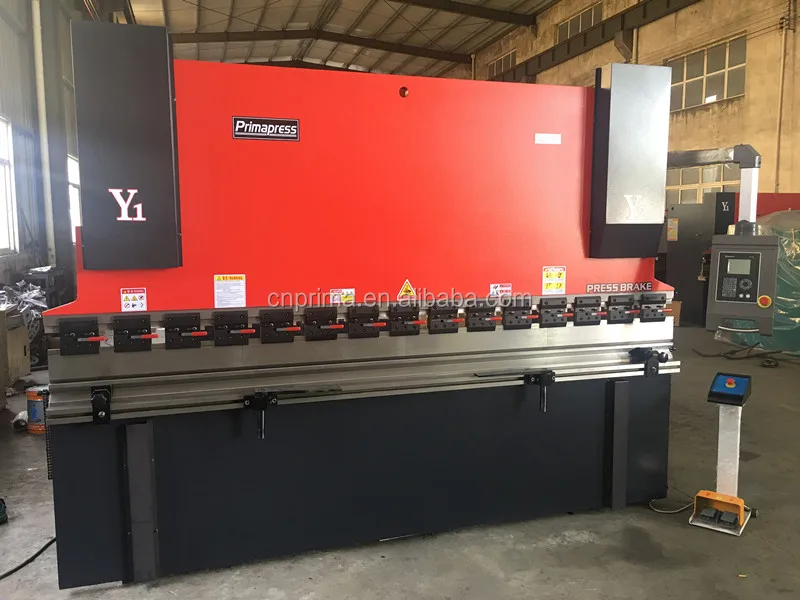

High Quality CNC Bending Machine Hydraulic Press Brake Price

Product Application


1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.


2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,


3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.


4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.


5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.  Prima Brand QC11Y 6X2500mm Hydraulic guillotine shear 3meters


6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

Techinical Paraments


Main Features


1. Hydraulic system:
1) Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2) Oil seals by Japanese, NOK.
3) Overload & overflow protection to ensure there is no leakage and protect hydraulic system,
and the oil level can be read directly.


2.Servo motorized backgauge:
1) CNC backgauge system with X axis by AC servo motor driven ball screw shafts and on linear
bearings with an accuracy of 0.01mm.
2) Backgauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3) High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range
of backgauge.


3.Electrical parts and protection device:
1) Schneider or Siemens Low-voltage apparatus. In accordance with international standards,
reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake
3) Light screen protection.


4.Delem DA52S CNC press brake control system:
1) 6.4" VGA colour LCD (TFT)
2) Numerical, one page programming
3) Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
4) CNC crowning control
5) USB, peripheral interfacing
6) Servo, frequency inverter and AC control for backgauge axes.


Detailed Images

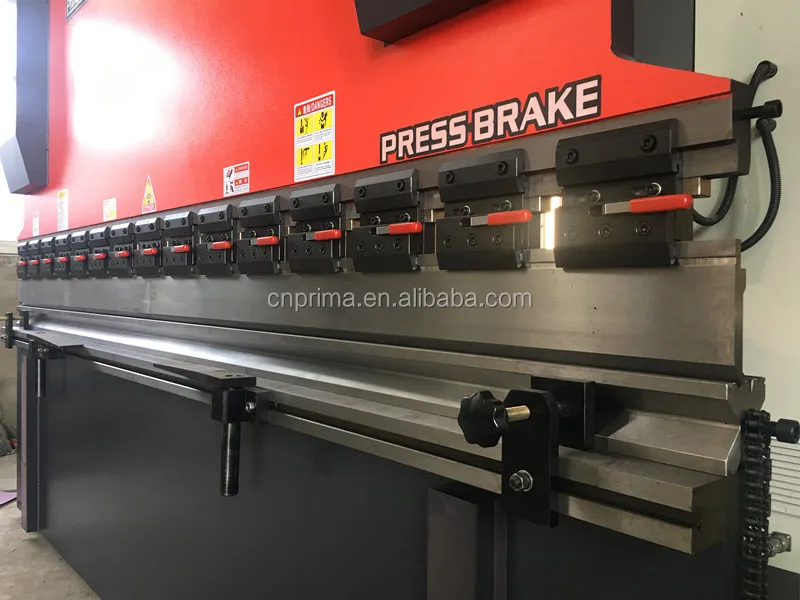

V Mould and Fast Clamp(optional)
DA41S

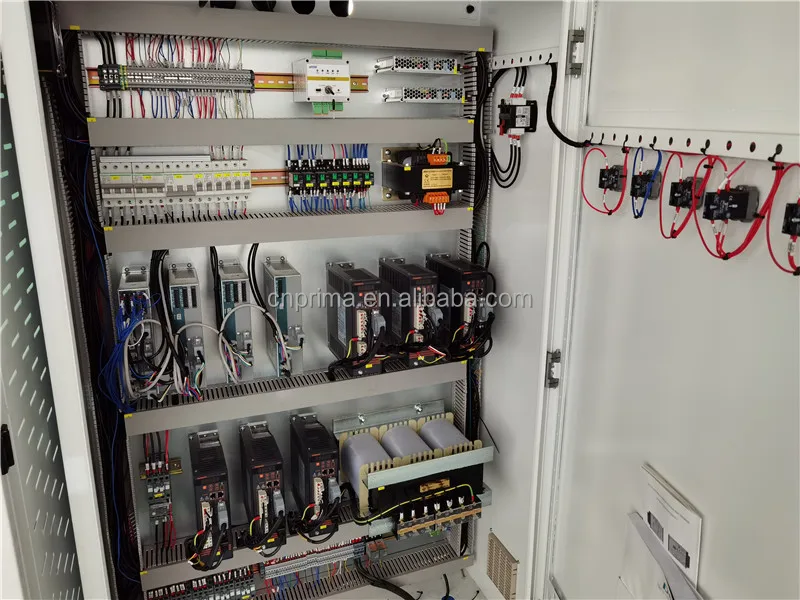

Schineider Electric Cabinet

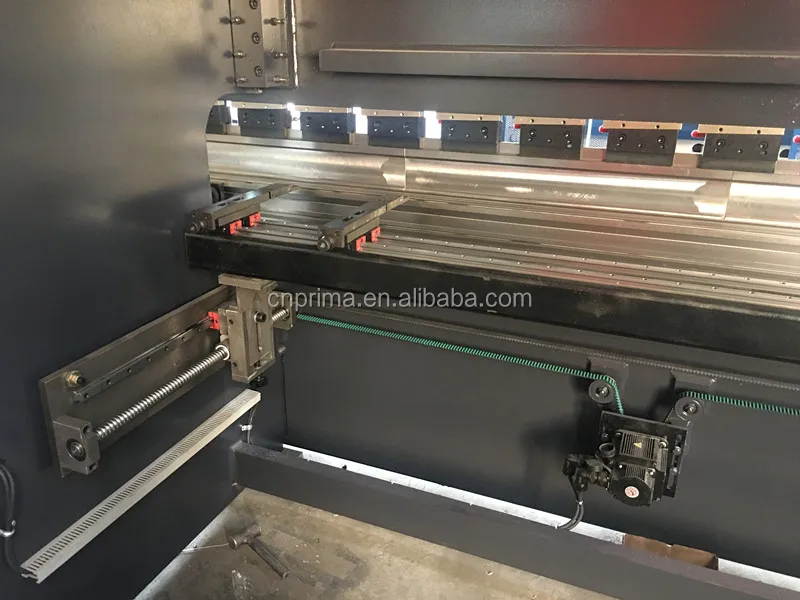

Ball Screw+Linear Guide

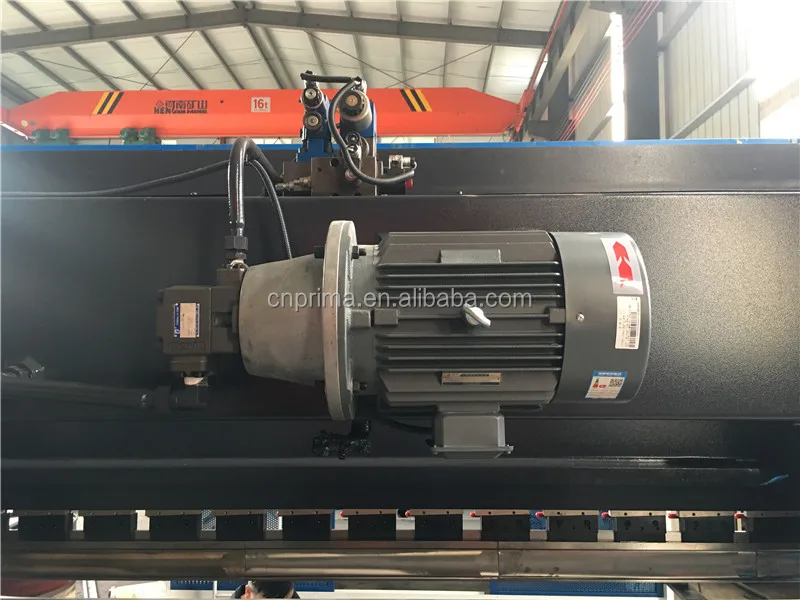

Domestic Famous Motor, Simens Motor(optional)
Safety Valve
Electrical Control Systerm(can be customized)
1.Electric components and material are accord with international standard, safety and reliable, long life, and strong ant jamming capability.
2.Moving footpad attached.
3.Choosing high grade famous electrical control components.
4.The power of the machine is 3-phase AC380V
5.Main power way of motor has short circuit,overload,lack phase protection.
6.Operation buttons equipped on machine button stage, electric switch,pilot lamp equipped in electric box
7.Oil pump stop button as the total button of machine, when oil pump power off, whole machine stops working.
8.Inching control button and emergency stop button are installed on machine.
9.The synchronization of the slider travel of bending machine is mechanic synchronous unit in simple, stable and reliable structure with synchronous precision required by this machine. And generally, it can be used for long time while don’t need to be repaired frequently

E21
E300
DA41S
Packing & Delivery


Packing Details  :

Normal package is plastic film, wooden case package could be discussed;


Delivery Times:

About  15 -20days working days after all details confirmed and deposit received;


Shpping Forwarder

Competitve price will provide from our longterm cooperation forwarder

Also we could contact your forwarder and arrange everything well for you.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing and solution supporting.

* Visit our Factory.


After-Sales Service

* Training how to instal and use the machine.

* Engineers are available to service machinery overseas.

 * Providing time and kind service when you need.

Certifications
Prima FAQ

Q1. Trade company or manufacturer?
A: We are manufacturer and have specialized in machine industry for many years.


Q2. How to choose the suitable machine model?

Three key words: max thickness, max length, processing material


Q3. Is it easy to operate for the new user ?
A: Every machine all is with the opreration manual, and we can also provide you with online support. Traninning and guidence is available to your country.

Q4. What should I do when the machine is in trouble?
A: Take photos and videos to us, we will provide you with the timely help.

Q5. How to trust your machine quality ?

We warmly welcome you to visit our factory in Nanjing. And we have acquired ISO and CE certification.


Q6.How to pay?

Alibaba credit protection order, T/T(30% deposit with 70% balance)


Q7.Delivery time?

15-20days after we receive your order deposit and confirm all details.


Q8.MOQ?

1 PIC
