G-Датчик 720P 4Ch гибридные камеры двойная SD-карта 3G 4G WIFI живой поток GPS автомобильный

G-Датчик 720P 4Ch гибридные камеры двойная SD-карта 3G 4G WIFI живой поток GPS автомобильный

Категория: Surveillance Products >>>
Поставщик: Shenzhen,Recoda,Technologies,Limited

Цена:70,00 $ - 79,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	83.5 $*	87.95 $*
Aug-18-2025	83.7 $*	87.81 $*
Jul-18-2025	69.77 $*	72.10 $*
Jun-18-2025	81.62 $*	85.30 $*
May-18-2025	71.45 $*	75.37 $*
Apr-18-2025	80.51 $*	84.1 $*
Mar-18-2025	79.84 $*	83.89 $*
Feb-18-2025	78.92 $*	82.41 $*
Jan-18-2025	78.36 $*	82.30 $*

Характеристики

Product Description

Feature & Function:

Main Feature:

Embedded Linux system

720P Resolution

H.264 video compression

Support 4 Channels CIF/HD1/D1 720P cameras

Dual SD Storage model.Stability Aviation plug,

easily connecting and high anti-shock proof

Built in G-sensor module

GPS / 3G/ 4G / WIFI optional

Support Customization according your request

We provide whole sets of the machanism, including DVR, and also monitor screen and camera if needed.

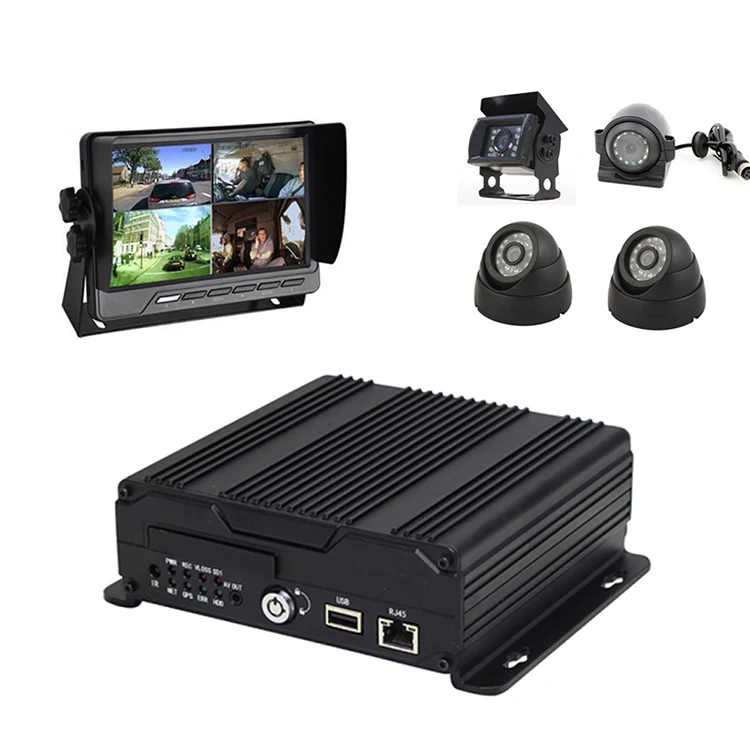

Installation example (DVR+camera+monitor)

live stream to smartphone and PC via 3G/4G/WIFI on CMS management system.

DVR System applied on bus

Applicable Scenario:

Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi

Armored cars, Public security and law enforcement vehicles

Ambulances, Traffic duty vehicles and other fields.

Technical Specifications:

Model	M610G4F
System
OS	Linux
Language	Chinese/English/Customized
Video
Video Input	4CH 720P AHD input, aviation connector, 1.0Vp-p, 75Ω
Video Output	1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen
Video Compression	H.264
Video Quality	1-4 levels, 1 is the highest level.
Video Standard	PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional
Audio
Audio Input	4CH ,Aviation Plug
Audio Output	1CH,Aviation Plug
Audio Compression	G.726 compression, 8KB/s speed
Display
OSD	Overlays information such as date time and vehicle ID
Preview	Support 1 channel and 4 channels preview, Support Manual /Alarm Trigger full screen preview
Graphical User Interface	Setup system parameters with the remote control.
Recording
Resolution	720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
Record Mode	The default setting is auto recording after power on.Timed recording, Alarm trigger recording and manual recording are supported.
Alarm
Alarm Input	6Ch Alarm Input, kinds of alarm linkage support
Alarm Output	2CH Alarm Output
Playback
Search Mode	Search By Record Time/Record Type etc
Playback Speed	Max support 4CH Replay /Stop/Fast/Slow at same time Support forward and backward play at the speed of: x2, x4, x8, x16.
Network
Ethernet	RJ-45 port (10/100M)
3G/4G/WiFi	Optional
GPS	Built-in high accurate GPS module(optional)
G-Sensor	Support G-sensor
Storage
SD Card	Dual SD Card, each max 128GB SD Card loop recording
Auxiliary Interface
USB	1 Port , USB 2.0
RS485	1 Port, For PTZ control
RS232	2 Ports, For Temperature Sensor, Fuel Sensor etc.
General
Voltage Input	DC:+10V ~ +36V
Voltage Output	+12V/2.5A,+5V/2.5A
Power Consumption	Normal Working <5W
Power Management	Wide Voltage. Support Timed/Delay off
Temperature	-20℃ to +70℃
Humidity	20% to 80%
Size	150(W) x57(H) x168(D) mm
Net Weight	1.1kg
