120 мин 180 паническая панель Коммерческие современные противопожарные двери экстренных


Поделиться:


Цена:90,00 $ - 160,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 107.37 $* 112.48 $*
Aug-20-2025 106.35 $* 111.95 $*
Jul-20-2025 89.58 $* 93.55 $*
Jun-20-2025 104.15 $* 109.20 $*
May-20-2025 91.29 $* 96.94 $*
Apr-20-2025 103.34 $* 108.78 $*
Mar-20-2025 102.55 $* 107.82 $*
Feb-20-2025 101.28 $* 106.31 $*
Jan-20-2025 100.89 $* 105.69 $*

Характеристики





top door factory s.jpg


Los Angeles distribution center :


Address:14300 Alondra Blvd. La Mirada, CA. 90638 Los Angeles,USA


Tel: 714 562 8808





Vancouver distribution center:


Address: unit 111 1533 Broadway Port Coquitlam,BC. V3C 6P9 Vancouver,Canada


Tel: 604 475 6679

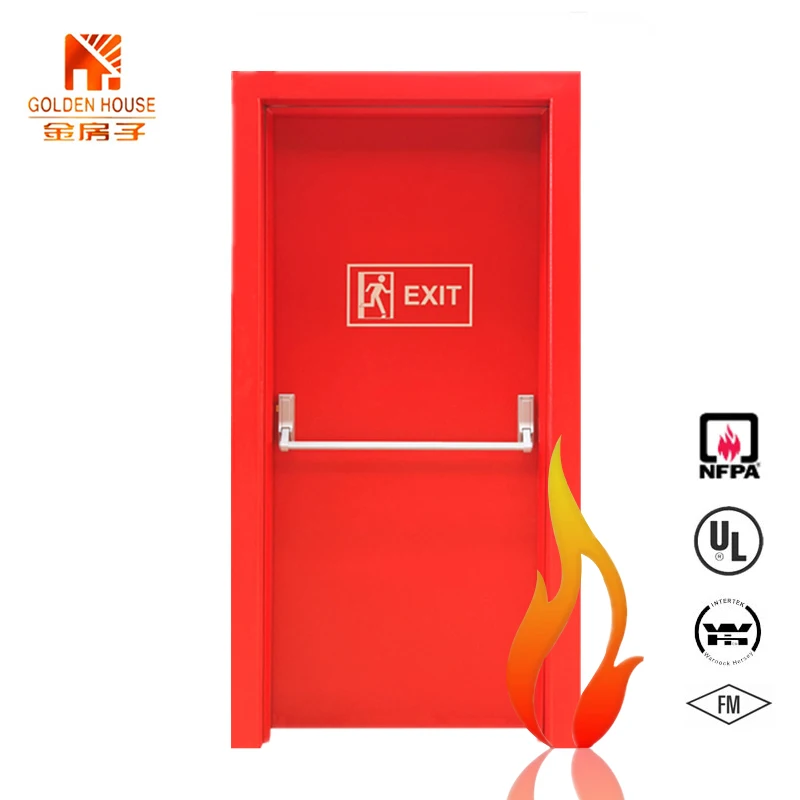

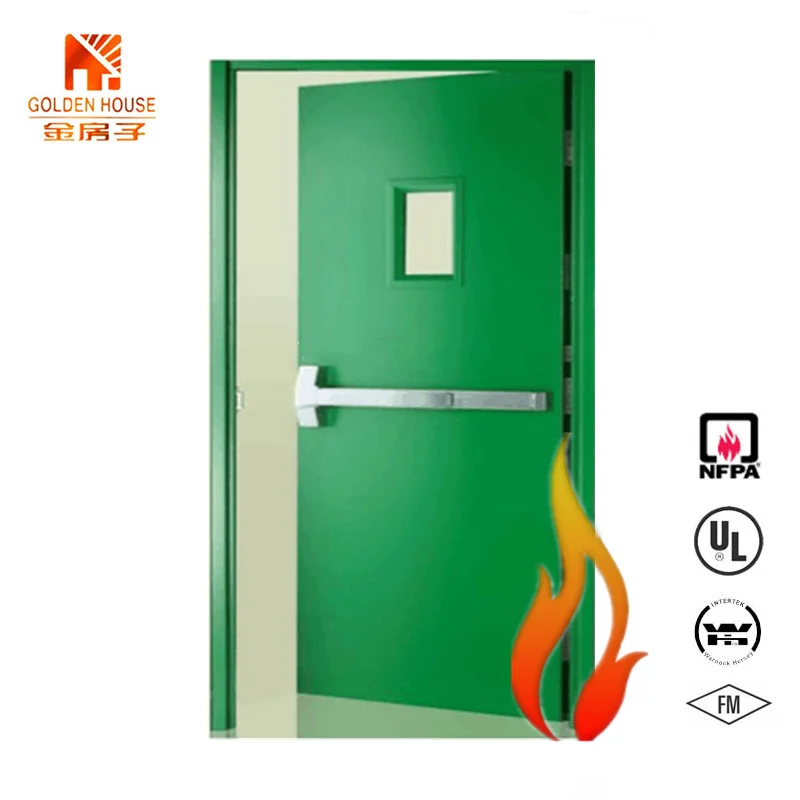

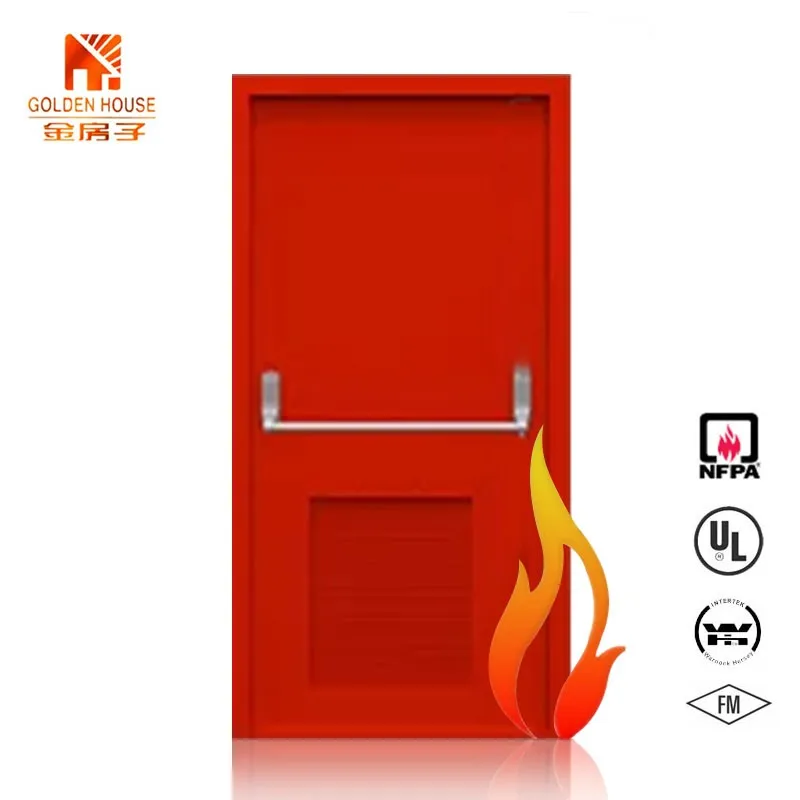

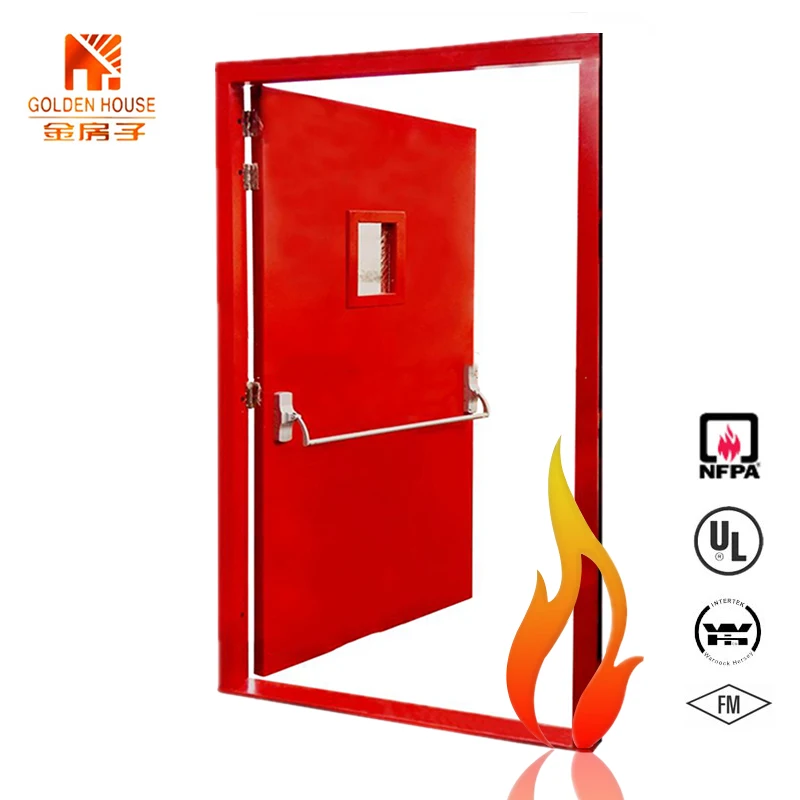

 120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits





120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits








GH Steel Fire Door Features :


fire rated up to 3 hours with WHI  UL  FM label applied .


all of doors are designed and fabricated under SDI requirements.


1 3/4" thickness (44.5mm),non-handed assemble with reversible hinge shim parts.





fire rated wire glass or louver option for vision lites .


all materials is  approved  in accordance with NFPA  ASTM and other standards .


steel stiffener, hardware preparations and reinforcement are conformed with ANSI standards .


Packing and Transport





120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits package.jpg





feedback s.jpg





histroy s.jpg


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits project.jpg


cooperation s





GH Steel Fire Door Technical Data :












































































Brand



Golden House (GH)



Standard



UL 10(b),UL 10(c) /NFPA/ASTM /UBC7-2



Certifications



INTERTEK(WHI),FM,UL



Fire rated time



45min,90min,up to 180 min



Door Size (single)



 standard width up to 4'0"(1200mm ) Height  up to 8'0"(2440mm);


customized size is available .



Leaf thickness:1 3/4" standard ( 44.5mm )



Frame jamb depth:100-300mm



Door size (Double)



Maximum size is 8'x8'(2440x2440mm)



Door leaf sheet



20Ga-18Ga (1.0/1.2mm).customized level is available



Door frame sheet



16Ga.(1.5mm) ,customized level is available



Opening



swing /inward or outward



Type



2panel/6panel/flush panel/vision lite /louver



Material of leaf and frame



cold roll steel or Galvanized Steel or Galvannealed Steel



Filling material



Honeycomb,Polystyrene,Mineral Fire Board



Surface finish



factory Primer /finsih paint/power coated/wood grain finished



Color



RAL color system or be customized as well



Application



Suitable for building project,business,home decoration (Office,hotle,church,home and so on )



Packing



in wooden case or steel pallet package






 120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits


steel door core





120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits





 fire Door type.jpg





glazing fire door.jpg








UL accessories.jpg





 120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits lable


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits





Fire-Rated doors are required to be suited for the various type of walls as below :


Frame and Hardware must also carry the appropriate fire label




































Door fire RatingWall RatingDescription and Use
3 Hour 4 HourThe openings are in wall that separating buildings or dividing a single building into designated fire areas.doors for this openning are required at 3 hours fire rating.
1-1/2 Hour 2 HourOpenings  are used in enclosures of vertical communication or egress through buildings. theste could be stairwells or elevator shafts. They also are in boiler rooms and in exterior walls that have the potential for severe fire exposure from the outside of the building.

3/4 Hour


(45 Minutes)


1 HourFor use on the  openings are in corridors and room partitions. A door with this rating may also be used in the exterior wall which are subject to moderate fire exposure from the outside of the building.

1/3 Hour


(20 Minutes)


1 HourThese openings are in corridors or interior partitions where this fire rating is required .




120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits








    FIRE DOOR FRAMES


      Frame used in masonry walls maybe used with a maximum 3-hour fire door while frame used in drywall stud walls are intended to be used with a maximum 1-1/2-hour fire door. consulting with your door frame manufacturers listings for fire door frames than can be used in drywall stud walls with a maximum 3-hour ratings.





 120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits


120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits handing Chart





fire door manufacturer.jpg










120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits





120mins 180mins Panic Bar Commercial Modern fire doors of the emergency exits





suggestion






FAQ



Q1:Can be mixed different colors and models together in one order?
A1:Surely yes. Mixed colors and models are acceptable in One 20GP or in one 40HQ we suggested 3-6 models.

Q2:Can you make the door according to our drawing?
A2:Yes,we can.But customer should send us drawing to check firstly,then we shall reponse you the correct drawing for production .


Q3: What’s your policy for samples?
A3:For small sample,we can offer for free.For completely doors ,we have to charge some cost on actual situation. But we will refund the sample charge to you if you place bulk order next time.

Q4: What’s your special service?
A4:Overseas installation service.

Q5: How to order Delivery time?
A5: Delivery time: About 20-35days.
First we need know your specific door request and specs, then we issue the related solutions to meet your requirements. After that, we make the invoice and drawings for your approval. Once you approve the both, 50% deposit will be arranged and the production is started; after the order is finished, we take video or pictures to you, or you dispatch inspector here, then collect the balance before shipping.

Q6:Do you have stock?
A6:we stock American standard hollow metal door & frames as procedure in factory. When your order is special and need customerized , we need arrange that specially, just like project schedule, most of them need customerized by specific size, color, lock type, materials, etc. So, we can pick up wholesaler order or end user project order both.
