Plastic Box washing Machine/Basket Washing Machine description

Today's plastic turnover baskets (also known as plastic boxes, plastic baskets, plastic baskets, material baskets, bins, trays, etc.) have been widely used in various industries, including the food industry and machinery parts industry. Cleaning often requires a lot of labor and increases production costs. Shangyu Huafeng Food Machinery Co., Ltd. absorbs the advantages of advanced equipment at home and abroad, integrates a number of new technologies, new technology, research and development of the turnover box cleaning machine, the new equipment that can complete the process of basket cleaning, disinfection, drying, etc. The actual use of the majority of users proves that the equipment has obvious cleaning effect on all kinds of boxes, greatly improves the cleaning efficiency and reduces the cleaning cost, and is highly praised by the users.



Plastic Box washing Machine/Basket Washing Machine indroduction

Plastic Box washing Machine/Basket Washing Machine parameter

Model	YY-5500
size	5500×1200×1600mm
Power	8.25 KW  380V/50HZ
Speed	500-600 pieces/h
temperature	35c°-70c°
suitable for size	800×700×350mm ( can be customized)
Material	Stainless steel

Plastic Box washing Machine/Basket Washing Machine feature

1	The conveying speed is adjustable, which maximizes the efficiency of the machine and ensures the cleaning and drying effect.
2	Use photoelectric sensing technology to control the switch of the washing water to minimize energy consumption.
3	The separate piping design for dirty water and washing water optimizes the economic use of the water in the circulating water tank.
4	A plurality of filtering devices are provided to filter and clean the dirt that has been washed out of the casing.
5	The pipe adopts a snap-on installation form, which is convenient for pipeline cleaning and reliable operation. It adopts stainless steel conveyor chain and stainless steel nozzle for long service life.
6	It is used in food processing plants such as slaughter, meat, aquatic products, fruits and vegetables, beverages, brewing, food processing centers, distribution centers, etc. It is suitable for cleaning and disinfecting various turnover baskets, trays, boxes, trays, etc. It can save up to 70% of water consumption, and can save 7-8 people compared with the old manual cleaning method. It is an ideal cleaning equipment for food processing factories or food logistics centers and distribution centers for slaughter, meat, aquatic products, fruits and vegetables, beverages, brewing, etc. .

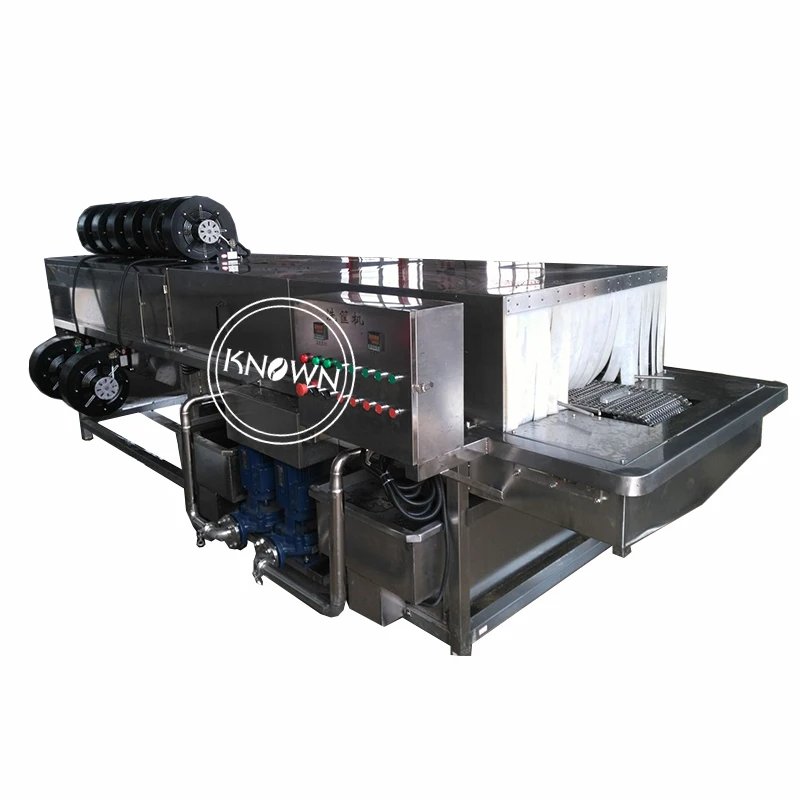

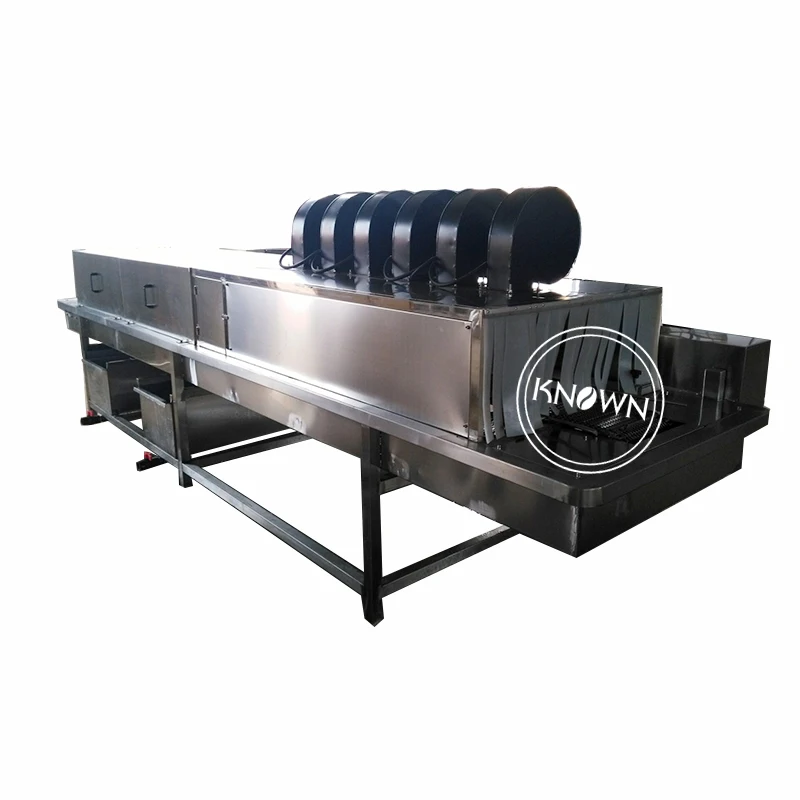

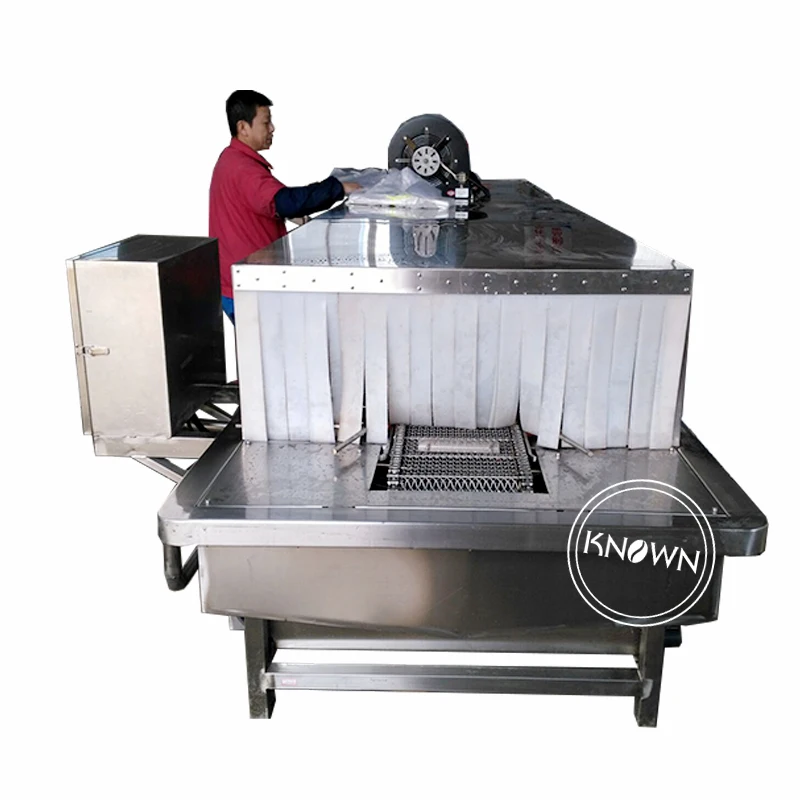

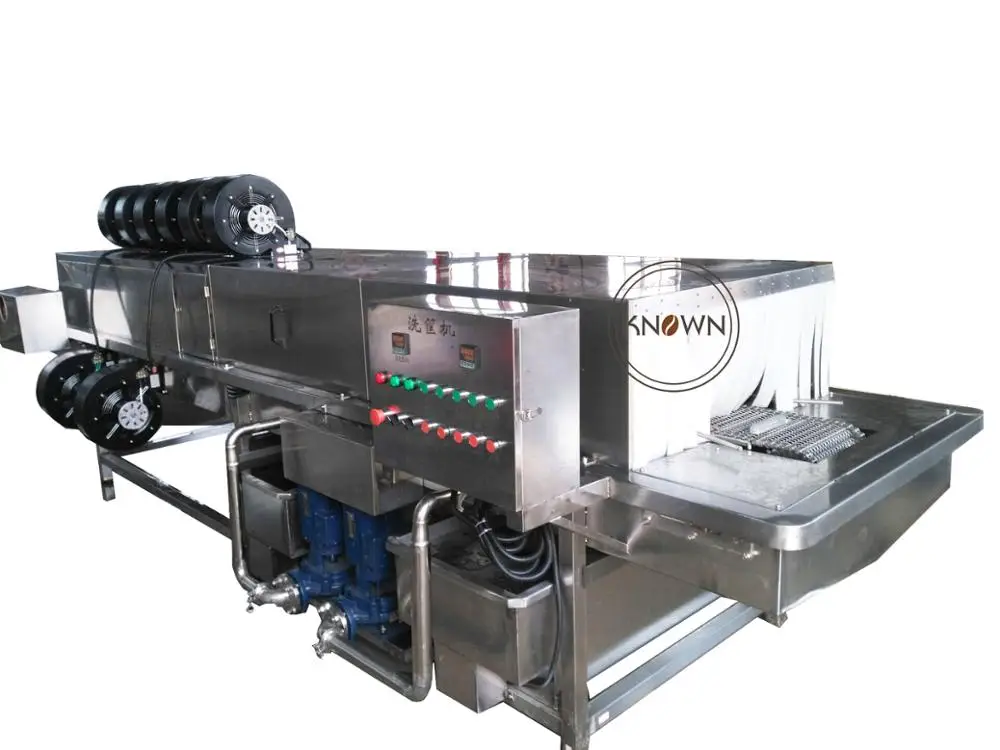

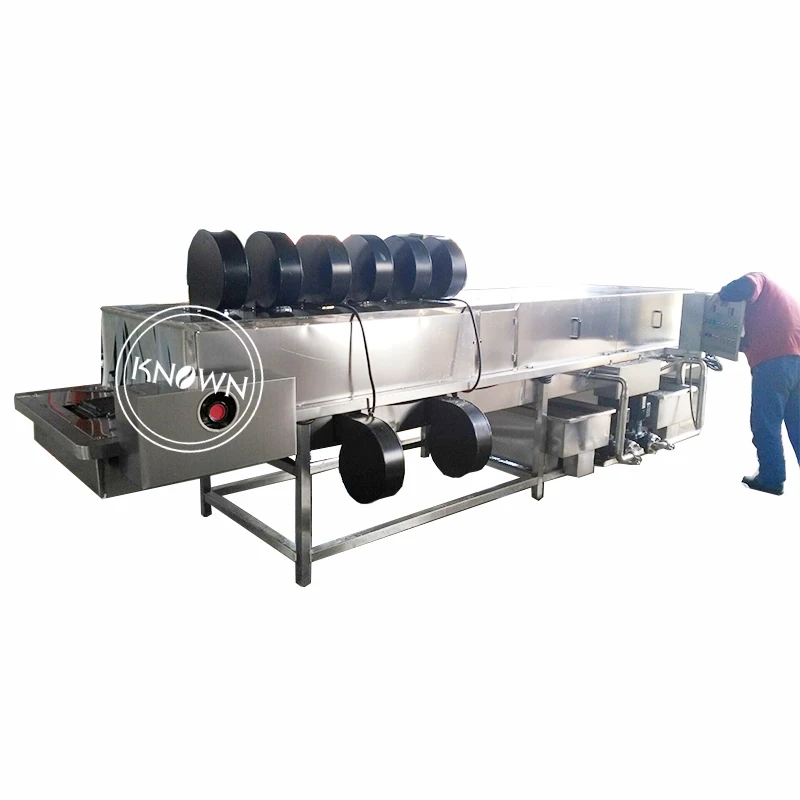

Plastic Box washing Machine/Basket Washing Machine more pictures

Plastic Box washing Machine/Basket Washing Machine principle

1	The cleaning is divided into three sections, the first section is hot alkaline water, the second section is hot water, and the third section is tap water. In addition to the third section of tap water, the three sections of spray water have independent circulating filtered water tanks. The third section of tap water is used as supplementary water to be recycled to the second section of the tank. After the heating is used, part of the sewage is automatically discharged. The first and second water tanks are provided with heating pipes, and the temperature is freely set from normal temperature to 95 °C.
2	The first section of the pump power is 1.5KW, the second section of the pump power is 5.5KW, the third section of the pump power is 0.75KW, the conveyor belt motor power is 0.75KW, and the conveying speed is 3-15m/min.
3	The sides of the cleaning room are movable waterproof doors, and the two entrances are sealed with water curtains, which are convenient for cleaning and repairing equipment at any time. Equipment electrical control box is made of stainless steel, all power centralized control
4	The length of the machine is customized according to the customer's needs. The recommended minimum length is 5 meters. If it is too short, the washing effect will be affected.

Plastic Box washing Machine/Basket Washing Machine packing and delivery

Plastic Box washing Machine/Basket Washing Machine FAQ

Plastic Box washing Machine/Basket Washing Machine
1	Q: Are you factory?
	A: Yes, sure. we are original factory
2	Q: Do you have a warranty? How long?
	A: we offer 1 year warranty for all of parts.
3	Q: Can you make OEM or ODM?
	A: Yes, welcome importer and wholesaler to contact us for long term business relationship.
4	Q: If I buy from you, how long I will get the machines?
	A: For regular production our production time is 30 days,and for shipping time, please contact us for details.

Plastic Box washing Machine/Basket Washing Machine  of our factory













 If you have any questions ,please feel free to contat us~





Please note

1.Our price is  based on the CFR trade terms, which is shipping by sea, we will help you to arrange the shipment by sea and deliver to your nearest seaport! After arriving destination seaport, the buyer need to pay the destination port charges (such as terminal handling charges, documents charges, storage charges, ect), tax to do the customs clearance and pick up the goods by yourself. The shipping documents we can supply is the Bill of lading, Commercial Invoice, Packing list. If you need any other documents, please contact our salesman before shipment!

3.About the machine size, please subject to the product description. Please kindly noted there might be some size deviation due to the manual measurement, whichever is actual. If you need the exactly size, please contact our salesman to confirm it again before you place the order.

4.Buyers should inspect package / goods carefully before signing receipt of goods. If there is any damages, please take pictures and videos, and please contact with us within 24 hours, we will try to help you to ask the complaints and claims!

5. Please note, our machine is belong to the customize product, it don't accept "cancel the order" once arrange the production.
