wireless network computer data router rj45 1gb net switch



Product Description

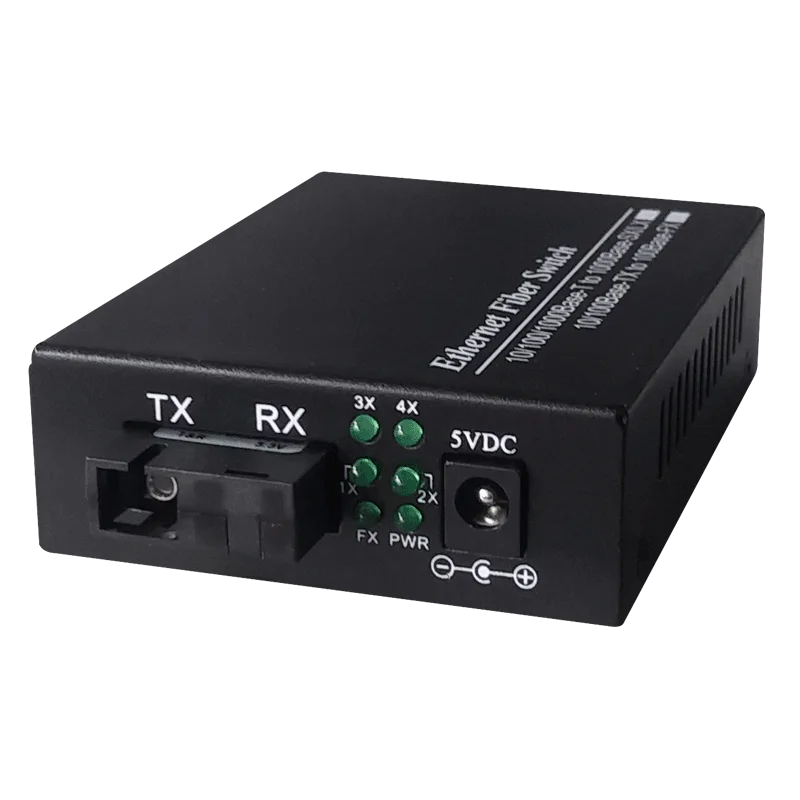

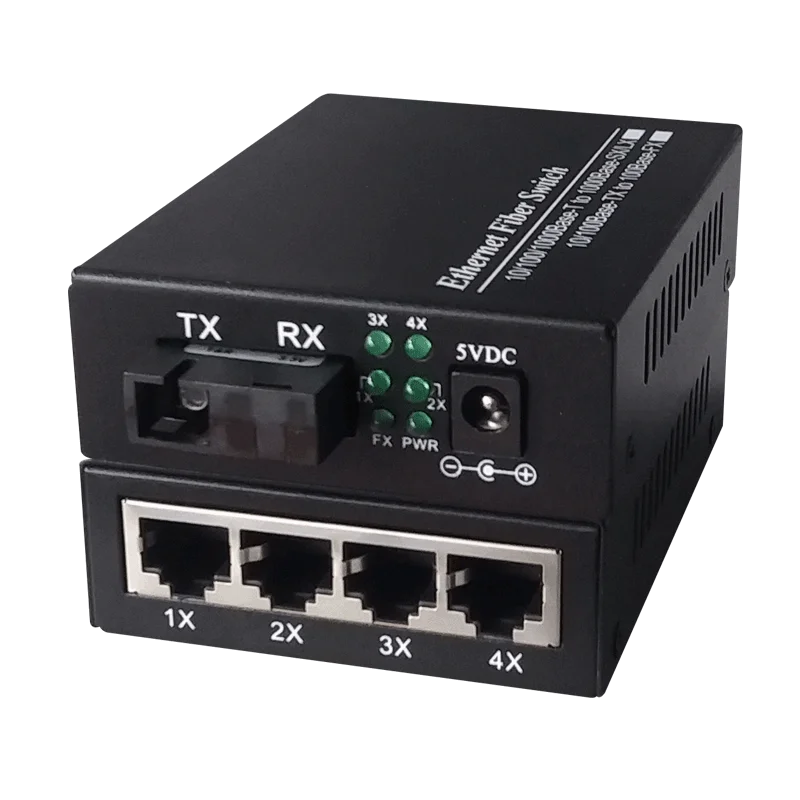

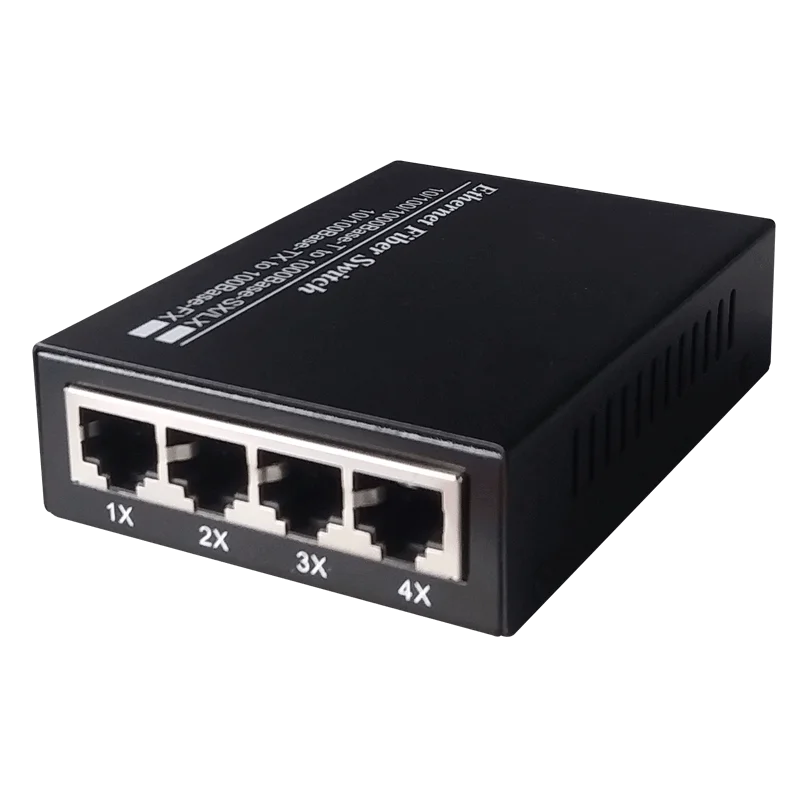

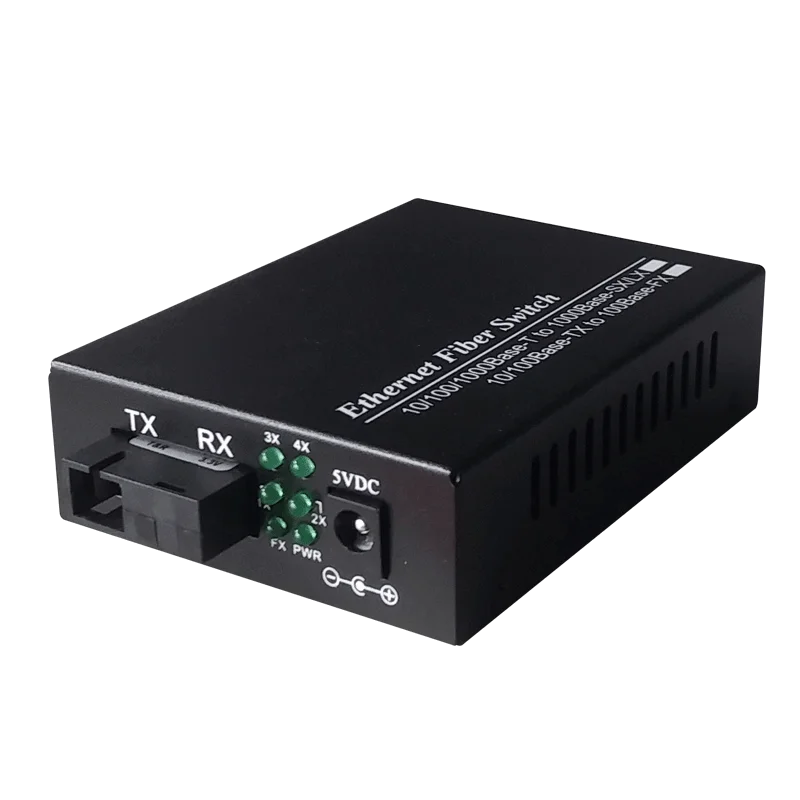

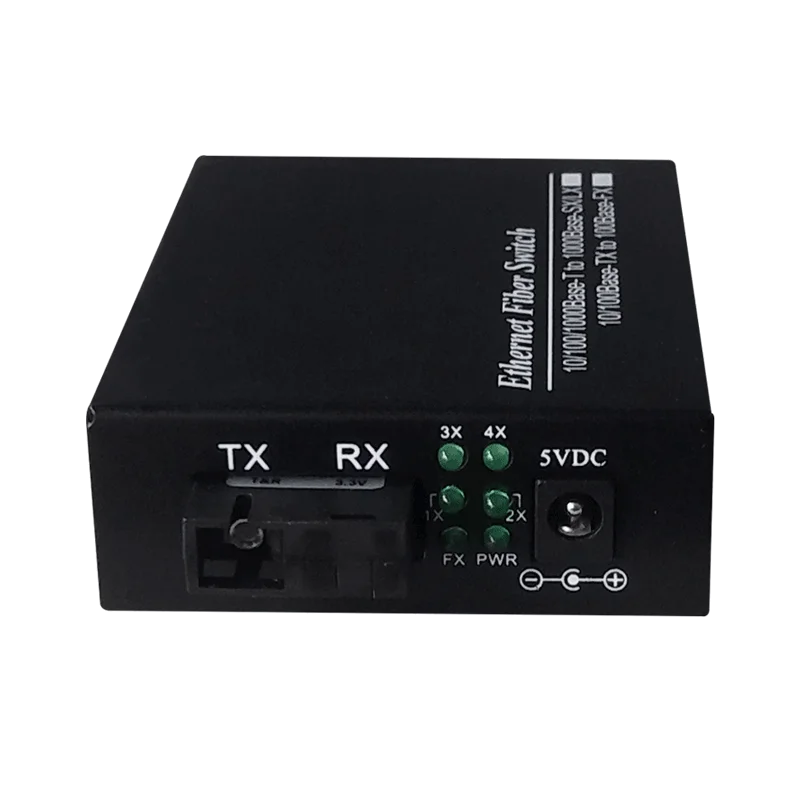

Fiber optic switch SST-1F4ET-1X9, a 10/100/1000Mbps adaptive fiber switch. It has 4 10/100/1000Mbps Ethernet ports and 1 1.25Gbps fiber ports. It can extend the transmission distance from 550m to 120km via fiber cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.




fiber switch 2.jpg



Specifications


wireless network computer data router rj45 1gb net switch specs:











































  Standards











IEEE802.3u 100 Base-T


IEEE802.3u 100 Base-TX/FX


IEEE802.3ab 1000Base-T


IEEE802.3z 1000Base-SX/LX



IEEE802.1q VLAN


IEEE802.3x Flow control


IEEE802.p QoS


IEEE802.3d Spanning Tree





Certifications



CCC, CE, FCC, RoHS



Ethernet Port



Connector: RJ45


Data Rate: 10/100/1000M


Distance: 100m


UTP Type: UTP-5E or higher level



Fiber Port



Connector: SC/FC/ST slot


Data Rate: 1.25Gbps


Optical wavelength: 850nm/1310nm/1490nm/1550nm


Distance: 550m~120km


Fiber(Single mode): 8/125,8.7/125,9/125,10/125



Performance



Processing Type: Store and Forward


MAC Table Size: 8K


Buffer Space: 1Mbit


Back bandwidth: 10G


Jumbo Packet: 10K


Time Delay:<20μs






Power



Input Voltage: AC100V~240V  50/60Hz


Connector: DC Socket


Working Voltage: 5V 1A


Power Consumption: 1.8W~2.5W



Environment



Storage Temperature: -40~70℃


Operating Temperature: -10~55℃


Relative Humidity: 5-90% ( no condensation)



Warranty



3  year



Physical Characteristics



Dimension: 94×70×26mm


Weight: 0.20kg


Color: Metal, Black









Product Avantages


wireless network computer data router rj45 1gb net switch advantages:



  • Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

  • 1*1.25Gbps full duplex fiber ports, 4*10/100/1000M adaptive Ethernet ports

  • Support 10/100/1000M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive

  • Each port has the complete LED Indicator light for installation,commissioning and maintenance

  • Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

  • Support IEEE802.1d Spanning tree

  • Support IEEE802.1p traffic prioritization protocol

  • Support high performance Qos function on each port

  • Support broadcast storm protection

  • Support max forwarding packet length 2048 bytes option

  • Support IEEE 802.3x flow control and back pressure control

  • Require no configuration and will instantly operate as soon as you power it up

  • Adopt low power consumption Realtek chip,only 2.5W in full load condition

  • Support non-standard POE function

  • Built-in IC protection from electrostatic discharge during thunder stroke





Detailed Images


fiber switch 5.png





fiber switch 3.png





fiber switch 1.jpg

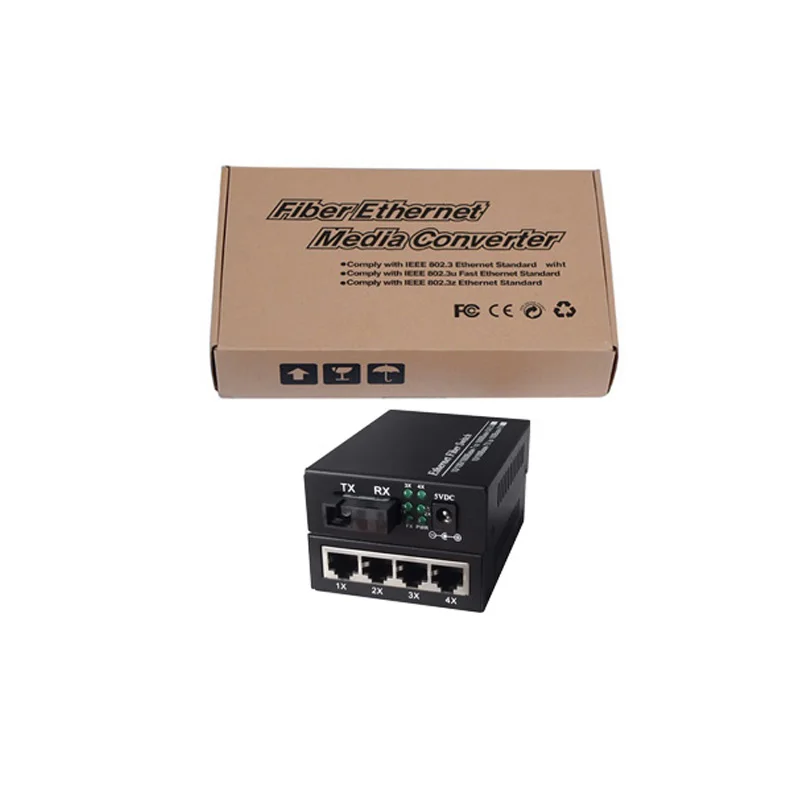

Packaging & Shipping


fiber switch 4.jpg





fiber converters.jpg





media converters.jpg
