Компактный катушечный диск резак для
Компактный катушечный диск резак для

Компактный катушечный диск резак для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.10 $* 0.59 $*
Aug-19-2025 0.65 $* 0.30 $*
Jul-19-2025 0.22 $* 0.5 $*
Jun-19-2025 0.77 $* 0.51 $*
May-19-2025 0.90 $* 0.62 $*
Apr-19-2025 0.47 $* 0.65 $*
Mar-19-2025 0.15 $* 0.93 $*
Feb-19-2025 0.59 $* 0.74 $*
Jan-19-2025 0.84 $* 0.15 $*

Характеристики


Product Description

Product Application

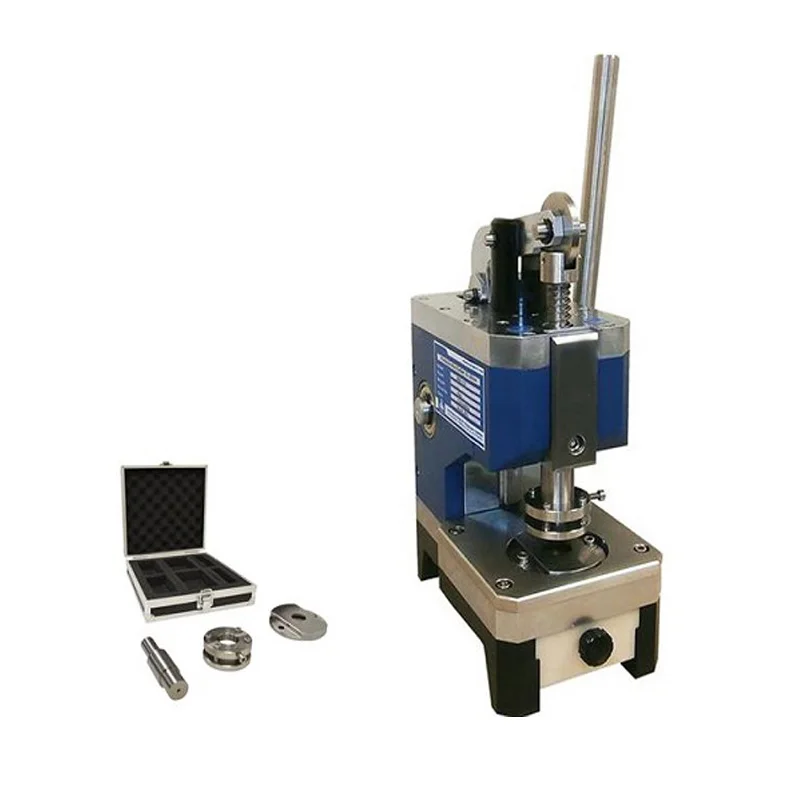

Compact disc cutter is designed with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from a thin metal sheet / foil (< 0.5 mm) or separator film (<30um).  The resulting discs can be used as electrode /separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.

Technology Parameters

\t
Mixing blades speed & power
\t
Major structural material: Cr Plated Steel
\t
Manual pressure
\t
≧300Kg
\t
Max. Stroke length
\t
17mm
\t
working table
\t
L140mm x W80mm
\t
Standard die size
\t
Φ20, Φ19mm and Φ16mm
\t
Box material
\t
Anti - static ABS material, residual discharge
\t
Product Dimensions
\t
209mm(L) x 120mm(W) x 394mm(H) Compact size which can be put into glovebox through air lock chamber
\t
Warranty
\t
One year limited manufacturer warranty with lifetime support.
Rusting and damage due to improper storage condition or maintenance are not covered by warranty.
\t
Application Notes
\t
If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:

16mm (for negative side case, which is 16.5mm in diameter)

19mm (for positive side case, which is 20mm in diameter)

20 mm (for separator to fully separate the electrodes in both negative and positive cases)

For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die)

Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells
\t
Net weight
\t
10Kg
