LoRa беспроводной геомагнитный датчик парковки для интеллектуальной коммерческой системы обнаружения парковочного

Smart parking is one of the most adopted and fastest growing Smart City Solutions in the world. Airports, universities, shopping centers and city garages are just a few entities that have begun to realize the significant benefits of automated parking technology. The ability to connect, analyze and automate data gathered from devices, powered by and described as the Internet of Things, is what makes smart parking possible.

The market has moved towards an IP-based infrastructure, changing traditional applications like voice or video from analog to digital.

Smart parking is one of the most adopted and fastest growing Smart City Solutions in the world. Airports, universities, shopping centers and city garages are just a few entities that have begun to realize the significant benefits of automated parking technology. The ability to connect, analyze and automate data gathered from devices, powered by and described as the Internet of Things, is what makes smart parking possible.

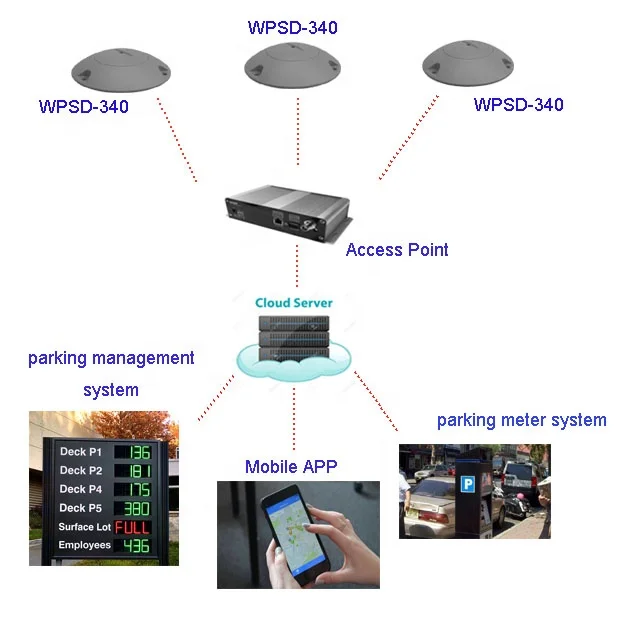

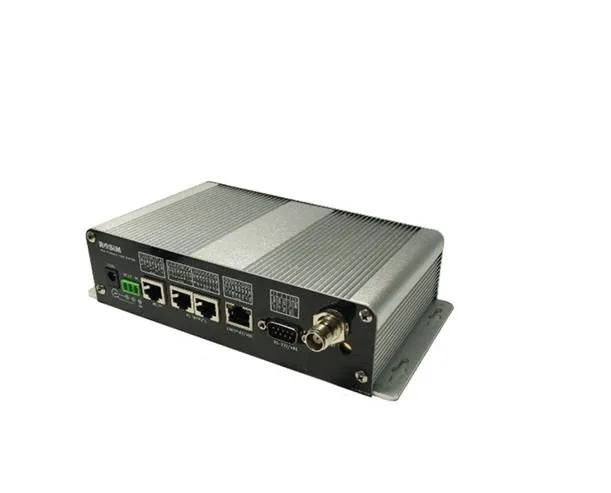

The gateway transmits the collected data to your server by wire or wirelessly. If you have a software platform, you can analyze the data and use it with the APP.

Each parking space is equipped with a flush-mounted vehicle sensor for on-street parking and connected wirelessly to a data collector. This acts as the connection to the web-based data hub from each parking space being monitored.

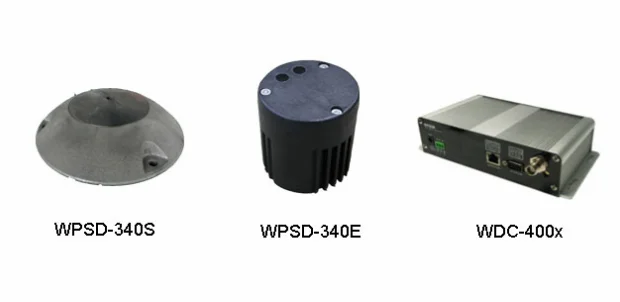

WPSD-340 can withstand extreme weather conditions and withstand very high impacts.The sensor system uses LoRa technology operating in the 433/868/915MHz band to enable long range and low power consumption.

Our sensor has superior technical capabilities in the areas of speed detection,vehicle presence detection and accurate.Thanks to special dual detection technology,the detection accuracy can reach  98% and extra long communication range in stable signal without data lose.Easy installation means effective time and costs reduced,process of project application simplified,which carries out intelligent upgrading of the city.

* Support communication connection between one Gateway and 50 sensors. No need repeater,more stable signal.

* Offers better car park utilization

* An environment-friendly solution for reducing green house gases

In Japan:

In Italy:

Other project:

Loop induction installation step:

STEP 1. Display the cutting layout on the pavement to lay the loop coils.

STEP 2. The depth of cut surface for loop coil laying is about 30 ~ 70mm from the surface of the road.

The width of the cut surface for loop coil embedding must be such that the loop coil can be inserted sufficiently.

STEP 3. The cable for loop coil forms an extension line without cutting so that it can be connected to the vehicle detector.

STEP 4. The extension line from the section to the vehicle detector must be twisted more than 20 times per meter.

STEP 5. Install Loop coil fixing material that is finished at least 25mm below the top of loop coil installed every 30cm.

STEP 6. Install a sealant.
