Высококачественный модем Wavecom Sierra fxt009 gsm gprs
- Категория: Modems >>>
- Поставщик: Shenzhen,Bailingjia,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 107.92 $* | 112.84 $* |
| Aug-20-2025 | 106.55 $* | 111.1 $* |
| Jul-20-2025 | 89.55 $* | 93.97 $* |
| Jun-20-2025 | 104.45 $* | 109.28 $* |
| May-20-2025 | 91.25 $* | 96.21 $* |
| Apr-20-2025 | 103.5 $* | 108.10 $* |
| Mar-20-2025 | 102.45 $* | 107.94 $* |
| Feb-20-2025 | 101.33 $* | 106.53 $* |
| Jan-20-2025 | 100.17 $* | 105.57 $* |
Характеристики
High quality Wavecom Sierra fxt009 gsm gprs modem internet wireless modem
Product Description
The Fastrack Xtend series is a range of self-contained programmable gateways supporting EGSM/GPRS/EGDE 850/900/1800/1900 quad band, WCDMA 850/1900/2100 and CDMA2000 1XRTT (IS-2000) that is especially designed for M2M systems. For the 3G versions of the Fastrack Xtend, UMTS and HSxPA connectivity are also available for users.
The Fastrack Xtend also offers an Expansion Card interface accessible for customer use. Expanding application features is easy by simply plugging in an Expansion Card.
Fully certified, the Fastrack Xtend offers quad band 850/900/1800/1900 MHz GPRS and EGPRS Class 10 (12*) capabilities, Tri Band WCDMA/FDD (850/1900/2100) (Band I, II, V) UMTS / HSxPA; and it also supports the Sierra Wireless Software Suite. The Sierra Wireless Software Suite is the world’s most comprehensive cellular development environment, which allows embedded standard ANSI C applications to be natively executed directly on the Intelligent Embedded Module.
Main Features and services
Refer to the table below for the list of basic features available on the Fastrack Xtend Original sierra wireless airlink FXT009 fastrack modem
Refer to the following table for the comparison list between the different Fastrack Xtend variants

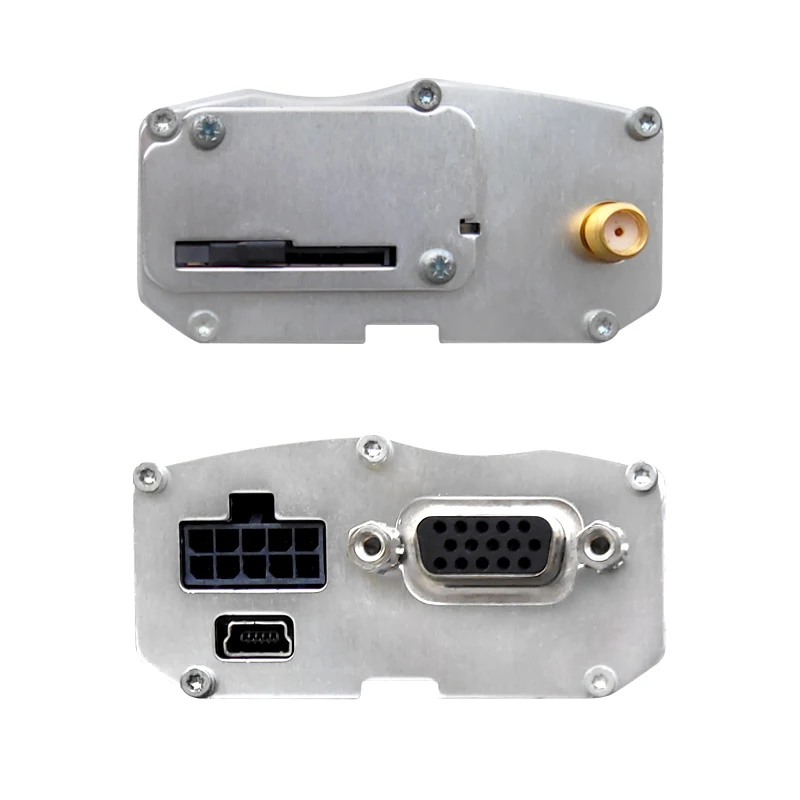

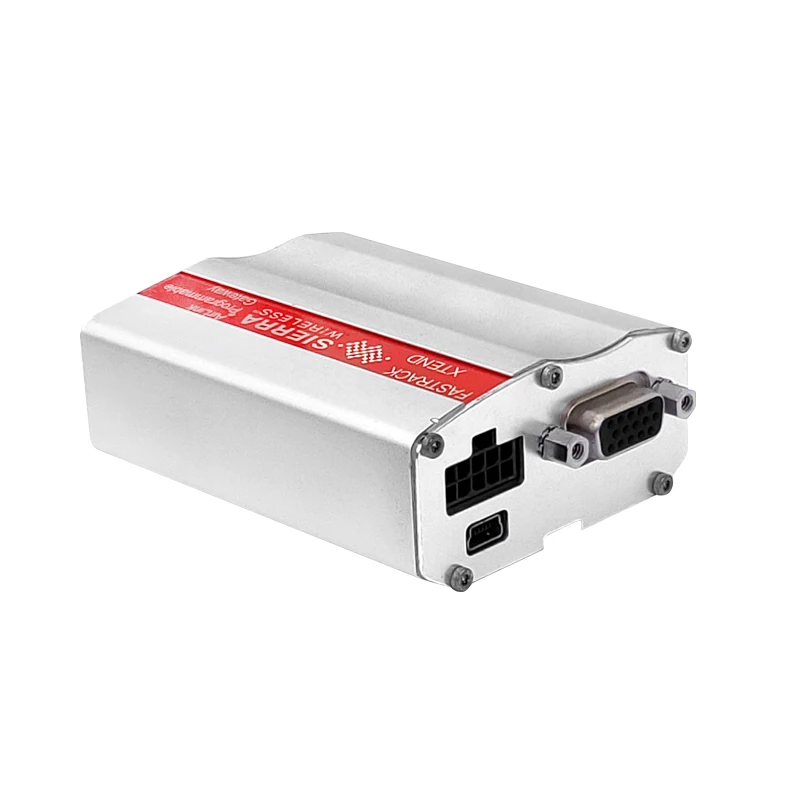

Interfaces
This section describes the different interfaces that connect with the Fastrack Xtend. The Fastrack
Xtend comes with the following interfaces:
- 10-pin Micro-Fit Connector
- USB Interface
- 15-pin Sub-D Serial Interface
- Main RF Interface
- Secondary RF Interface (for FXT003 and FXT004 only)
- SIM Interface (not available for FXT004)
- LED Status Indicator
Power Supply Connector
The power supply connector is a 10-pin Micro-Fit connector that is used for:
1.External DC Power Supply connection with voltage from +4.75V* to +32V at 3A
2.GPIOs connection and GPIO voltage reference
3.External Optional battery interface
4.ON/OFF pin to power OFF the Fastrack Xtend
1.External DC Power Supply connection with voltage from +4.75V* to +32V at 3A
2.GPIOs connection and GPIO voltage reference
3.External Optional battery interface
4.ON/OFF pin to power OFF the Fastrack Xtend
Serial/RS232 Interface
A SUB-D 15-pin connector is available as a serial interface to directly communicate with the Fastrack Xtend.This serial interface is used for:
1.RS232 serial link connection
2.Audio lines connection (microphone and speaker)
3.BOOT signal connection
4.RESET signal connection
A SUB-D 15-pin connector is available as a serial interface to directly communicate with the Fastrack Xtend.This serial interface is used for:
1.RS232 serial link connection
2.Audio lines connection (microphone and speaker)
3.BOOT signal connection
4.RESET signal connection
USB Interface
Aside from the serial interface, the mini-USB interface (USB Slave) may also be used to directly communicate with the Fastrack Xtend.
This USB slave feature is also used for USB charging feature if the optional battery accessory is available.
Aside from the serial interface, the mini-USB interface (USB Slave) may also be used to directly communicate with the Fastrack Xtend.
This USB slave feature is also used for USB charging feature if the optional battery accessory is available.
When plugged-in through the mini-USB interface, it will start the charging circuit.
When using with the optional battery accessory, ensure that the current limit of the USB slave is greater than 100mA.
When using with the optional battery accessory, ensure that the current limit of the USB slave is greater than 100mA.
Supported Expansion Cards
The Fastrack Xtend supports three types of Expansion Cards.
1. IO+GPS Expansion Card
2. Ethernet Expansion Card
3. RS485 Expansion Card Installation
IO+GPS / Ethernet Expansion Card Installation
Expansion Card Removal
To remove the Expansion Card from the Fastrack Xtend, insert the extraction tool hook into the Expansion Card extraction hole located under the PCB. Once in place, pull the extraction tool to extract the Expansion Card from the Fastrack Xtend.
RS485 Expansion Card Installation
Using the Battery Accessory
Assemble the battery accessory with the Fastrack Xtend as shown in the figure below.
Packing List (Optional)
| The first packing | 1x FXT009 Modem,1x Supply adapter cable |
| The second packing | 1x FXT009 Modem,1x Supply adapter,1x RS232 cable,1x USB cable,1x Antenna,1x CD |
