Настольный генератор произвольных функций DDS ET3325 3 5 дюйма 70
- Категория: Signal Generators >>>
- Поставщик: Hangzhou,Zhongchuang,Electron,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 22282.84 $* | 22728.14 $* |
| Jul-18-2025 | 18071.31 $* | 18432.55 $* |
| Jun-18-2025 | 21931.70 $* | 22370.41 $* |
| May-18-2025 | 21756.32 $* | 22191.41 $* |
| Apr-18-2025 | 17370.95 $* | 17717.54 $* |
| Mar-18-2025 | 21405.85 $* | 21833.67 $* |
| Feb-18-2025 | 21229.65 $* | 21654.68 $* |
| Jan-18-2025 | 21054.33 $* | 21475.31 $* |
Характеристики
Product Description

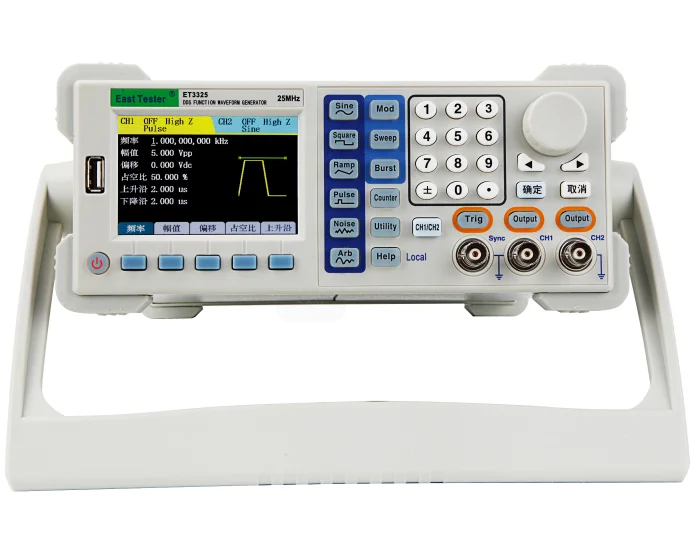

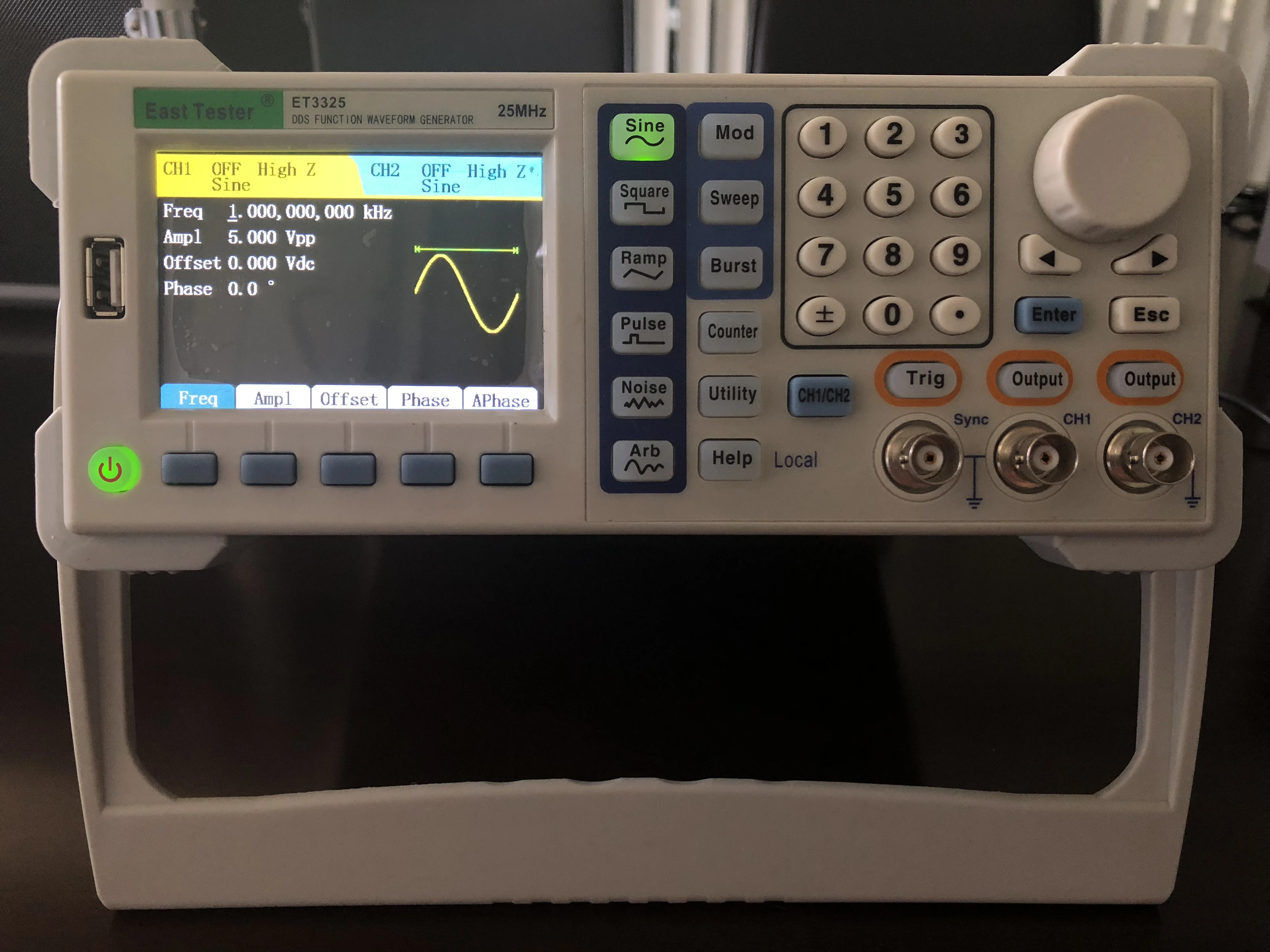

DDS ET3325 3.5 inches TFT 70MHz benchtop function generator
Basic Features:
3.5-inch 480×320TFT LCD with clear graphic interface
Chinese / English menu available
Press key for help and information
Chinese / English menu available
Press key for help and information
File management supporting USB flash disk and local storage
For two-channel output, the highest output frequency is: ET3325 Model is 25MHz and ET3340 Model is 40MHz
The two channels are independent from each other and have the function of phase synchronization
Sampling rate of 160MSa/S, vertical resolution of 12 bit and storage depth of 16k
Five basic waveforms and 32 arbitrary waveforms in-built
Waveform storage: Supports 10 user-defined set of waveform editing
Pulse wave output set in edge time
Internal/external AM, FM and FSK modulation function
Output of linear/logarithmic frequency sweep and burst waveform
Frequency meter of high precision of 160MHz

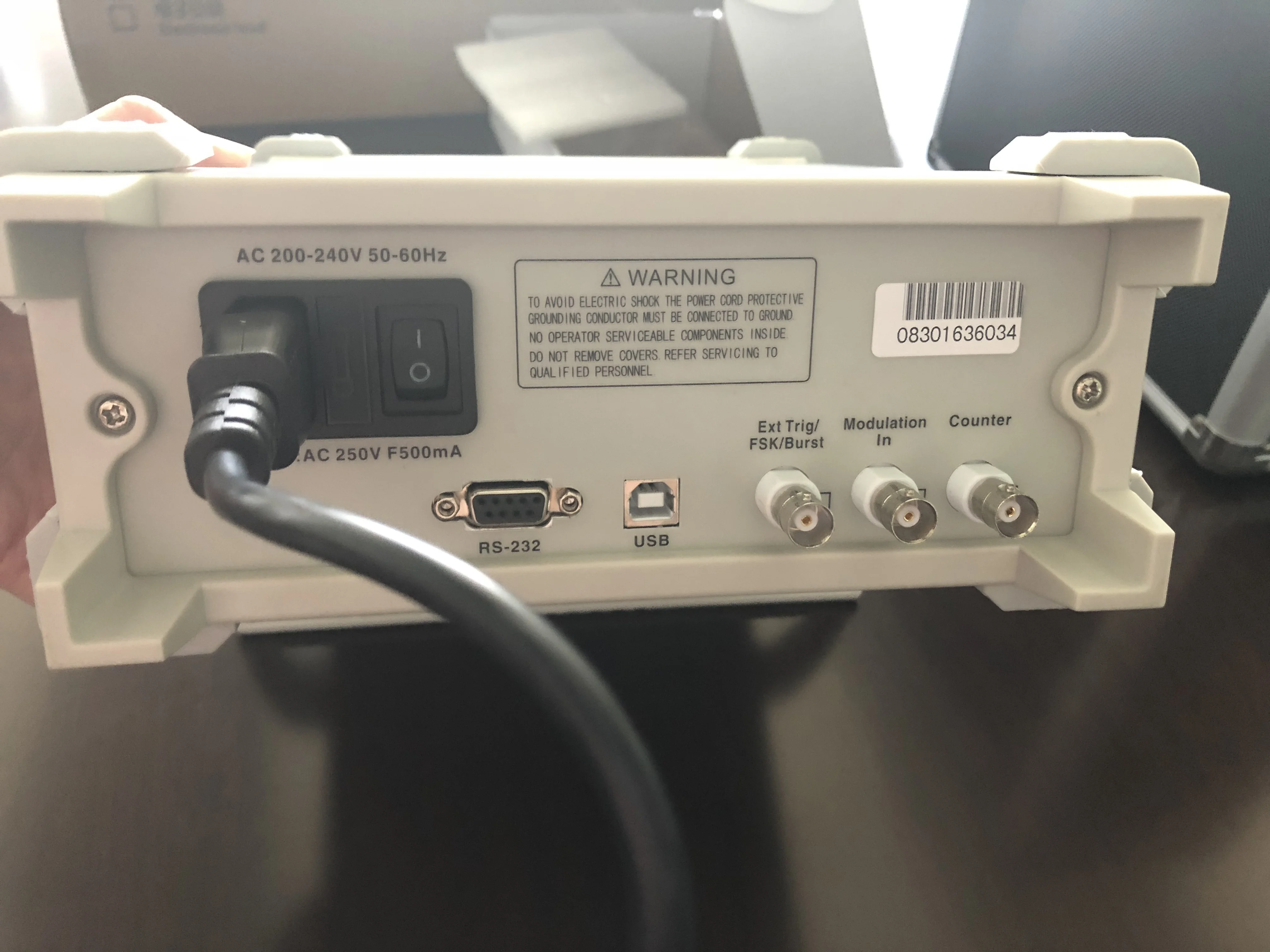

With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage
Multi-functional arbitrary waveform editing software equipped
The two channels are independent from each other and have the function of phase synchronization
Sampling rate of 160MSa/S, vertical resolution of 12 bit and storage depth of 16k
Five basic waveforms and 32 arbitrary waveforms in-built
Waveform storage: Supports 10 user-defined set of waveform editing
Pulse wave output set in edge time
Internal/external AM, FM and FSK modulation function
Output of linear/logarithmic frequency sweep and burst waveform
Frequency meter of high precision of 160MHz
With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage
Multi-functional arbitrary waveform editing software equipped
