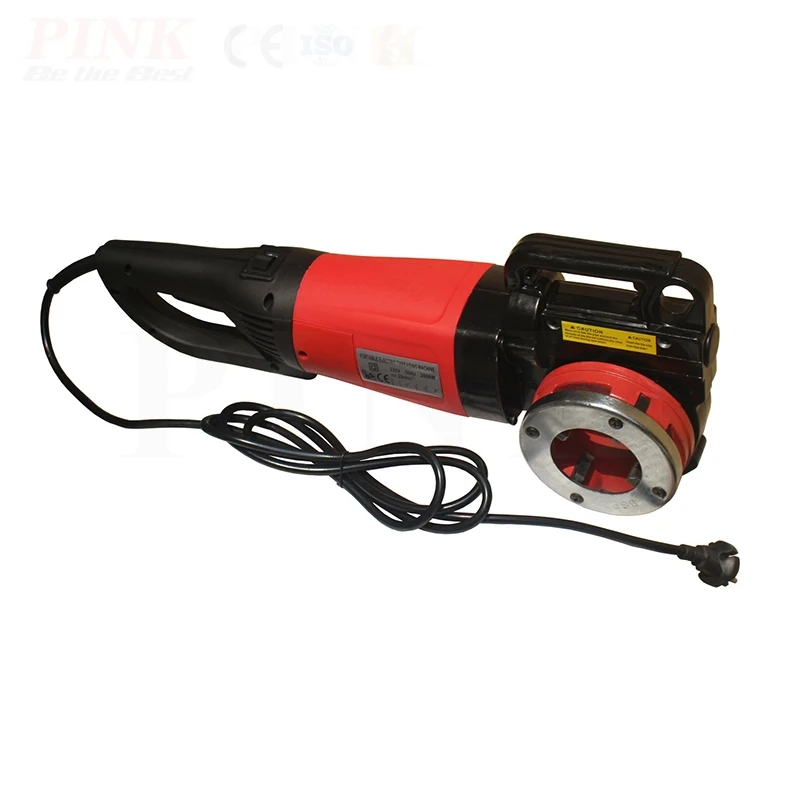

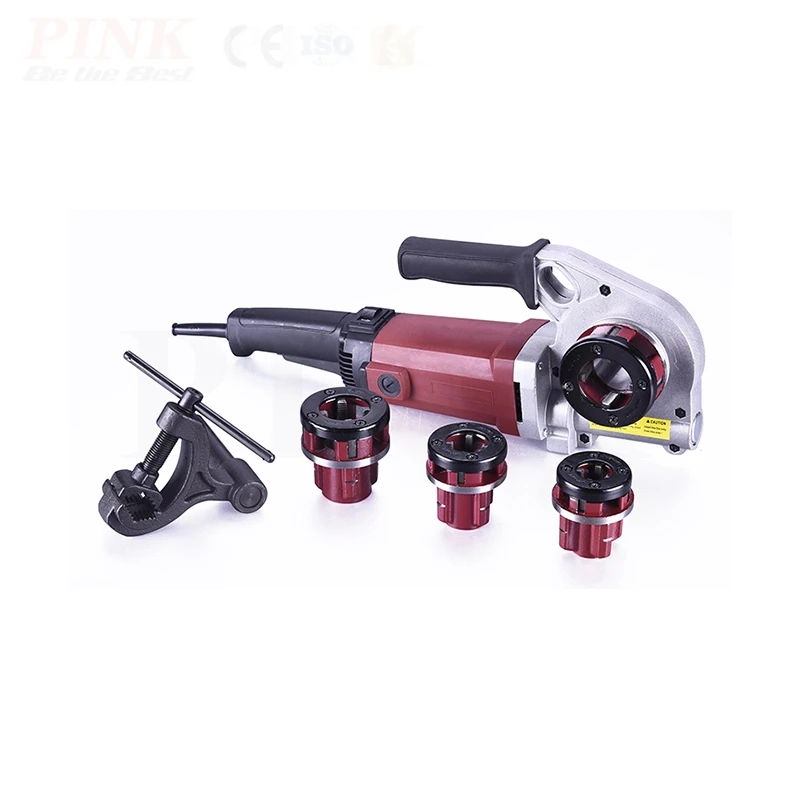

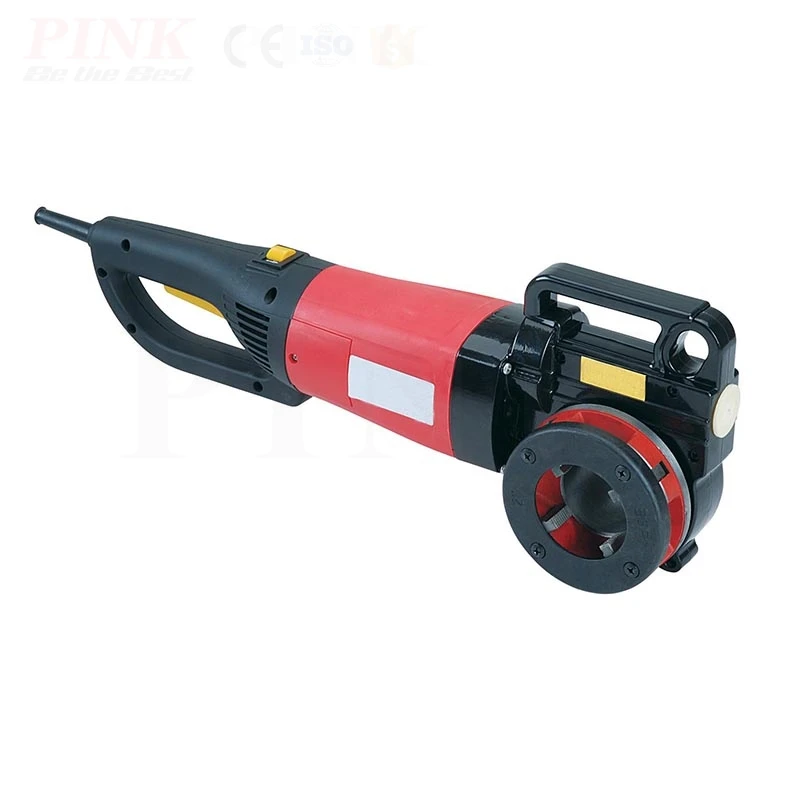

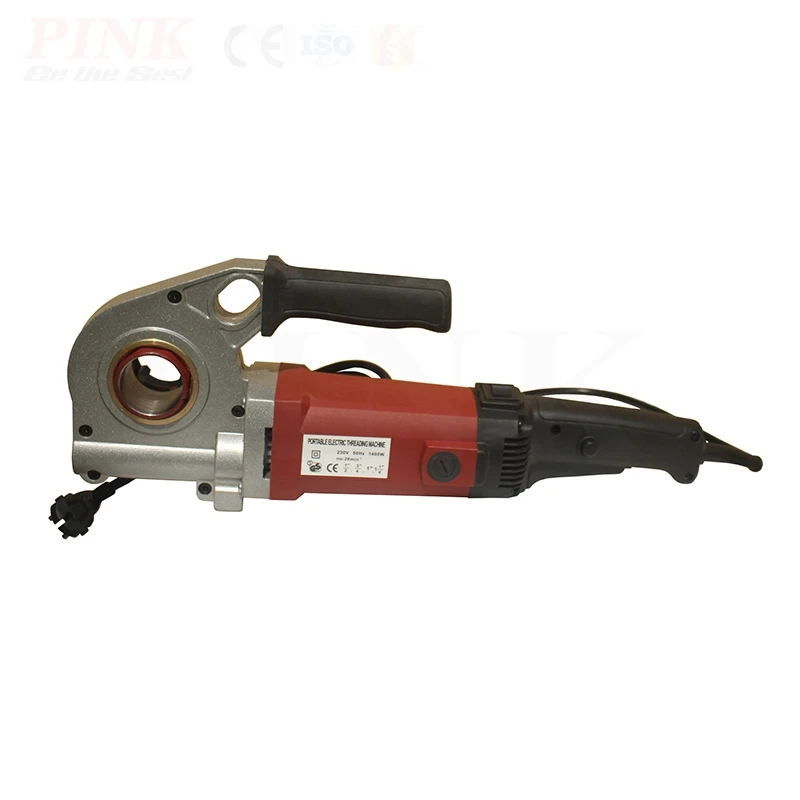

Pipe Threader Detail:

1.Screw Die:1/2",3/4",1",1-1/4",1-1/2",2"
2.Speed:28,32,51r/m
3.Power:1280,1400,2000W
4.Weight:10,18,20,21kg

5.Certificate: GS,CE, EMC,ROHS





Pipe Threader Features and Functions:

1. Compared with the desktop electric Threading Machine, the hand-held electric Threading Machine is light in weight, easy to operate, fast and easy to carry.
2. It adopts high quality die head, long life, clear thread and quick change of die head.
3. Unlimited by the venue, it can be operated flexibly on the construction site or in unconventional occasions.
4. Applicable to industrial and mining enterprises, colleges, home maintenance, small and medium-sized engineering teams, can be used for heating, tap water, heating, gas and other construction operations. This product supports the use of standard tubes.
5. It is convenient to buy a universal die head from the hardware market.

Handheld electric pipe threader operating instructions:
1. Select the corresponding die head, pull the circlip straight, and install it on the main unit from the right.
2. Hold the clamp and clamp the pipe, about the same length as the force arm (L2 is about the same length as L1).
3. Turn the positive and negative switch to the down arrow position to activate the switch and the auxiliary contact.
4. When installing rigid pipes such as stainless steel pipes, galvanized pipes and copper pipes, it is necessary to refuel in time. The plastic pipes do not need to be refueled.
5. Note that the tube holder cannot be in contact with the host during the right shift, otherwise the host will be injured.
6. After the machine has stopped, remove the reverse switch to the up arrow position and exit the tube.



Model	Product Name	Specification	Packing Size(cm)	G.W/N.W (kg)	PCS/CTN	20´GP(pcs)

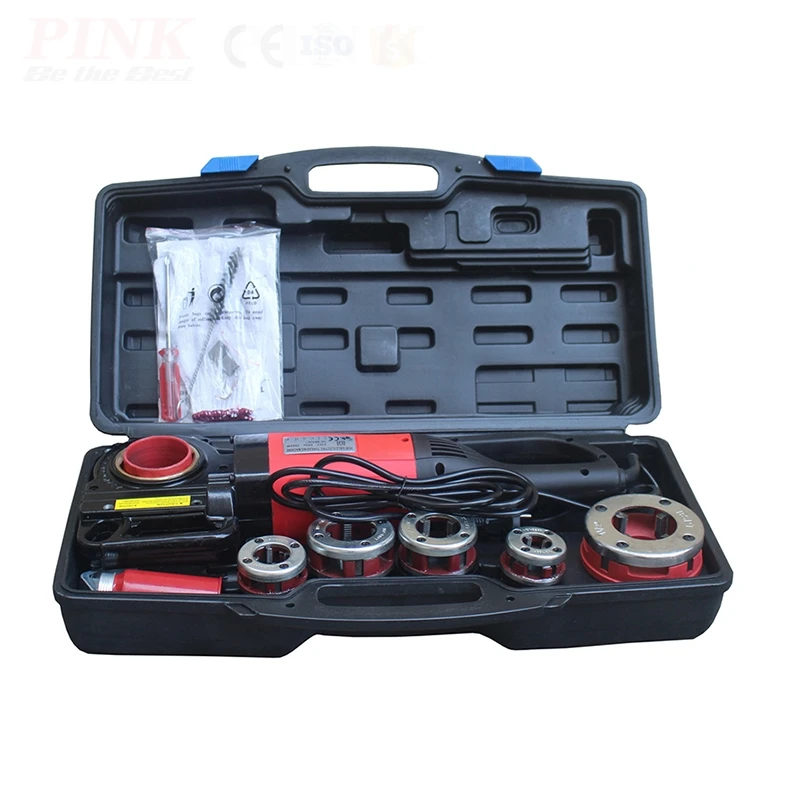

NEPTR-01	Pipe Threader	Screw Die:1/2",3/4",1",1-1/4" Power:1400W; 230V/50Hz Paddle switch shuts off automatically Die cast aluminum housing Oil Gun:1Set; Clamping Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume Carbon Brush:1Pair; Cleaning Brush:1pc	54*32*28	23/21	2	1074
NEPTR-02	Pipe Threader	Screw Die:1/2",3/4",1",1-1/4",1-1/2",2" Power:2000W; 230V/50Hz Paddle switch shuts off automatically Die cast aluminum housing Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume Carbon Brush:1Pair; Cleaning Brush:1pc	64*17*35.5	19/18	1	673
NEPTR-03	Pipe Threader	Screw Die:1/2",3/4",1",1-1/4",1-1/2",2" Power:1180W; 230V/50Hz Die cast aluminum housing Comes with six dies Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume Carbon Brush:1Pair; Cleaning Brush:1pc	64*17*35.5	22/20	1	673
NEPTR-04	Pipe Threader	Screw Die:1/2",3/4",1",1-1/4",1-1/2",2" Power:2000W; 230V/50Hz Paddle switch shuts off automatically Die cast aluminum housing Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume Carbon Brush:1Pair; Cleaning Brush:1pc	73.5*17*35.5	23/21	1	586















If you are interested in our Pipe Threader, please don't hesitate to contact us.
