Product Description
WiFi LoRa 32
433/470MHz LoRa SX1278+ESP32
868/915MHz LoRa SX1276+ESP32
WiFi LoRa 32 is a classic IoT dev-board designed & produced by Heltec Automation(TM), it’s a highly integrated product based on ESP32 + SX127x, it has Wi-Fi, BLE, LoRa functions, also Li-Po battery management system, 0.96″ OLED are also included. It’s the best choice for smart cities, smart farms, smart home, and IoT makers.

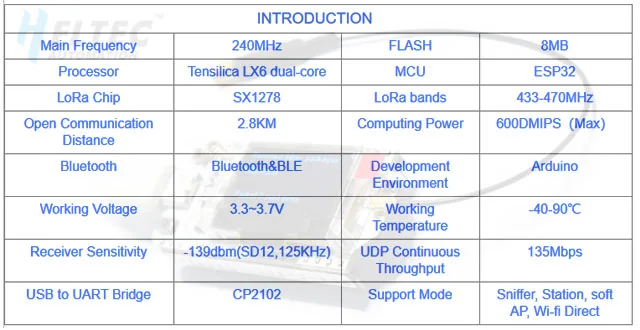

INTRODUCTION | ||||||
Main Frequency | 240MHz | FLASH | 8MB | |||
Processor | Tensilica LX6 dual-core | MCU | ESP32 | |||
LoRa Chip | SX1278 | LoRa bands | 433-470MHz | |||
Open Communication Distance | 2.8KM | Computing Power | 600DMIPS（Max） | |||
Bluetooth | Bluetooth&BLE | Development Environment | Arduino | |||
Working Voltage | 3.3~3.7V | Working Temperature | -40-90℃ | |||
Receiver Sensitivity | -139dbm(SD12,125KHz) | UDP Continuous Throughput | 135Mbps | |||
USB to UART Bridge | CP2102 | Support Mode | Sniffer, Station, soft AP, Wi-fi Direct | |||
APPLICATION
Intelligent Vehicle | Intelligent Agriculture | Intelligent Meter Reading | Intelligent Street Lamp |
Robot Control | Equipment Monitoring | Environmental Monitoring | UAV Control |

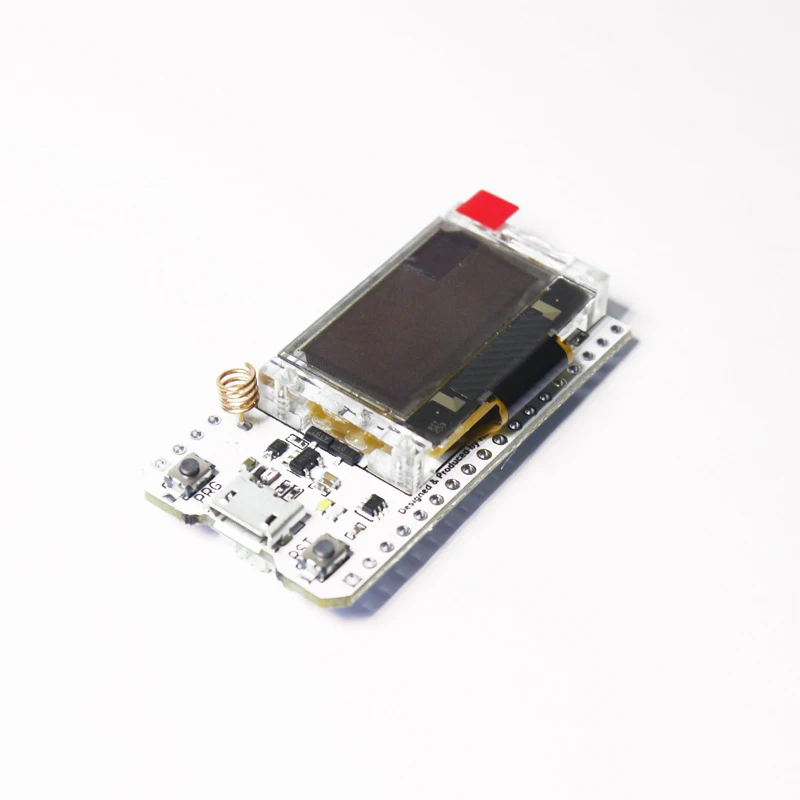

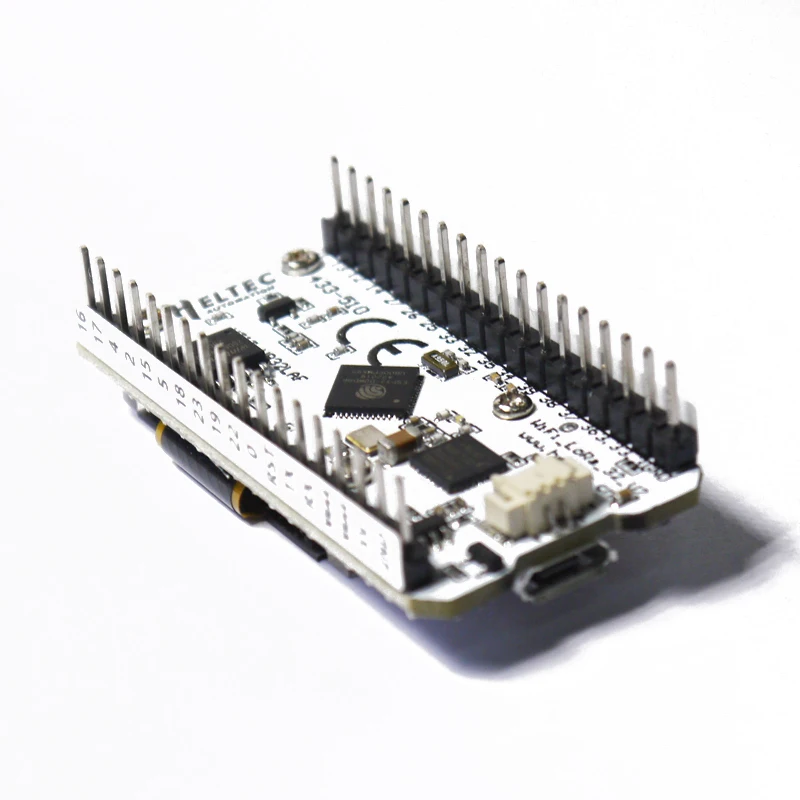

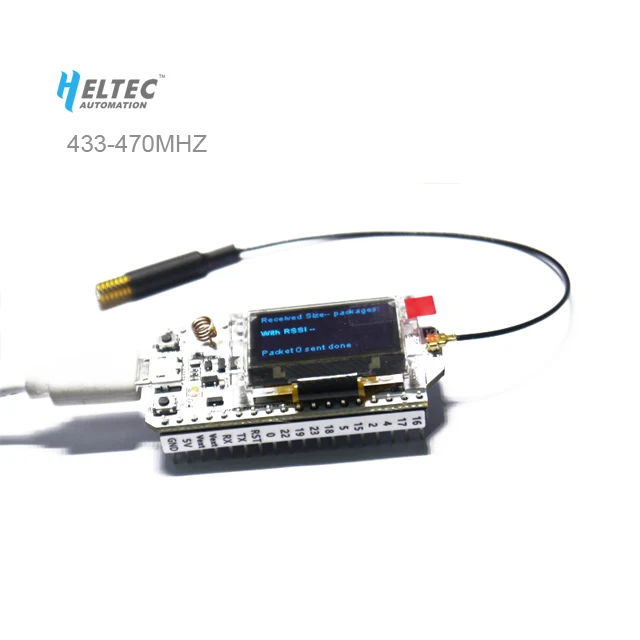

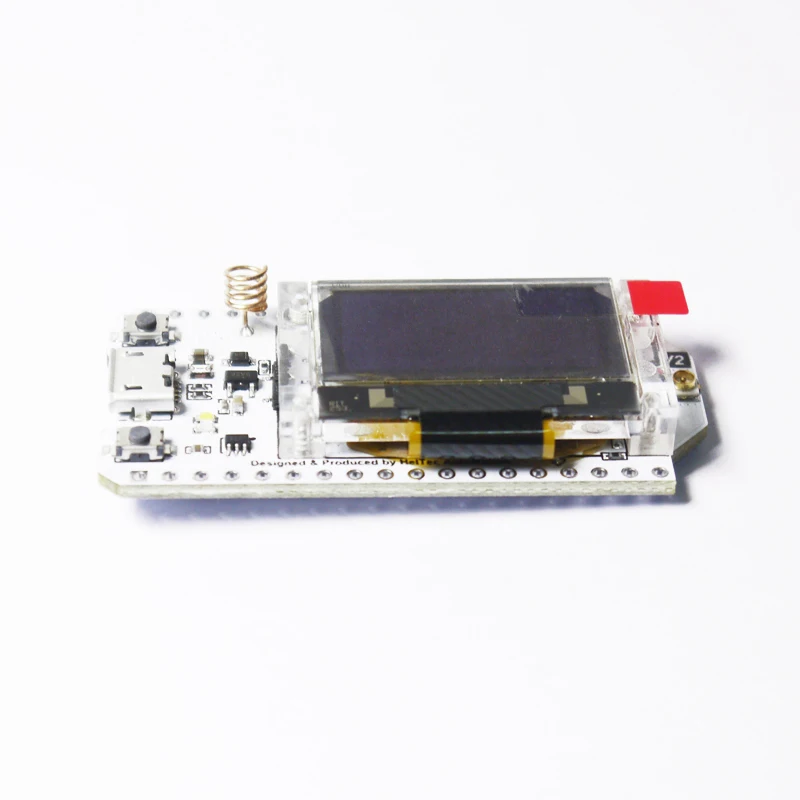

Details Images
Product Parameters
FEATURES
1.CE Certificate;
2. Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276/SX1278;
3. Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
4. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
5. Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal 3D antenna, reserved IPEX (U.FL) interface for LoRa use;
6. On board 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
7. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
8.Support the Arduino development environment;
9. We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. In order to make this code running, a unique license is needed. it can be found on there: https://heltec.org/project/wifi-lora-32/;
10. With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.
TECHNICAL PARAMETERS
Source | Parameter | ||||||
MCU | ESP32( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth) | ||||||
LoRa chip | SX1276 (868 and 915 version); SX1278 (433 and 470 version) | ||||||
LoRa bands | EU_433, CN_470_510, EU_863_870, US_902_928 four bands optional | ||||||
LoRa maximum output power | 18dB ± 2dB | ||||||
Hardware resources | UART x 3; SPI x 2; I2C x 2; I2S x 1 | ||||||
Hardware resources | 12 – bits ADC; 8 – bits DAC | ||||||
29 general GPIO | |||||||
Display | 0.96 inch 128*64 OLED display | ||||||
FLASH | 8MB(64M-bits) SPI FLASH | ||||||
interface | Micro USB x 1; LoRa antenna interface(IPEX) x 1 | ||||||
Size | 50.2 x 25.5 x 9.74 mm | ||||||
USB to UART Bridge | CP2102 | ||||||
Battery Type | 3.7V Lithium（SH1.25 x 2） | ||||||
Battery detection circuit | √ | ||||||
External device power control（Vext） | √ | ||||||
Low power design | Deep Sleep 800uA | ||||||
ELECTRICAL CHARACTERISTICS
Electrical Characteristics | Condition | Min. | Typical | Max. |
Power Supply | USB powered（≥500mA） | 4.7V | 5V | 6V |
Lithium powered（≥250mA） | 3.3V | 3.7V | 4.2V | |
3.3V（pin）powered（≥150mA) | 2.7V | 3.3V | 3.5V | |
5V（pin）powered（≥500mA） | 4.7V | 5V | 6V | |
Power consumption(mA) | WIFI scan | 115mA | ||
WIFI AP | 135mA | |||
LoRa 10dB emission | 50mA | |||
LoRa 12dB emission | 60mA | |||
LoRa 15dB emission | 110mA | |||
LoRa 20dB emission | 130mA | |||
Output | 3.3V pin output | 500mA | ||
5V pin output （USB powered only） | Equal to the input current | |||
External device power control (Vext 3.3V） | 350mA |
TESTING
470MHz Smith Chart
LoRa 470MHz RF Power Output
470MHz SWR Test Data
868/915MHz SWR Test Data

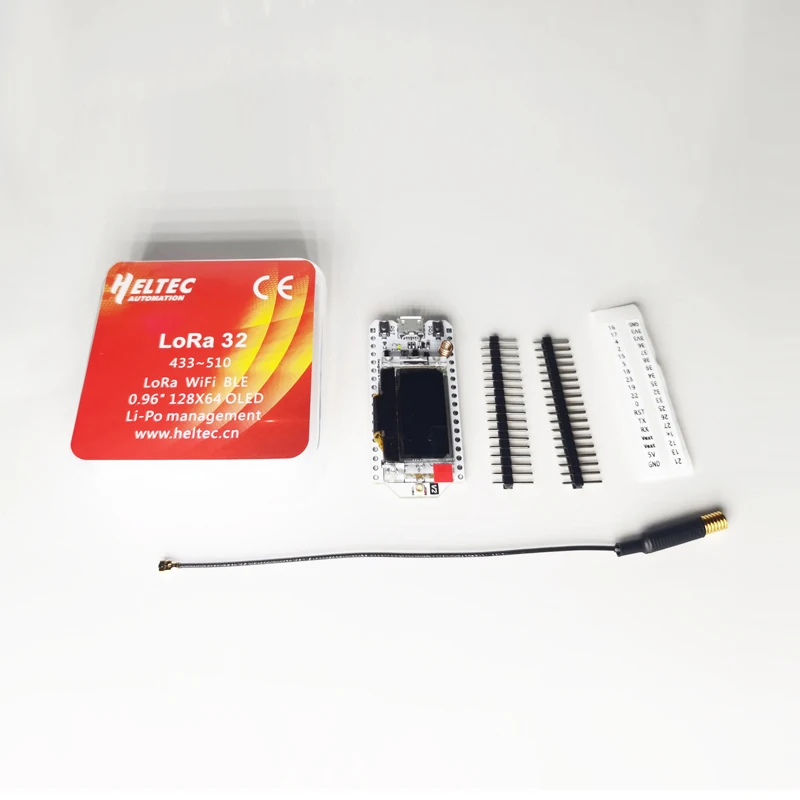

Packaging & Shipping
433/470MHz LoRa SX1278+ESP32
868/915MHz LoRa SX1276+ESP32
1)Different package is base on the quantity of your order.
2) We cooperate with DHL, FEDEX, UPS, EMS, ePacket for delivery, you can choose one that you prefer.
3)If you prefer China Post or HKDHL for delivery, contact me please.
4) If you have special requests(such as declared value, extra remark), please contact me in advance or leave message along with order.
