Пластиковая мягкая трубчатая катушка/намотка для обмотки 20-63 мм Диаметр ПВХ ПЭ

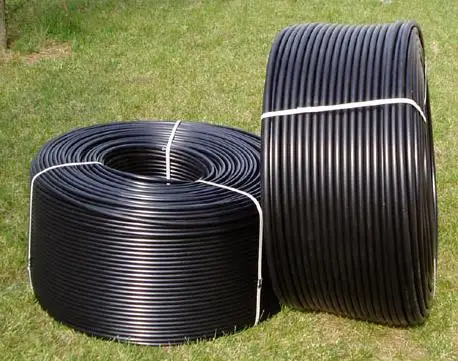

The Plastic soft pipe coiler/winder for winding 20-63mm diameter pvc pe pipe  is mainly used in winding-up and packing of aluminium-plastic compound pipe, cross-linking compound pipe and other plastic soft pipes.

Features:
1)It adopts automatically winding, adjusting winding speed and winding method.It has two disk for continuous winding.

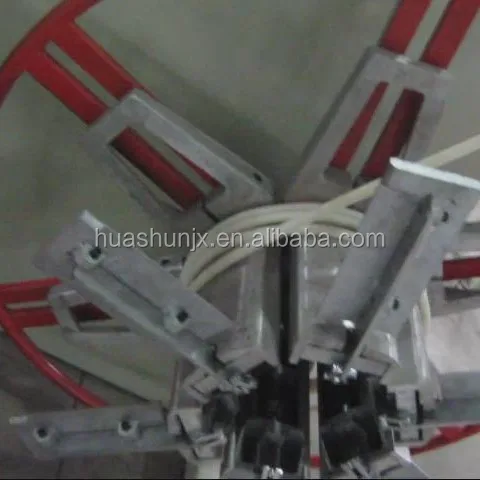

2)It adopts air-operated method. The wheel rib of the winding up wheel adapts air-operated opening and closing.
3) It is equipped with a ray creel stand to automatically wind displacement.
4) It reaches winding up orderly.
5)The machine structure is compact. Its automatization is high.
6)Its appearance is beautiful and its operation is convenient

Main technical parameter:

Model	SPS400	SPS1200	DP1800
Coil pipe specification	Φ16-40 mm	Φ 20-63mm	Φ50-125mm
Coil inner diameter	Φ400	Φ700	Φ1200
Coil speed	0.5-15m/min	0.8-8/min	3-12m/min
Coil width	300mm	500mm	660mm
Air pressure	0.6Mpa

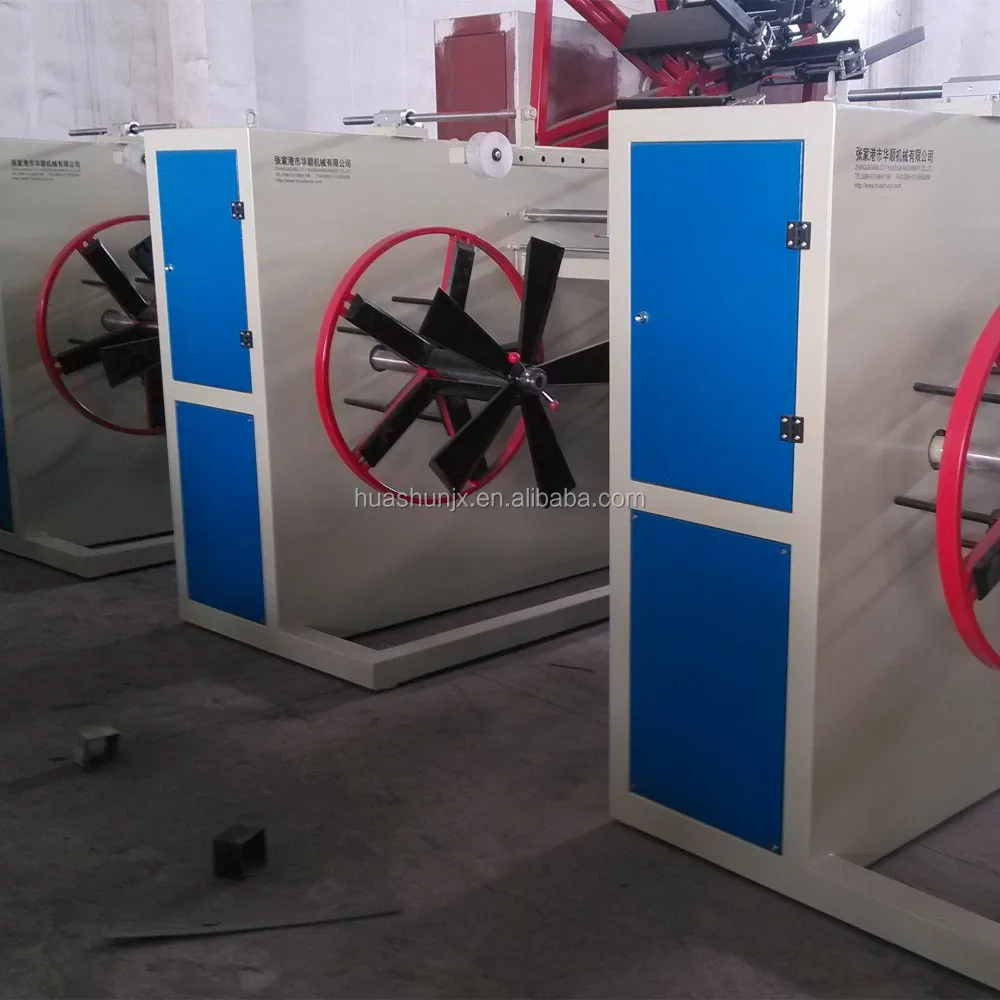

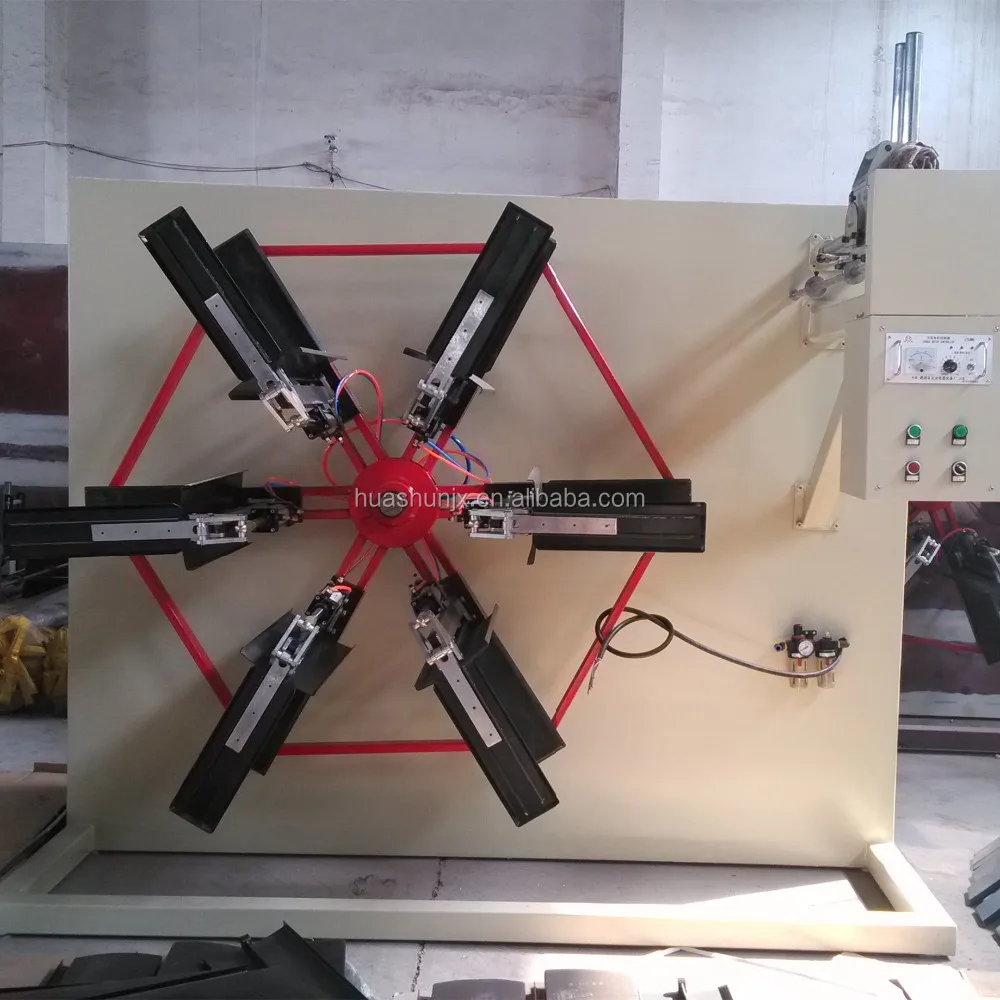

Detailed Images

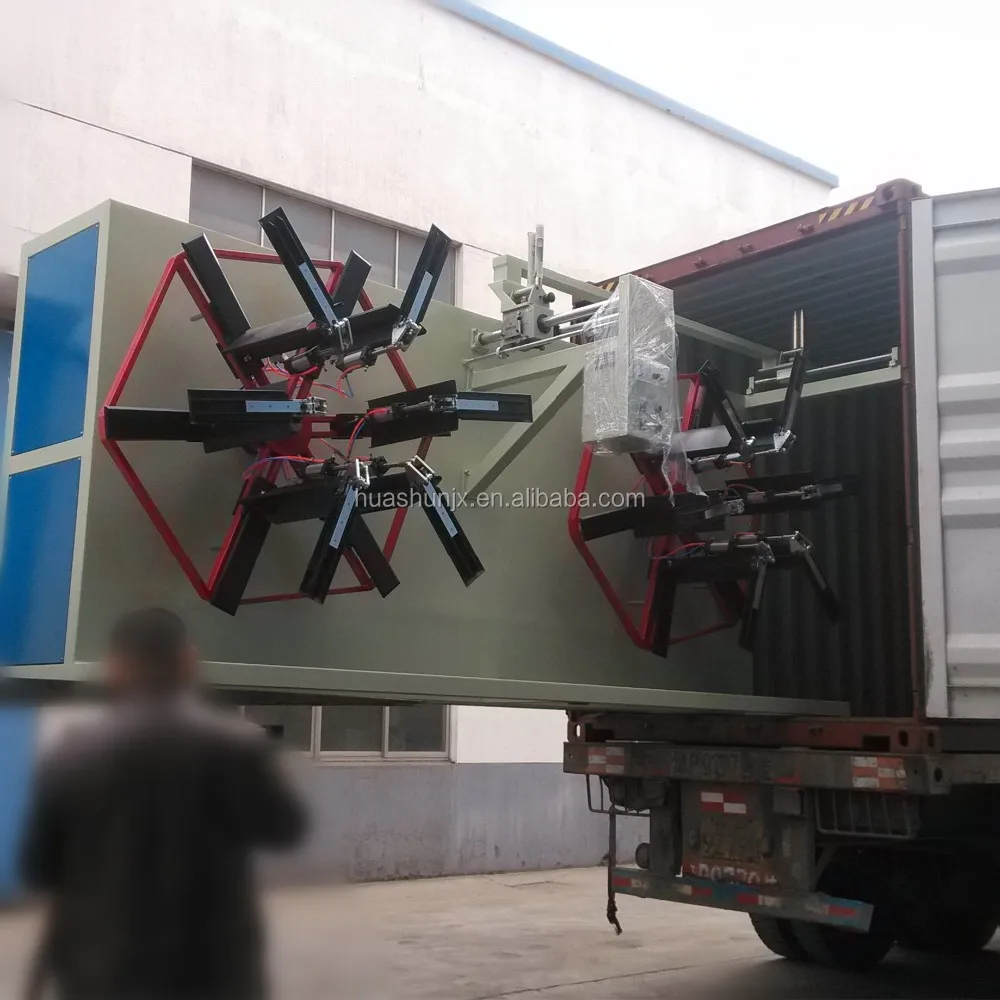

Packing & Delivery
