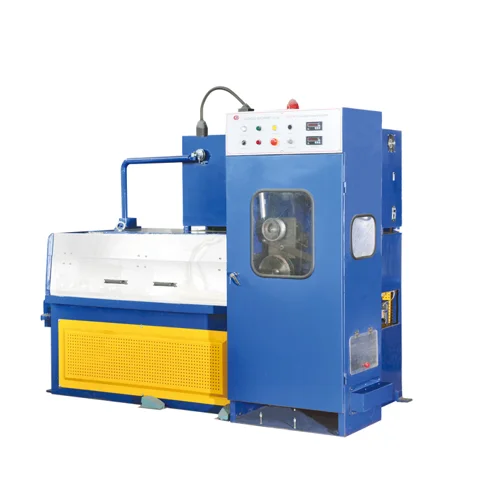

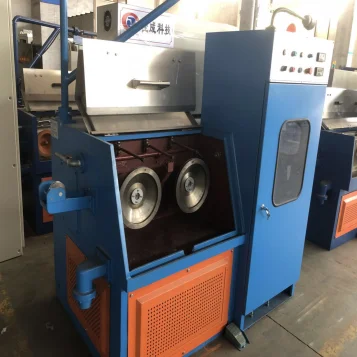

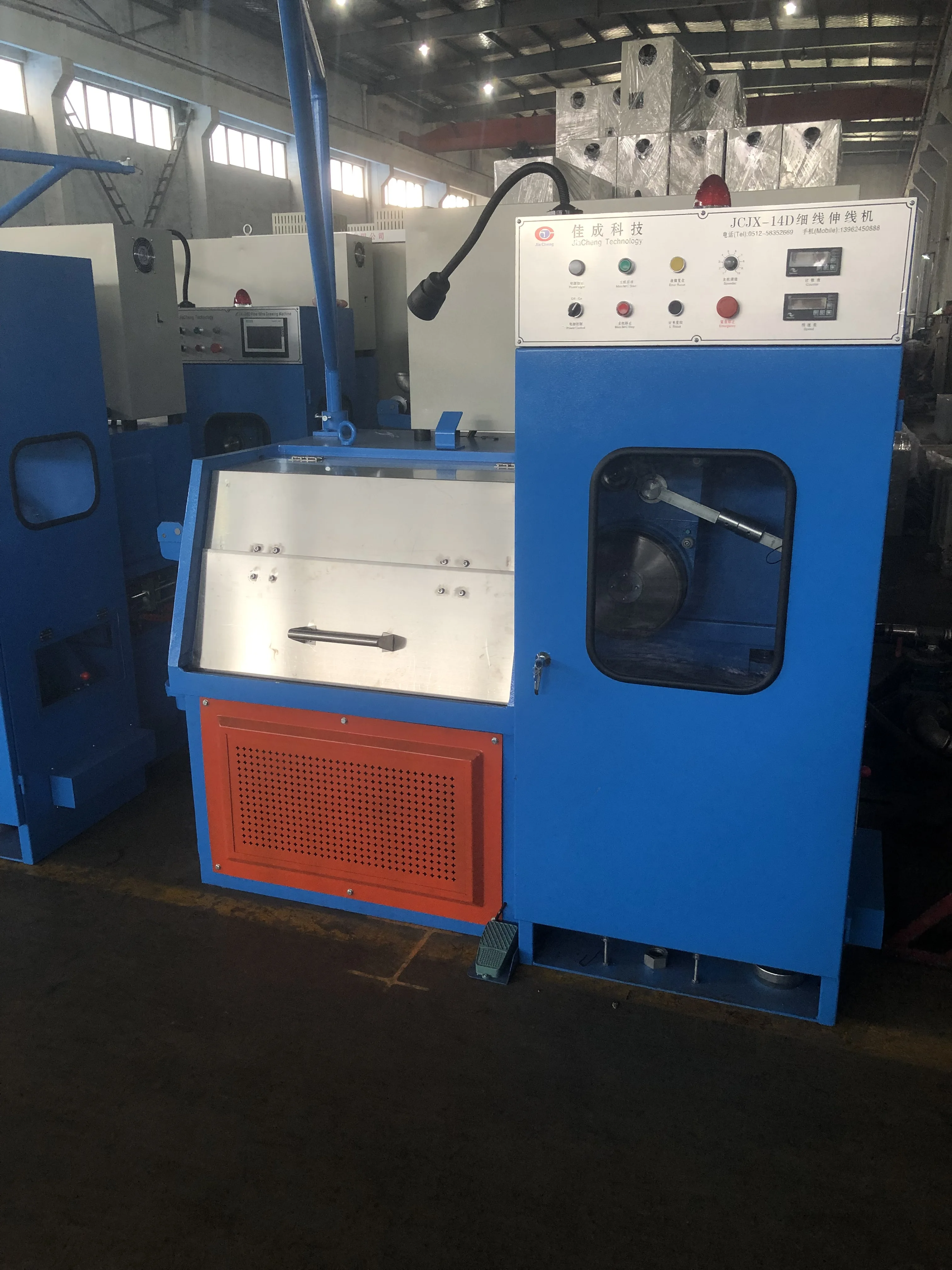

Product Description
Usage
It is used for drawing copper wire from 1.6mm to 0.25~0.50mm.
Main Features
1) Double motor inverters,small slip high quality
2) Tension auto control system
3) High tension durably flat belt gain convenient replacement and low noise in operating
Advantage:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2). Machine's body and other key components and parts are produced by our own factory, quality is reliable
3).High tension durably flat belt gain convenient replacement and low noise in operating.
4).we only use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,France Schneider electric and Shenzhen Inovance inverter ,some machine can equip with SIMENCE PLC
5).we have gotten ISO 9001:2008,CE and TUV certificate.

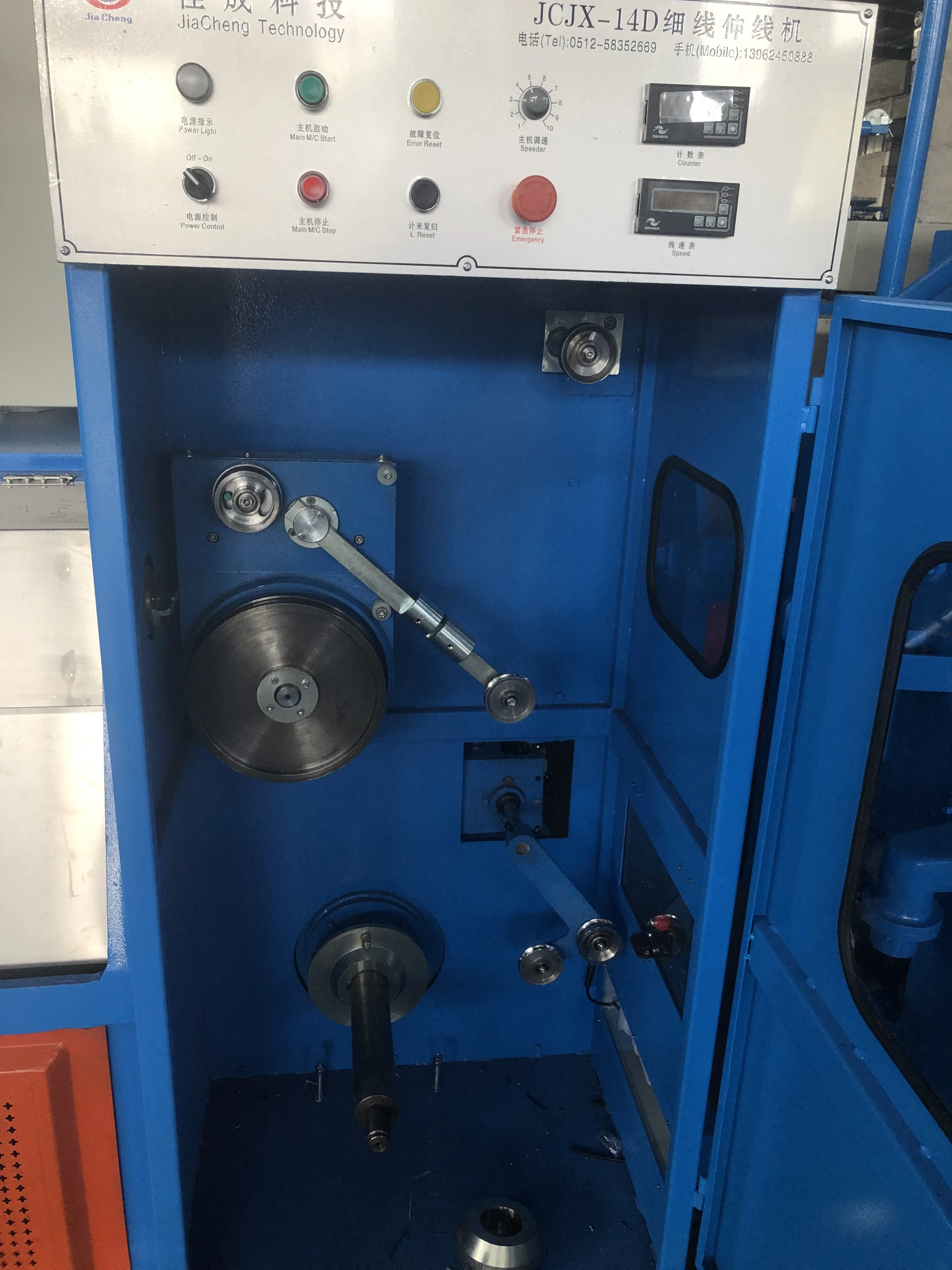

Technical Parameter -- JCJX-14D | ||||
1 | Inverter control | Double inverter control | ||
2 | Main machine structure | four cones in horizontal | ||
3 | Max. inter Dia (mm) | φ 1.6 | ||
4 | Outlet Dia (mm) | φ0.25~φ0.50 | ||
5 | Max. die NO. | 14 | ||
6 | max. line speed(m/min) | 1200 | ||
7 | Body structure | Ironed cast | ||
8 | Drawing capstan | Ceramic plasma capstan | ||
9 | Slip ratio of m/c (%) | 15 | ||
10 | Main motor power(KW) | 15 | ||
11 | Take-up motor(KW) | 5.5 | ||
12 | Fix speed capstan Dia(mm) | φ 268 | ||
13 | Transmission type | Belt | ||
14 | Take-up bobbin size(mm) | φ 300/φ 400 | ||
15 | Traversing type | synchronous motor+belt | ||
16 | Tension control | weight balance type | ||
17 | lubrication type | Spray | ||
18 | Brake | Magnetic brake | ||
Supply Ability
Supply Ability: 50 Set/Sets per Month
Hot Products
Our Company
Our Services
Good Quality Control
Concerning with every detail, every processing procedure of our products, using reliable components. Running test will be carried out before delivery.
Technical Support
Related drawings can be provided; Technician will be assigned to user's plant for installtion and commissioning as per demand.
Warranty Period
Mechanical parts 12 months, electrical parts 6 months.
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Market
FAQ
01 Are you a trading company or a manufacturer?
We are a manufacturer, we supply the factory price with good quality, welcome to visit!
02 When can i get my machine after i paid?
The delivery time is based on the exact machine you confirmed.
03 How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
04 Where are you?
Zhangjiagang city, Jiangsu Province - 2.5 hours from Shanghai Pudong international airport
