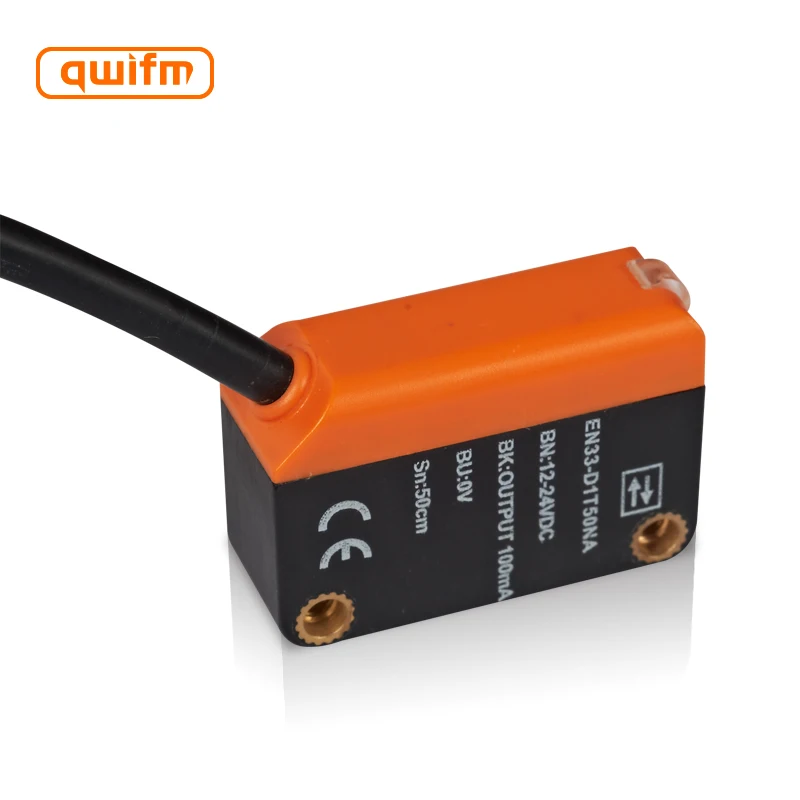

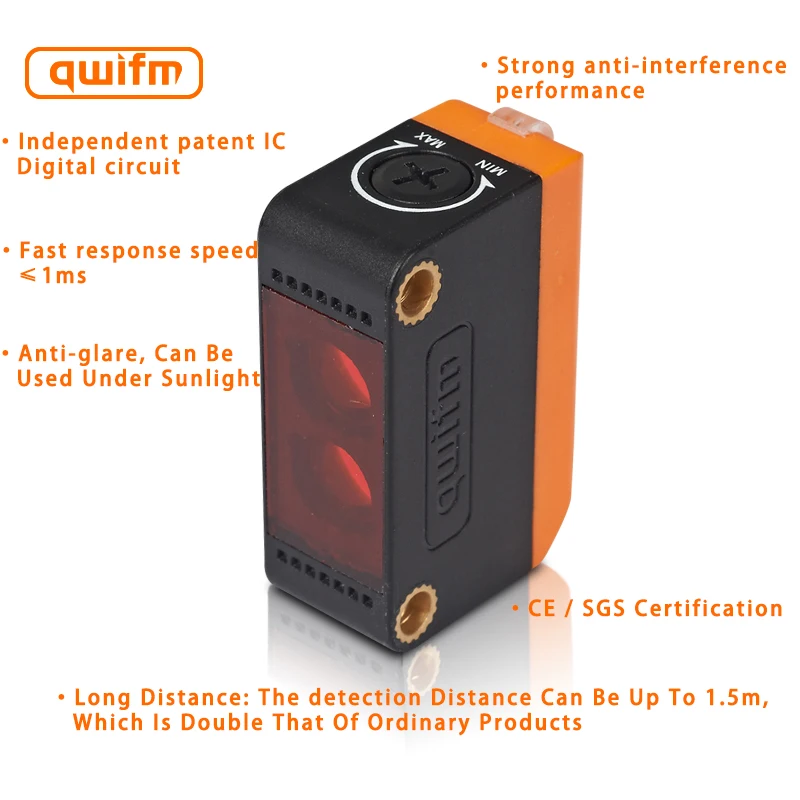

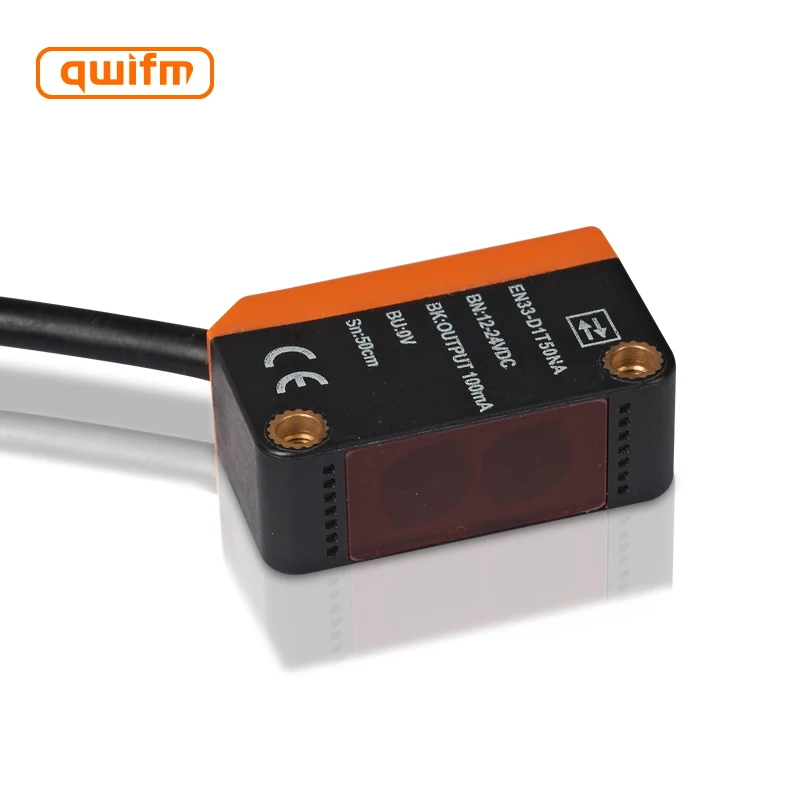

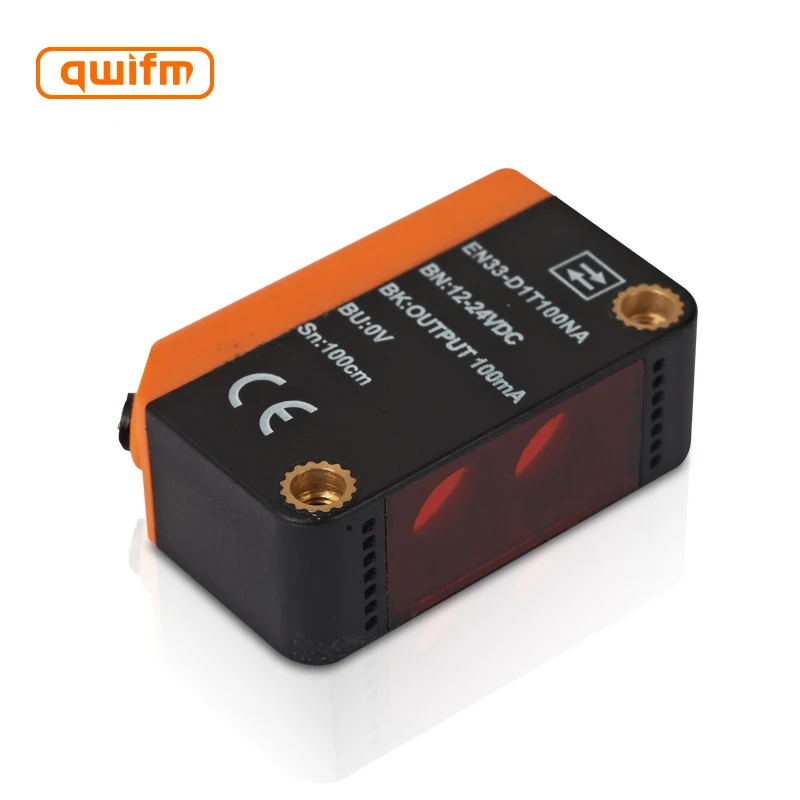

Дальнее расстояние диффузный тип PNP NPN фотоэлектрический сенсорный
- Категория: Sensors >>>
- Поставщик: Shanghai,Nature,Beyond,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 12.3 $* | 13.75 $* |
| Aug-20-2025 | 12.39 $* | 13.58 $* |
| Jul-20-2025 | 10.50 $* | 11.11 $* |
| Jun-20-2025 | 12.7 $* | 13.7 $* |
| May-20-2025 | 10.81 $* | 11.31 $* |
| Apr-20-2025 | 11.50 $* | 12.88 $* |
| Mar-20-2025 | 11.7 $* | 12.69 $* |
| Feb-20-2025 | 11.26 $* | 12.91 $* |
| Jan-20-2025 | 11.96 $* | 12.4 $* |
Характеристики
Product Detail
| Model | NPN | NO | EN33-D1T100NA |
| NC | EN33-D1T100NB | ||
| PNP | NO | EN33-D1T100PA | |
| NC | EN33-D1T100PB | ||
| Sensing Type | Diffuse type | ||
| Power Supply | 12-24V DC ±10% Fluctuation | ||
| Consumption Current | <30mA | ||
| Standard Sensing Object | φ60mm(reflective) opaque object | ||
| Sensing Distance | 1 meter | ||
| Light Source | Infrared LED 660nm/ Infrared ray 880nm | ||
| Response Time | Max. 1ms | ||
| Ambient illumination | Sunlight: Max. 11,000lus, Incandescent lamp: Max. 3,000lus | ||
| Ambient Temperature | -25 ℃~+55℃ without icing and condensation | ||
| Ambient Humidity | 30-85% RH | ||
| Insulation Resistance | >20 MΩ | ||
| Voltage Resistance | AC 1000V 50/60Hz, 1Min | ||
| Material | Housing: Reinforced ABD, Lens: PC | ||
| Standard | GB/T 14048. 10-2016 | ||
| Protection Grade | IP64(IEC) | ||
| Circuit Protection | Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit | ||
