Оптовая цена электронный датчик уровня воды переключатель для стиральной машины запасные

APS009

Product Name:

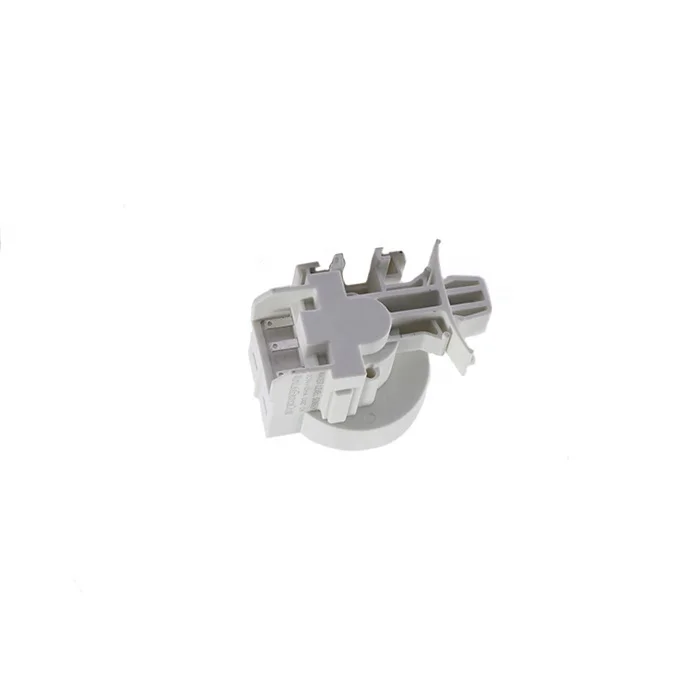

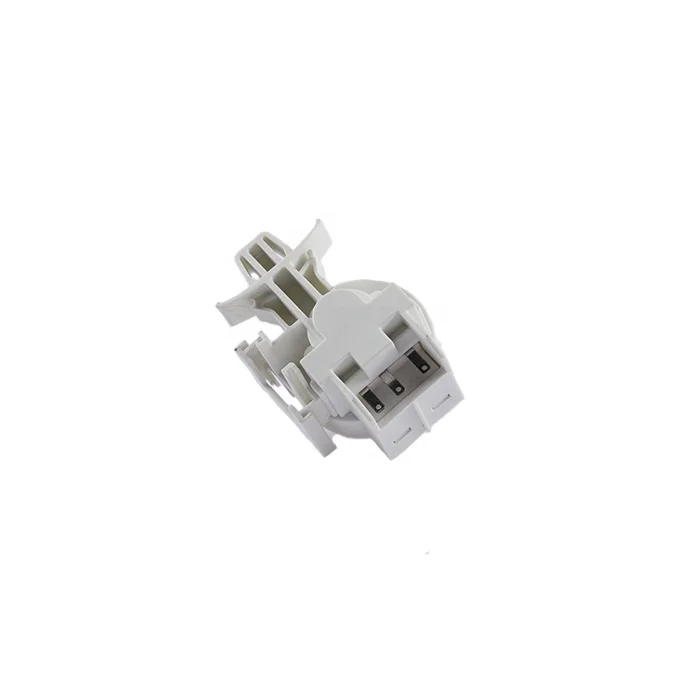

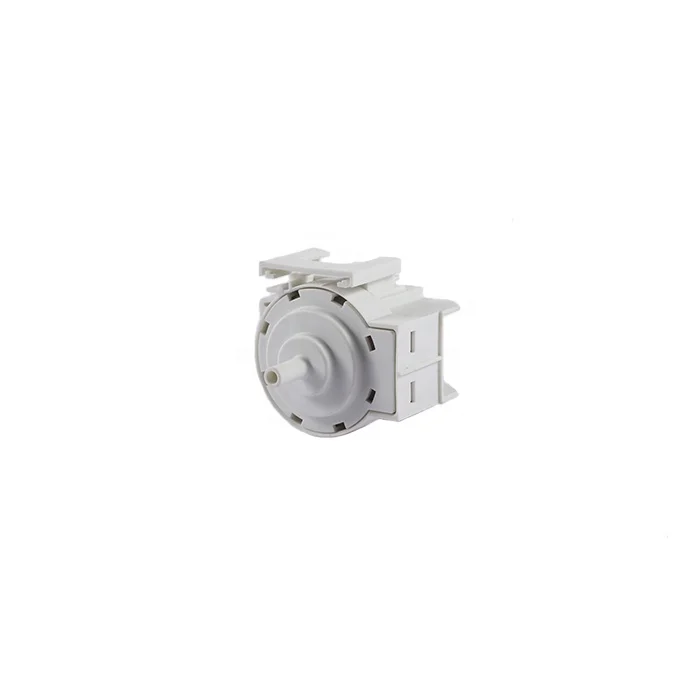

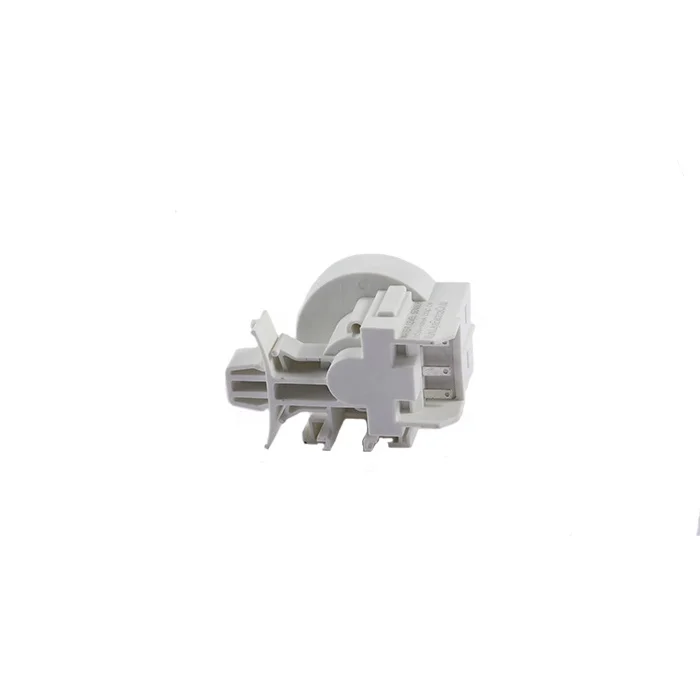

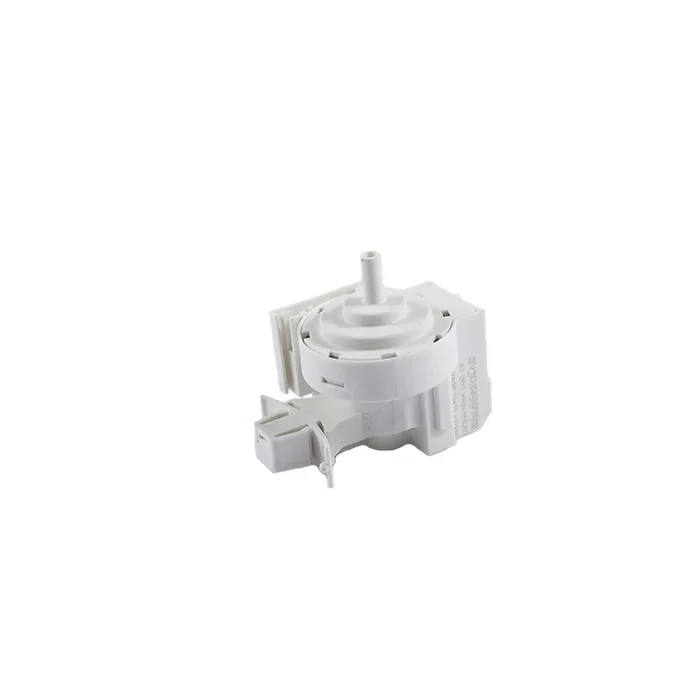

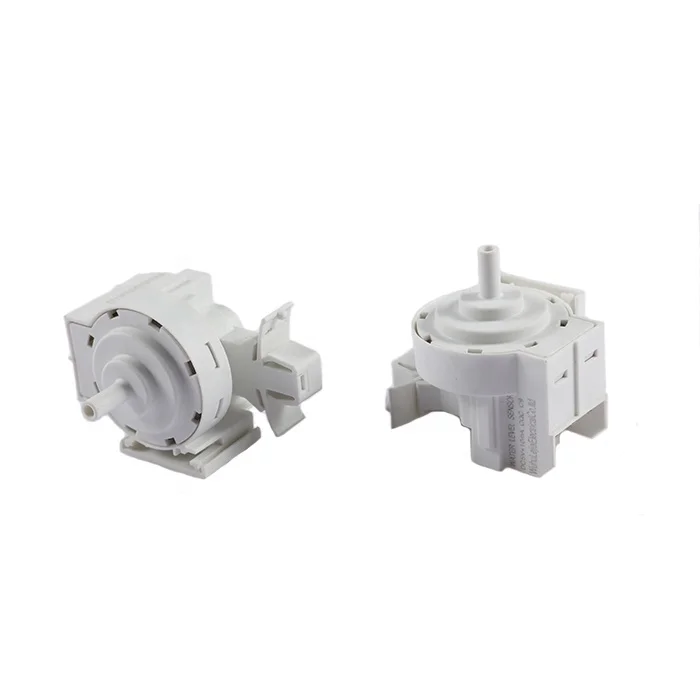

Washing machine parts water level sensor

Character:

Double capacitor  Three-plug

Structural description:

Without mounting bracket

Operating Voltage:

DC5V

Environment:

-10℃-50℃

Water level range:

0-600mm Water column

Water level:

Customizable

Inlet strength:

Apply force 49N/min, no air leakage

Air impermeability:

Apply water pressure of 7.5kpa for 1min without air leakage

Destructive water pressure:

≥ 1000nm

Voltage withstandatility:

Apply 1500V/ sec, no breakdown

Insulation resistance:

>20 megohm

Durability test:

Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below

 The experiment of damp and hot:

Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours
