0 96 дюймов 128*64 IIC I2C Белый Синий SSD1306 OLED модуль дисплея для arduino Diy
- Категория: OLED\/E-Paper Module >>>
- Поставщик: Chengdu,Heltec,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.2 $* | 4.59 $* |
| Jul-18-2025 | 3.91 $* | 3.73 $* |
| Jun-18-2025 | 4.10 $* | 4.59 $* |
| May-18-2025 | 4.64 $* | 4.92 $* |
| Apr-18-2025 | 3.24 $* | 3.14 $* |
| Mar-18-2025 | 4.64 $* | 4.31 $* |
| Feb-18-2025 | 4.62 $* | 4.5 $* |
| Jan-18-2025 | 4.22 $* | 4.34 $* |
Характеристики
Tips
The Heltec Automation is Research&Development enterprise.And we have reliable cooperation factories.
we not only provide Self-developed products with high quality,but also provide a serise of customized solution about IoT.
Welcome to know more our Enterorise&Products and cooperate with us.
Product Description

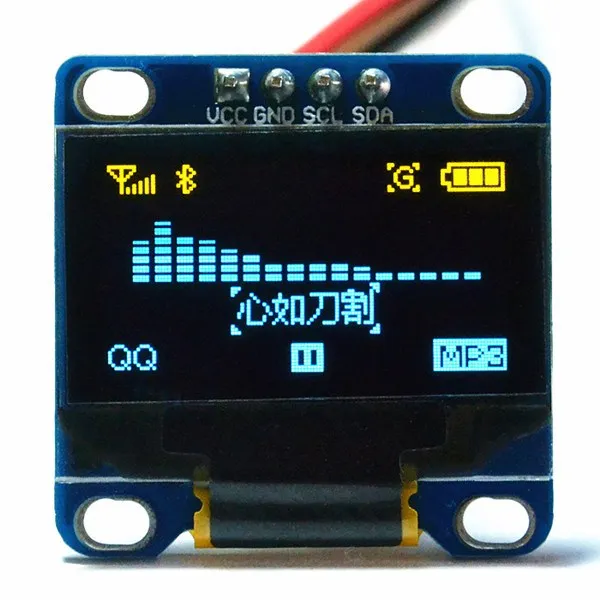

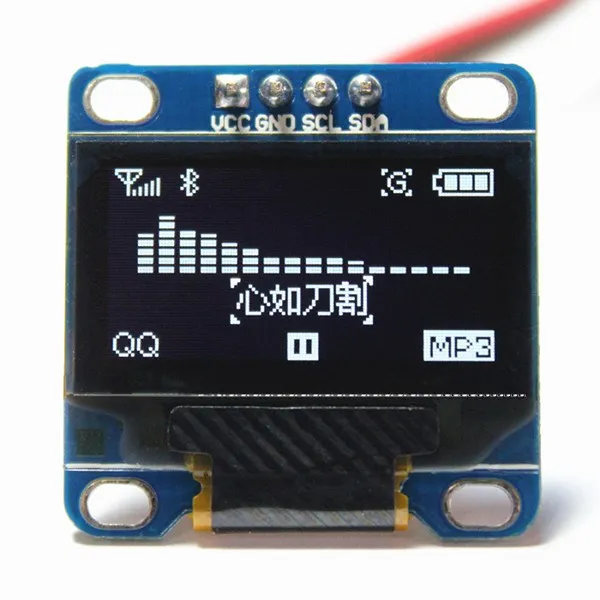

0.96″ OLED display module with I2C (or SPI) interface (10K pull-up resistance already included in I2C bus), SSD1306 driver chip, use internal charge pump, elliptical fixed hole (fit M2 screw). It’s a well-established product and had been used in many situations.
Over View
0.96 inch OLED Module is a Part of the “OLED Display“ series, with the following features:
| 1 | Display Resolution: 128 x 64; |
| 2 | On board power-on auto reset circuit; |
| 3 | Internal charge pump (for OLED panel power supply); |
| 4 | I2C (2.54 x 4) or SPI (2.54 x 6) interface optional; |
| 5 | 0.5 x 6 FFC footprint (SPI version only); |
| 6 | Default I2C address: 0x3C, for some MCU with 8-bit I2C register, the I2C address should be 0x78 (0x3C << 1). |
Technical Parameters
| Source | Parameter |
| Driver Chip | SSD1306 |
| Working Temperature | -30 ~ 80 ℃ |
| colour | White, Blue, Yellow & Blue (128*16 yellow, 128*48 blue) |
| Power Supply | 1.7V ~ 6V |
| Interface | SPI (2.54 x 6) or IIC (2.54 x 4) optional |
| Display Resolution | 0.96 inch,Dot 128x64 |
| Size | 27x27x3.6mm |
Related Products
This product can't meet your needs? Choose from our OLED Family.
"Heltec OLED Display" product family already included follow options:
>3.3-6V Power Supply
>On-Board Power-on reset
| Product | Size | Driver Chip | Op.Temp | Communication | specification* | Click to Know More |
| 0.49 inch | 18.0x 16.0 x 3.6mm | SSD1306 | IIC | One | Purchase | |
| 0.91 inch | 38.0X13.0X4.1mm | SSD1306 | IIC | One | Purchase | |
| 0.96 inch | 27.0 X 27.0 X 4.1mm | SSD1306 | -30°C~80°C | SPI or IIC | three | |
| 1.3 inch | 35.5 X 27.0 X 4.1mm | SH1106 | -30°C~80°C | SPI or IIC | two | Purchase |
| 1.54 inch | 42.46 X 35.94 X 11.48mm | SPD0301 | -40°C~85°C | SPI or IIC | one |
Notes:
Specification:
>three-White;Blue&Yellow
>two-Blue;White
>One-White
