Наружный рекламный экран TOPLED настенный баннер HD P6 P8 P10 наружный светодиодный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.57 $* 0.16 $*
Aug-18-2025 0.11 $* 0.89 $*
Jul-18-2025 0.31 $* 0.19 $*
Jun-18-2025 0.22 $* 0.85 $*
May-18-2025 0.99 $* 0.45 $*
Apr-18-2025 0.39 $* 0.49 $*
Mar-18-2025 0.16 $* 0.80 $*
Feb-18-2025 0.90 $* 0.71 $*
Jan-18-2025 0.60 $* 0.98 $*

Характеристики


TOPLED Customized outdoor Advertising Screen Video Wall structure banner HD P6 P8 P10 out door led display


P6 8scan27777dots m2.jpg


Features


1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.


2. Adopt CNC technology in high precision processing box body, the whole screen flatness<0.2mm. Using connection frame steel structure, installation and maintenance is very convenient.


3. Red LEDs were powered by 3.2V, blue and green LEDs were powered by 3.8V, which make the screen work stable and prolong the life span.


4. With PFC high-efficiency power supply, to ensure the screen can be powered sustainable.





Outdoor led display


Application


Outdoor far viewing distance (10m-80m) Led Display has the ability to play monitor videos and graphic information in real time. So it can be widely used in large area such as transportation, electricity, water conservancy, security, military conferences, city management, radio and television industries etc.





 .jpg



Product Description


Parameter

































































































































PH10
Pixel pitch 10mm
Physical Density 10000mm
LED Configuration1RGB
LED type SMD3535

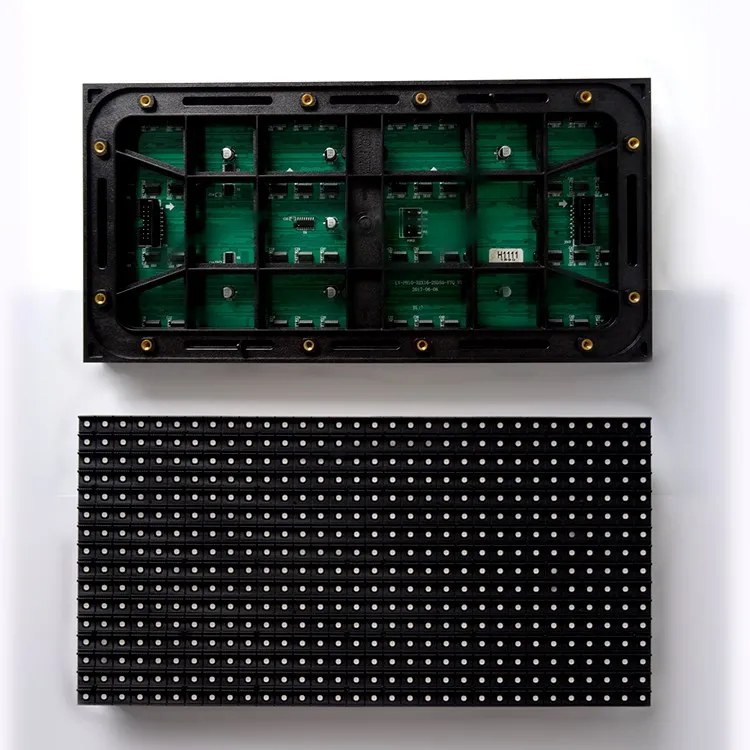

Module Size 320(mm)*160(mm)
Module Resolution32(px)*16(px)
Module Power Consumption30W
Driving MethodConstant Current IC
Scan Method1/2
Horizontal Viewing Angle160
Vertical Viewing Angle140
Brightness>=10000cd/sqm
Grey Scale 16bit
Refresh Rate>=1920Hz
Canbinet Resolution96(px)*96(px)
Canbinet Max  Consumption<=540
Canbinet Average Power Consumption190
Canbinet Size 960(mm)*960(mm)
Canbinet Weight 42KG
Canbinet Thickness100mm
Canbinet MaterialIron/Aluminul
Color>16.7
Input VoltageAC110V~220V +/-10%
Frame Frequency>=60
Protection LevelIP43
Working EnvironmentOutdoor
Working Temperature-40° -+65°
Storage Humidity Range10%-90%
Life Span100,000



Attention


In order to offer you a suitable solution, Please state general info about your project.


1. Pixel pitch or view distance you need.


2. Dimension


3. Location of installation. ( eg, on poles, on wall of building, ect)


4. Purpose. ( what are you going to do with the LED Screen)





Standard Waterproof Cabinet


Iron cabinet

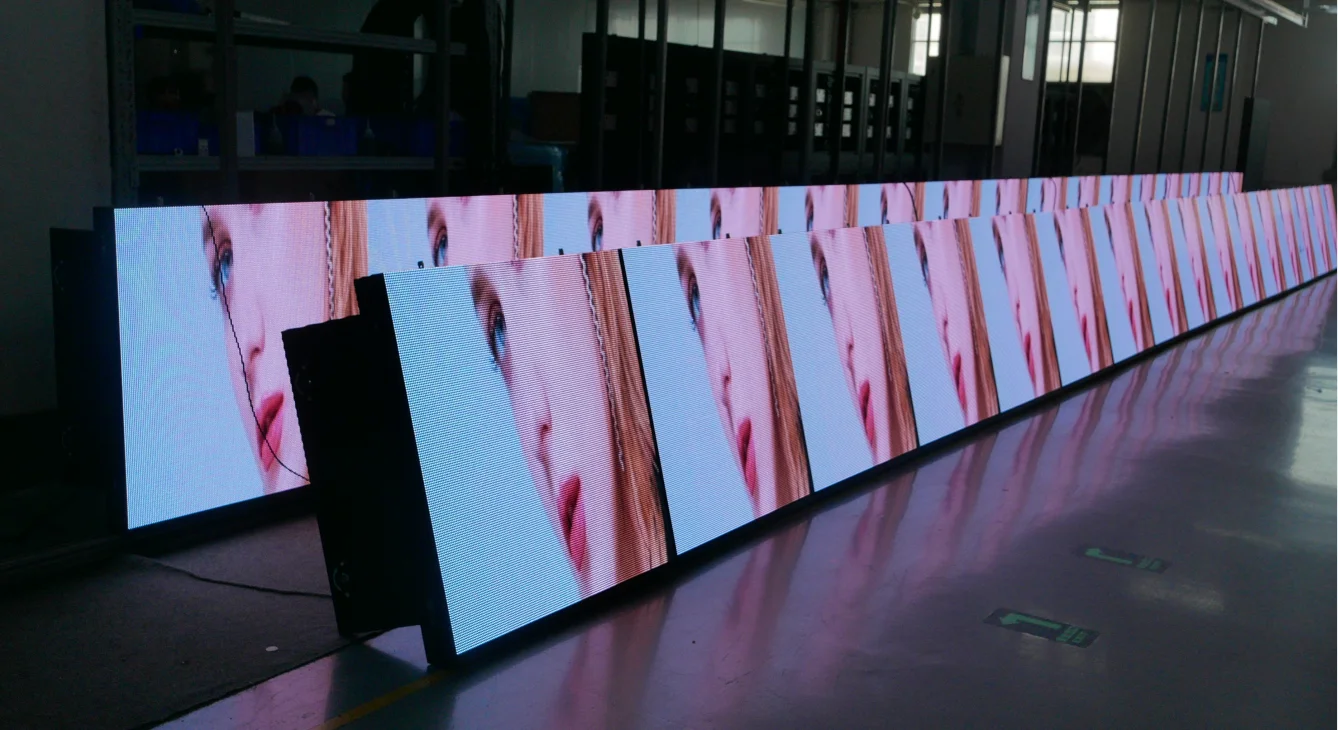

 Blue, Green Aging Test


blue test.jpggreen test.jpg








About Us
