Нейлоновый стальной трос pa6 pa12 с полиуретановым покрытием белый черный красный

Описание и отзывы

Трекер стоимости

Характеристики

Nylon pa6 pa12 pu coated white black red blue lucid ss coated steel wire rope cable





1.Product Name	Nylon pa6 pa12 pu coated white black red blue lucid ss coated steel wire rope cable
2.Material	ss304, ss316, galvanized steel ect.
3.Diameter Range:	0.3-32mm
4.Types of Cables:	Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope
5.Surface:	Bright, coated, galvanized, ect.
6.Features:	They are jacketed with a range of coatings including PVC, polypropylene and nylon. Special coatings such as vinyl, urethane and polyester are also available upon your request. These coatings efficiently protect the inner wire ropes from corrosion as well as reduce tear and wear of ropes and other rigging components.
7.Applications:	Used for wire drawing, weaving ,hose,wire ropes, filtration equipment, steel strand, spring, electronic instruments, medical treatment, Army use bulletproof, Anti-theft devices, Labor protection, Grain nail,etc





PRODUCT SPECIFICATION





The steel wire rope is coated with PVC plastic, which can be processed into different diameter according to your needs. The color of the coating is optional, transparent or different. PVC material is soft, and insulation flame retardant, can effectively protect internal steel wire rope. Structure Dia before coating (mm) Dia after coating (mm) Weight/100m(kg) BL (Kn) 1×7 0.27 0.38 0.04 0.08 1×7 0.4 0.50 0.09 0.13 7×7 0.5 0.60 0.14 0.21 7×7 0.6 0.80 0.18 0.30 7×7 0.8 1.00 0.32 0.53 7×7 1.00 1.20 0.47 0.56 7×7 1.20 1.50 0.72 0.81 7×7 1.50 2.00 1.20 1.27 7×7 2.00 2.50 1.96 2.25 7×7 2.00 3.00 2.50 2.25 7×7 3.00 4.00 5.00 3.52 7×19 4.00 5.00 8.20 8.33 7×19 5.00 6.00 12.30 13.03 7×19 6.00 8.00 19.84 18.76 7×19 8.00 10.00 32.81 33.35

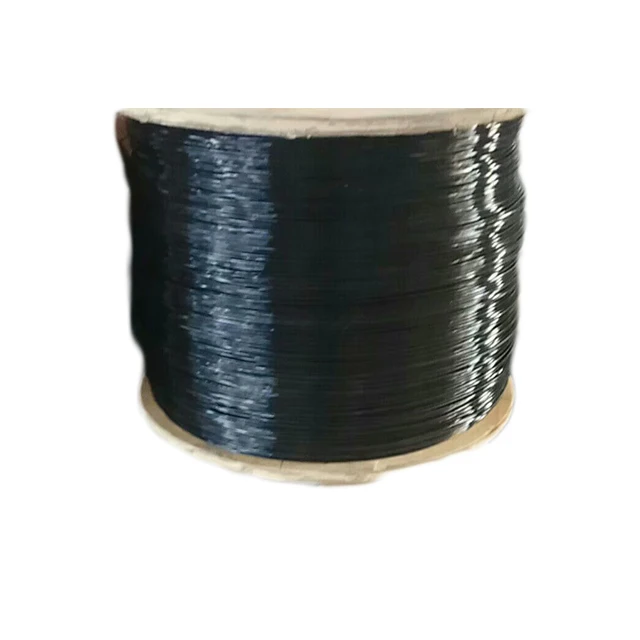

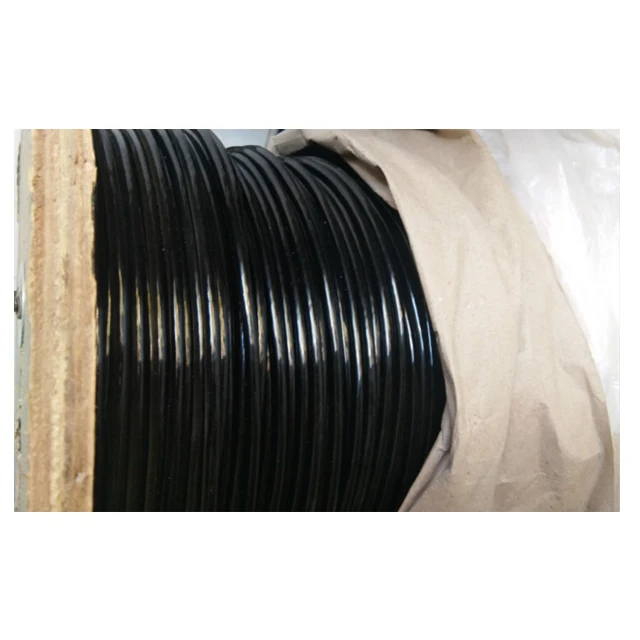

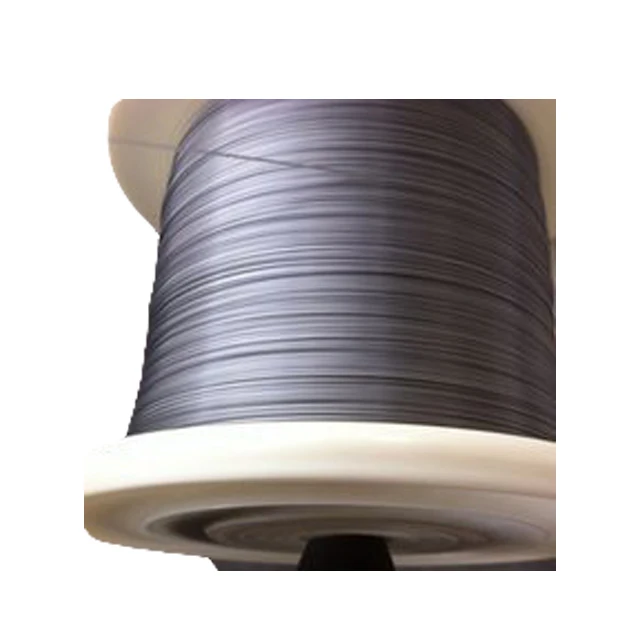

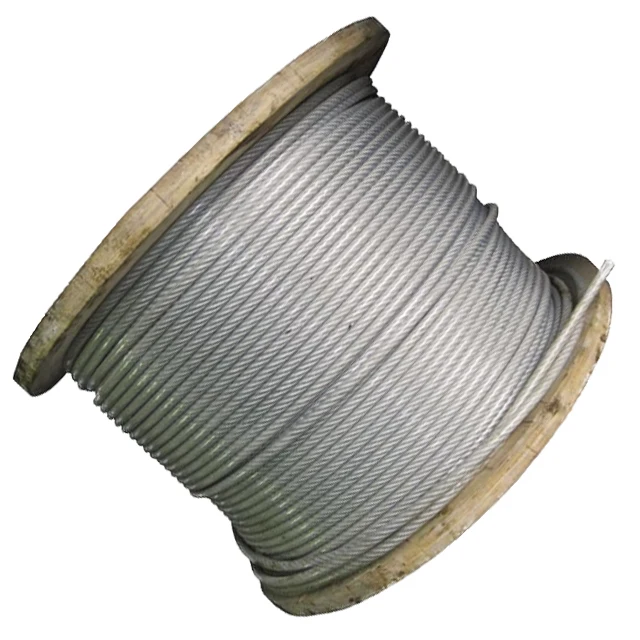

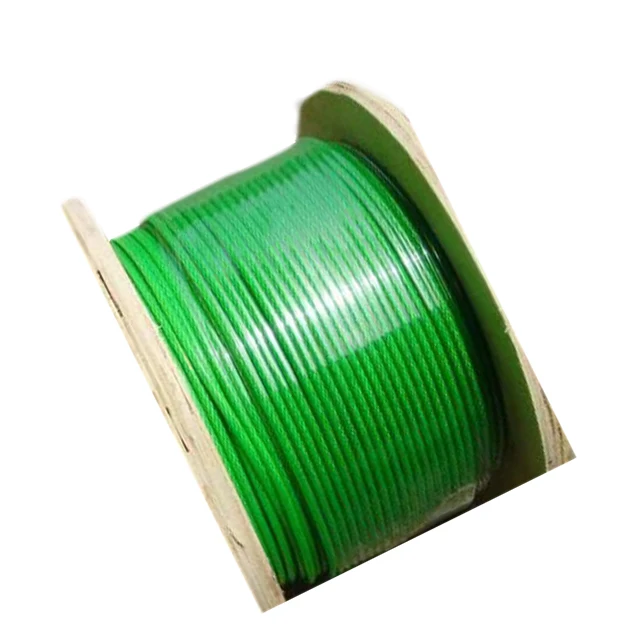

PRODUCT DISPLAY





















PRODUCT PROCESS



ABOUT US



     Xinghua Fanersheng Stainless Steel Products Co.,ltd was founded in 2004, located in Dainan Town, Xinghua City, Jiangsu Province, which is famous for stainless steel products. Our main products include: stainless steel wire rope, galvanized wire rope, coated wire rope, fishing wire rope, rigging wire rope, aircraft wire rope and wire rope fittings and rigging with different size and material.



    Our products are widely used in petroleum, chemical industry, light textile, fishery, construction, precision instruments and other industrial sectors. "Quality for survival, service for development" business philosophy. We sincerely invite friends from all over the world to visit and negotiate with our company.



Our advantages include:



1. Abundant products: more than 500 products can be purchased in one stop, mainly made of stainless steel and galvanized, and customized according to customer requirements.



2. Quality assurance: all products are guaranteed quality. For non-standard products, we strictly follow the requirements of customers.



3. Price advantage: one-stop production saves the middleman price



OUR CERTIFICATION







 FAQ







1.What is the MOQ?

 For wire rope, 100Kgs; For accessoires and other hardware, 100 pcs.



2.  How do you control quality?

We set wire-drawing, heat treatment, twisting, rope plastic coating, stamping and other in one-step production line, we mainly have 15 sets of high-speed wire drawing machines, 2 sets of automatic heat treatment lines, 10 stes of water tank wire drawing equipment, and over 20 sets of steel wire rope twisted strand rope equipment.



3. How can we get a sample?

For new customers, we will charge samples fee/express fee. But it will be refund after order.



4.How do I pay?

We accept 30% TT as deposit, the balance to be paid upon shipping documents.



5.What about the lead time?

Gernerlly in 10-15 days, for some unstandard goods, see as the qty.
