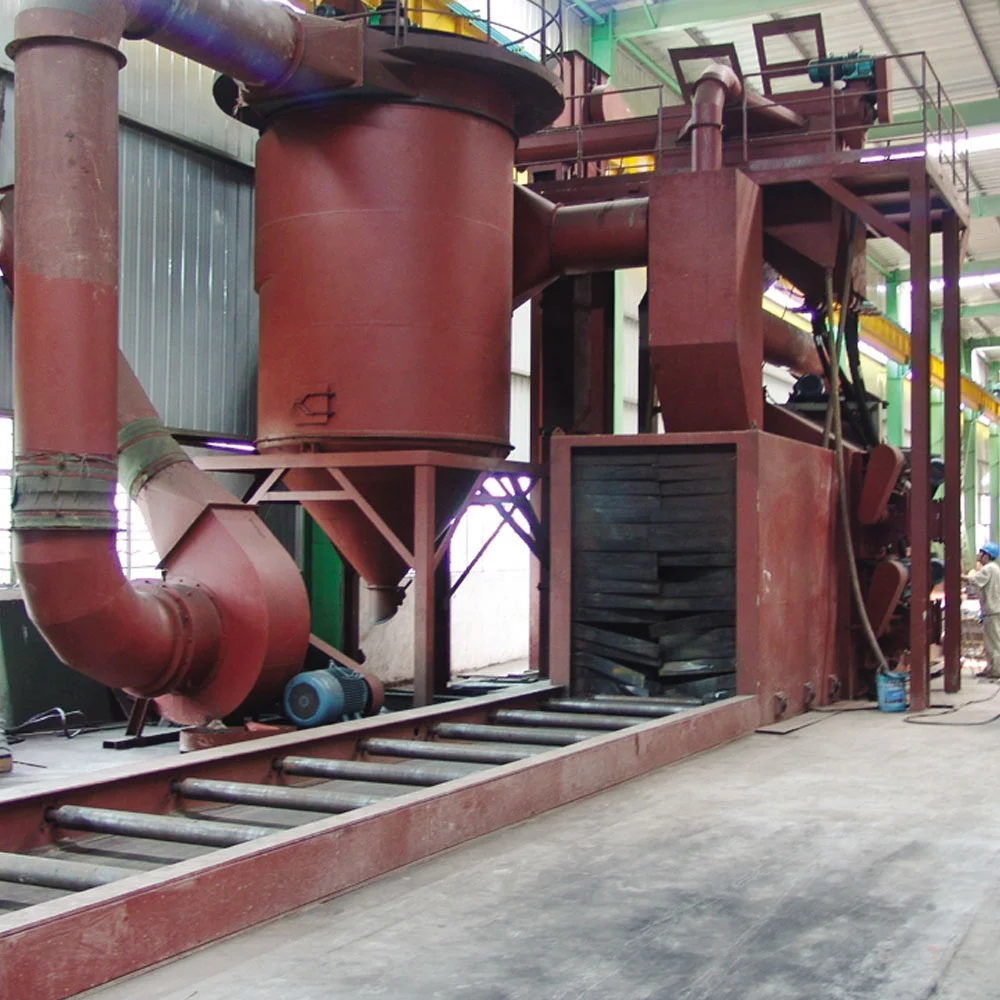

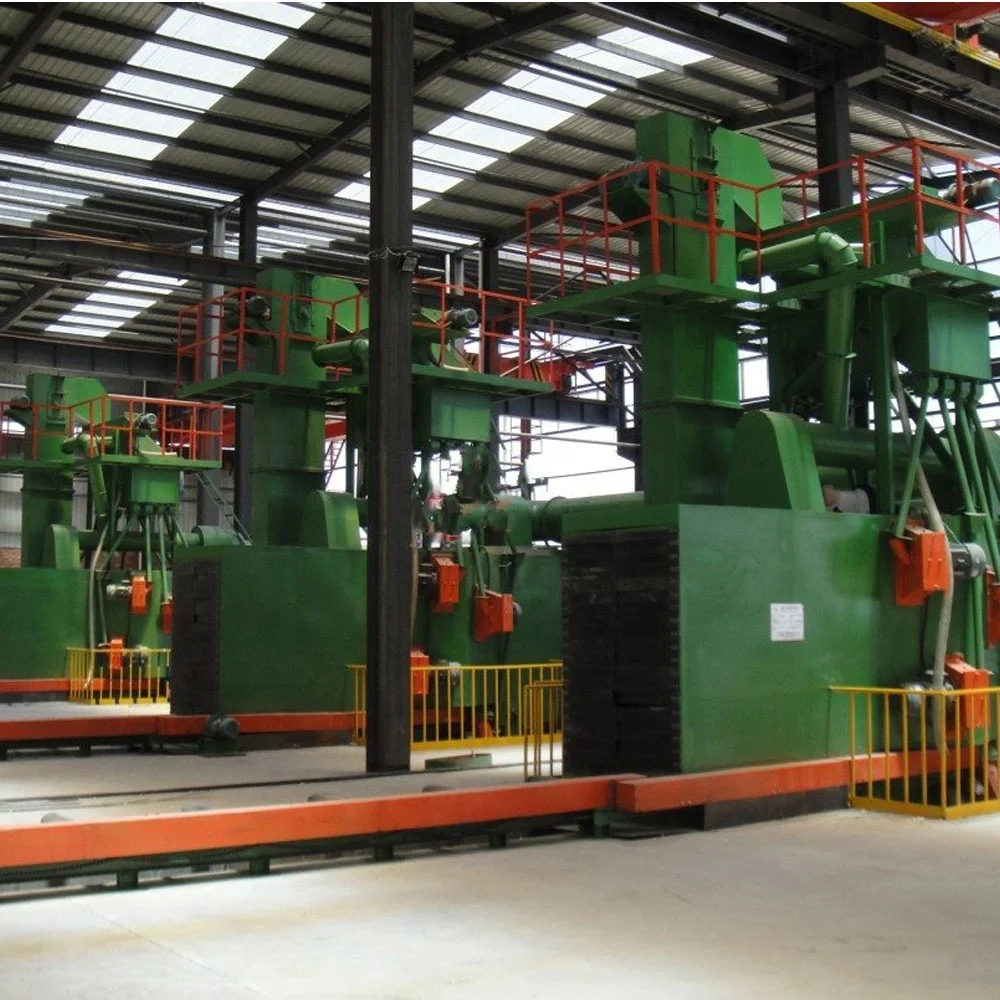

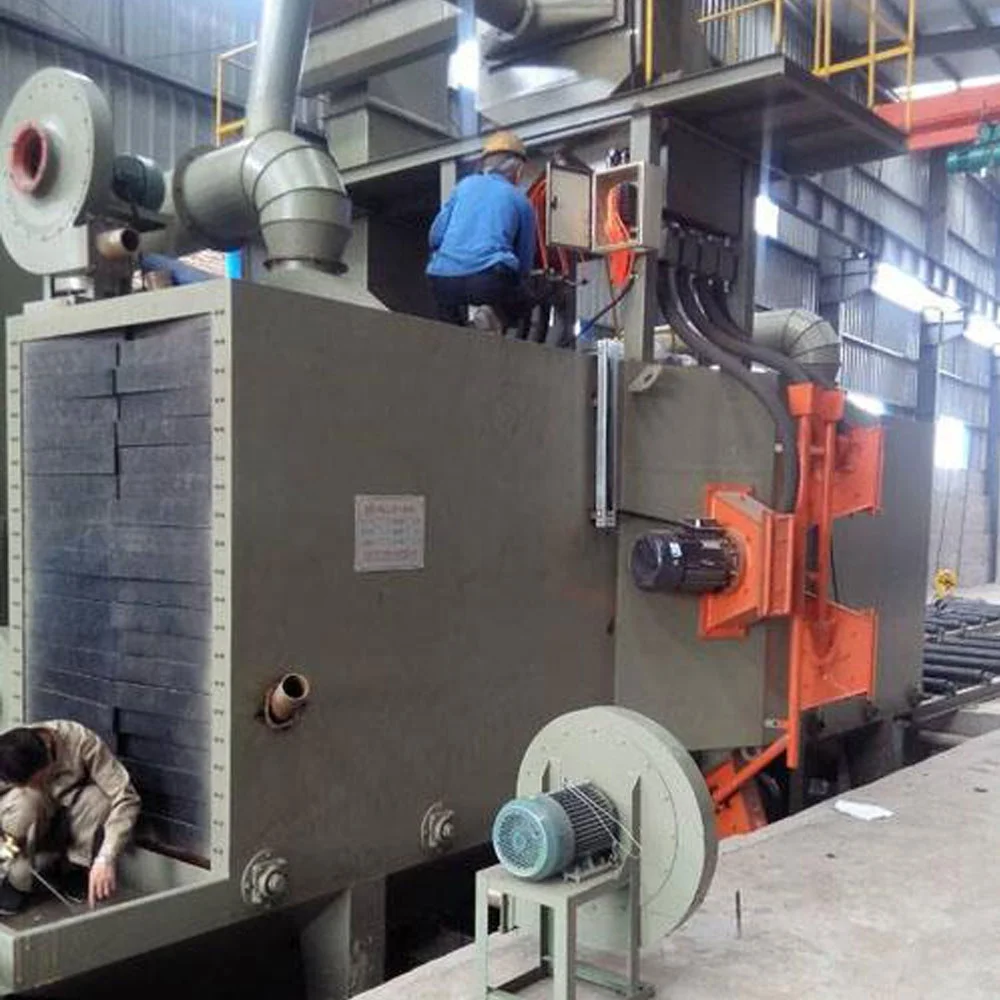

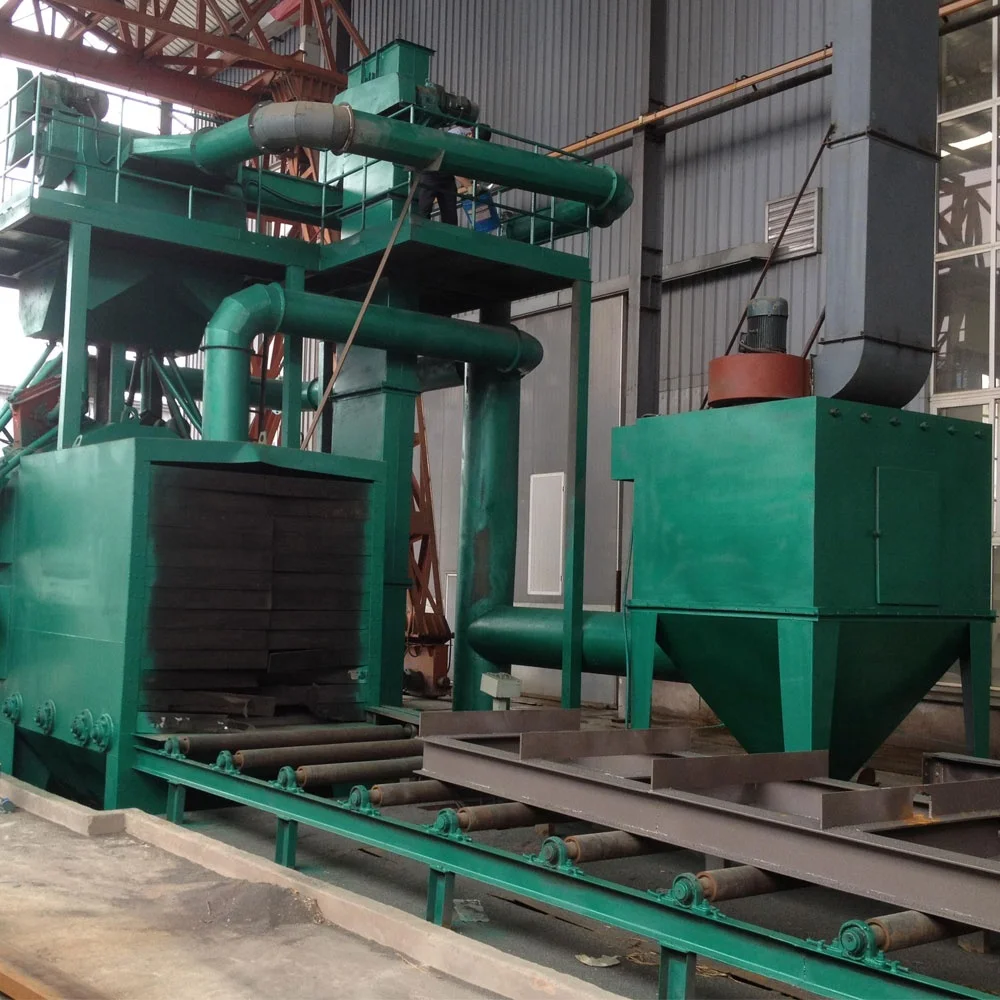

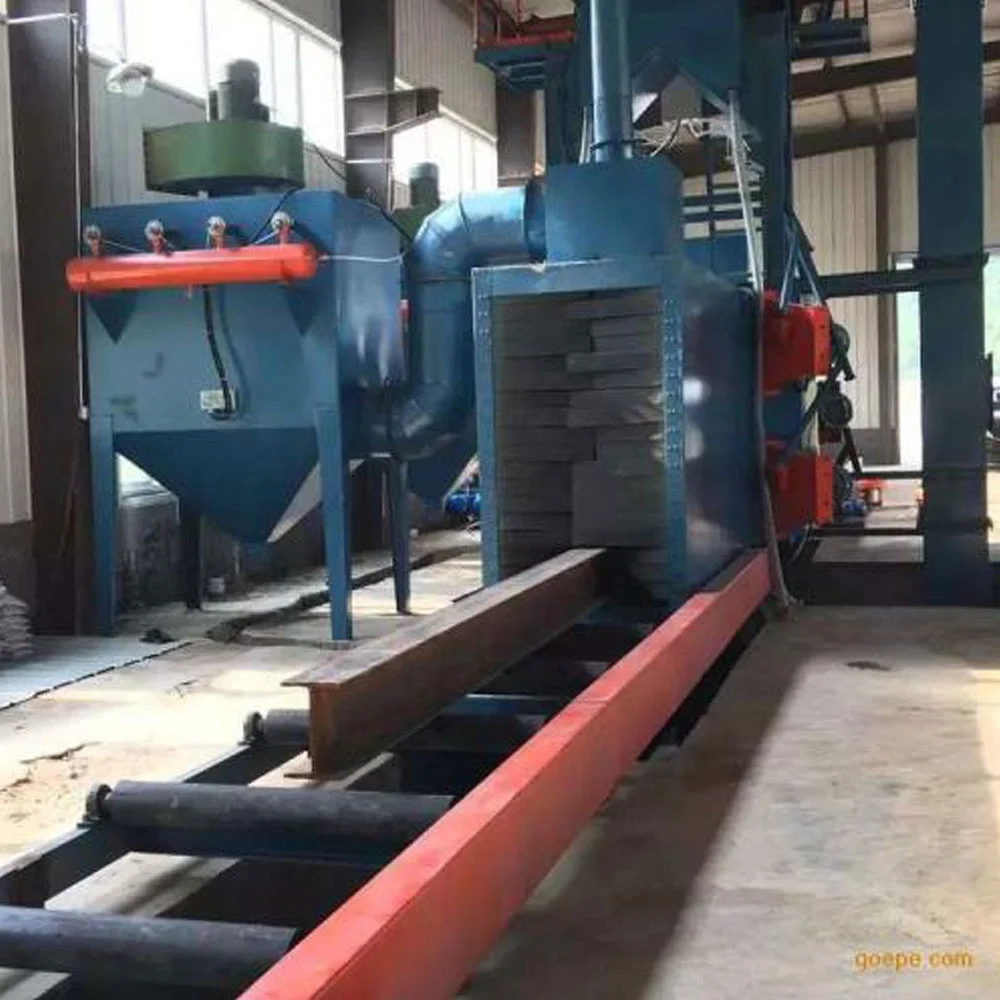

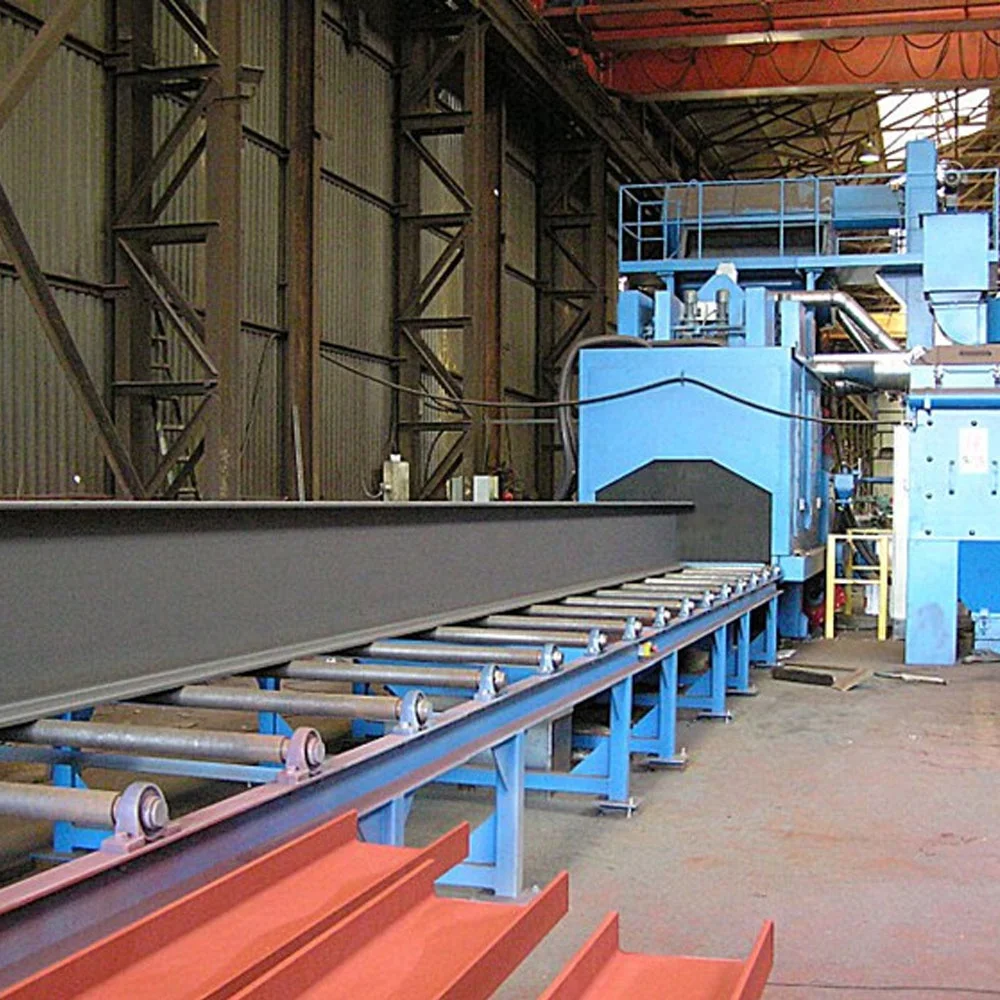

H beams and section steel shot blasting machine is generally used in the steel industry, engineering machinery, port machinery, mining machinery, chemical equipment, pressure vessels, traffic vehicles, ship bridges and construction profiles and other industries, shot blasting treatment is the workpiece before being processed, Its surface rust, strengthen the processing technology.

Structural shot blasting has the following advantages:

♦ Improve the corrosion resistance of mechanical products and metal profiles

♦ Improve the anti-fatigue properties of steel to extend its service life

♦ Optimize the surface of steel surface technology

♦ Greatly improve the efficiency of cleaning up

♦ Reduce the labor intensity of clean-up work

♦ Reduce environmental pollution





Features:

1.The whole roller conveyor system speed is adjusted by frequency converter. The whole system not only can be operated synchronously, but also every part can move separately. It can rotate forward and backward.
2. Rollers in blasting chamber are protected by special material jacket to prevent abrasive blasting.

3. Abrasive cleaning(patent)
First step cleaning:plough shape scraper,polyurethane material ,three layers ladder-like distribution,high efficiency.
Second step blow:high pressure blower will blow off abrasive and dust,Reserved compressed air additional blow pipeline is reserved.
4. We adopt the most advanced adjustable full curtain & multistage winnowing separator. Special Polyester wire core is used for elevator driving belt, Elevator driving wheel use mouse cage structure, preventing driving belt skidding. There are abrasive control device and replenish abrasive device. Every driving point has one alarm device.

5. This machine use inertia settlement chamber plus pulse reverse blow bag type dust collector. Dust concentration of exhausted air is less than 80mg/m3.
6. PLC control system.This machine has a visualized dynamic simulation monitoring system, which can automatically find the failure position and timing wear resistable parts operation time, which will give important information to calculate spare part service time and maintenance time.





Parameter:



Model	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
Cleaning Width (mm)	800	1200	1500	2000	2500	3000	4000
Inlet Opening (mm)	800*1600	1200*400	1500*400	2000*400	2500*800	3000*800	4000*400
Workpiece Length (mm)	1200*12000	1200-6000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
Cleaning Speed (Stepless Speed Regulation) (m/min)	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
Steel Plates Thickness (mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Abrasive Flow Rate (kg/min)	8*120	4*250	4*250	6*250	6*250	6*360	8*360
Abrasive Initial Filling (kg)	4000	4000	4000	4500	4500	8000	11000
Rolling Brush Height (mm)	200	200	350	450	600	850	900
Ventilation Capacity (m³/h)	22000	17560	19000	19550	22758	28050	38000
Total Power (Excluding Dedusting) (kw)	90	78.3	113.5	156.6	224.58	204.8	293.6



Qingdao JinRun Machinery Co., Ltd. is located in Qingdao West Coast Economic New Zone (formerly Jiaonan City). The company has convenient transportation and strong production strength. It is a high-tech industrialized entity integrating casting machinery, surface cleaning, sand treatment, coating production line and automation equipment research, development, production, operation, export and service. The company has strong research and development strength, advanced production technology, perfect testing methods, scientific management system, as a professional manufacturer of foundry machinery industry, ranked high-end level in the technical, quality and automation. Welcome customers from all over the world to visit and discuss cooperation.



1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. ODM&OEM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 10 years, competitive with good quantity.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products be finished in high quality and stable feature.



a.       How many days do you need to produce this machine?

It depends on your specific requirement. Some general equipment, we usually have stock. For other customized machines, it needs about 15 to 50 days from engineers designing to production completion.



b.       What does your factory do regarding quality control?

 We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before delivery. We try our best to ensure each machine is in good operation to our customers.



c.       What’s your machine quality guarantee?

 Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.



d.       Could you give installation and commissioning overseas? How long will it take?

 Yes, we supply overseas service, but customers need to pay for the engineers flight tickets, and hotel, food., etc.

Small machines usually takes 5 days, while large machines usually takes about 15 to 20 days.



e.       How can I trust you to deliver the right machine as I ordered?

 We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
