Оригинальный инструмент Xhorse V4.8.0 VVDI MB автомобильный ключевой программатор BGA инструменты для чтения и письма

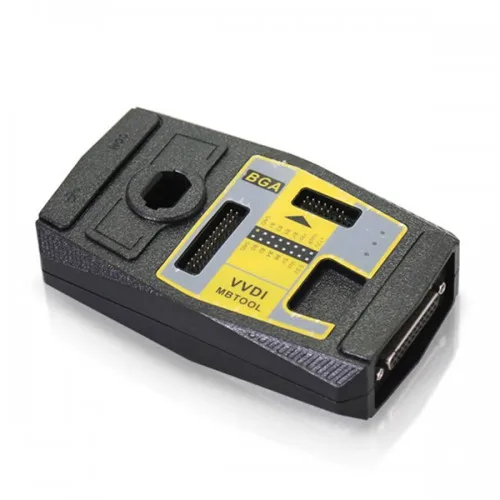

Latest V4.8.0 VVDI MB BGA Tool
1. Frequently update for more and more functions
2. Now support all key lost : W210, w204, w207,W166, W246, W212, W212(old),some W216, W164 2009- and some others
3. Mainly used for key reading and writing,EIS tools,password calculation,key file preparing,ESL tools,ECU/Gearbox renew and many special functions

Now support all key lost : W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,  W215, W220, W230 and some others.

Xhorse VVDI MB BGA TOOL Functions
1.support BE key,read password and prepare new key via IR.
2.NEC V051,V057 support on board get password
3.All NEC keys support on board write and erase
4.password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5.support renew EIS and ELV
6.support write EIS and ELV
7.support online generate key file
8.unlock ELV function

Attention:

1. Only when calculate the password, VVDI MB needs 1 token (for all key lost, needs 2 tokens). Other functions are free to use.

How to combine VVDI MB Tool and VVDI2 in Xhorse App?

Run upgrade kit, device connect to PC by USB cable, read device,
Select'Binding',customer will get QR code automatically,
Login Xhorse APP, enter 'Account'--‘Combine device’,
Then scan the QR code to combine to account.

Latest Technical details :

Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
NEW!—W204, W207 via infrared ALL KEYS LOST option
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

Keys version supported:
v03, v06, v08
v05, v07, v09
v59,v61

What keys/remotes are supported?
705 Moto 1997-2000
NEC  2001-2005
NEC  2006-2010
BGA   2011+

Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?
Describe step by step procedure

A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data-> save EIS data
2.read used EIS data enter password,get erase password->renew used EIS.
3.load step1 EIS data to renewed EIS with password->write EIS data
4.load EIS data(with key password)->prepare key file
5.input new key to device IR reader->load key file->write
6.insert new key to EIS->EIS will learn the new key->key learn success

by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).
then load eeprom to VVDI MB TOOL prepare key file.


Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me what to do?

A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:
1.Read EIS data via obd,then Save EIS data
2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3.Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)->Prepare Key File
6.Input new Key to device IR reader->Load Key file->write
7.Insert new Key to EIS->EIS will learn the new key->key learn success

Q:
What other accessories do I need to work with VVDI MB?

A:

• Tokens: needed when calculating a Key Password (Internet connection required)


• NEC Adapter: newer version of the NEC adapter that adds support for KeylessGo


• ELV (ESL) Adapter: optional adapter needed to unlock ELV and program keys to the W204 chassis


• ELV (ESL) Emulator: can replace a damaged ELV module


• Cables for MB: various cables needed when doing work away from the vehicle (not needed if you are with the vehicle)


• Gateway Adapter: needed when working on W164, W169, W209, or W211 chassis away from the vehicle (not needed if you are with the vehicle)


• VVDI Prog: optional module that adds EEPROM functionality

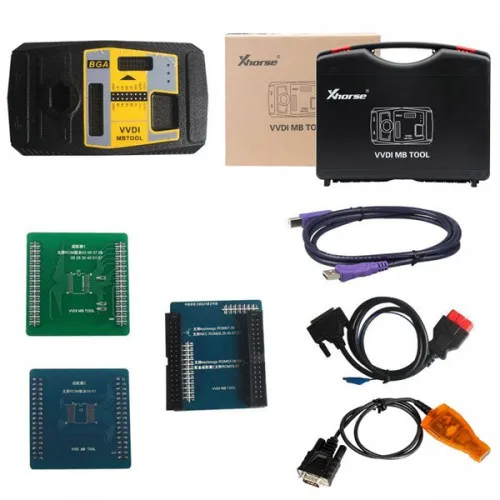

Package List:
