K-6124L MKII 27 МГц морской CB трансивер радио 6 диапазонов 240 каналов 4 Вт мощности
- Категория: Walkie Talkie >>>
- Поставщик: Shenzhen,Shenhuayang,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.38 $* | 0.95 $* |
| Aug-16-2025 | 0.73 $* | 0.25 $* |
| Jul-16-2025 | 0.95 $* | 0.28 $* |
| Jun-16-2025 | 0.81 $* | 0.82 $* |
| May-16-2025 | 0.93 $* | 0.70 $* |
| Apr-16-2025 | 0.17 $* | 0.75 $* |
| Mar-16-2025 | 0.58 $* | 0.7 $* |
| Feb-16-2025 | 0.14 $* | 0.32 $* |
| Jan-16-2025 | 0.7 $* | 0.37 $* |
Характеристики

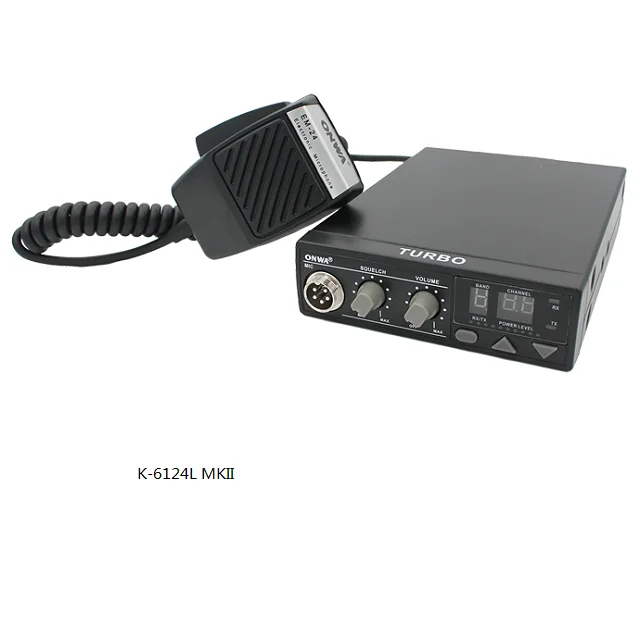

K-6124L MKII
27 MHz CB Transceiver
Specifications
6 BANDS 240 CHANNELS
- Light weight
- Slimline
- 4 W of transmit power, 5W max.
- Economical
CB transceiver, CB radio, Marine CB transceiver, Marine radio, 6 bands 240 channels, 4W of transmit power
FEATURE:
1) 6 bands 240 channels cb radio
2) Light weight
3) Slimline
4) 4W of transmit power, 5W Max.
5) Economical
SPECIFICATIONS
General
(1) Frequency Coverage | All 240 CB Channels 26.065 to 28.755 MHz |
(2) Modulation Mode | AM modulation (A3) |
(3) Antenna Impedance | 50 ohm |
(4) Power supply required | 12 16 VDC |
(5) Dimensions (WHD) | 124mm x 38mm x 190mm |
(6) Weight | 1.2 Kgs |
Receiver
(1) Sensitivity | 1.0 µV or better for 10dB S+N/N |
(2) Adjacent channel Rejection | 60dB (at 10KHz) greater than 70dB (for 20KHz) |
(3) Intermediate Frequency | 1st IF = 10.695MHz 2nd IF = 455KHz |
(4) Audio Output | 4.5 Watts max. |
(5) Frequency Response | 450 2500Hz |
(6) Cross modulation | 45dB or better |
(7) Squelch | Adjustable from 1.2 µV to 1 µV |
Transmitter
(1) Output Power | 4 watts nominal, 5 Watts max. |
(2) Modulation Capability | 80 90% |
(3) Spurious Radiation | 62dB or better |
(4) Frequency Tolerance | Better than 0.002% |
(5) Current Drain (13.8 V supply) | 1.3 Amps (no modulation) 2.0 Amps (full modulation) |
