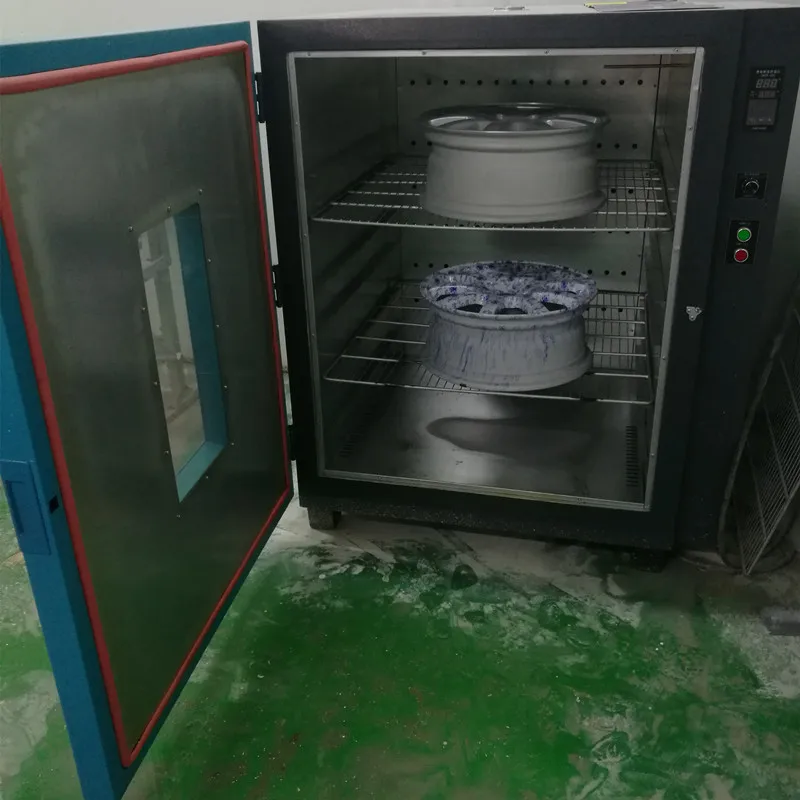

This is a self-developed by Gubot with intelligent temperature control. and the temperature can reach up to 300 ℃. Mainly used in wheels and headlights, featuring fast heating, high efficiency, low radiation and low consumption. It can put 6 wheels on the same time.
Product Advantages
1. The outer casing of the machine is made of high-quality steel plate, the surface is electrostatic sprayed, the inner liner is made of galvanized plate, the inner casing and the outer casing are filled with thermal insulation material, and the sealing door between the door and the body is made of silicone, and our wheel drying oven has a small window in the middle of the door. The window makes it easy to observe the contents of the box. 2. The heating unit is installed at the bottom of the working chamber. The forced air system consisting of the blower motor and the air duct circulates the hot air to the working chamber to achieve the desired uniformity in the working chamber. The exhaust gas is discharged from the top exhaust valve. 3. With heat preservation function, saving electricity and heating up quickly.
Specification
Items
Specifications
Model
GBT-KXA100
Liner size（H*W*L）mm
1000*800*800
Dimensions（H*W*L）mm
1290*1070*1065
Voltage / frequency
380V/220V/50HZ
Power
≤6 kw
Temperature range
25~250℃
Temperature accuracy
±1
Timing range（min or hour）
1~999
Power cable
No
Timed shutdown
Have
Partition
3 block
State of independent over-temperature protection
Automatic shut-down
Details Images
Packing list
Name
Unit
Qty
Smart oven
set
1
Instruction
piece
1
Warranty card
piece
1
Stencil
piece
3
Best material and stable performance

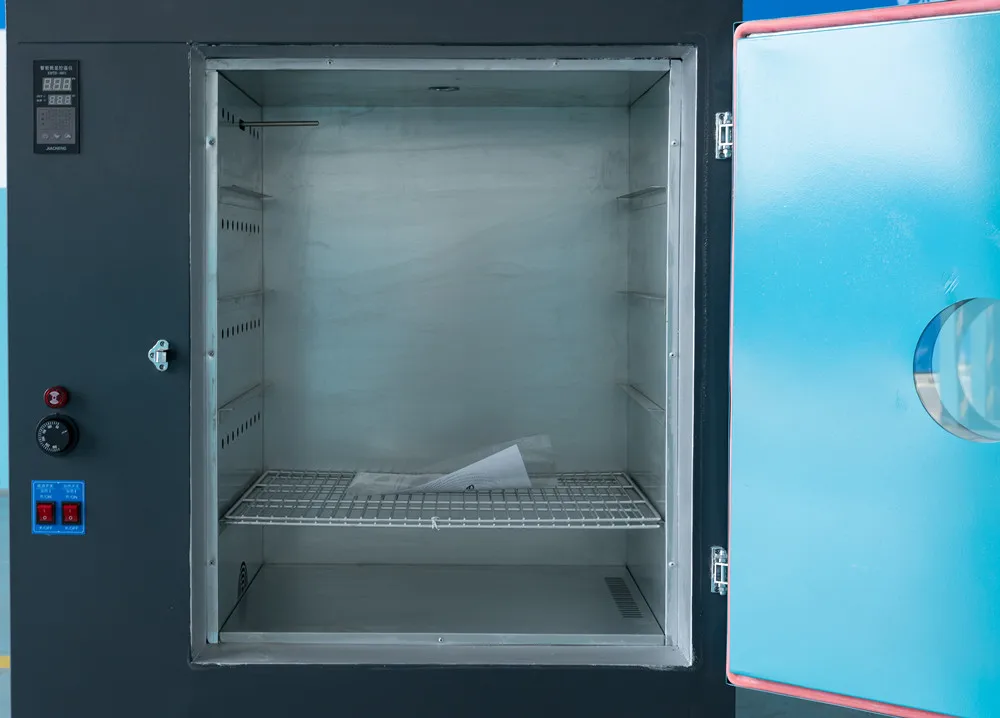

The outer shell is made of high-quality steel plate, the surface is electrostatically sprayed, the inner liner is made of galvanized sheet, and the outer casing is filled with thermal insulation material. The silicone sealing strip is used between the box door and the box body, which is safer to use and has a longer service life.
Recommend Products
Packing & Delivery
PACKAGE:
We use the wooden pack the machine and it will be very safe to ship.And the machine will not be damaged during transportation.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Company Profile
Adhering to Gubot's concept of excellent quality, Shanghai Gubot always regards high technology as the foundation of its founding, and continuously strengthens its technology research and development, providing customized production solutions and supporting services for nearly 2,000 domestic and overseas automotive aftermarket partners . As a high-tech enterprise, the company has nearly one hundred patents, and its products have covered most of China's provinces and cities, and have entered Europe, North America, Oceania and other countries and regions, and have been highly recognized and trusted by customers.
After sale service
How to provide training after buying machine?
1.Come to our company and get training: We provide free training in our company,and it only need 1 days to study because the machine is pretty easy to study.
2.Sending the training video: If you don't have time come to china, we will send a video training to you. You will know how to operate the machine according to the video. We have had 1000 customers studying our machine according to this video.
What should I do if the machine has problems?
We provide one year warranty to you. If the machine has any problems or need to change the spare parts, we will express it to you by DHL within 3 days.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is within 7 days if the goods are in stock.
Q: What is your terms of payment ?
A:After signing the contract, the down payment 30% deposit, before delivery to pay up.
Q：If the machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
Q: How do you provide train?
A: We will send wheel straightening machine B100 videos for you, this videos will teach you how to operate the machine, and you also can come to china and we will have professional engineer who teach you for free.
