Наборы электродвигателей скутеров с контроллером QS 12 дюймов 3000 Вт 80
- Категория: Motorcycle Motors >>>
- Поставщик: Taizhou,Sia,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.12 $* | 0.71 $* |
| Aug-18-2025 | 0.3 $* | 0.77 $* |
| Jul-18-2025 | 0.51 $* | 0.41 $* |
| Jun-18-2025 | 0.22 $* | 0.88 $* |
| May-18-2025 | 0.17 $* | 0.35 $* |
| Apr-18-2025 | 0.0 $* | 0.22 $* |
| Mar-18-2025 | 0.20 $* | 0.16 $* |
| Feb-18-2025 | 0.60 $* | 0.13 $* |
| Jan-18-2025 | 0.44 $* | 0.66 $* |
Характеристики

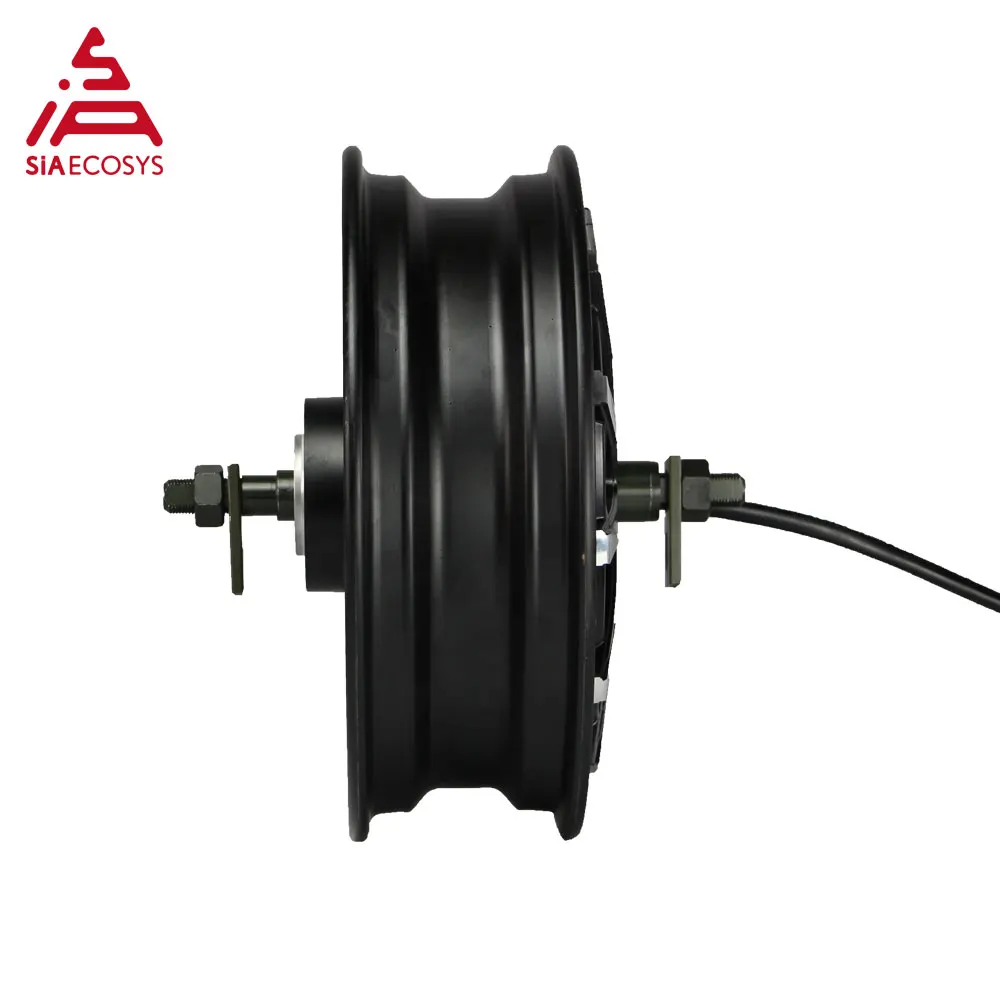

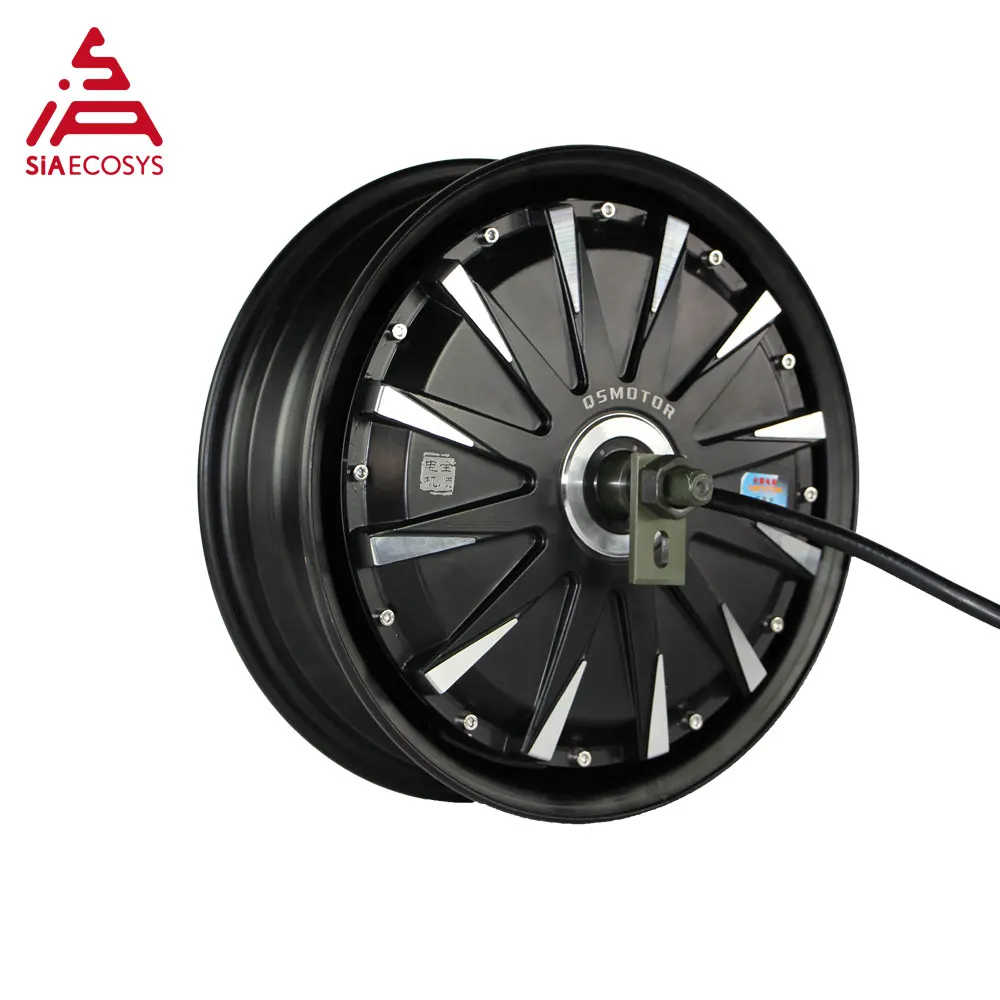

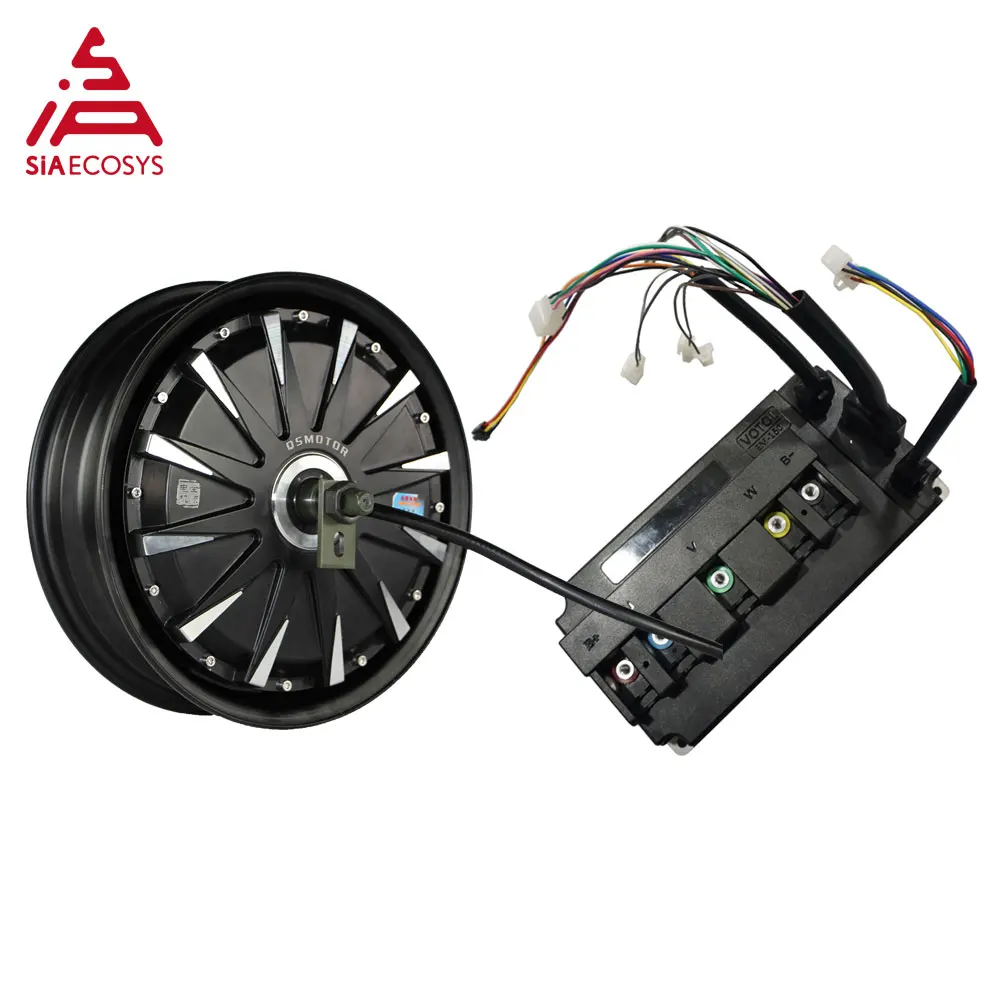

QS 12inch motor 3000W 80KPH Electric Scooter Motor KIts with Controller
QS Motor Specification
- Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
- Brand: QS Motor,QSMOTOR
- Motor Design: Double axle with 12inch moped rim (integrated)
- Rim size:12*3.5inch, match tire 120/60-12, 120/70-12
- Magnet Height: 40mm, 28 pole pairs
- Stator: Aluminum Core
- Rated Power: 3000W
- Speed(customizable):
- 70-80km/h @72v as default
- 60-70km/h @48v as default
- Max Torque approx 170N.m
- Thermic Probe: KTY83-122 (as default, optional)
- Max Efficiency approx 88%
- Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
- Drop-outs: 200mm
- Dual Halls with waterproof connectos(One for spare, in case of damage)
- 16mm² Phase Wire
- Waterproof Grade: IP54
- Color: Black (as default), Yellow or White/Luminous

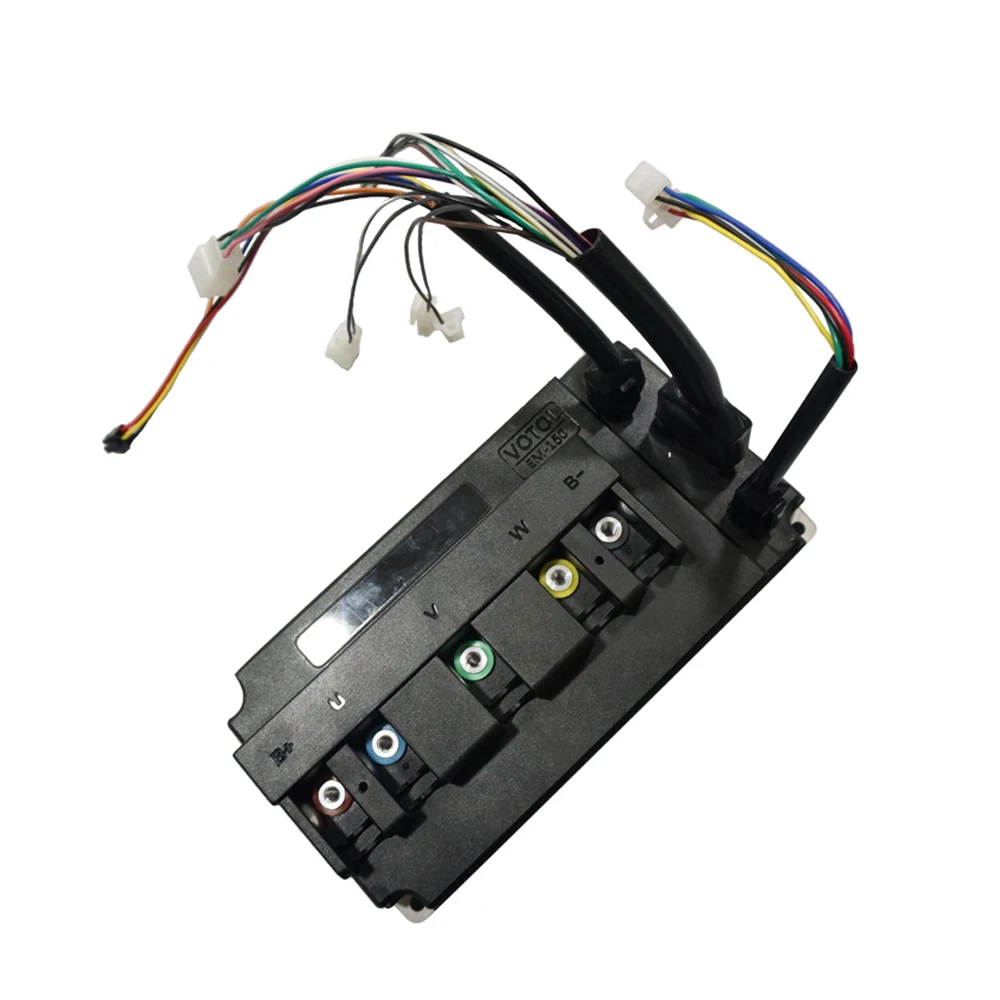

Specification for controller EM100SP
Pictures
More kits we can provide
How to Recommend you suitable motors?
To customized a suitable motor and power train, could you pls. inform below points:
1.E-bike, E-scooter, E-tricycle or E-car?
2.Weight of vehicle with battery, loading weight (weight with load only)?
3.Tire model/diameter?
4.Rated voltage and wattage of motor, Speed, and climb angle or torque @ what speed?
5.Battery nominal voltage, peak voltage and capacity, vehicle range?
6.Need CAN-BUS protocol or not?
7.Order forecast quantity/year?
Within your details information, we could make assessment and calculation accordingly for your project.
Application
Company Information
About US
SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.
Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.
SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.
Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.
SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
