Характеристики
Product Description

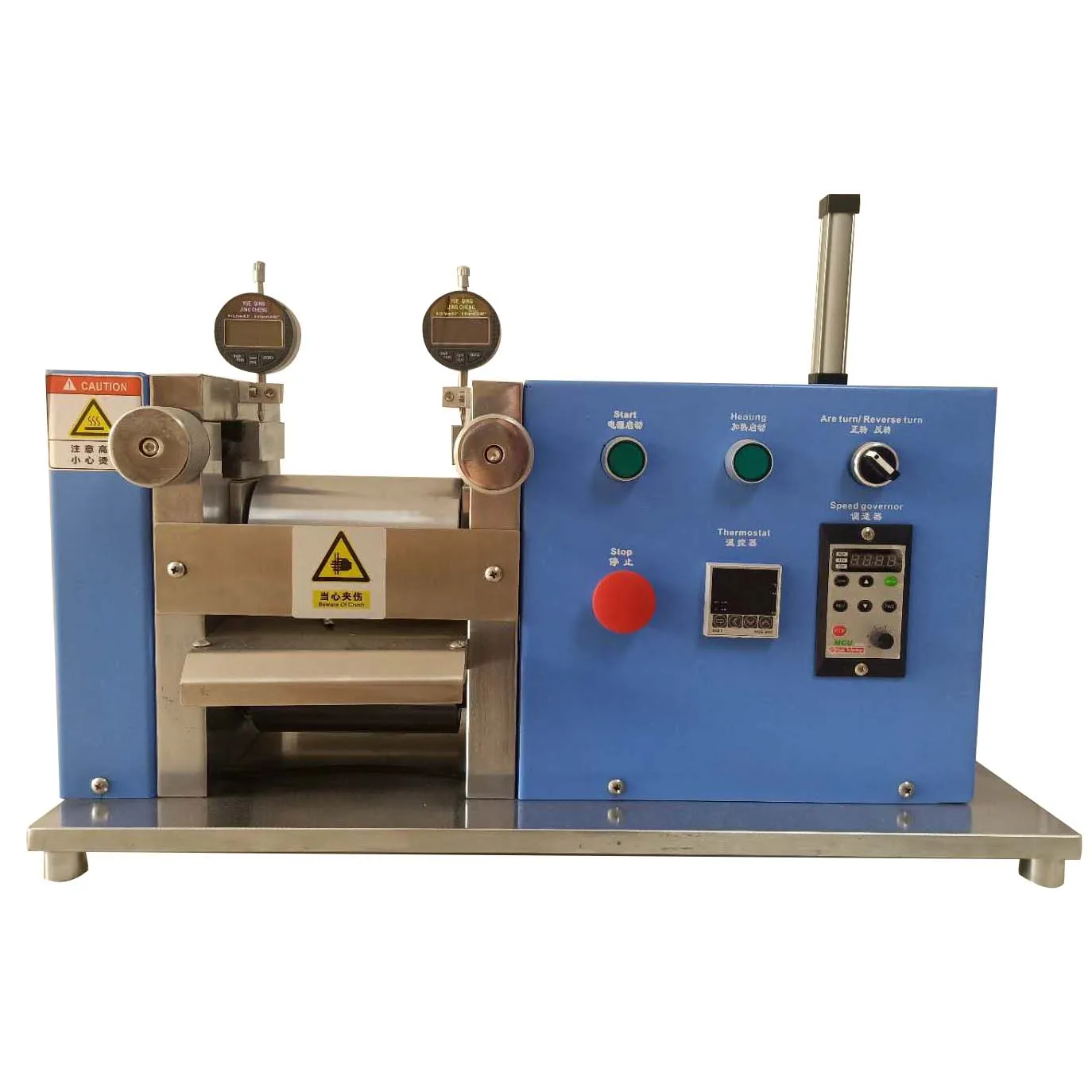

Electrode Lab Roll Press Machine for Li-Ion Battery Research
TMAX-JS is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.
Specifications
Model | Hot Roller Press Machine TMAX-JS | |
Source voltage | AC 110V-220V Customized, 50HZ | |
Power | 800W | |
Warranty | Two Year limited warranty with lifetime support | |
Roller temperature | 125°C Max. (< 1hr) 110°C Continuously Recommended Heating Rate: 1.3°C/minute, adjustable and digital display | |

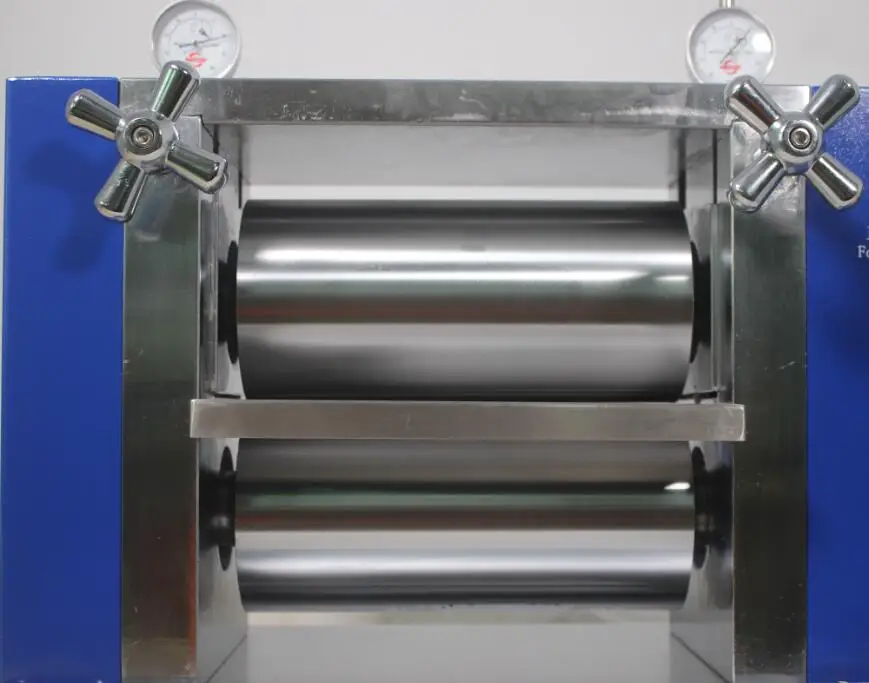

Roller Size | 100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 250mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W (Roller Size can be customized according to customer’s requirement) | |
Roller surface hardness | HRC62 | |
Rolling Speed | 0~40mm /sec adjustable | |
Minimum Thickness | Depends on original electrode's material and thickness. Typically: 0.16mm thick electrode coated on copper, min. thickness after pressing: 0.1 mm 0.06mm thick electrode coated on copper, min. thickness after pressing: 0.04 mm 0.33mm thick silver/gold, min. thickness after pressing: 0.03 mm | |
Dial Gauge Accuracy | 0.01mm | |
Roller finish degree | >0.8 | |
Calendering Thickness | 0~3 mm adjustable | |

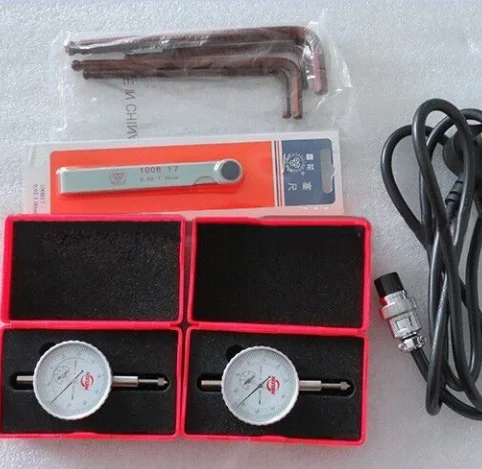

Accessories | 1 “Dial gauge”-2pcs
|
2 “Customized power plug”-1pcs
|
3 “Socket head wrench”-1set |
4 “Feeler gauge”-1pcs
| |

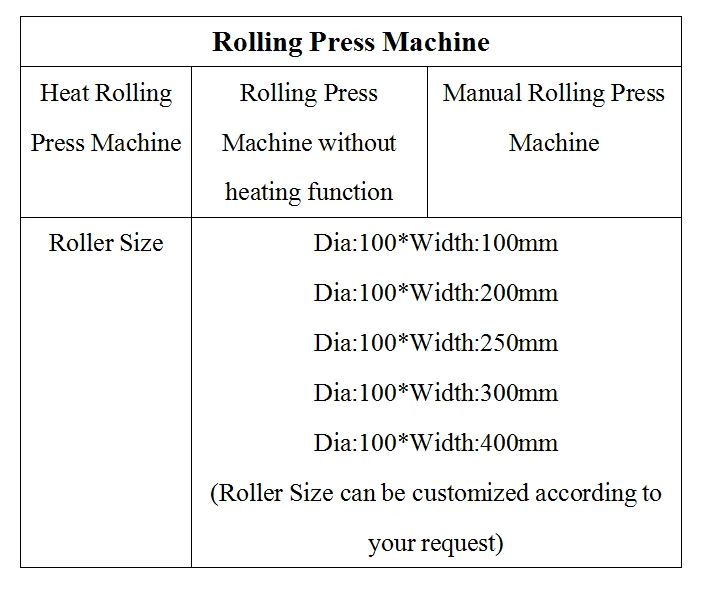

Optional Roller Size

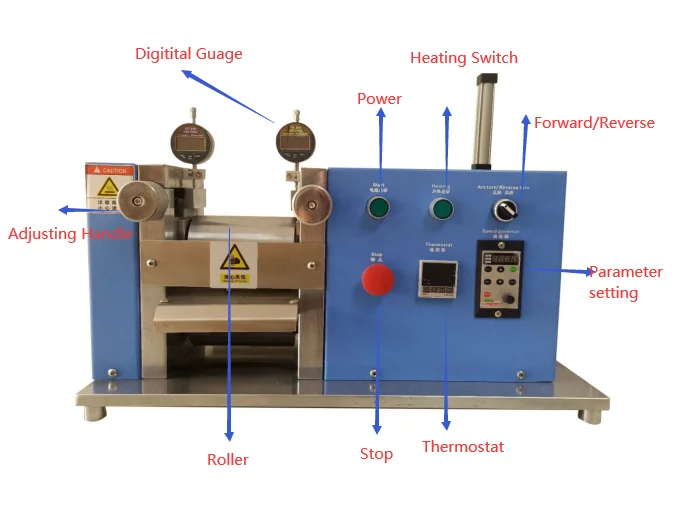

Product Images
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
